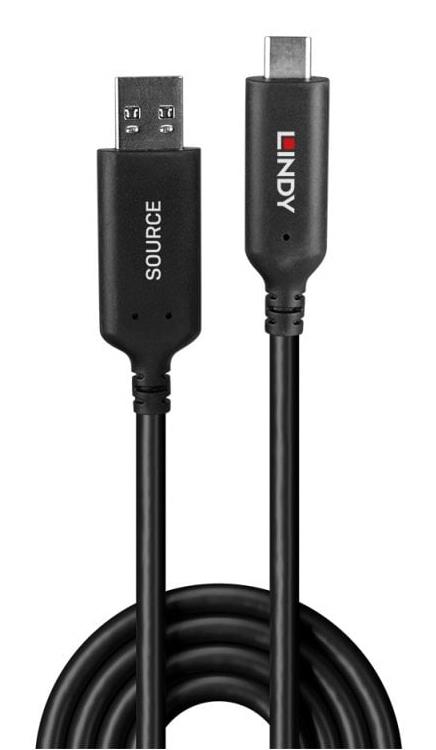

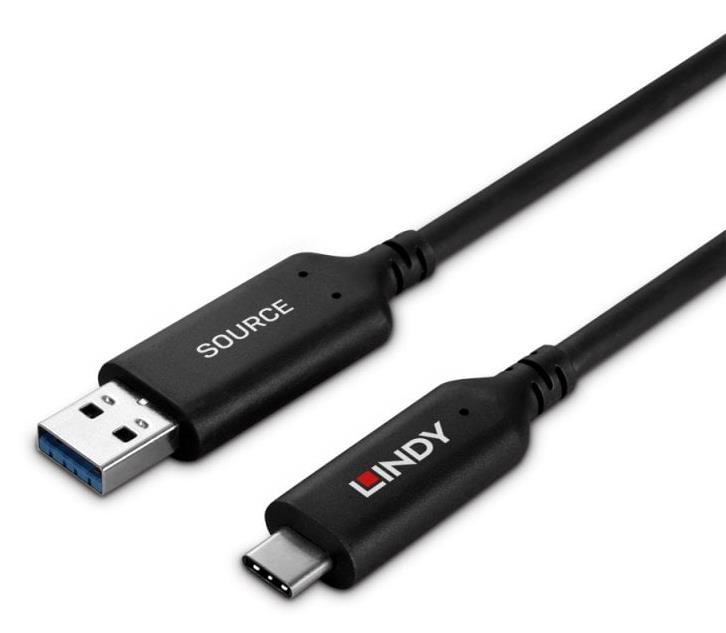

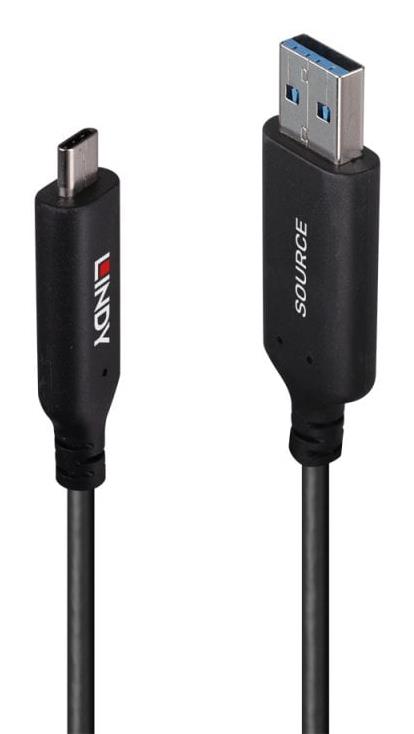

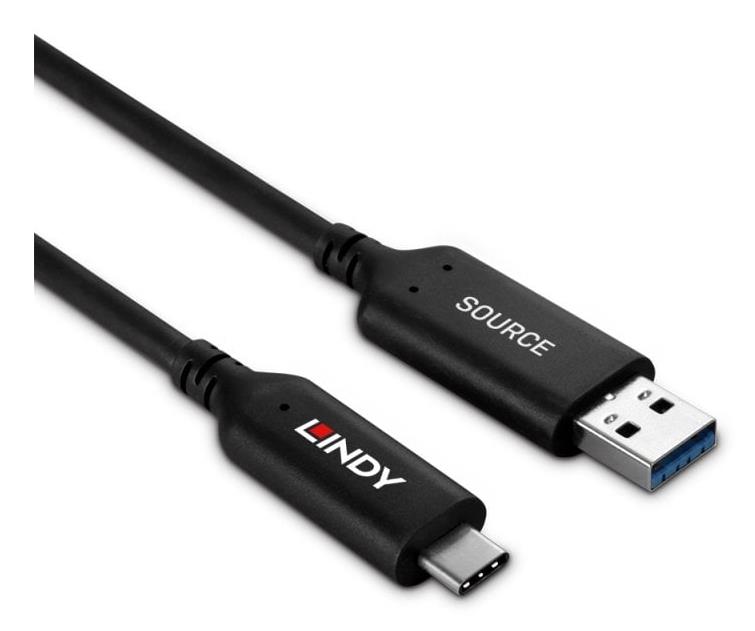

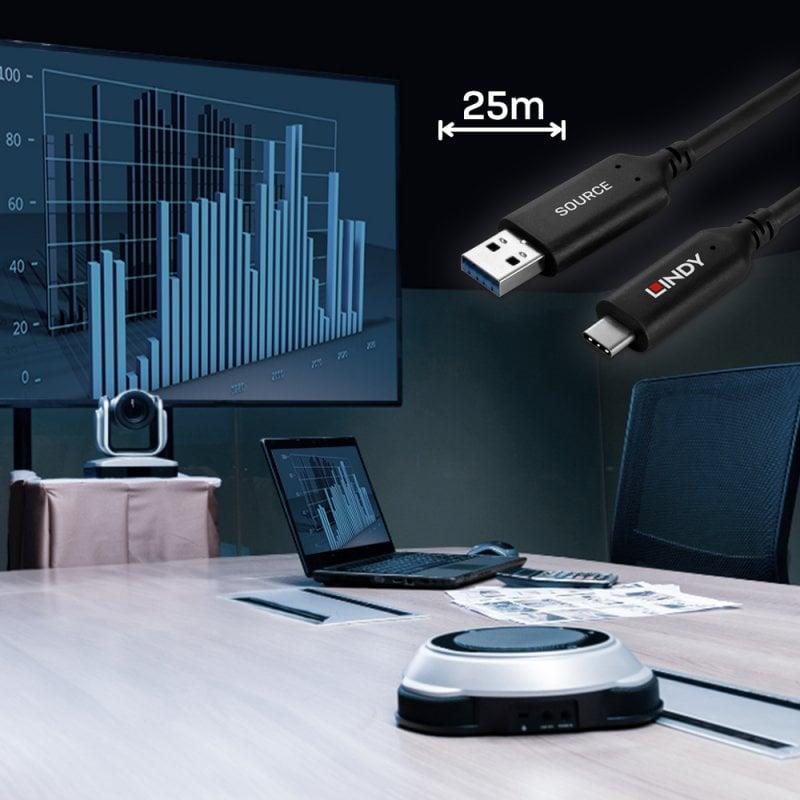

The Lindy USB 3.2 Gen 1 Type A to C Hybrid Cable allows to deploy a USB Type C device up to 25m away from the computer whilst retaining SuperSpeed transfer rates of up to 5Gbps . It is typically used in meeting rooms and with video conference systems or webcams, which have their own power supply i.e. the Logitech Rally Camera.
This cable is designed for installation in walls, cable trays and through conduits. Aramid fibers ensure a robust cable structure and provide unparalleled strength and durability. The cable is CPR-certified, which means that the cable meets stringent fire safety regulations. Designed with low Radio Frequency Interference (RFI) and Electromagnetic Interference (EMI), this cable is suitable for sensitive environments where signal integrity is paramount.
Please note that this cable only works with self-powered devices and USB hubs with external power supplies.
- 10m Active Optical USB 3.2 Gen 1 Cable, backwards compatible with USB 2.0
- Supports transfer rates up to 5Gbps, backwards compatible with USB 2.0 devices
- Aramid fibers for a robust cable structure
- Low RFI/EMI for sensitive environments
General
| Unit Calculated Weight | 1.16 kg |
| Unit Calculated Volume | 0.003981 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Lindy 25m USB 3.2 Gen 1 Type A to C Fibre Optic Hybrid Cable. Cable length: 25 m. Connector 1: USB A, Connector 2: USB C, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Connector contacts plating: Nickel, Product colour: Black, Magnetically shielded |
| Unit Box Height | 0.245 |
| Unit Box Length | 0.25 |
| Unit Box Width | 0.065 |
| Model name | 25m USB 3.2 Gen 1 Type A to C Fibre Optic Hybrid Cable |
| Model | 43396 |
Weight & dimensions
| Bend radius (min) | 12.5 mm |
| Cable length | 25 m |
| Connector 1 dimensions (WxDxH) | 47.5 x 8.2 x 18.5 mm |
| Connector 2 dimensions (WxDxH) | 45 x 8.2 x 14.5 mm |
| Weight | 1000 g |
Features
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Cable type | Round cable |
| Connector 1 | USB A |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | USB C |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel |
| Magnetically shielded | Yes |
| Maximum data transfer rate | 5 Gbit/s |
| Plug and Play | Yes |
| Power consumption | 1.5 W |
| Product colour | Black |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
Packaging data
| Package depth | 240 mm |
| Package height | 65 mm |
| Package weight | 1180 g |
| Package width | 240 mm |
Packaging content
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
Operational conditions
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -30 - 75 °C |
Certificates
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
Logistics data
| Warranty period | 2 year(s) |
Other features
| Packaging content | 25m USB 3.2 Gen 1 Type A to C Hybrid Cable Lindy manual |
