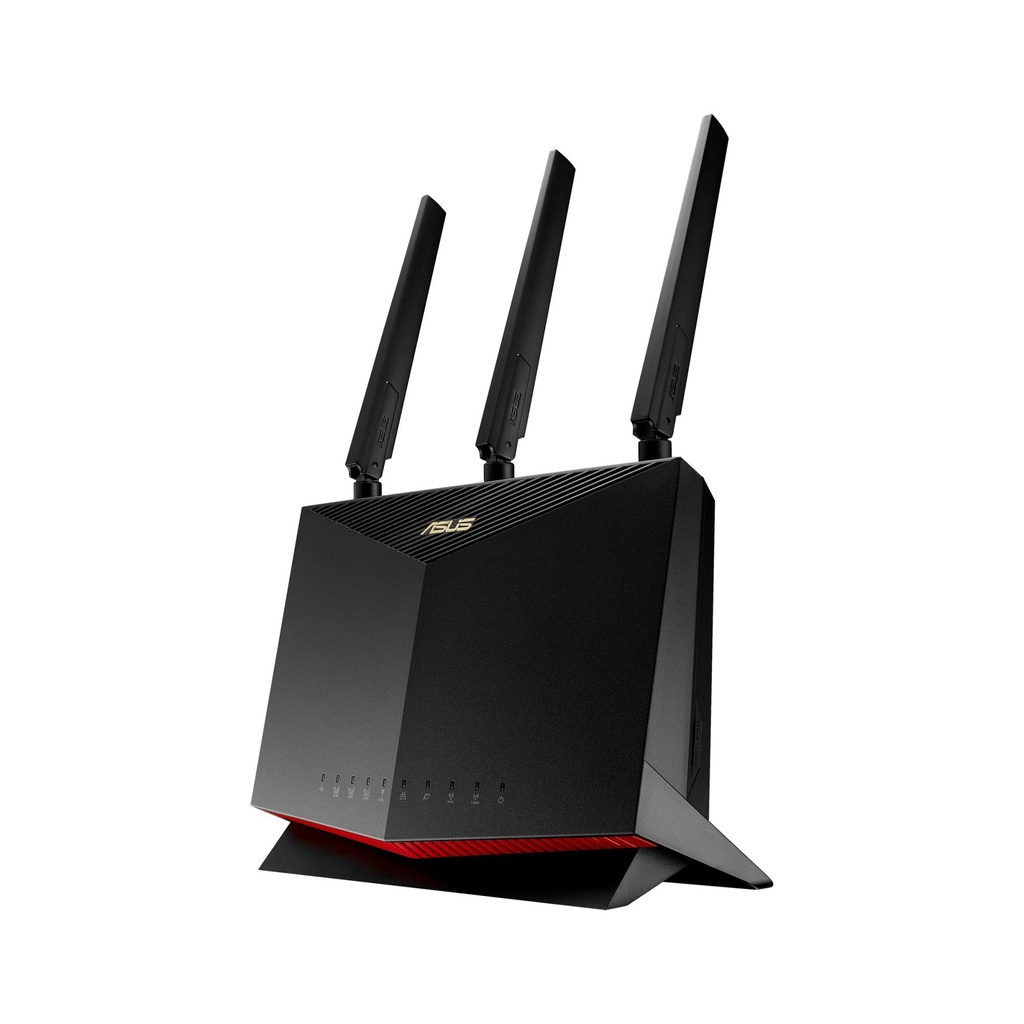

ASUS Wireless Router 2600 Mbps Wi-Fi 5 USB 2.0 1 WAN 4x10/100/1000M Number of antennas 4 4G-AC86U
General
| Unit Calculated Weight | 1.96 kg |
| Unit Calculated Volume | 0.01139 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Summary | ASUS 4G-AC86U. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 2533 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Mobile network generation: 4G, 3G standards: UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: WPS, NAT functionality: PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay |
| Unit Box Height | 0.115 |
| Unit Box Length | 0.355 |
| Unit Box Width | 0.235 |
| Model name | 4G-AC86U |
Wireless LAN features
| Modulation | 256-QAM |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 800 Mbit/s |
| WLAN data transfer rate (max) | 2533 Mbit/s |
| WLAN data transfer rate (second band) | 1733 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | Yes |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| WAN connection type | RJ-45 |
Network
| Built-in FTP server | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Media server | Yes |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Port forwarding | Yes |
| USB sharing | Yes |
| VPN Passthrough | Yes |
| VPN support | Client L2PT, Client OVPN, Client PPTP, ServerOVPN, Server PPTP |
Mobile network
| 3G | Yes |
| 3G standards | UMTS |
| 4G | Yes |
| 4G standard | LTE-TDD & LTE-FDD |
| 5G | No |
| Mobile network generation | 4G |
| SIM card type | NanoSIM |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
Management features
| Bandwidth control | Yes |
| MU-MIMO technology | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Wake-on-LAN ready | Yes |
| WPS push button | Yes |
Security
| DMZ support | Yes |
| Firewall | Yes |
| Guest access | Yes |
| IP address filtering | Yes |
| MAC address filtering | Yes |
| NAT functionality | PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay |
| Network address translation (NAT) | Yes |
| Parental control | Yes |
| Schedule access | Yes |
| Security algorithms | WPS |
| System event log | Yes |
| URL filtering | Yes |
Protocols
| DHCP server | Yes |
Design
| LED indicators | LAN,LTE,Power,USB,WAN,WLAN |
| On/off switch | Yes |
| Product colour | Black |
| Product type | Tabletop router |
Packaging content
| AC adapter included | Yes |
| Antenna included | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Warranty card | Yes |
Antenna
| Antenna design | Internal & external |
| Antenna gain level (max) | 3 dBi |
| Antennas quantity | 6 |
| Detachable antenna(s) | Yes |
Features
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Works with Amazon Alexa | Yes |
Power
| Power source type | DC |
Weight & dimensions
| Weight | 797 g |
Logistics data
| Harmonized System (HS) code | 85176990 |
