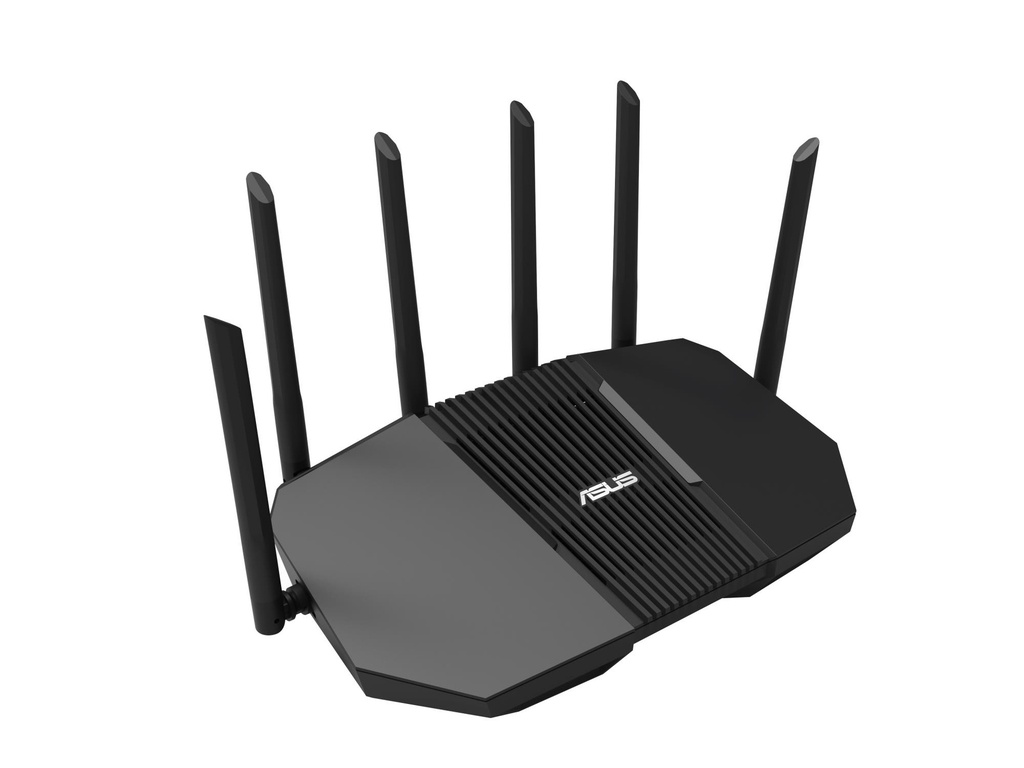

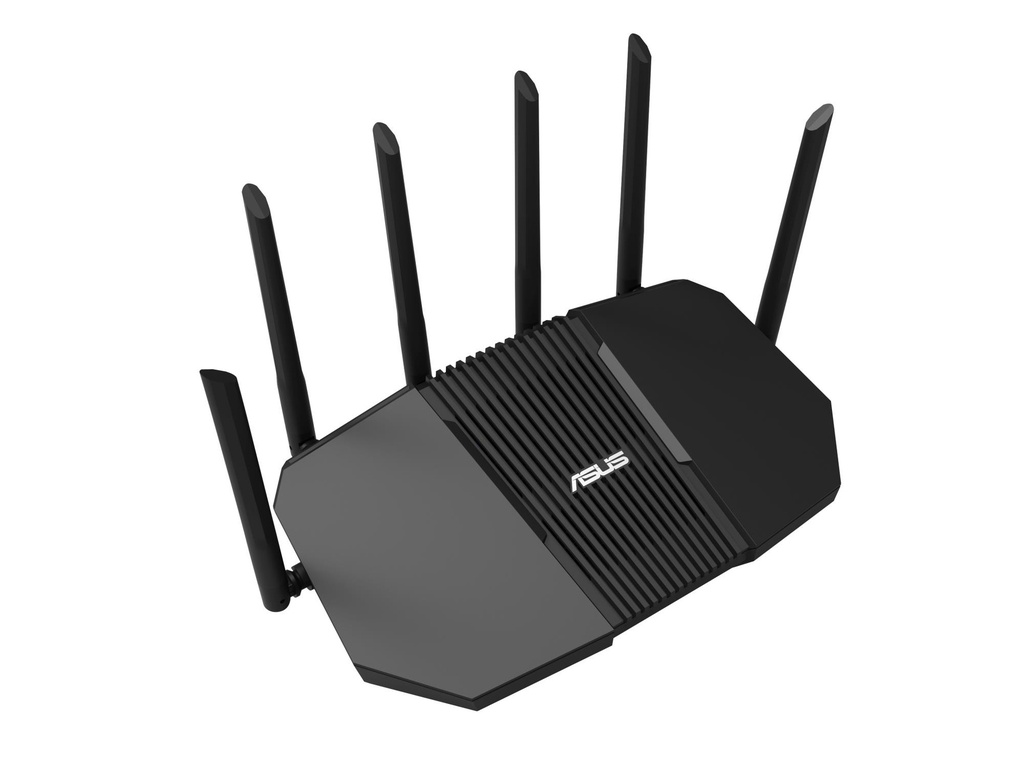

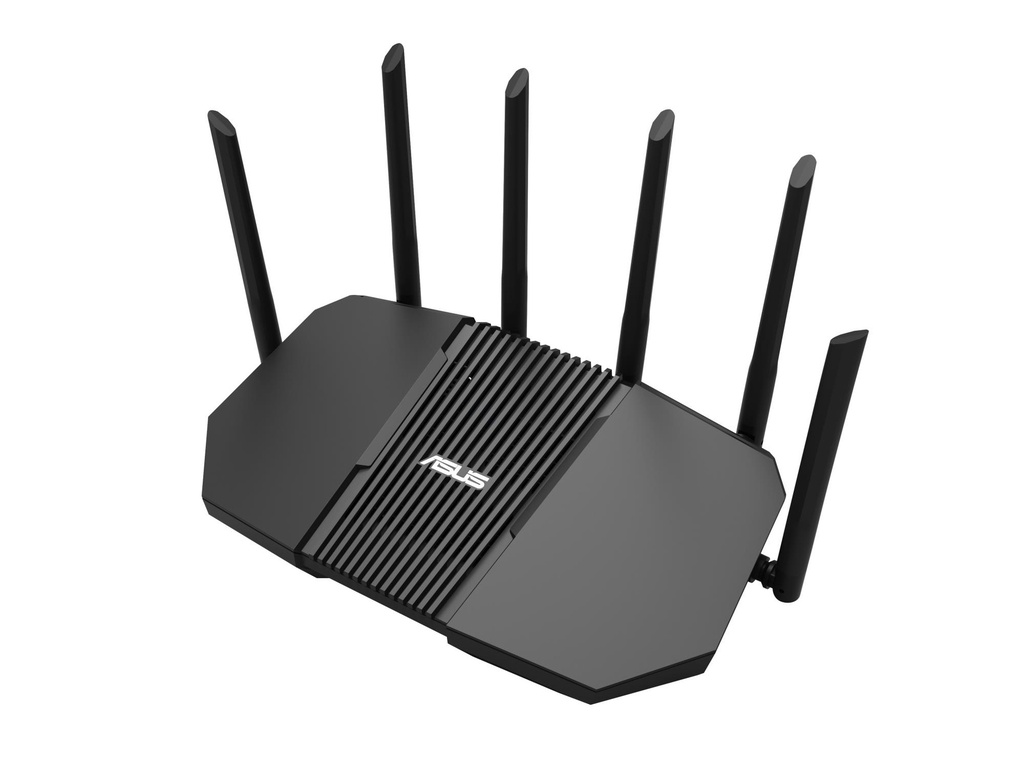

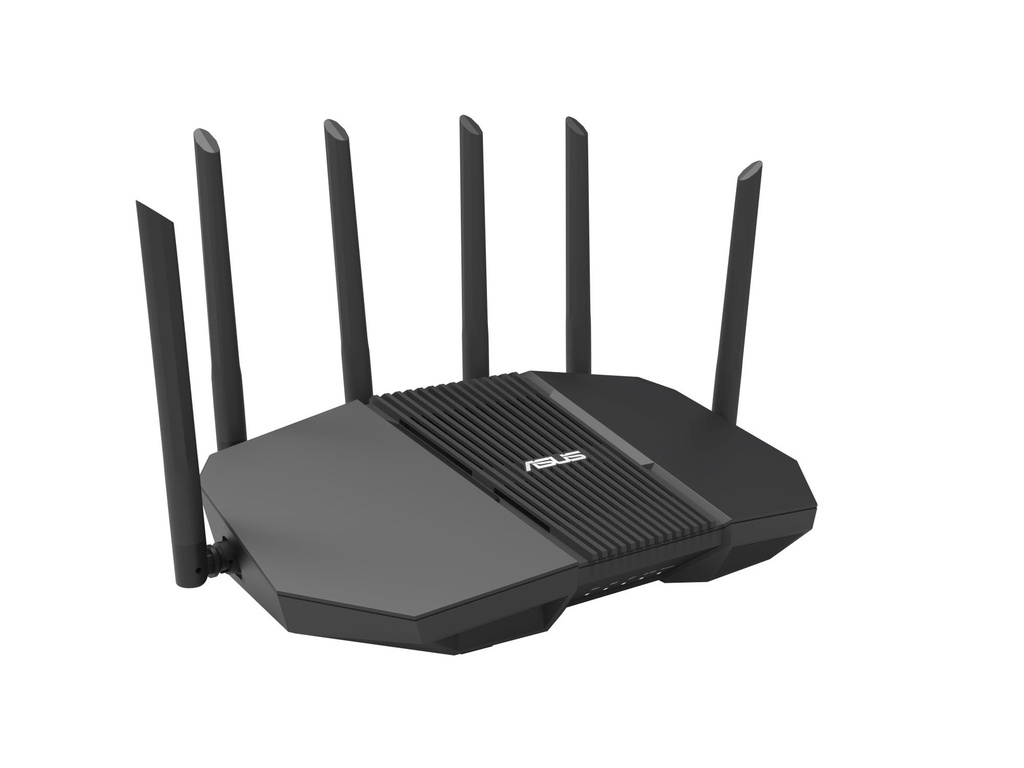

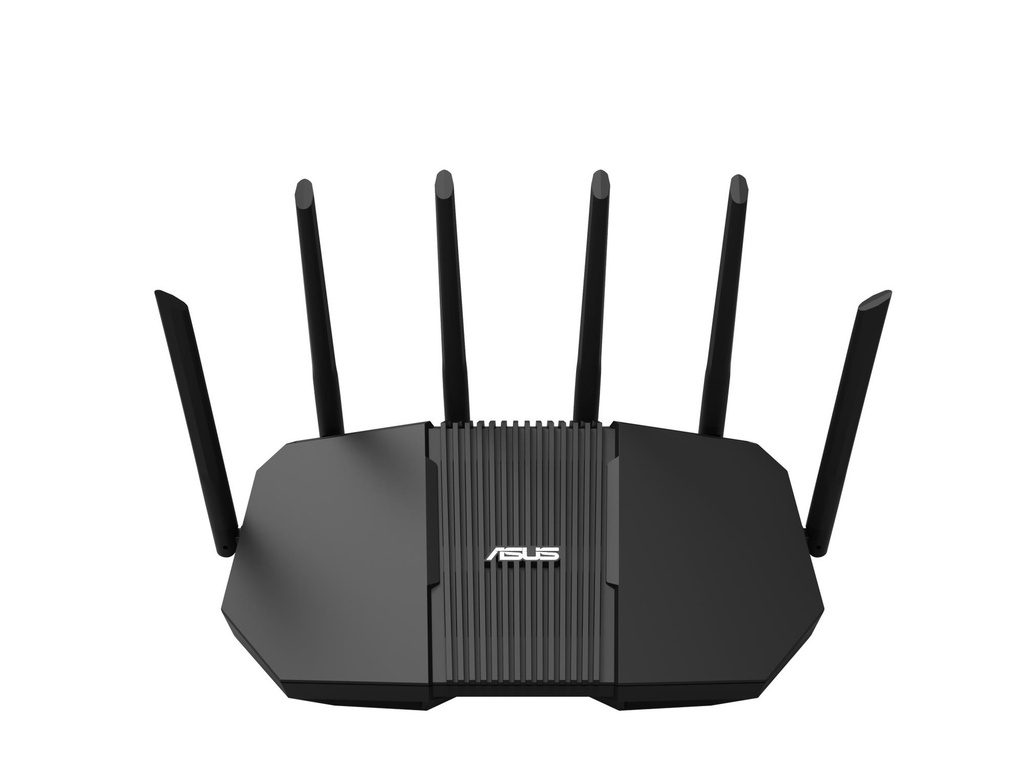

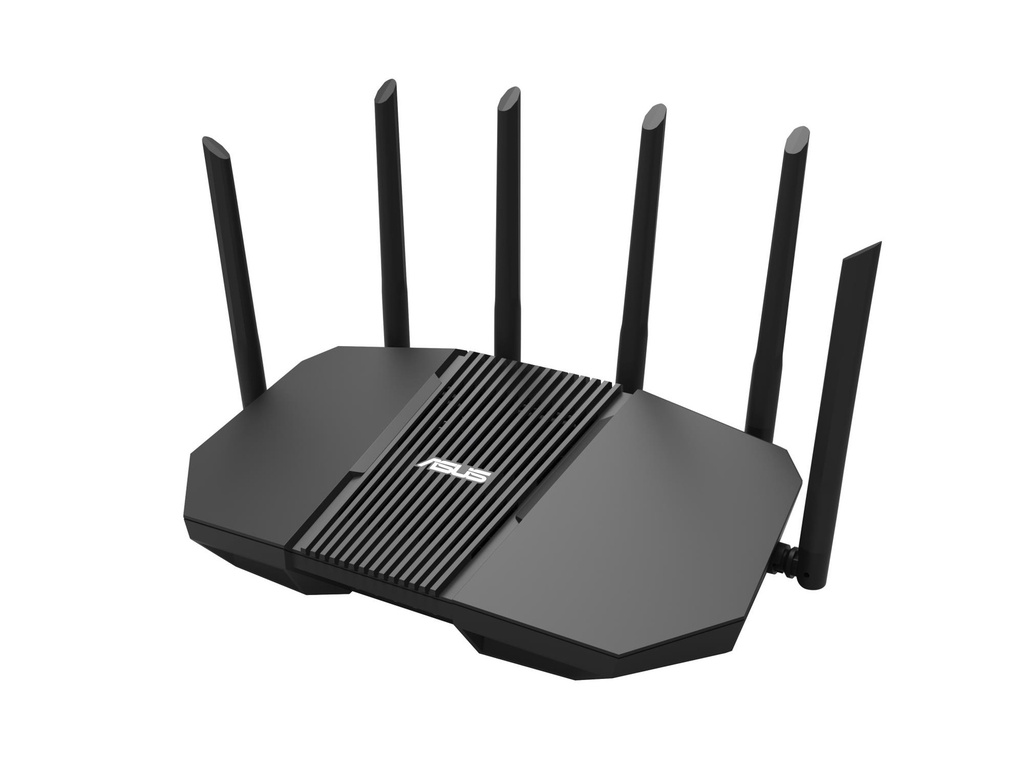

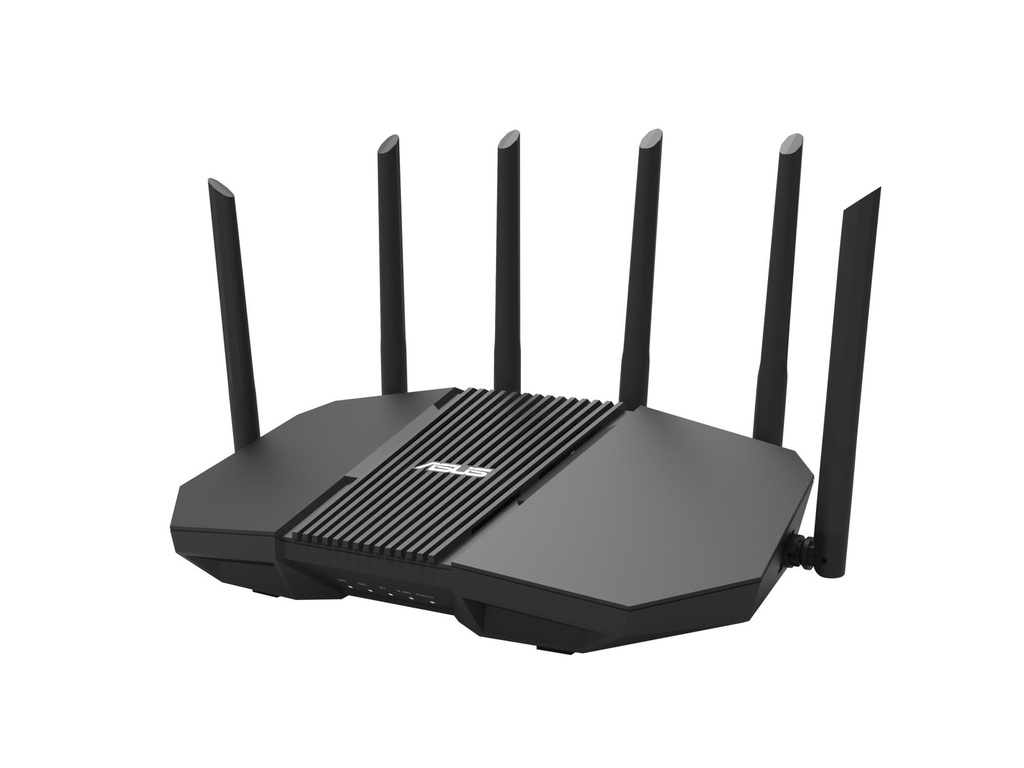

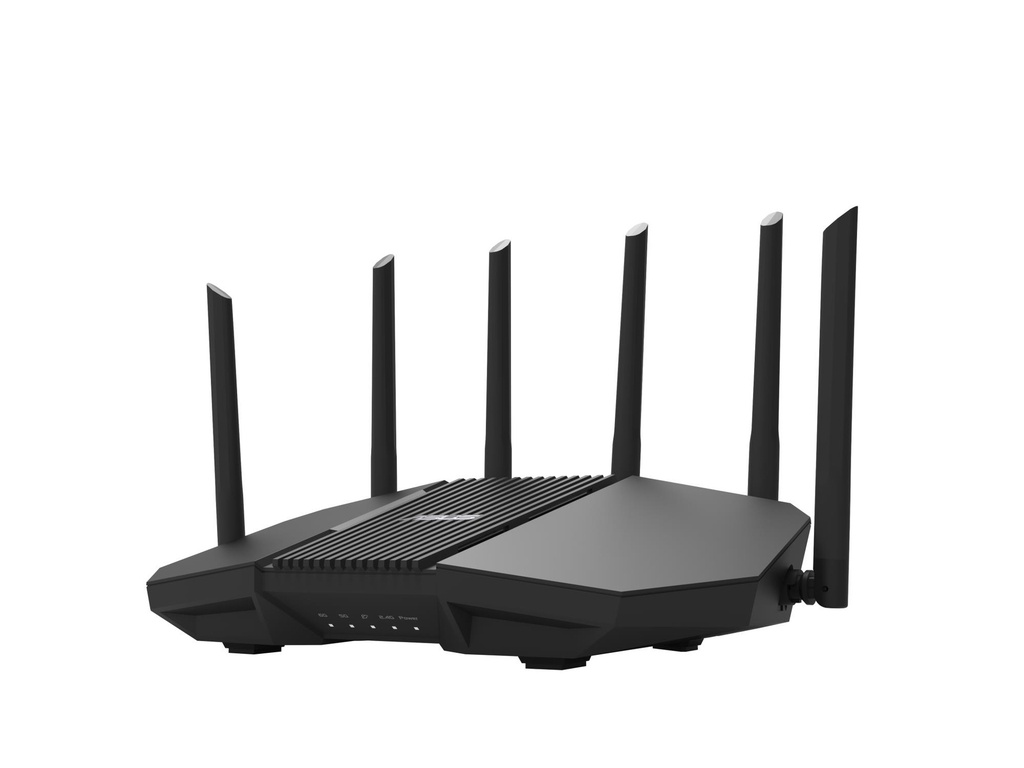

ASUS RT-BE90U
Next-Level Smart Home WiFi 7
Elevate your smart home with blazing-fast tri-band WiFi 7 speeds of up to 9400 Mbps, boosted range with ASUS RF and AI-boosted Smart AiMesh technology.The ASUS RT-BE90U unleashes superior 6 GHz WiFi and ultra-fast 2.5G networking. With next-gen ASUS Network Security and a suite of advanced network technologies such as IoT Network, the RT-BE90U safeguards your network end-to-end, 24/7.
- Ultrafast WiFi 7 – WiFi 7 (802.11be) tri-band extendable router boosts speeds up to 9400 Mbps, with 320MHz and 4096-QAM increasing a single frequency band’s transmission speed by 2.4 times
- Unleashing Multi-link operation (MLO) for Ultra-Smooth Connectivity – Link to multiple bands at the same time to ensure stable internet connections and efficient data transfers
- Quad 2.5G Ports – Traffic via 2.5G ports has top priority, supported by flexible WAN/LAN port configurations to maximize wired connectivity
- Smart Home Master – Easily establish up to three SSIDs with Smart Home Master for easy IoT device setup and management, instant VPN connections, and convenient parental controls
- Hassle-free AiMesh Extendable Network – AiMesh extendable routers enable whole home seamless roaming with rich, advanced features
- Commercial-Grade Network Security – Network security with commercial-grade AiProtection, plus a one-tap security scan and Safe Browsing
- 4G LTE/5G mobile tethering – Supports 4G LTE/5G mobile tethering for always-on internet
General
| Unit Calculated Weight | 1.68 kg |
| Unit Calculated Volume | 0.009971 cubm |
| Units per Shipping Box | 7 |
| Summary | ASUS RT-BE90U BE9400 AiMesh. WAN connection type: RJ-45. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 9400 Mbit/s. Ethernet LAN interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 2500 Mbit/s, VPN support: nstant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server.... Security algorithms: SSH, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA, WPA3-Personal, WPS, WPA-Enterprise,..., Firewall security: Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum.... Product type: Tabletop router, Product colour: Black, LED indicators: Power, LAN, WAN |
| CnCode | 85176200 |
| Unit Box Height | 0.235 |
| Unit Box Length | 0.085 |
| Unit Box Width | 0.445 |
| Model name | RT-BE90U BE9400 AiMesh |
Wireless LAN features
| Modulation | 4096-QAM/OFDMA |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (max) | 9400 Mbit/s |
| WLAN data transfer rate (second band) | 2882 Mbit/s |
| WLAN data transfer rate (third band) | 5764 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | Yes |
| Ethernet WAN | Yes |
| SIM card slot | No |
| WAN connection type | RJ-45 |
Network
| Built-in FTP server | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Media server | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| Support Samba (storage) | Yes |
| VPN support | nstant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Support Surfshark Support Nord VPN |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB port | Yes |
Management features
| Bandwidth control | Yes |
| MU-MIMO technology | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Wake-on-LAN ready | Yes |
| WPS push button | Yes |
Security
| DMZ support | Yes |
| Firewall | Yes |
| Firewall security | Maximum Firewall Keyword Filter : 64 Maximum Firewall Network Service Filter : 32 Maximum Firewall URL Filter : 64 |
| MAC address filtering | Yes |
| Network address translation (NAT) | Yes |
| Parental control | Yes |
| Security algorithms | SSH/WPA/WPA2-Enterprise/WPA2-Personal/WPA3-Enterprise/WPA3-Personal/WPA-Enterprise/WPA-Personal/WPS |
| System event log | Yes |
Protocols
| DHCP server | Yes |
Design
| LED indicators | Power,LAN,WAN |
| On/off switch | Yes |
| Product colour | Black |
| Product type | Tabletop router |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Warranty card | Yes |
Antenna
| Antenna design | External |
| Antennas quantity | 6 |
Features
| Built-in processor | Yes |
| Flash memory | 256 MB |
| Internal memory | 1000 MB |
| Processor cores | 4 |
| Processor frequency | 1500 MHz |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 110 - 240 V |
| Output current | 2.5 A |
| Output voltage | 12 V |
| Power source type | AC |
Weight & dimensions
| Depth | 180 mm |
| Height | 191 mm |
| Weight | 761 g |
| Width | 320 mm |
Packaging data
| Package depth | 236 mm |
| Package height | 82 mm |
| Package type | Box |
| Package weight | 1450 g |
| Package width | 442 mm |
