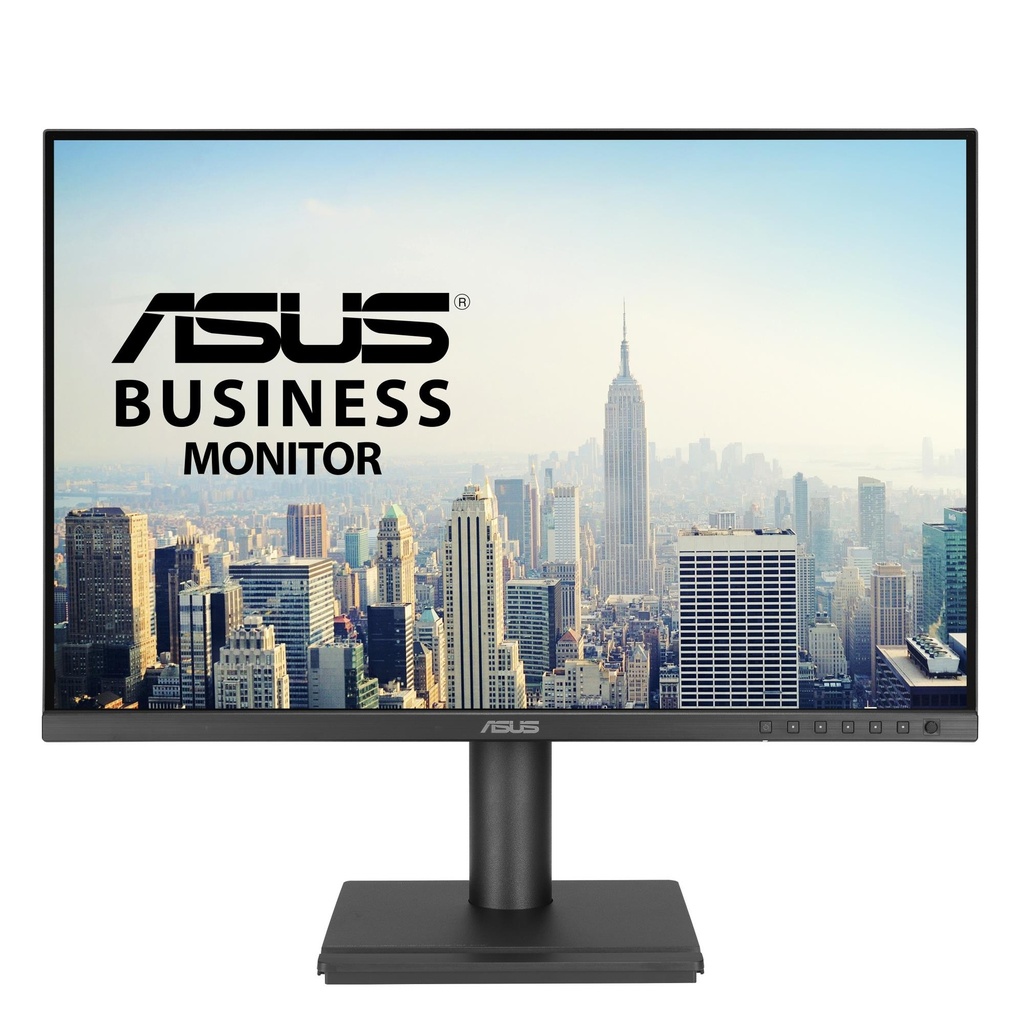

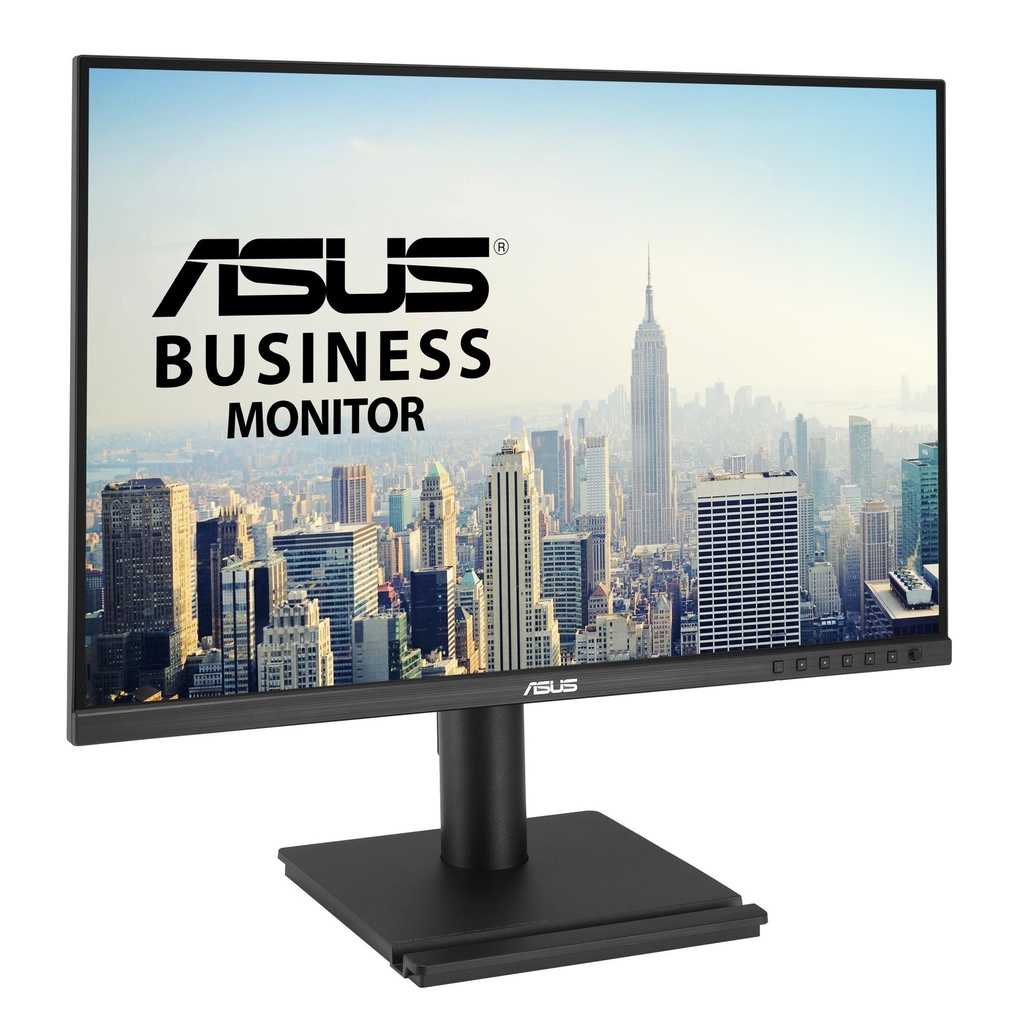

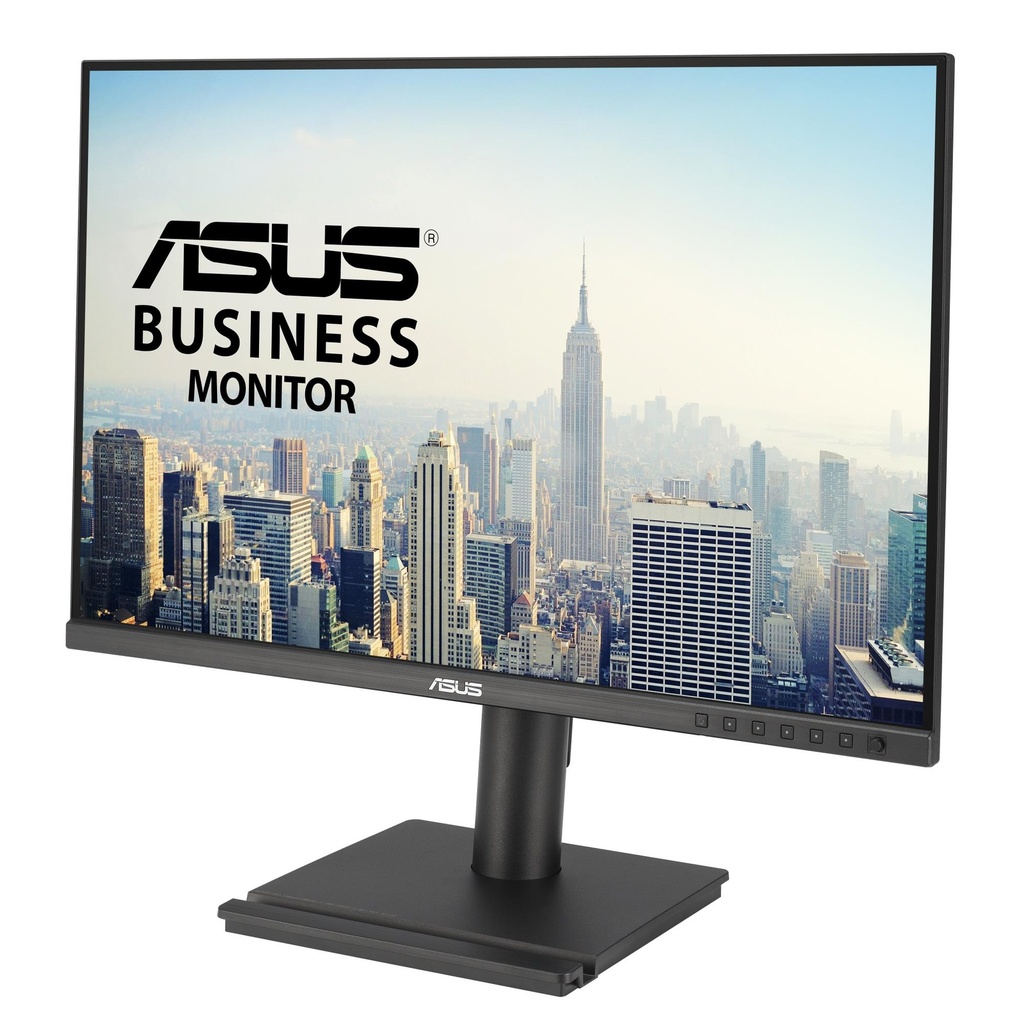

ASUS BE248CFN Docking Monitor – 24.1 inch, WUXGA(1920x1200), IPS, 100Hz, Frameless, USB-C Docking, RJ45, Stereo Speakers, Height Adjustable, Ergonomic Design, HDMI, Daisy-chain, Eye Care, Low Blue Light, Flicker Free, Wall Mountable, Sustainability
Enhance Your Productivity
ASUS BE248CFN is a 24.1-inch WUXGA(1920x1200) 16:10 monitor that features a frameless IPS panel for wide angle viewing to deliver incredibly sharp imagery and stunning video playback. With fast 100Hz refresh rate and Adaptive-Sync technology to eliminate screen tearing and choppy frame rates for the smoother-than-ever experience. The integrated USB-C port supports data transfers, video signal and support 96W power delivery via one cable, comes with RJ45 provides convenient and stable network solution and alsokeep your desk area tidy. Its highly ergonomic design with tilt, swivel, pivot and height adjustments along with TÜ V Rheinland-certified Flicker-free and Low Blue Light provides a comfortable viewing experience.
- 24.1-inch WUXGA(1920x1200) frameless IPS panel with wide viewing angles and 100% sRGB
- SmoothMotion 100Hz refresh rate delivers a seamless, tear-free visual experience

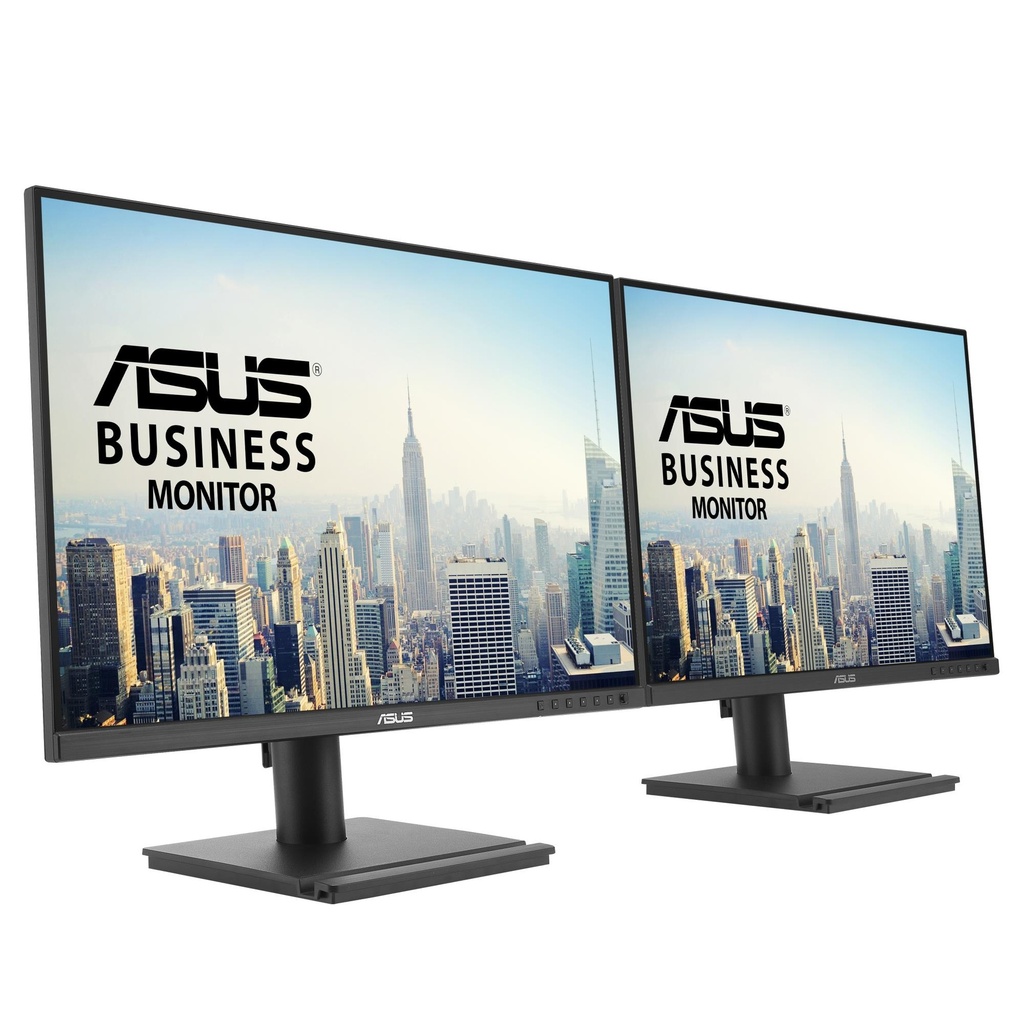

- Extensive connectivity with HDMI, USB-C, DisplayPort, DisplayPort out for daisy-chain, earphone jack, USB hub and RJ45 LAN port for the most flexibility
- USB-C port allows simple laptop docking for data transmission and video signal to the display, as well as charging the laptop via just one cable

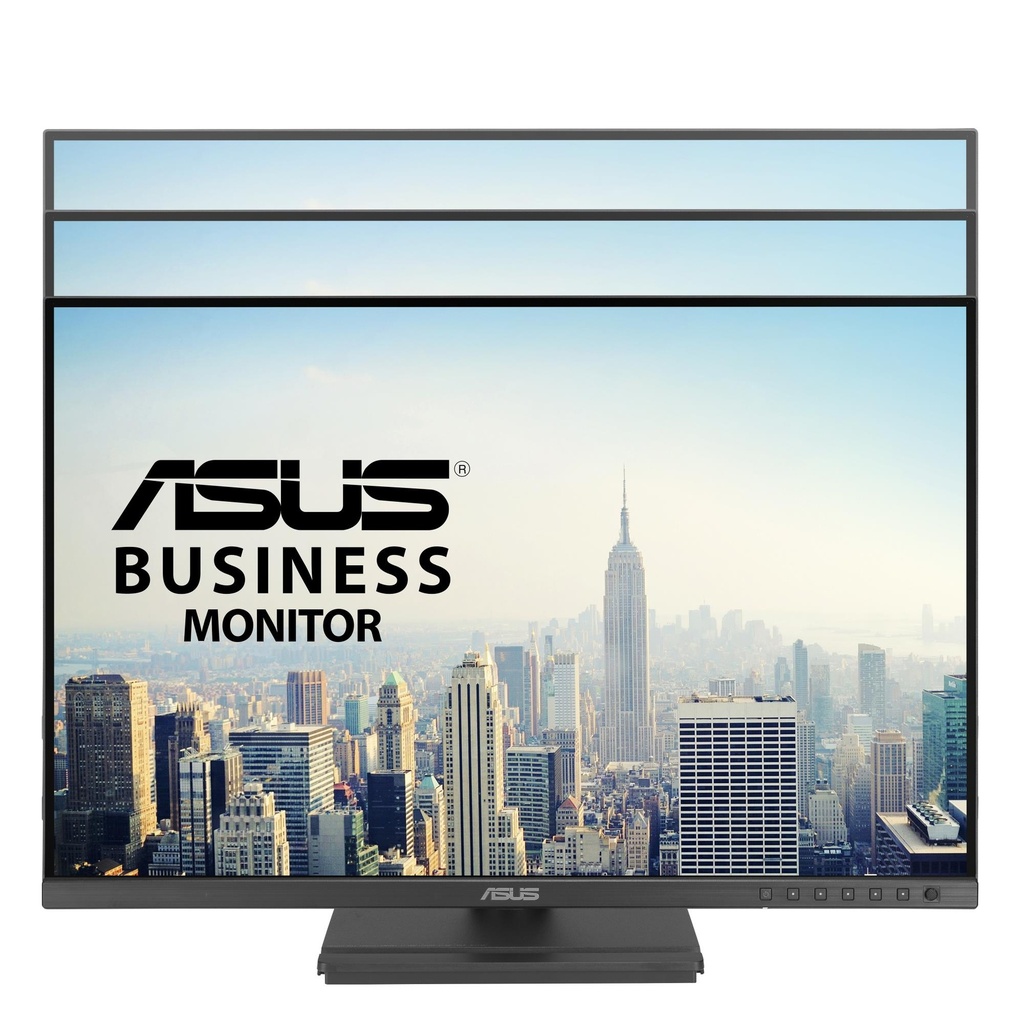

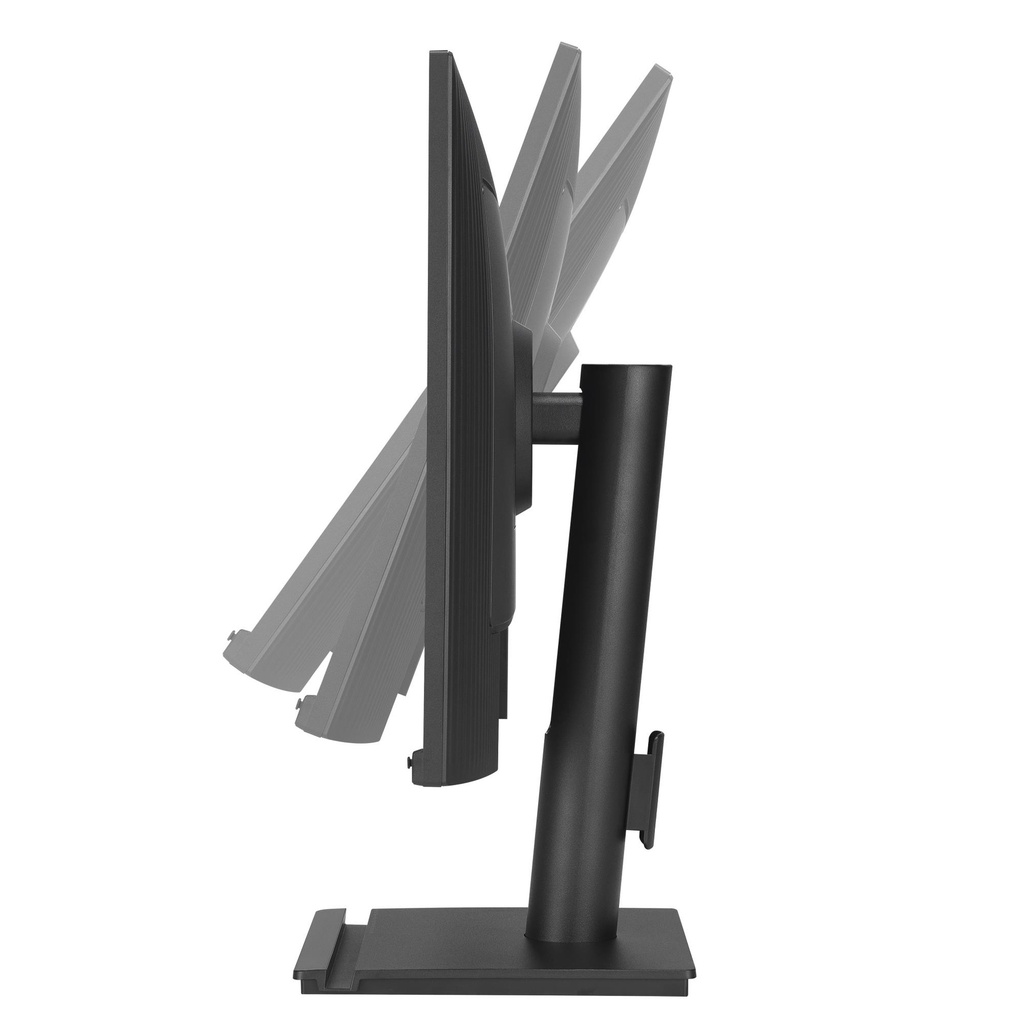

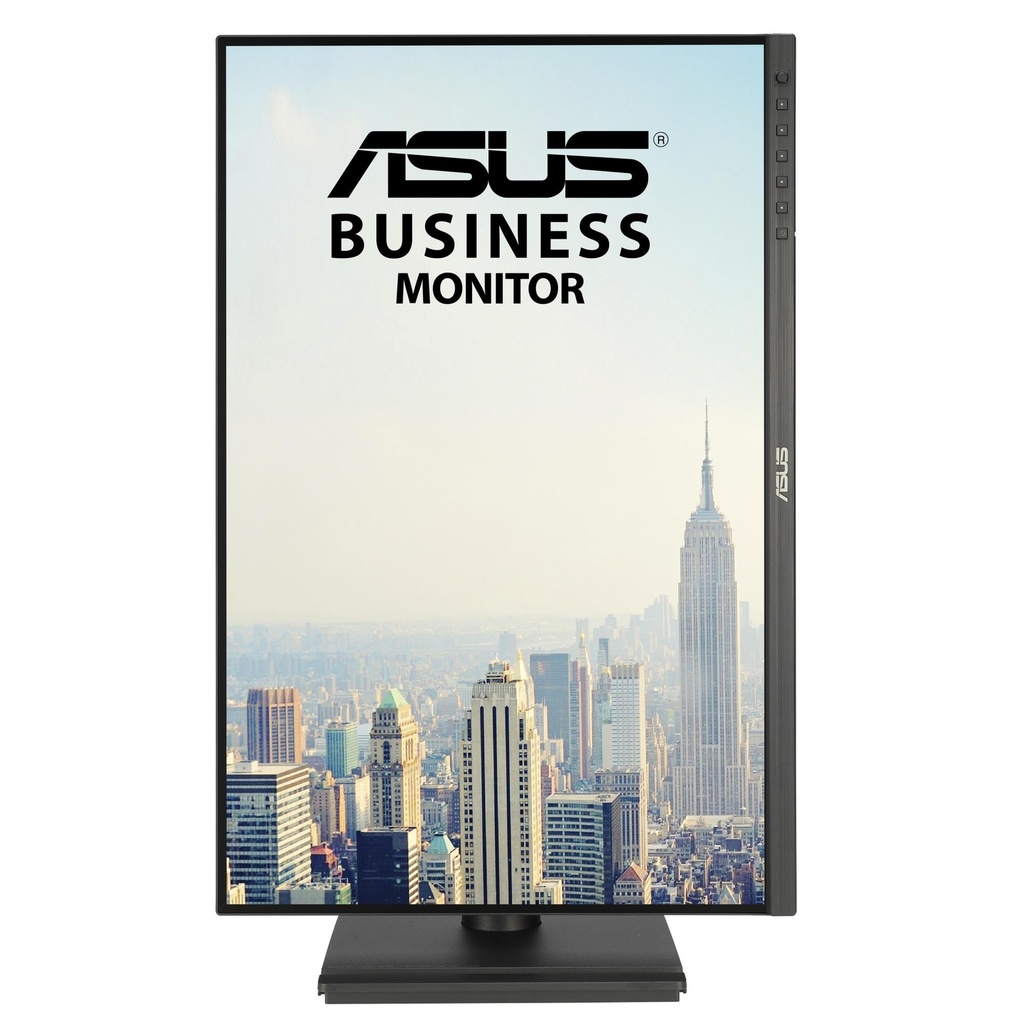

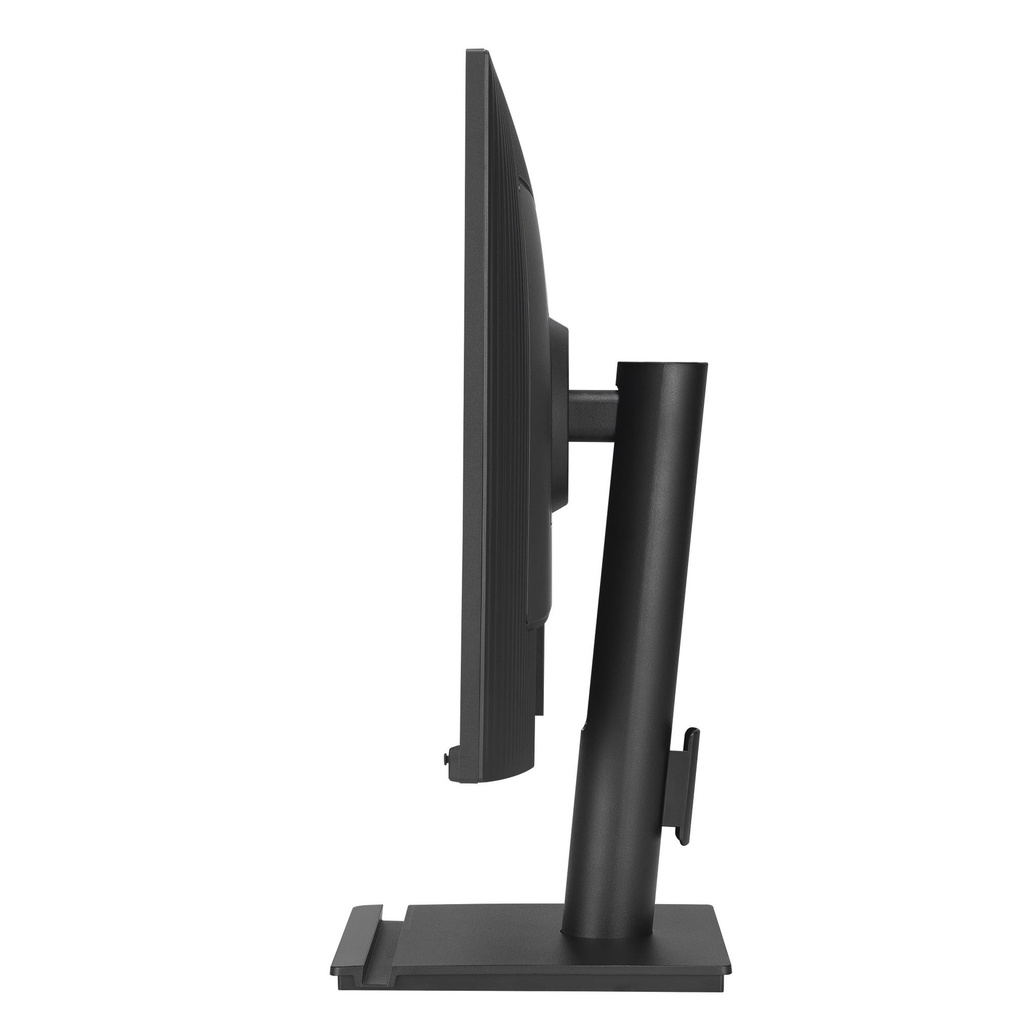

- Ergonomic design with +35° ~ -5° tilt, ±180° swivel, ±90° pivot and 130mm height adjustments for a comfortable viewing experience
- ASUS Eye Care monitors feature TÜV Rheinland-certified Flicker-free and Low Blue Light technologies to ensure a comfortable viewing experience
General
| Unit Calculated Weight | 8.3 kg |
| Product Net Weight | 5.8 kg |
| Unit Calculated Volume | 0.03701 cubm |
| Units per Pallet | 0 |
| Summary | ASUS BE248CFN. Display diagonal: 61.2 cm (24.1"), Display resolution: 1920 x 1200 pixels, HD type: WUXGA, Display technology: LCD, Display surface: Matt, Response time: 5 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black |
| Unit Box Height | 0.415 |
| Unit Box Length | 0.615 |
| Unit Box Width | 0.145 |
| Model name | BE248CFN |
Display
| Contrast ratio (dynamic) | 3000:1 |
| Contrast ratio (typical) | 1500:1 |
| Digital horizontal frequency | 30 - 130 kHz |
| Digital vertical frequency | 48 - 100 Hz |
| Display brightness (typical) | 350 cd/m² |
| Display diagonal | 24.1 " |
| Display diagonal (metric) | 61 cm |
| Display number of colours | 16.7 million colours |
| Display resolution | 1920 x 1200 pixels |
| Display surface | Matt |
| Display technology | LCD |
| HD type | WUXGA |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| LED backlight | Yes |
| Maximum refresh rate | 100 Hz |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| Pixel pitch | 0.27 x 0.27 mm |
| Response time | 5 ms |
| Screen shape | Flat |
| sRGB coverage (typical) | 100 % |
| Touchscreen | No |
| Viewable size, horizontal | 518.4 mm |
| Viewable size, vertical | 324 mm |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Performance
| AMD FreeSync | No |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| NVIDIA G-SYNC | No |
| VESA Adaptive Sync support | Yes |
Multimedia
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
Design
| Detachable stand | Yes |
| Feet colour | Black |
| Market positioning | Business |
| Product colour | Black |
Ports & interfaces
| Built-in USB hub | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| HDCP | Yes |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone connectivity | 3.5 mm |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Number of upstream ports | 1 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 96 W |
| USB Type-A downstream ports quantity | 4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB upstream port type | USB Type-A |
Network
| Ethernet LAN | Yes |
Ergonomics
| Adjustable height (max) | 130 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Panel mounting interface | 100 x 100 mm |
| Pivot | Yes |
| Pivot angle | 90 - -90 ° |
| Swivel angle range | 180 - -180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 35 - -5 ° |
| VESA mounting | Yes |
| Wall mountable | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (HDR) per 1000 hours | 16 kWh |
| Energy consumption (SDR) per 1000 hours | 12 kWh |
| Energy efficiency class (HDR) | E |
| Energy efficiency class (SDR) | C |
| Energy efficiency scale | A to G |
| Power consumption (PowerSave) | 0.5 W |
| Power consumption (typical) | 14.85 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Depth (with stand) | 211.2 mm |
| Depth (without stand) | 40 mm |
| Height (with stand) | 473.1 mm |
| Height (without stand) | 350 mm |
| Weight (with stand) | 5800 g |
| Weight (without stand) | 4050 g |
| Width (with stand) | 531.8 mm |
| Width (without stand) | 531.8 mm |
Packaging data
| Package depth | 140 mm |
| Package height | 414 mm |
| Package type | Box |
| Package weight | 8500 g |
| Package width | 610 mm |
| Quantity per pack | 1 pc(s) |
Packaging content
| Stand included | Yes |
Sustainability
| Sustainability certificates | ENERGY STAR/EPEAT Gold/Forest Stewardship Council (FSC) Mix/TCO |
Other features
| Brand specific technologies | Eye Care+,SPLENDID |
| RJ-45 ports quantity | 1 |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2112897/fiches?language=EN |
| Energy efficiency class | C |
| EPREL Registration Number | 2112897 |
| EPREL Version Number | 2 |
