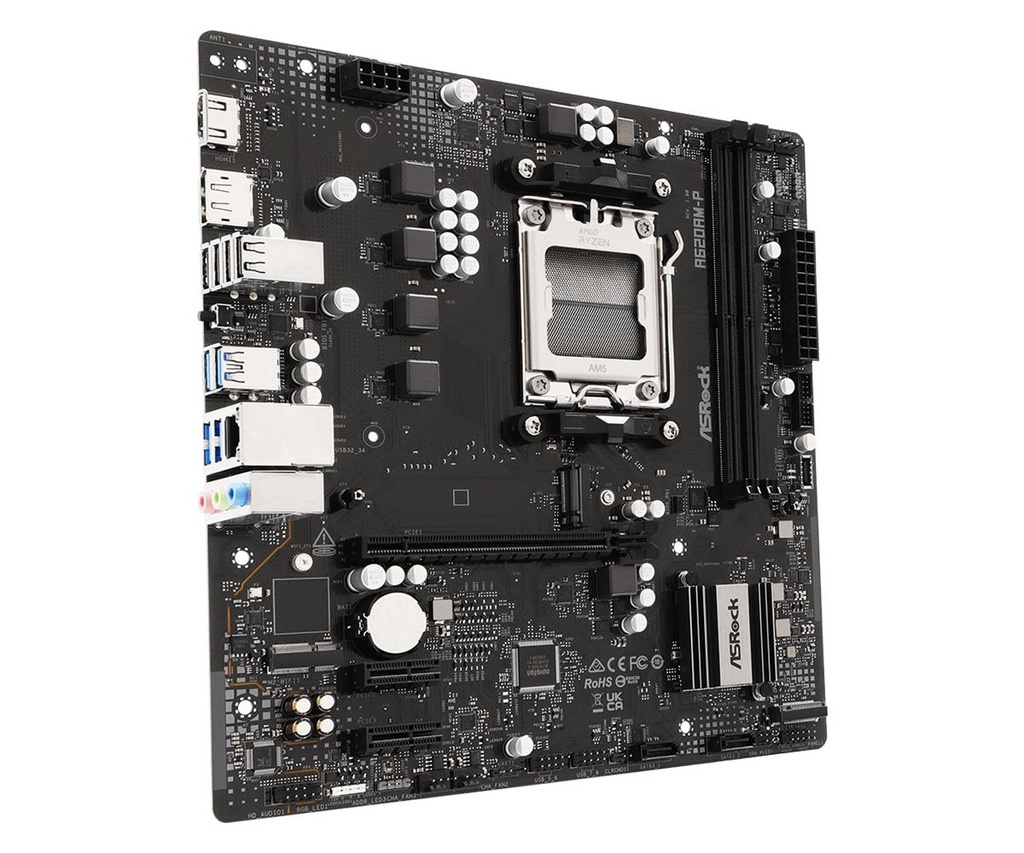

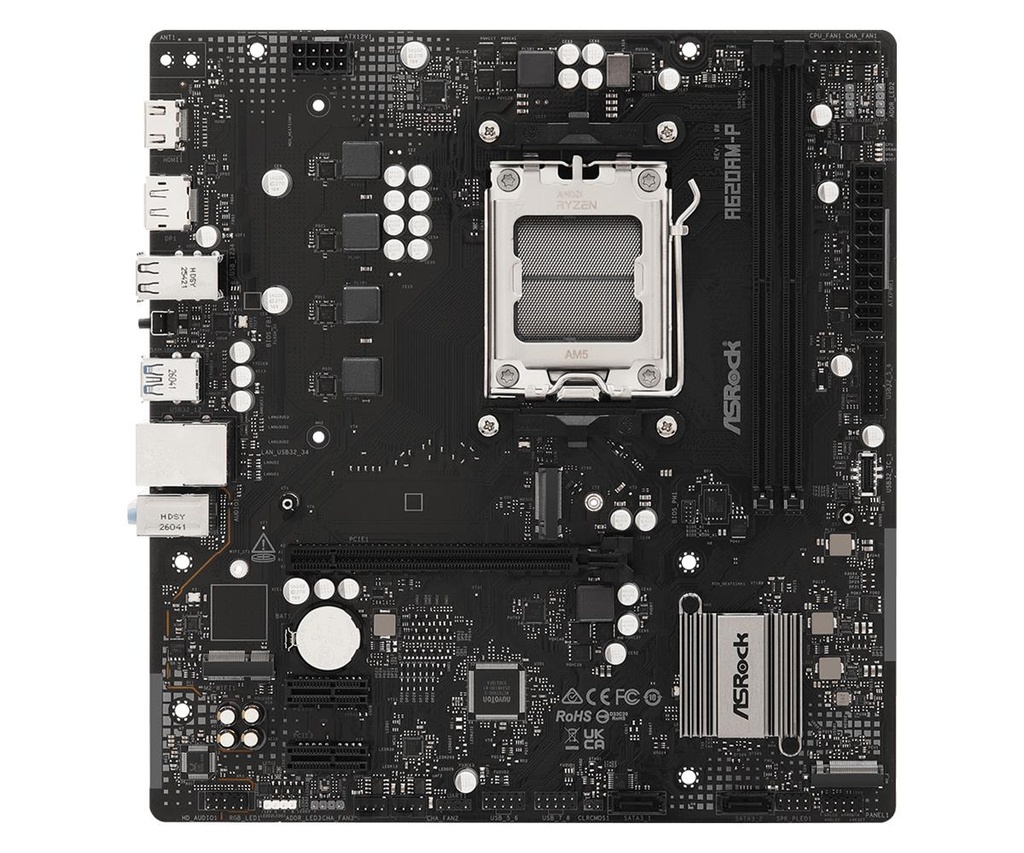

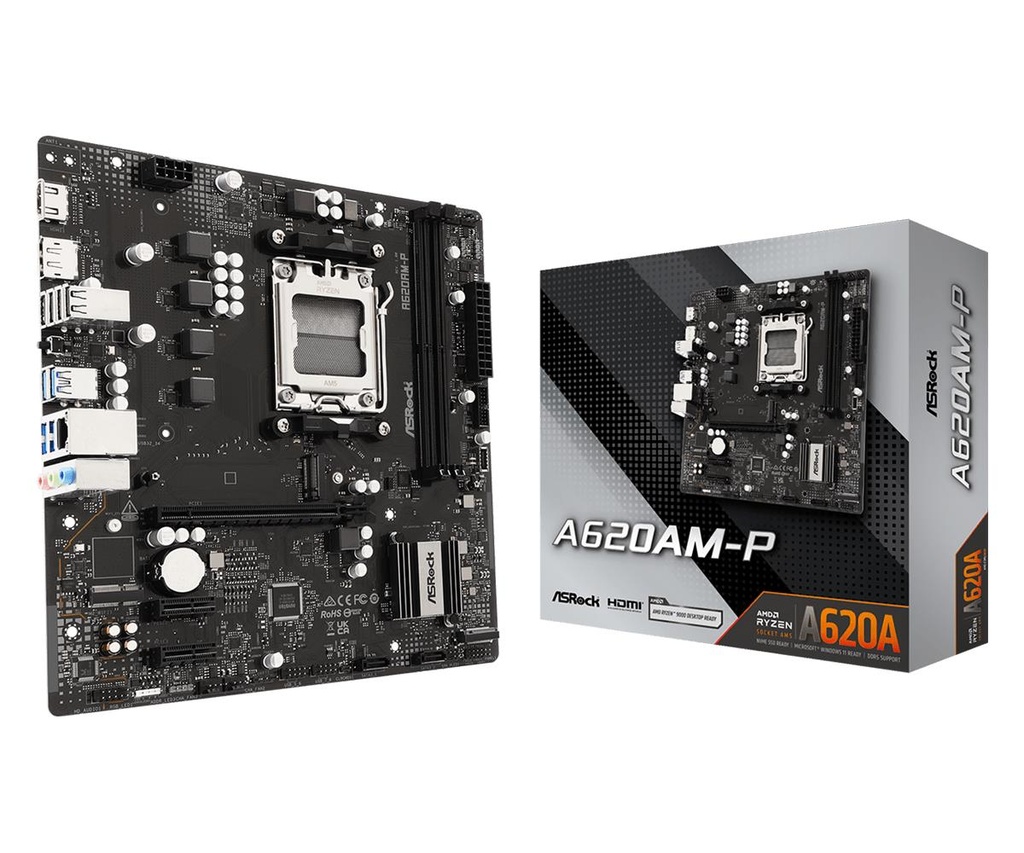

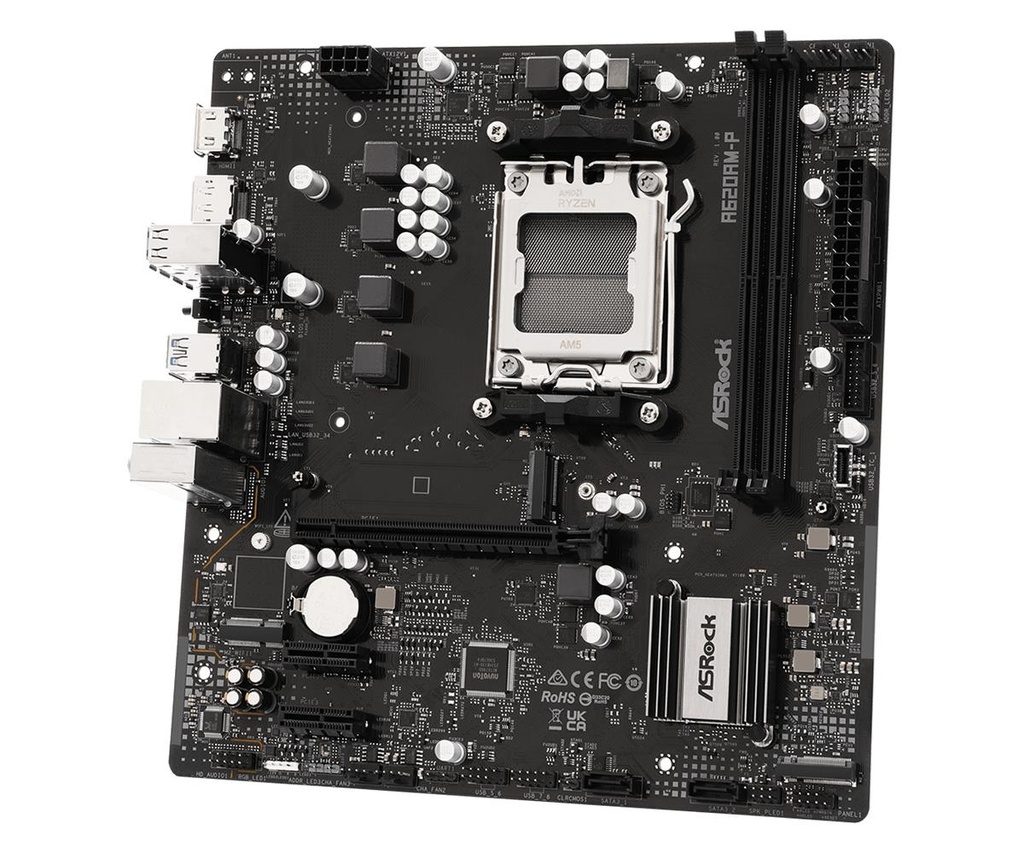

ASROCK AMD A620A Socket AM5 micro ATX RAM DDR5-SDRAM 2xSlots 1xNumber of M.2 (M) slots A620AM-P

Kainos tik partneriams Prisijungti B2B

ASROCK
Garantija: 36 mėn.
Pristatymas į terminalą: DPD, InPost, Omniva
  • Gamintojas
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Gamintojas: ASROCK

Dr. MOS
Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.

General
SummaryAsrock A620AM-P. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, M.2. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Unit Box Height0.06
Unit Box Length0.295
Unit Box Width0.265
Features
Audio chipRealtek ALC897
Audio output channels7.1 channels
Component forPC
Motherboard chipsetAMD A620A
Motherboard chipset familyAMD
Motherboard form factormicro ATX
Windows operating systems supportedWindows 10 x64/Windows 11 x64
Processor
Compatible processor seriesAMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturerAMD
Processor socketSocket AM5
Memory
ECC сompatibilityNon-ECC
Maximum internal memory128 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR5-SDRAM
Storage controllers
Supported storage drive interfacesSATA III,M.2
Internal I/O
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Number of chassis fan connectors3
Number of CPU fan connectors1
Number of EPS power connectors (8-pin)1
Number of SATA III connectors2
RGB LED pin headerYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1

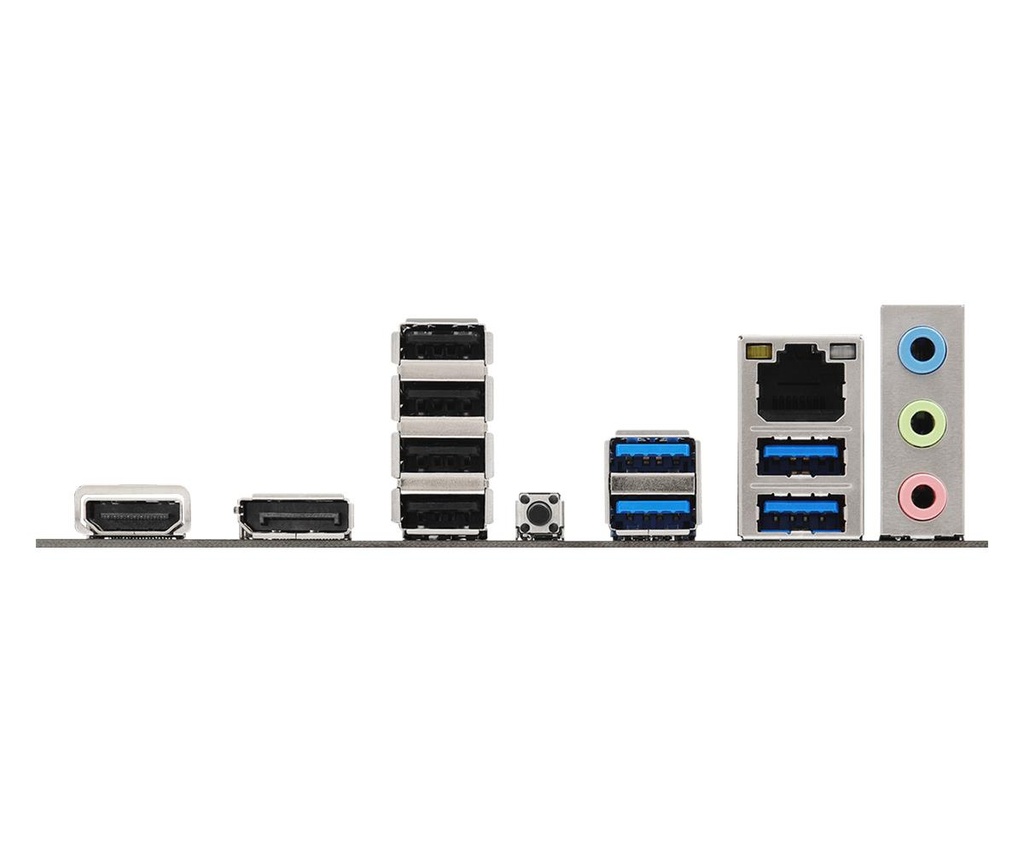

Rear panel I/O ports
DisplayPort version1.4
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Network
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8111H
Wi-FiNo
Expansion slots
Number of M.2 (M) slots1
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 4.x) slots1
BIOS
BIOS memory size256 Mbit
BIOS typeUEFI AMI
Weight & dimensions
Depth229 mm
Width244 mm

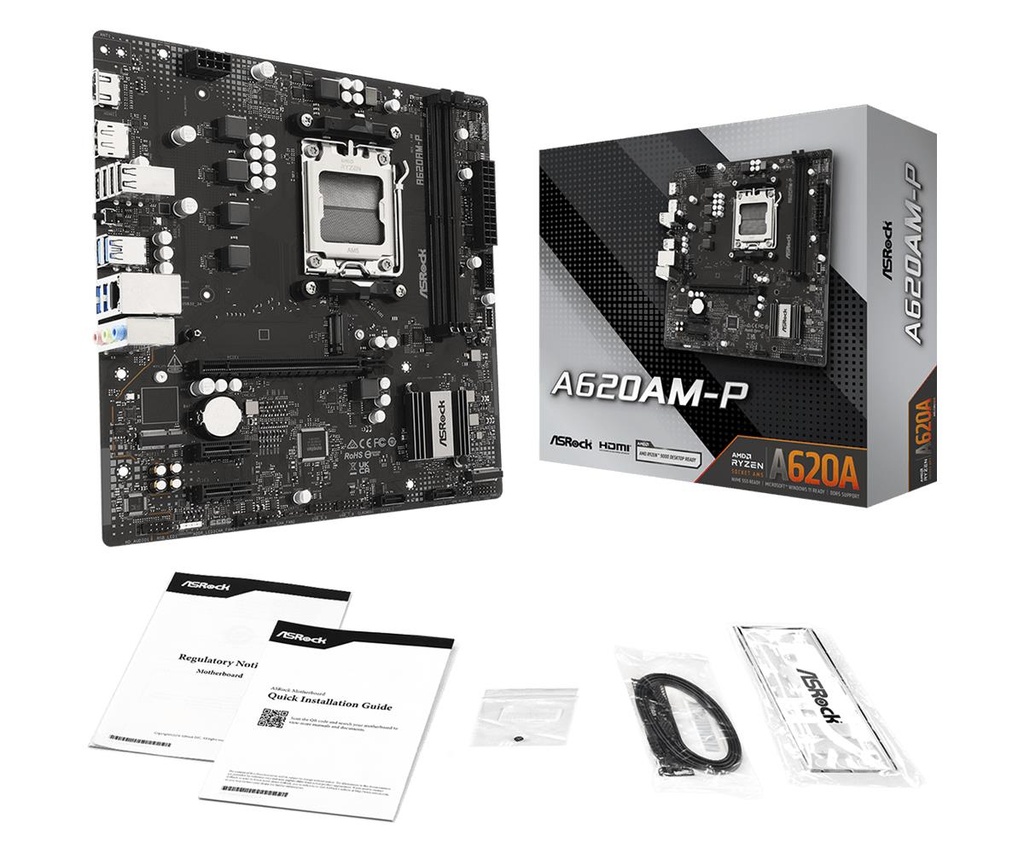

Packaging content
Cables includedSATA
Screws includedYes
ELKO Logistics Data
Product Net Weight1 kg
Unit Calculated Weight1.1 kg
Units per Pallet0
Units per Shipping Box10
ELKO Internal Logistics Data
Shipping Box Depth54.5 cm
Shipping Box Height32 cm
Shipping Box Weight11 kg
Shipping Box Width32.5 cm
Unit Calculated Volume0.005668 cubm
