- Supports AMD Ryzen 7000 series processors
- AMD A620 single chip architecture
- Supports 4-DIMM DDR5 up to 128GB maximum capacity
- Supports USB 3.2 Gen1
- Supports PCIe 4.0
- Supports PCIe M.2 4.0 (64Gb/s)
- Supports HDMI 4K resolution
General
| Unit Calculated Weight | 1.08 kg |
| Unit Calculated Volume | 0.005286 cubm |
| Units per Shipping Box | 10 |
| Summary | Biostar A620MP-E PRO. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125B. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.28 |
| Unit Box Width | 0.26 |
| Model | A620MP-E PRO |
Features
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | AMD A620 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
Processor
| Compatible processor series | AMD Ryzen 7000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
Memory
| Maximum internal memory | 128 GB |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speeds | 4800/5200/5400/5600/6000 MHz |
| Supported memory types | DDR5-SDRAM |
Storage controllers
| Supported storage drive interfaces | SATA III |
Graphics
| DirectX version | 12.0 |
| HDCP | Yes |
Internal I/O
| ATX Power connector (24-pin) | Yes |
| Audio connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |

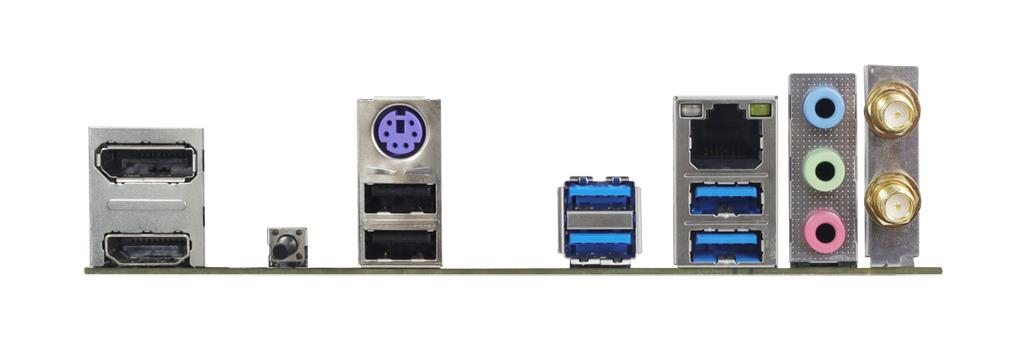

Rear panel I/O ports
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Network
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8125B |
| Wi-Fi | No |
Expansion slots
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Weight & dimensions
| Depth | 244 mm |
| Width | 244 mm |
Packaging content
| Cables included | SATA |
| Drivers included | Yes |
