Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.
General
| Unit Calculated Weight | 1.82 kg |
| Unit Calculated Volume | 0.005386 cubm |
| Units per Shipping Box | 12 |
| Units per Pallet | 0 |

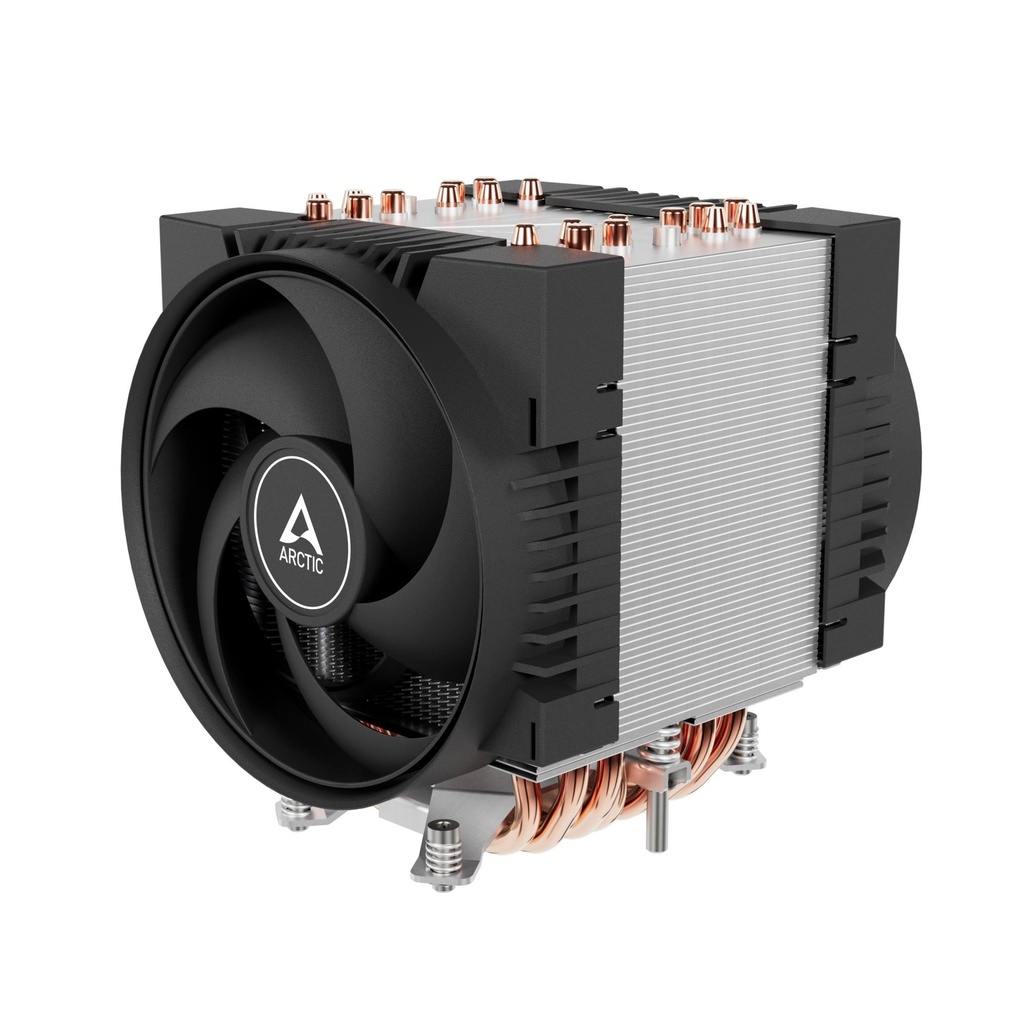

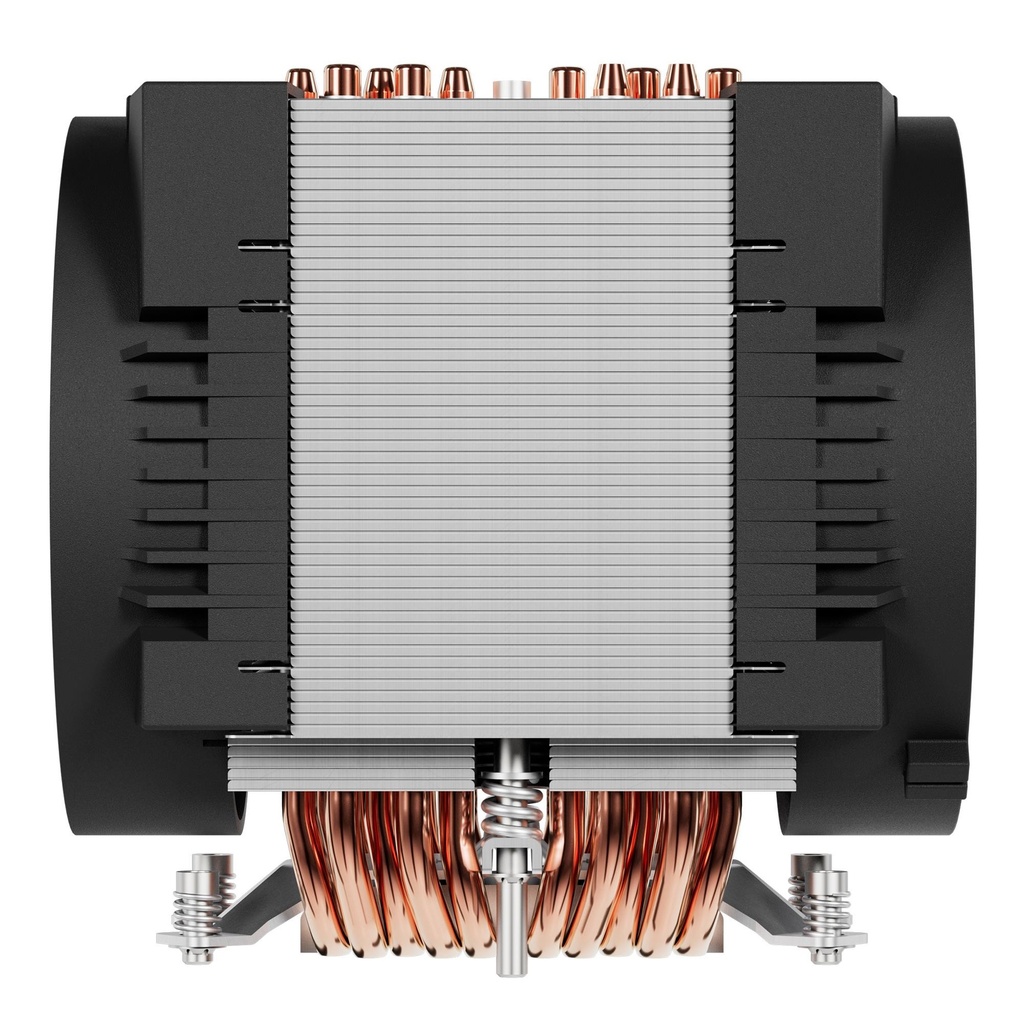

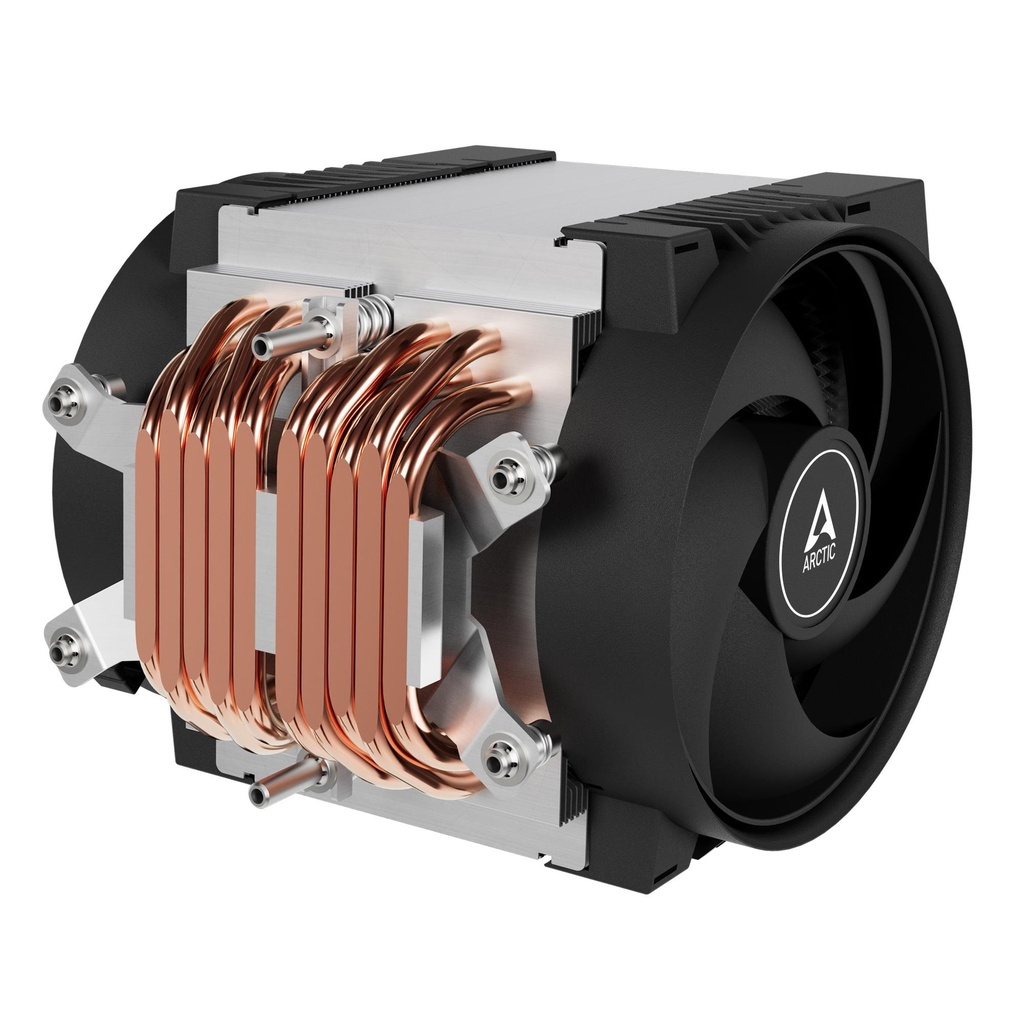

| Summary | ARCTIC Freezer 4U-SP5 - 4U Server Cooler for AMD SP5. Type: Air cooler, Fan diameter: 12 cm, Airflow: 137.69 m³/h, Bearing type: Dual ball bearing. Width: 147 mm, Depth: 124 mm, Height: 145 mm. Product colour: Aluminium, Black |
| Unit Box Height | 0.16 |
| Unit Box Length | 0.207 |
| Unit Box Width | 0.145 |
Performance
| Airflow | 137.69 m³/h |
| Bearing type | Dual ball bearing |
| Fan diameter | 120 mm |
| Fan noise level (max) | 45.3 dB |
| Fan speed (max) | 3300 RPM |
| Fan speed (min) | 300 RPM |
| Fan static pressure | 4.35 mmH2O |
| Maximum airflow | 81.04 cfm |
| Operating temperature (T-T) | 0 - 40 °C |
| Suitable location | Processor |
| Supported processor sockets | Socket SP5 |
| Type | Air cooler |
Design
| Fan connector | 4-pin |
| Fins material | Aluminium |
| Number of fans | 2 fan(s) |
| Number of fins | 62 |
| Number of heat pipes | 10 |
| Product colour | Aluminium/Black |
| Rack capacity | 4U |
Power
| Fan current | 0.29 A |
| Fan voltage | 12 V |
| Starting voltage | 3.1 V |
| Thermal Design Power (TDP) | 360 W |
Weight & dimensions
| Cable length | 0.2 m |
| Depth | 124 mm |
| Heat pipes diameter | 6 mm |
| Height | 145 mm |
| Package depth | 206 mm |
| Package height | 141 mm |
| Package weight | 1558 g |
| Package width | 160 mm |
| Weight | 1512 g |
| Width | 147 mm |
Packaging content
| Package type | Box |
