Master the Game with Visible Cooling

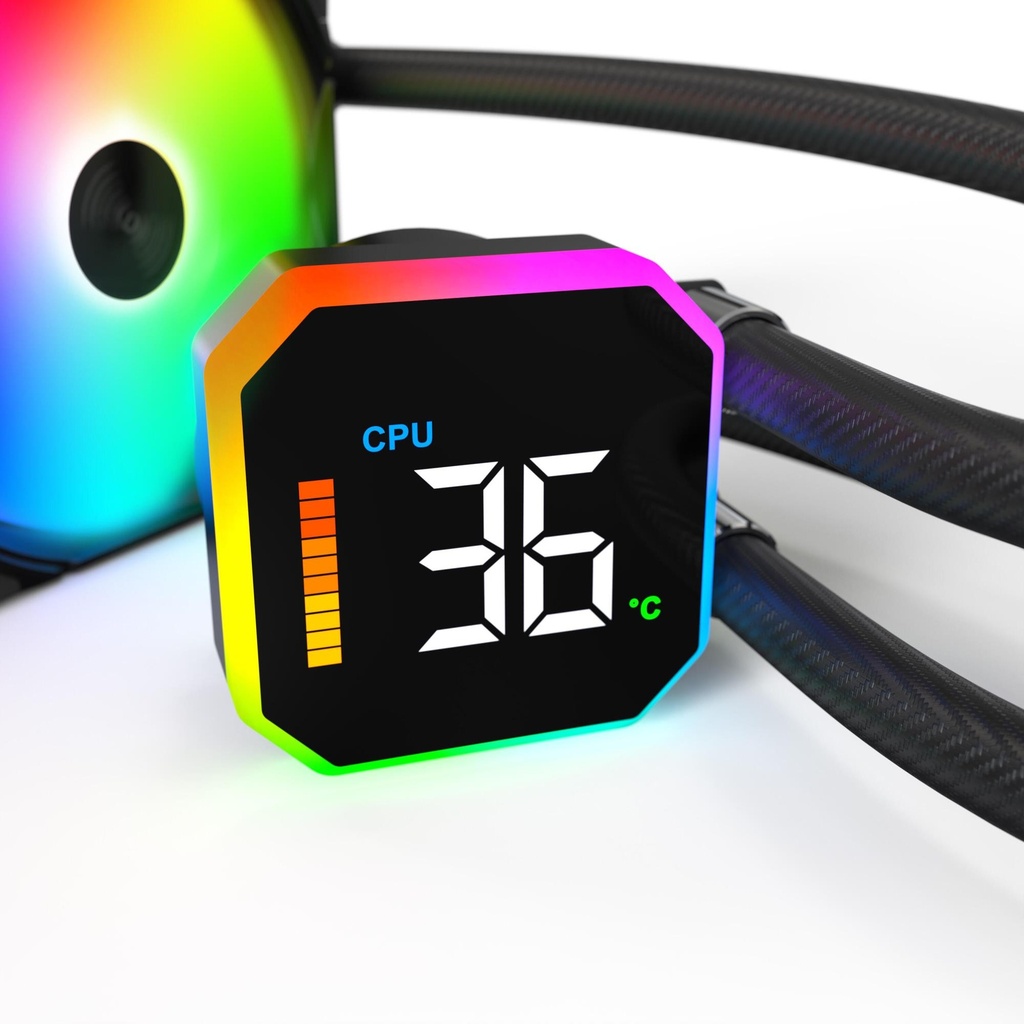

Meet HyperFlow Digital—crafted for stability under pressure and clarity at a glance. At its core, the Supreme Water Pump delivers relentless cooling power, while the sleek onboard display keeps real-time CPU and GPU temps front and center. This isn’t just cooling—it’s precision-engineered confidence in every degree.
General
| Unit Calculated Weight | 2.88 kg |
| Unit Calculated Volume | 0.01622 cubm |
| Units per Shipping Box | 4 |
| Units per Pallet | 0 |
| Summary | Montech HyperFlow Digital 360. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Airflow: 129.5 m³/h, Maximum air pressure: 96.27 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Product colour: Black |
| Unit Box Height | 0.21 |
| Unit Box Length | 0.455 |
| Unit Box Width | 0.14 |
| Model name | HyperFlow Digital 360 |
Performance
| Airflow | 129.5 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan diameter | 120 mm |
| Fan noise level (max) | 36.25 dB |
| Fan speed (max) | 2200 RPM |
| Fan speed (min) | 600 RPM |
| Maximum air pressure | 96.27 mmH2O |
| Maximum airflow | 96.27 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Pump connector | 4-pin |
| Pump motor speed | 3100 RPM |
| Pump noise level | 28 dB |
| Quantity per pack | 1 pc(s) |
| Suitable location | Processor |
| Supported processor sockets | LGA 1150 (Socket H3)/LGA 1151 (Socket H4)/LGA 1155 (Socket H2)/LGA 1156 (Socket H)/LGA 1200 (Socket H5)/LGA 1700/LGA 2011 (Socket R)/LGA 2066/Socket AM3/Socket AM4/Socket AM5 |
| Type | All-in-one liquid cooler |
Design
| Fan connector | 4-pin |
| Illumination colour | Amber/Blue/Green/Red |
| Illumination LED | Yes |
| LED connector type | 3-pin |
| Number of fans | 3 fan(s) |
| Product colour | Black |
| Radiator material | Aluminum |
Power
| Fan current | 0.36 A |
| Fan power consumption | 2.16 W |
| Hub voltage | 5 V |
| LED power consumption (fan) | 2.16 W |
| LED power consumption (pump) | 1.8 W |
| Pump current | 300 mA |
| Pump power consumption | 3.96 W |
Weight & dimensions
| Fan dimensions (W x D x H) | 397 x 120 x 27 mm |
| Pump depth | 67.2 mm |
| Pump height | 52.3 mm |
| Pump width | 67.2 mm |
| Radiator depth | 27 mm |
| Radiator height | 120 mm |
| Radiator width | 397 mm |
| Tube length | 400 mm |
Technical details
| Warranty period | 6 year(s) |
