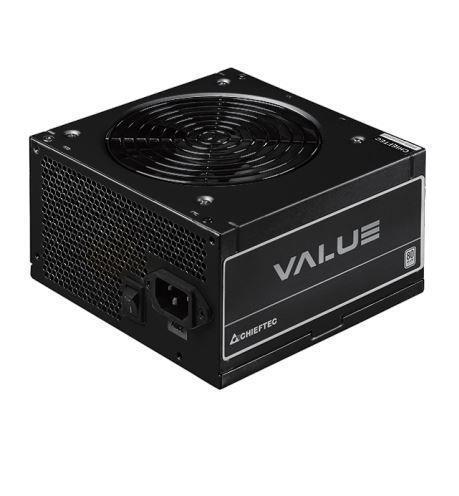

The new VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
General
| Unit Calculated Weight | 1.17 kg |
| Unit Calculated Volume | 0.00352 cubm |
| Units per Shipping Box | 1 |
| Model name | APB-400B8 |
| CnCode | 85044095 |
| Unit Box Height | 0.16 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.1 |
Power
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 200 - 240 V |
| Combined power (+5Vsb) | 12.5 W |
| Input current | 200-240V / 3.0A A |
| Max output current (+12V1) | 30 A |
| Max output current (+3.3V) | 17 A |
| Max output current (+5V) | 16 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Power Factor Correction (PFC) type | Active |
| Total power | 400 W |
Ports & interfaces
| Motherboard power connector | 20+4 pin ATX |
Performance
| 80 PLUS certification | 80 PLUS White |
| ATX version | 2.3 |
| Supported motherboard form factors | ATX |
Design
| Fan diameter | 120 mm |
| Product colour | Black |
Weight & dimensions
| Depth | 150 mm |
| Height | 87 mm |
| Weight | 1170 g |
| Width | 140 mm |
