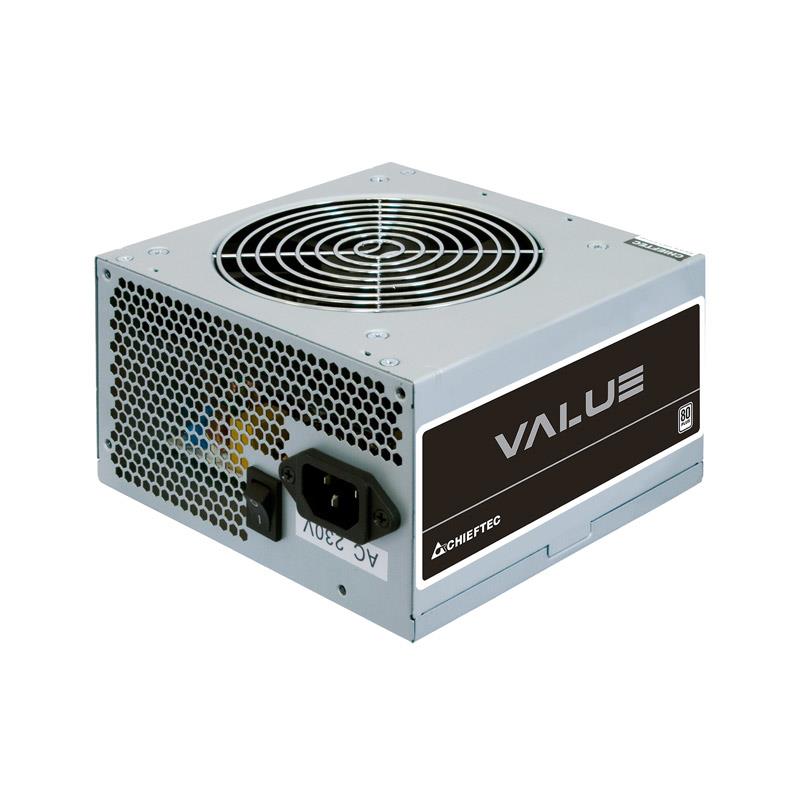

The APB-400B8 of the VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
- 80PLUS 230V EU
General
| Unit Calculated Weight | 1.28 kg |
| Unit Calculated Volume | 0.004825 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | Chieftec Value APB-400B8. Total power: 400 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 150,350 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS. Product colour: Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Certification: 80PLUS 230V EU |
| CnCode | 85044095 |
| Unit Box Height | 0.16 |
| Unit Box Length | 0.18 |
| Unit Box Width | 0.09 |
Power
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 200 - 240 V |
| Combined power (+12V) | 360 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Input current | 3 A |
| Max output current (+12V) | 30 A |
| Max output current (+3.3V) | 17 A |
| Max output current (+5V) | 16 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Total power | 400 W |
Ports & interfaces
| Cabling type | Non-Modular |
| CPU power cable length | 350 mm |
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 350 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| PCI Express power cable length | 350 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power cable length | 150/350 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| SATA power cable length | 150/350 mm |
Performance
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.3 |
| Power supply unit (PSU) form factor | PS/2 |
| Purpose | PC/Server |
Design
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Product colour | Silver |
Certificates
| Certification | 80PLUS 230V EU |
Weight & dimensions
| Depth | 150 mm |
| Height | 87 mm |
| Width | 140 mm |
Logistics data
| Harmonized System (HS) code | 84733020 |
