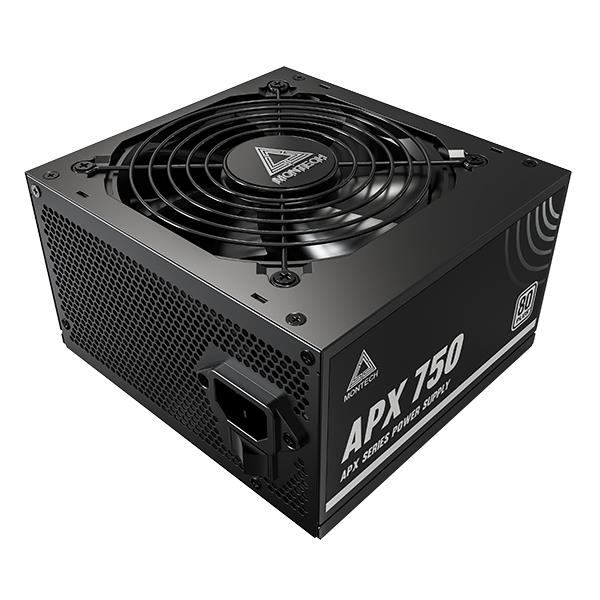

APX 750W
Discover the MONTECH APX white-label series: your ultimate gaming companion. Engineered with high-end components and whisper-quiet fan performance, APX redefines excellence in the white-label market. Featuring a cutting-edge DC-to-DC design, it eradicates compatibility worries, setting a new standard for white-label power. Elevate your gaming prowess with APX.

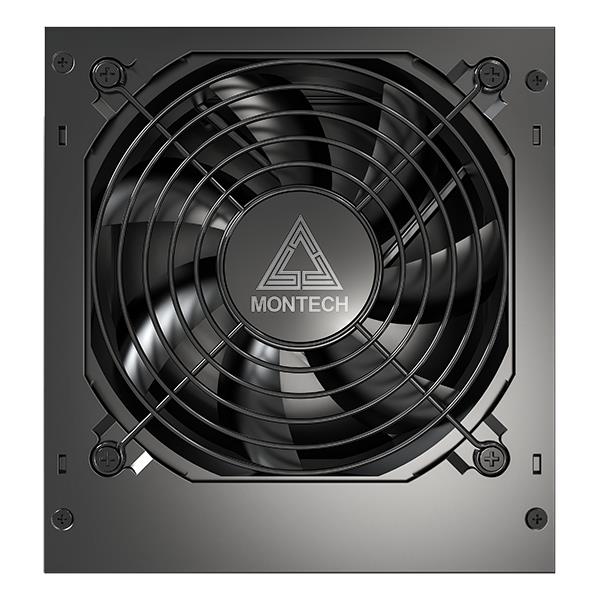

Experience cool performance and silent operation with APX, featuring a whisper-quiet 120mm Hydraulic Bearing Fan. Keep your system running smoothly without the noise.
APX's robust +12V rails, deliver superior power under any system load. With advanced DC-to-DC converters, APX ensures efficient and precise voltage regulation, providing optimal power supply for all electronic devices across diverse applications. Power up with APX for reliability and performance like never before.
APX power supply is engineered to deliver consistent power across diverse electrical systems.
Elevate your chassis thermal efficiency with the APX series, boasting flat cables designed to enhance airflow and optimize heat dissipation. Experience improved performance and effortless cable routing for a streamlined setup.
Experience industrial-grade power protection with APX, featuring all six essential mechanisms to ensure stable and safe system operation. Backed by a 5-year warranty, APX guarantees long-term reliability for worry-free usage. Power up with confidence with APX.
General
| Unit Calculated Weight | 2.1 kg |
| Unit Calculated Volume | 0.006136 cubm |
| Units per Shipping Box | 8 |
| Units per Pallet | 0 |
| Model name | APX 750W |
| Summary | Montech APX750. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS White. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, UKCA, cTUVus |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.25 |
| Unit Box Width | 0.2 |

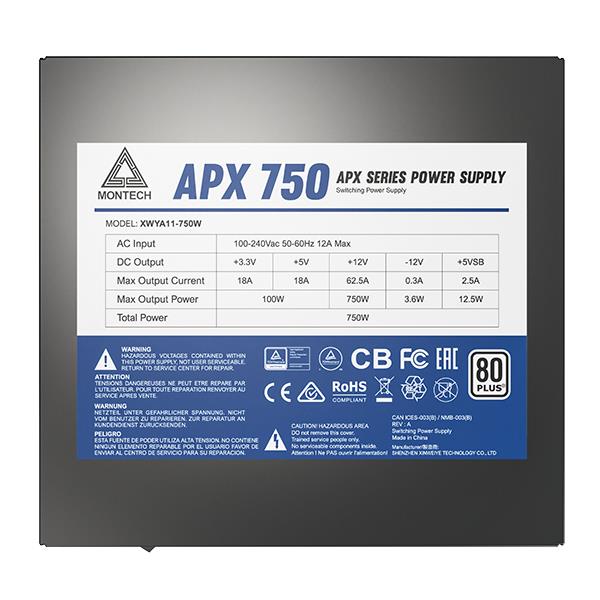

Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (+12V) | 750 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Input current | 12 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+3.3V) | 18 A |
| Max output current (+5V) | 18 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 750 W |
Ports & interfaces
| CPU power connector (4+4 pin) | Yes |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
Performance
| 80 PLUS certification | 80 PLUS White |
| Bearing technology | HDB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Compliance certificates | CB/CE/cTUVus/EAC/Federal Communications Commission (FCC)/RCM/RoHS/UKCA |
Weight & dimensions
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
