Enjoy 5G Speed Sharing Everywhere
5G AX3600 Wireless Dual-Band Gigabit Router
Superior 5G – A Revolutionary Experience
Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences. At the same time, NX600 is backward compatible with 4G mode.
Share 5G Speed with Reliable Wi-Fi
Thanks to cutting-edge 5G tech, NX600 boosts up to 4.67 Gbps download speeds fulfills your devices’ needs. Armed with WiFi 6 technology, NX600 is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.
Plug and Play, Enjoy 5G Network Everywhere
Simple, just one SIM card
Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Archer NX600 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
Smart Roaming
Uninterrupted streaming when moving around your home
One WiFi Name
No more switching WiFi network names
Available WAN Connection Backup

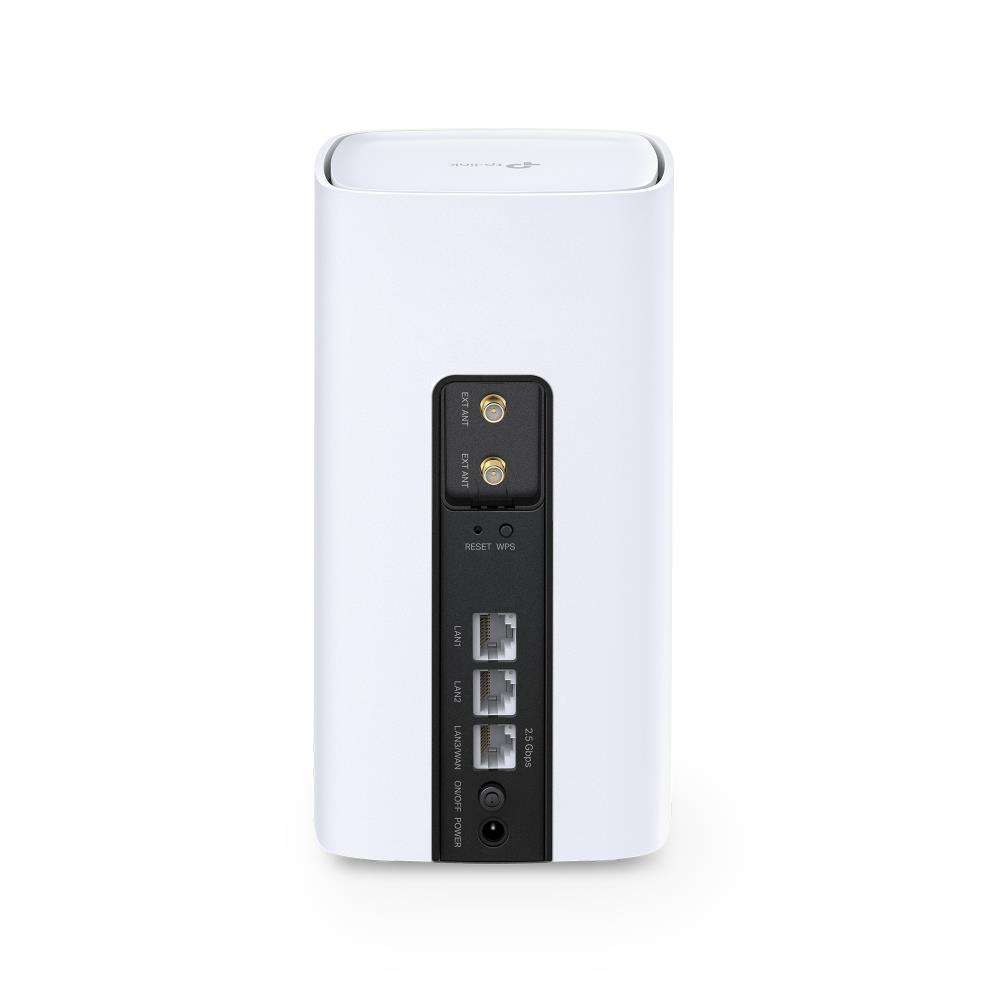

A 2.5 Gbps port and 2 Gigabit ports enable NX600 to take full advantage of your broadband speed. As a traditional router, NX600 is compatible with cable, fiber, and DSL modems. When it's set as a wireless router, its 5G/LTE connection works as a backup to provide a sustained and reliable internet connection for you. Furthermore, two external antenna ports allow external antenna access which can receive 5G/4G signals more effectively, resulting in improved 5G/4G performance.
Easy Setup and Use
Set up the Archer NX600 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.
- Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences
- AX3600 Dual-Band Wi-Fi 6 Speed - 2402 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)
- Plug & Play - Enjoy 5G network right after inserting a SIM card
- EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage
- Gigabit WAN/LAN Port - The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems
General
| Unit Calculated Weight | 1.45 kg |
| Unit Calculated Volume | 0.007332 cubm |
| Units per Shipping Box | 8 |
| Units per Pallet | 0 |
| Summary | TP-Link Archer NX600 5G AX3600 Wireless Dual-Band 2.5 Gig Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Maximum Tx power (2.4 GHz): 20 dBmW. Mobile network generation: 5G, 3G standards: DC-HSDPA, HSPA, HSPA+, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Unit Box Height | 0.23 |
| Unit Box Length | 0.225 |
| Unit Box Width | 0.11 |
| Model name | Archer NX600 5G AX3600 Wireless Dual-Band 2.5 Gig Router |
| Model | Archer NX600 |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
WAN connection
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| WAN connection type | RJ-45 |
Network
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000/2500 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Maximum Tx power (2.4 GHz) | 20 dBmW |
| Maximum Tx power (5 GHz) | 30 dBmW |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Port forwarding | Yes |
| Port triggering | Yes |
Mobile network
| 3G bands supported | 2100/850/900 MHz |
| 3G standards | DC-HSDPA/HSPA/HSPA+/UMTS |
| 4G bands supported | 1800/2100/2300/2500/2600/3500/3700/700/800/850/900 MHz |
| 4G standard | LTE-TDD & LTE-FDD |
| 5G bands supported | 1800/2100/2300/2500/2600/3500/3700/700/800/850/900 MHz |
| Mobile network generation | 5G |
| SIM card type | NanoSIM |
Management features
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| WPS push button | Yes |
Security
| DMZ support | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| Guest access | Yes |
| IP address filtering | Yes |
| Parental control | Yes |
| Security algorithms | 128-bit WEP/64-bit WEP/WPA/WPA2/WPA2-PSK/WPA-PSK |
| URL filtering | Yes |
Protocols
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | IPv4, IPv6 |
| Universal Plug and Play (UPnP) | Yes |
Design
| Product colour | White |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
Certificates
| Compliance certificates | CE/RoHS |
Antenna
| Antenna connector type | SMA |
| Antenna design | Internal & external |
| Antennas quantity | 14 |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Output current | 2 A |
| Output voltage | 12 V |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
System requirements
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 IOT Core/Windows 10 IoT Enterprise/Windows 10 Pro/Windows 10 Pro x64/Windows 2000/Windows 2000 Professi |
Weight & dimensions
| Depth | 99 mm |
| Height | 190 mm |
| Width | 99 mm |
