High-Performance WiFi for Gigabit Network Entry
Dual Band | Full Gigabit AC1200 MU-MIMO WiFi Router Archer A64
AC1200 Dual Band WiFi Meets Your Smooth Network Needs
The Archer A64 allows you to connect more devices and stream simultaneously with its dual 2.4GHz and 5GHz bands. The 2.4GHz band provides reliable connections for sending emails, web browsing and other simple tasks. The 5GHz band delivers speed up to 867Mpbs, great for media-intense applications like video streaming and online gaming. With a lag-free connection, you will never miss out again.
Take Your Network Security to the Next Level
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.
Extensive WiFi Coverage Throughout Your Home

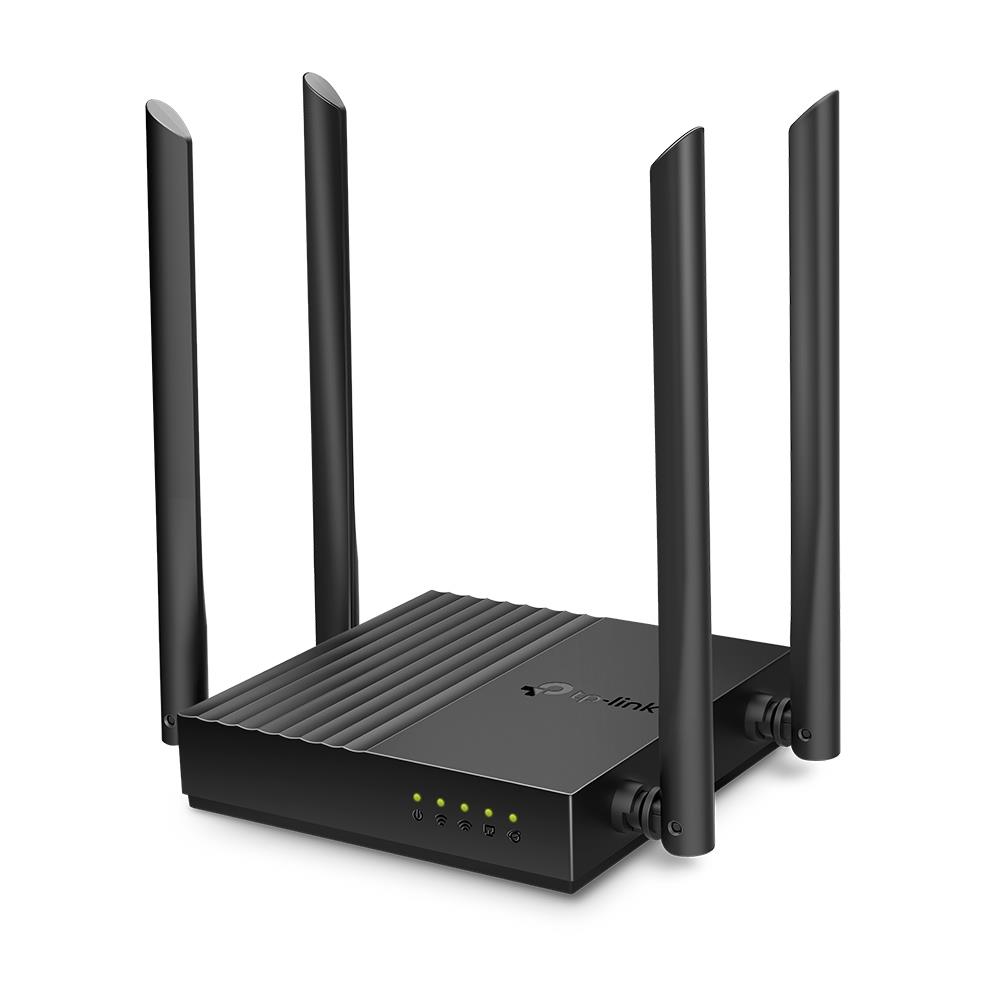

With 4 high-performance external antennas, Archer A64 boosts WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, particularly for previously hard to reach outlets.
Simultaneously Streaming to Multiple Devices with MU-MIMO
AC1200 WiFi with MU-MIMO, it establishes multiple simultaneous connection for you to enjoy higher speeds and greater stability. No more bandwidth congestion or latency. Enjoy non-stop entertainment on all your devices - lag free.
10 × Faster - Wired or Wireless

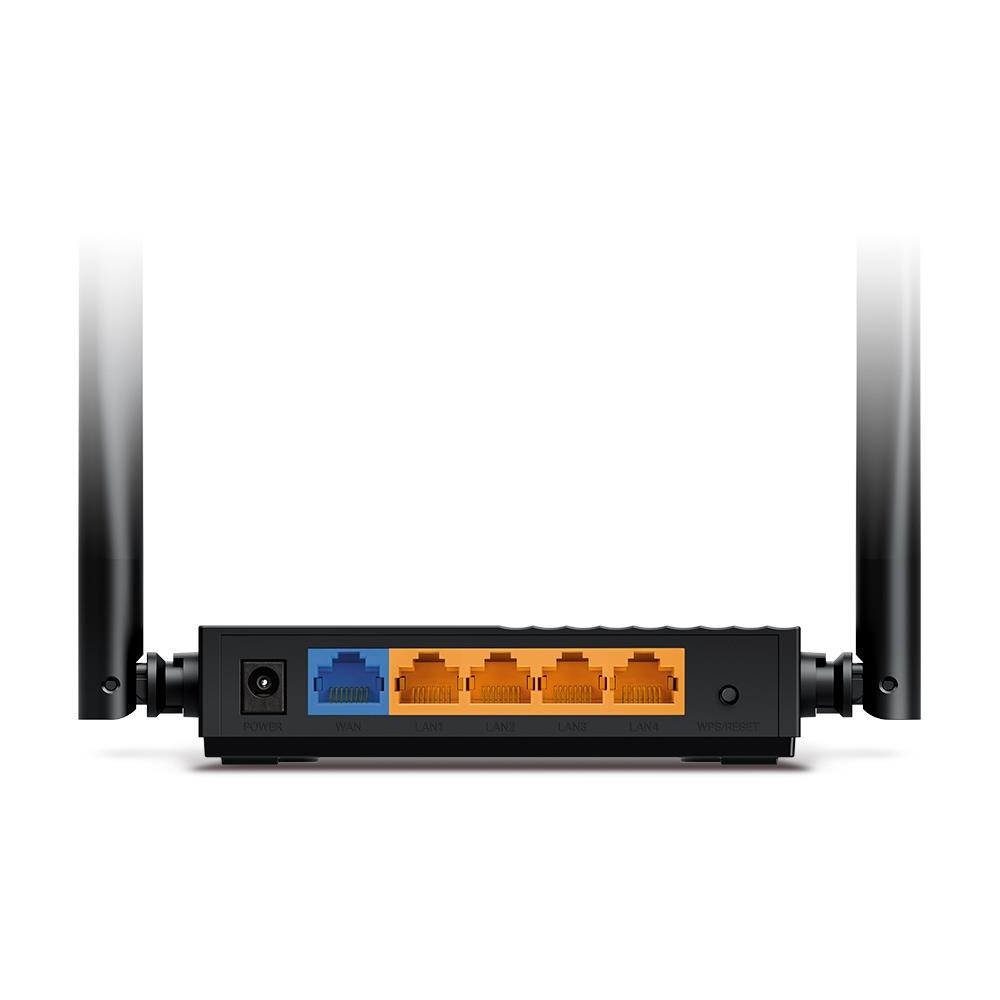

Gigabit Ethernet ports (1 WAN + 4 LAN) deliver speeds up to 10 × faster than standard Ethernet connections. Plug in your PCs, smart TVs, and game consoles for fast and reliable connections.
Archer A64 is your best choice for high-performance Gigabit network entry, with a competitive price advantage, full Gigabit Ethernets ports drive your devices to peak performance.
Access Point Working Mode
Switch Archer A64 from router working mode to Access Point mode, to transform your existing wired network into a wireless one.
Easy Setup at Your Fingertips
Set up Archer A64 in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.
- 802.11ac Wave2 WiFi - 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band †
- Boosted WiFi Coverage - 4 antennas provide stable wireless connections and optimal coverage
- MU-MIMO - Easy network management at your fingertips with TP-Link TetherMU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once ‡
- Beamforming - Beamforming technology delivers a highly efficient wireless connection
- AP Mode - Supports Access Point mode to create a new WiFi access point
- Intelligent Connection - Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage
- Easy Setup - Easy network management at your fingertips with TP-Link Tether
General
| Unit Calculated Weight | 0.72 kg |
| Unit Calculated Volume | 0.006091 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | TP-Link ARCHER A64. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA, WPA2, WPA2-Enterprise, WPA3. Product type: Tabletop router, Product colour: Black, LED indicators: LAN, Power, WLAN |
| CnCode | 85176200 |
| Unit Box Height | 0.223 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.076 |
| Model | ARCHER A64 |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 400 Mbit/s |
| WLAN data transfer rate (max) | 867 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
| WAN connection type | RJ-45 |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Port forwarding | Yes |
| Port triggering | Yes |
| Receiver sensitivity | 5 GHz: 11a 6Mbps:-95dBm, 11a 54Mbps-77dBm, 11ac VHT20 MCS8-71dBm, 11ac VHT40 MCS9-67dBm, 11ac VHT80 MCS9-63dBm 2.4 GHz: 11g 6Mbps -96dBm, 11g 54Mbps -78dBm, 11n HT20 MCS7-77dBm, 11n HT40 MCS7-74dBm, 11ac VHT20 MCS8-73dBm, 11ac VHT40 MCS9-68dBm |
Mobile network
| 3G | No |
| 4G | No |
| 5G | No |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
Management features
| MIMO | Yes |
| MU-MIMO technology | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Web-based management | Yes |
| WPS push button | Yes |
Security
| DMZ support | Yes |
| Firewall | Yes |
| Parental control | Yes |
| Security algorithms | WPA/WPA2/WPA2-Enterprise/WPA3 |
| Stateful Packet Inspection (SPI) | Yes |
| URL filtering | Yes |
Protocols
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design
| LED indicators | LAN,Power,WLAN |
| On/off switch | Yes |
| Product colour | Black |
| Product type | Tabletop router |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
Certificates
| Compliance certificates | RoHS |
Antenna
| Antenna design | External |
| Antennas quantity | 4 |
| Detachable antenna(s) | No |
| Transmit power | <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz) dBmW |
Features
| 4K streaming | Yes |
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
Power
| Output current | 1 A |
| Output voltage | 12 V |
| Power source type | DC |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
System requirements
| Browser supported | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled |
Weight & dimensions
| Depth | 120 mm |
| Height | 27.9 mm |
| Width | 120 mm |
