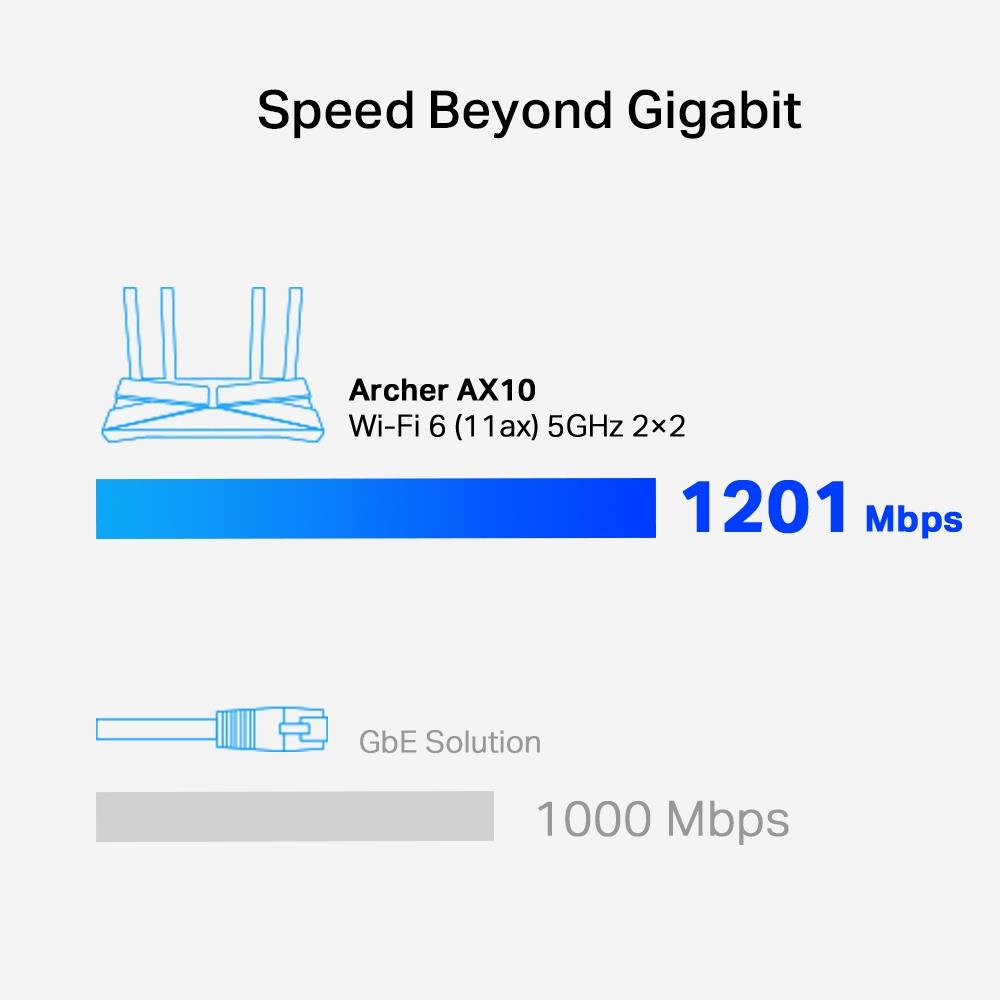

Wi-Fi 6 delivers a huge boost in speed and total capacity. Get on the latest Wi-Fi technology to wipe out all the annoying jittering and slow down and enjoy the future network that loads faster and connects more. The latest 1024-QAM and higher symbol rate combine to boost speeds for newer devices to the Gigabit level. Connect to a 1 Gbps Wi-Fi network with your phone or laptop and enjoy speeds comparable to plugging in an Ethernet cable. Wi-Fi 6 efficiently transmits data, enabling data packets for different applications to share one broadcast and cut the latency. Enjoy flawless video and audio chats, better gaming speeds and instantaneous video loading on different devices—all at the same time. A 1.5 GHz triple-core CPU provides overwhelming power to tackle huge amounts of data transferring, minimizing the latency within your network. Enjoy instant response when you click the play button for online playback and get better quality for the online video chatting. Get Next-Gen Wi-Fi speeds up to 1.5 Gbps. Instant response to all your network activity with a 1.5 GHz triple-core CPU. Broader Coverage 4 antennas and beamforming technology focus signal towards individual clients for broader coverage. Connect Dozens of devices more simultaneous connections and higher average throughput with ofdma. Full gigabit ports take full advantages of broadband speeds up to 1 gbps. Easy setup finish your network upgrade in minutes with tether app. Easy and Smart Connect a new device to your Wi-Fi without using the password, but your voice. EasyMesh-Compatible Flexibly creates a mesh network by connecting to an easymesh-compatible router for seamless whole-home coverage.
- Flexibly creates a mesh network by connecting to an easymesh
- Coverage 4 antennas and beamforming technology focus signal
- Dozens of devices more simultaneous connections
- Full gigabit ports take full advantages of broadband speeds up to 1 gbps
- Easy setup finish your network upgrade in minutes with tether app
General
| Unit Calculated Weight | 0.85 kg |
| Unit Calculated Volume | 0.006913 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | TP-Link Archer AX1500 Dual-Band Wi-Fi 6 Router, Black. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1500 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, Firewall security: SPI. Supported network protocols: IPv4, IPv6 |
| CnCode | 85176200 |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.33 |
| Unit Box Width | 0.24 |

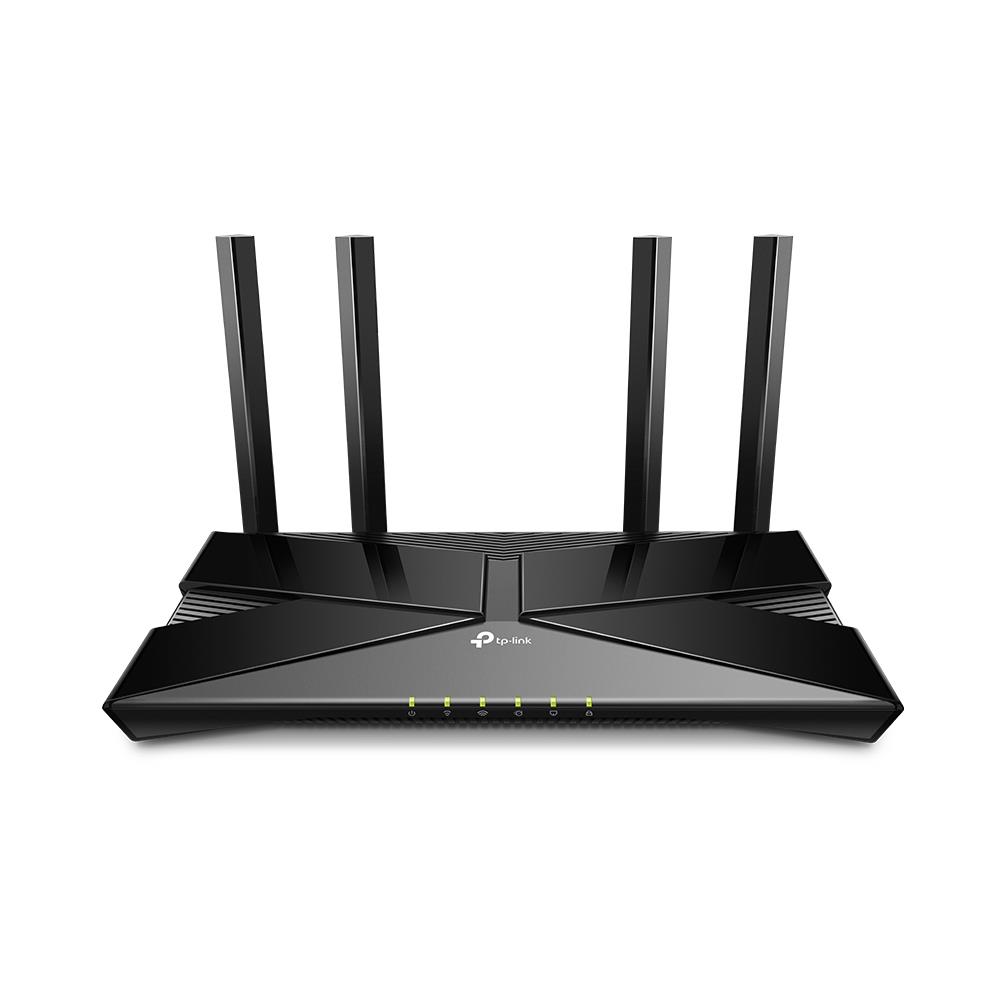

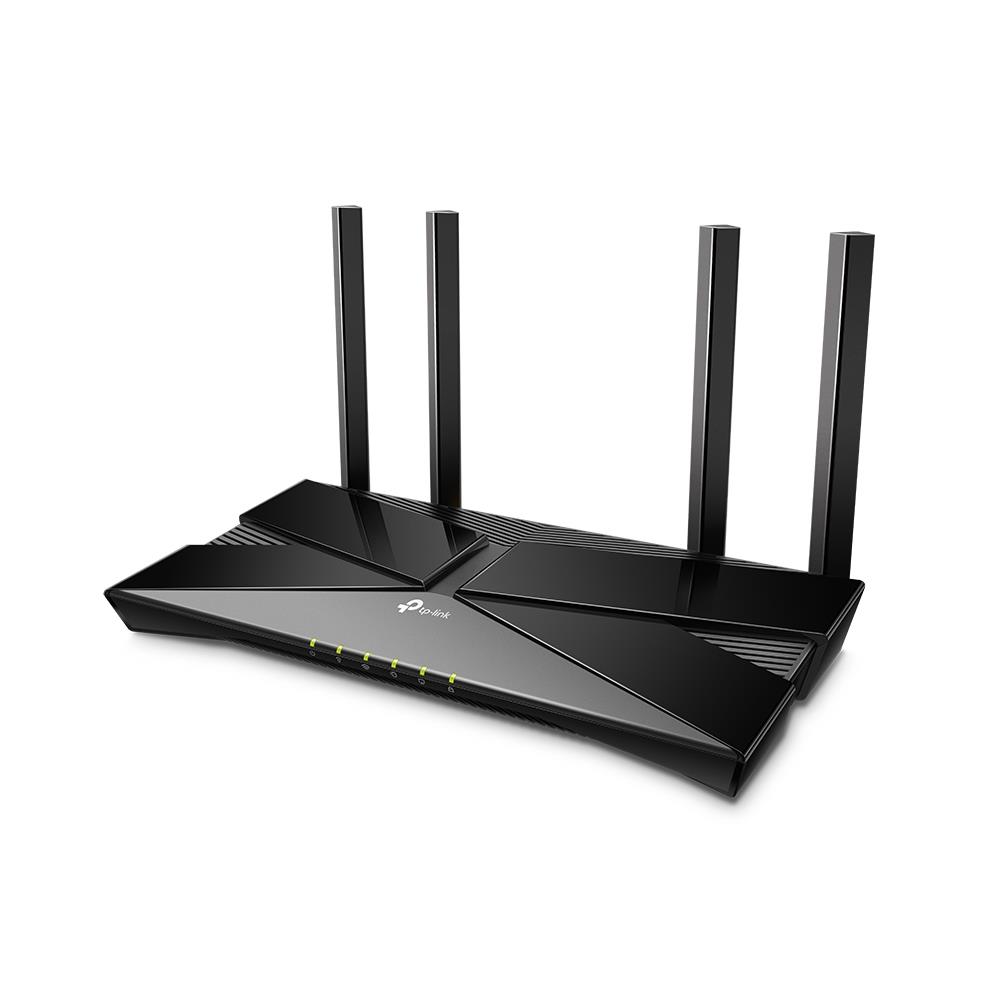

| Model name | TP-Link Archer AX1500 Dual-Band Wi-Fi 6 Router, Black |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (max) | 1500 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
| WAN connection type | RJ-45 |
Network
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Port forwarding | Yes |
| Receiver sensitivity | 5 GHz: 11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm, |
Ports & interfaces
| DC-in jack | Yes |

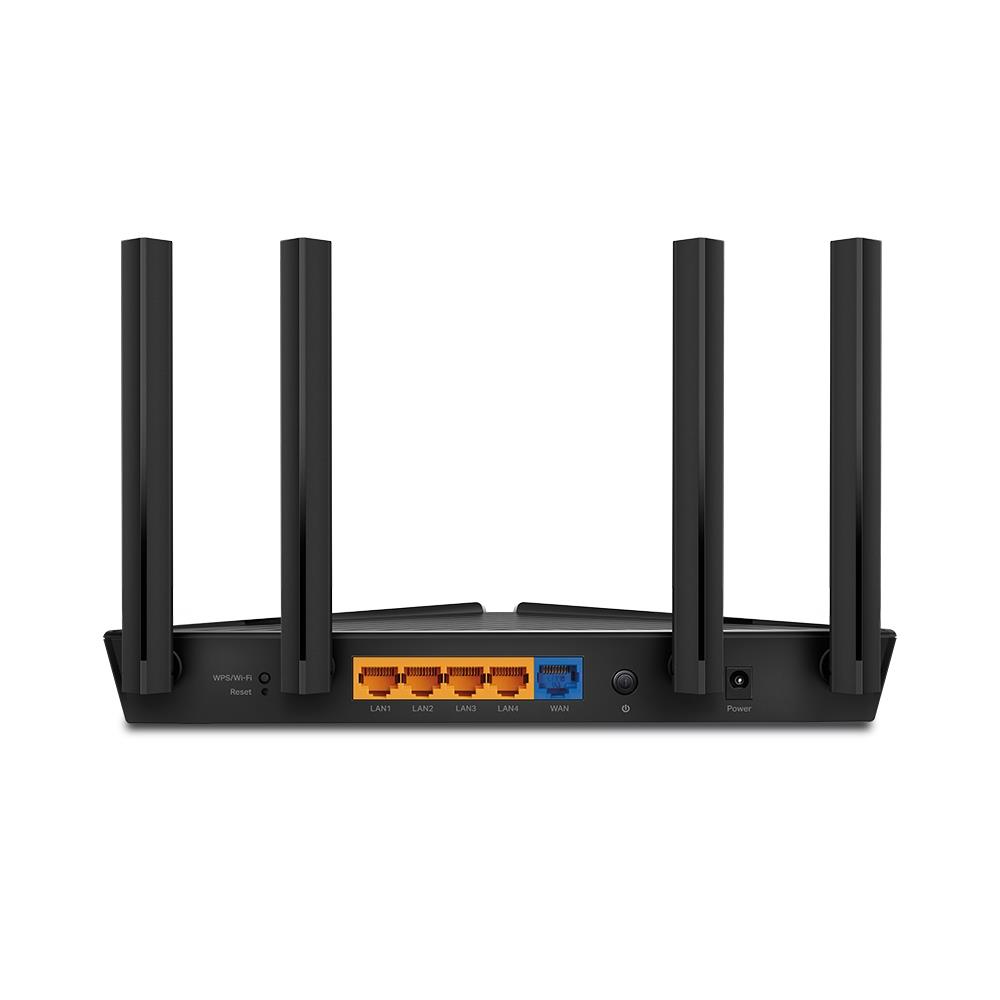

| Ethernet LAN (RJ-45) ports | 4 |
| Memory card slot(s) | No |
| USB port | No |
Management features
| Reset button | Yes |
| WPS push button | Yes |
Security
| DMZ support | Yes |
| Firewall | Yes |
| Firewall security | SPI |
| Guest access | Yes |
| Security algorithms | 128-bit WEP/64-bit WEP/WPA/WPA2/WPA2-PSK/WPA-PSK |
Protocols
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | IPv4, IPv6 |
| Universal Plug and Play (UPnP) | Yes |
Design
| On/off switch | Yes |
| Product colour | Black |
| Product type | Tabletop router |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Packaging content | 1 x TP-Link Archer AX1500 Wi-Fi 6 Router, Black |
| Quick installation guide | Yes |
Certificates
| Certification | FCC, CE, RoHS |
Antenna
| Antenna design | External |
| Antennas quantity | 4 |
| Transmit power | CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz); FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) dBmW |
Features
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 256 MB |
| Processor cores | 3 |
| Processor frequency | 1500 MHz |
Power
| Output current | 1 A |
| Output voltage | 12 V |
| Power source type | AC |
System requirements
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10/Windows 2000/Windows 7/Windows 8/Windows 8.1/Windows 98SE/Windows NT/Windows XP |
Weight & dimensions
| Depth | 126 mm |
| Height | 33 mm |
| Weight | 370 g |
| Width | 260 mm |
Packaging data
| Number of products included | 1 pc(s) |
| Package depth | 300 mm |
| Package height | 38 mm |
| Package weight | 780 g |
| Package width | 124 mm |
Logistics data
| Country of origin | Malaysia |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
