Wi-Fi 6 Upgrades Everything
The advanced Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Gigabit Broadband Internet Access

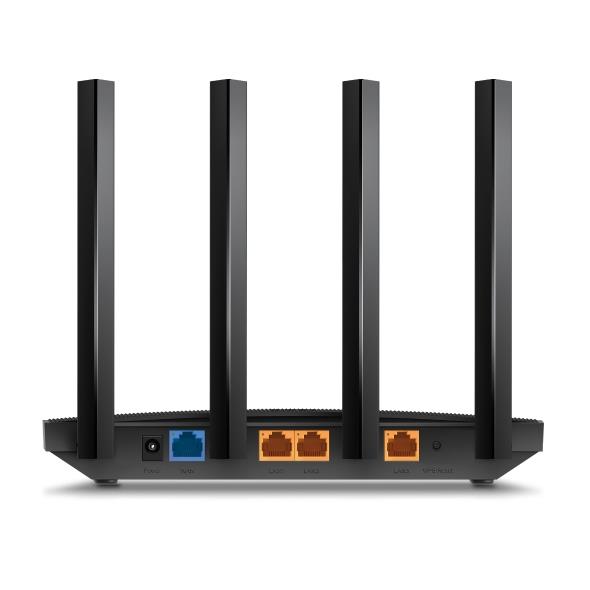

All gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the three gigabit ethernet LAN ports for fast, reliable wired connections.
WiFi Coverage Throughout Your Home
4 high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for previously hard to reach outlets.
WPA3—New Level of Cyber Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX12 in minutes.
The Tether app allows you to manage network settings from any Android or iOS device.
- Wi-Fi 6 Technology: Archer AX12 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion
- Next-Gen 1.5 Gbps Speeds: Archer AX12 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)15
- Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.24
- More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage with Archer AX12 as it focuses signal strength to your devices using Beamforming technology and four antennas
- Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.3
- Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App
- Backward Compatible: Archer AX12 supports all previous 802.11 standards and all WiFi devices
General
| Unit Calculated Weight | 0.85 kg |
| Unit Calculated Volume | 0.007057 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | TP-Link Archer AX1500 Wi-Fi 6 Router. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1501 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Security algorithms: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3. Product type: Tabletop router, Product colour: Black. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS |
| CnCode | 85176200 |
| Unit Box Height | 0.245 |
| Unit Box Length | 0.305 |
| Unit Box Width | 0.085 |
| Model name | Archer AX12 |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (max) | 1501 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
Network
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
Management features
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
Security
| DMZ support | Yes |
| Firewall | Yes |
| Security algorithms | WPA2-Enterprise/WPA2-PSK/WPA3/WPA-Enterprise/WPA-PSK |
| URL filtering | Yes |
Protocols
| Universal Plug and Play (UPnP) | Yes |
Design
| Product colour | Black |
| Product type | Tabletop router |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
Packaging content
| Quick installation guide | Yes |
Antenna
| Antenna design | External |
| Antennas quantity | 4 |
Power
| Power source type | AC |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Depth | 117 mm |
| Height | 32 mm |
| Width | 215 mm |
