Improved Efficiency, More Connections
Add more Wi-Fi devices to your network without dragging the performance, as Archer AX17 with Wi-Fi 6 builds a more efficient network that increases the average throughput by 4 times and serves more devices.
Immersive Gaming, Smooth Streaming
Enjoy stable network for online gaming and live streams with flawless video and clear audio. OFDMA allows
clients to transmit both on uplink and downlink using one band at one time, which cut the latency and ensures a responsive network.
Broader Coverage, Larger Capacity
With clearer and stronger signal generated with Wi-Fi 6 and Beamforming technology, Archer AX17 delivers data to devices far away by focusing less-interfered wireless signal towards them.
- Intuitive Web UI – Ensures quick and simple Installation without hassle
- Fast Encryption – One-touch WPA wireless security encryption with the WPS button
- Hassle-free Management with Tether App – Network management is made easy with the TP-Link Tether App, available on any Android and iOS device
- Guest Network – Provides separate access for guests while securing the home network
- Access Control – Establishes a whitelist or blacklist to allow or restrict certain devices to access the internet
- Parental Controls – Manage when and how devices can access the internet
General
| Unit Calculated Weight | 0.855 kg |
| Unit Calculated Volume | 0.007237 cubm |
| Units per Shipping Box | 10 |
| Summary | TP-Link Archer AX17. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1501 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Receiver sensitivity: 5 GHz: 11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm 11ac.... Security algorithms: WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Personal. Product type: Tabletop router, Product colour: Black |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.31 |
| Unit Box Width | 0.24 |
| Model name | Archer AX17 |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (max) | 1501 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
WAN connection
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
| WAN connection type | RJ-45 |
Network
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Receiver sensitivity | 5 GHz: 11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-92dBm, 11 |
Ports & interfaces

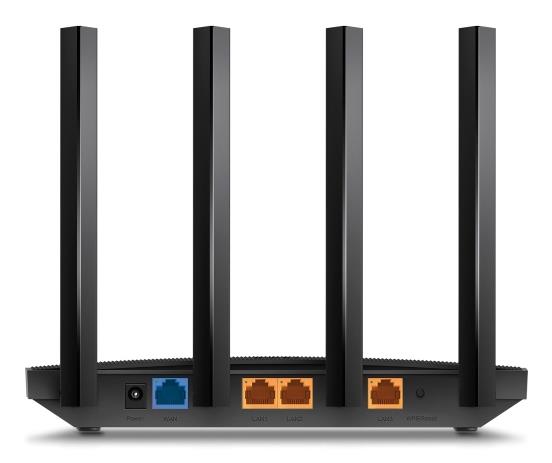

| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
Management features
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Security
| Security algorithms | WPA2-Enterprise/WPA2-PSK/WPA3-Personal/WPA-PSK |
Design
| Product colour | Black |
| Product type | Tabletop router |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
Certificates
| Certification | CE, RoHS |
Antenna
| Antenna design | External |
| Antennas quantity | 4 |
Power
| Output current | 1 A |
| Output voltage | 12 V |
| Power source type | DC |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Depth | 117 mm |
| Height | 32 mm |
| Width | 215 mm |
