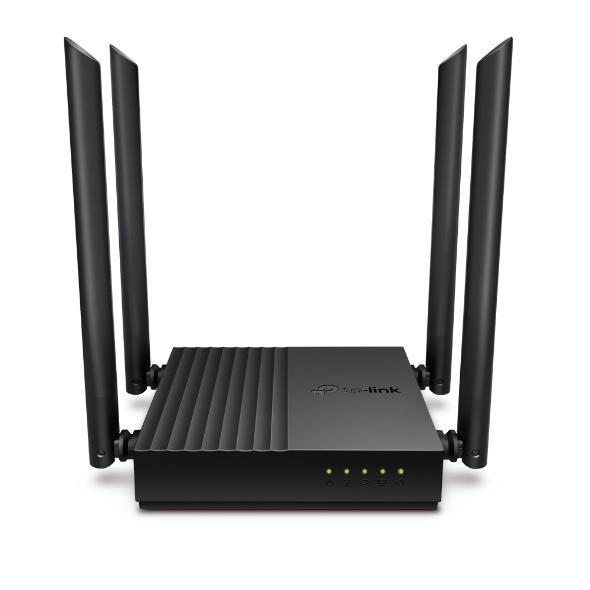

WRL ROUTER 1200MBPS 1000M 4P/DUAL BAND ARCHER C64 TP-LINK
General
| Unit Calculated Weight | 0.73 kg |
| Unit Calculated Volume | 0.006232 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | TP-Link Archer C64. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1200 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Networking standards: IEEE 802.1x, Receiver sensitivity: 5 GHz: 11a 6Mbps:-95dBm 11a 54Mbps:-77dBm 11ac VHT20 MCS8:-71dBm 11ac VHT40 MCS9:-67dBm 11ac VHT80.... Security algorithms: WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, Firewall security: SPI. Supported network protocols: IPv4, IPv6. Product type: Tabletop router, Product colour: Black |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.225 |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 400 Mbit/s |
| WLAN data transfer rate (max) | 1200 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
Network
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1x |
| Port forwarding | Yes |
| Port triggering | Yes |
| Receiver sensitivity | 5 GHz: 11a 6Mbps:-95dBm 11a 54Mbps:-77dBm 11ac VHT20 MCS8:-71dBm 11ac VHT40 MCS9:-67dBm 11ac VHT80 MCS9:-63dBm 2.4 GHz: 11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT20 MCS7:-77dBm 11n HT40 MCS7:-74dBm 11ac VHT20 MCS8:-73dBm 11ac VHT40 MCS9:-68dBm |
Ports & interfaces

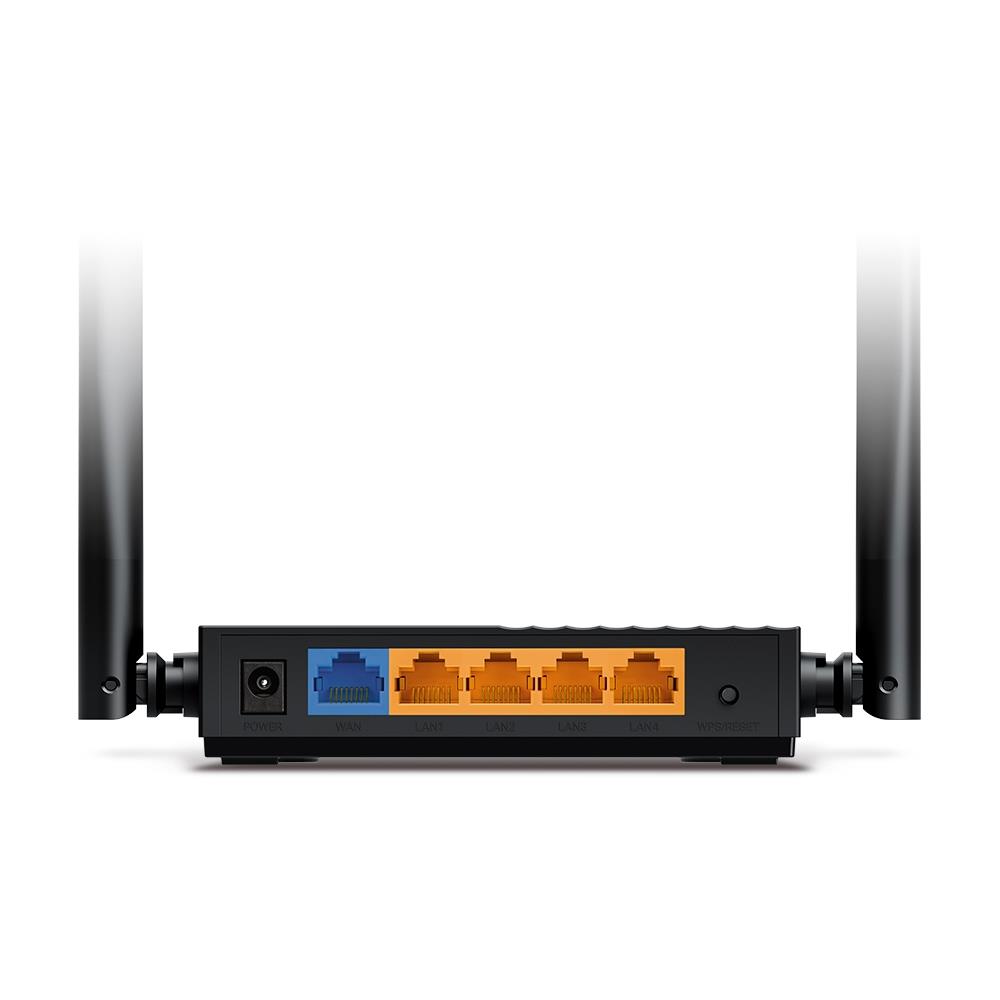

| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
Management features
| MU-MIMO technology | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Web-based management | Yes |
| WPS push button | Yes |
Security
| DMZ support | Yes |
| Filtering | Yes |
| Firewall | Yes |
| Firewall security | SPI |
| Guest access | Yes |
| Parental control | Yes |
| Security algorithms | WPA/WPA2/WPA2-Enterprise/WPA3/WPA-Enterprise |
| URL filtering | Yes |
Protocols
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | IPv4, IPv6 |
| Universal Plug and Play (UPnP) | Yes |
Design
| Product colour | Black |
| Product type | Tabletop router |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
Certificates
| Certification | CE, RoHS |
Antenna
| Antenna design | External |
| Antennas quantity | 4 |
| Transmit power | CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5 GHz) dBmW |
Features
| Built-in processor | Yes |
| Firmware upgradeable | Yes |
| Processor frequency | 1200 MHz |
Power
| Output current | 1 A |
| Output voltage | 12 V |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
System requirements
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10/Windows 2000/Windows 7/Windows 8/Windows 8.1/Windows 98SE/Windows NT/Windows Vista/Windows XP |
Weight & dimensions
| Depth | 120 mm |
| Height | 27.9 mm |
| Width | 120 mm |
Logistics data
| Harmonized System (HS) code | 85176990 |
