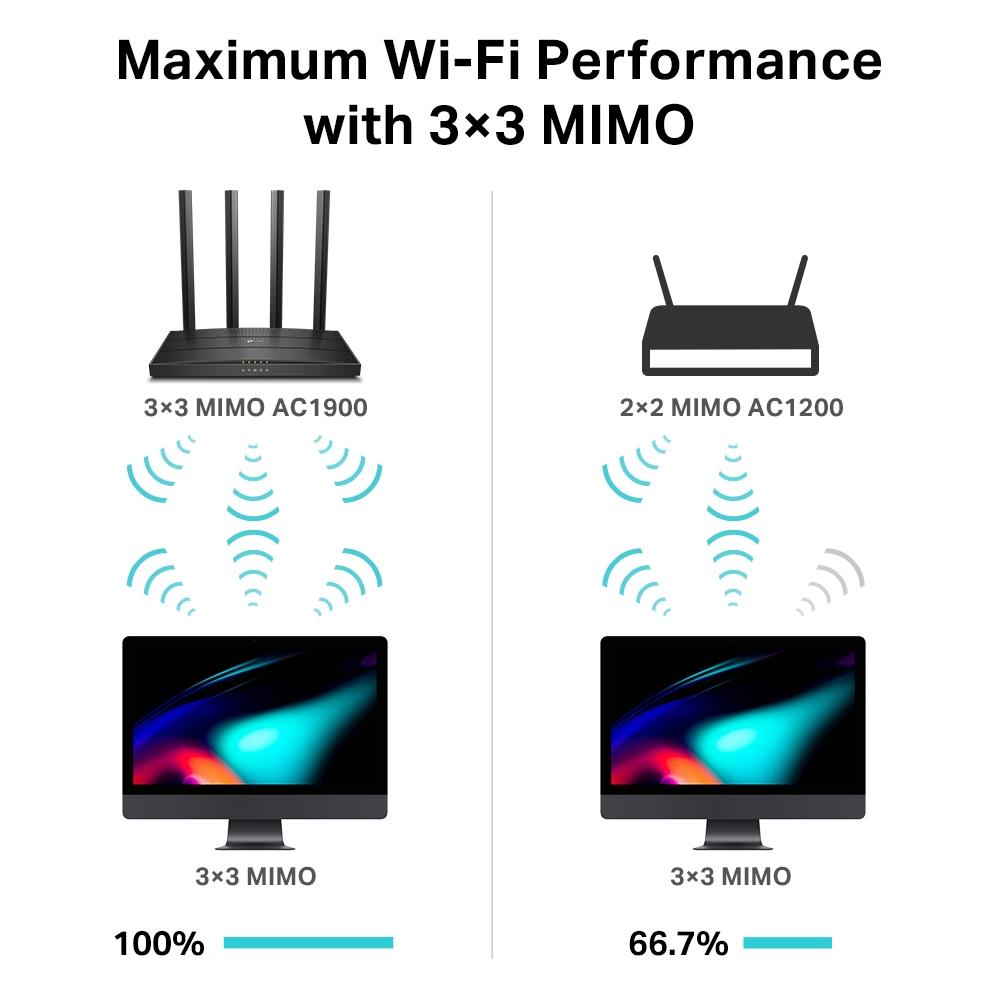

Maximum Wi-Fi Performance with Three Streams
With 3×3 MIMO, Archer C80 is capable of transmitting and receiving data on three streams. 3×3 capable computers— like Macs—pair perfectly with C80 to perform at max with much higher efficiency than 2×2 MIMO routers.
Incredible 802.11ac Wave2 Home Wi-Fi
Archer C80 delivers high-performance and affordable home Wi-Fi with total speeds up to 1900 Mbps. Handle simple tasks like sending e-mails or web browsing on the 2.4 GHz band and bandwidth-intensive tasks like online gaming or 4K/8K UHD streaming on the 5 GHz band—all lag-free.
Broader Coverage throughout Your Home
Access your entertainment from every corner of your home with 4 external high-performance antennas. Beamforming technology detects devices and concentrates wireless signal strength towards them, even if they are far away or low-powered.
Connect More Devices Simultaneously
Archer C80 helps your devices achieve optimal performance by making communication more efficient with MU-MIMO technology. Multiple devices are able to send and receive data on the best available band. Enjoy non-stop entertainment on all your devices—lag free.
Increased Efficiency in Wi-Fi Distribution
Smart Connect helps your router automatically switch each device's connection to the best available Wi-Fi band while Airtime Fairness prevents older devices from slowing down your network. With both, everyone can enjoy a smoother, lag-free W-Fi experience.
Full Gigabit Ports

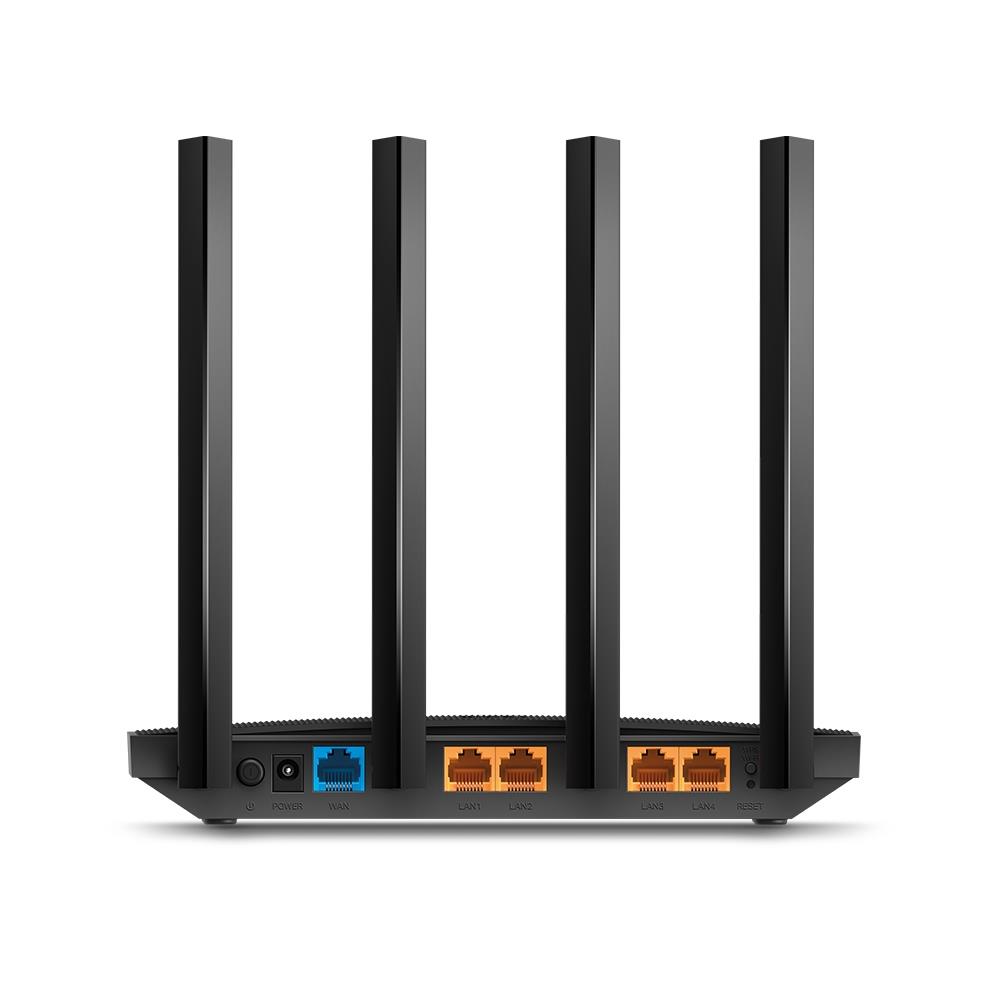

Gigabit Ethernet ports (1 WAN+ 4 LAN) deliver maximum wired speeds. Plug in your PCs, smart TVs, and game consoles for fast and reliable connections.
Personalize Your Home Network
Archer C80 provides a wealth of advanced tools for personalized management.
Parental Controls
Block inappropriate content and set daily limits for how much time your children spend online with Parental Controls.
Guest Network
Guest Network creates a separate Wi-Fi for guests, ensuring your privacy is secure.
Easy Setup at Your Fingertips
Set up Archer C80 in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.
General
| Unit Calculated Weight | 0.93 kg |
| Unit Calculated Volume | 0.008415 cubm |
| Units per Shipping Box | 10 |
| Summary | TP-Link Archer C80. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1300 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK. Product type: Tabletop router, Product colour: Black, LED indicators: LAN, Power, Status, WLAN, WPS |
| CnCode | 85176200 |
| Unit Box Height | 0.085 |
| Unit Box Length | 0.35 |
| Unit Box Width | 0.24 |
| Model name | Archer C80 |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 1300 Mbit/s |
| WLAN data transfer rate (max) | 1300 Mbit/s |
WAN connection
| Ethernet WAN | Yes |
| SIM card slot | No |
| WAN connection type | RJ-45 |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Port forwarding | Yes |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| Memory card slot(s) | No |
| USB port | No |
Management features
| Reset button | Yes |
| WPS push button | Yes |
Security
| Access Control List (ACL) | Yes |
| DMZ support | Yes |
| Firewall | Yes |
| Guest access | Yes |
| MAC address filtering | Yes |
| Security algorithms | 128-bit WEP/64-bit WEP/WPA/WPA2/WPA2-PSK/WPA-PSK |
| Stateful Packet Inspection (SPI) | Yes |
Protocols
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design
| LED indicators | LAN,Power,Status,WLAN,WPS |
| On/off switch | Yes |
| Product colour | Black |
| Product type | Tabletop router |
| Wall mountable | Yes |
Packaging content
| AC adapter included | Yes |
| Cables included | AC/LAN (RJ-45) |
| Quick installation guide | Yes |
Antenna
| Antenna design | External |
| Antennas quantity | 4 |
| Detachable antenna(s) | No |
| Transmit power | CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz), FCC:<30dBm(2.4 GHz & 5 GHz) dBmW |
Power
| Output voltage | 12 V |
| Power source type | DC |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
System requirements
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | MacOS |
| Windows operating systems supported | Windows 10/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 IOT Core/Windows 10 Pro/Windows 10 Pro x64/Windows 10 x64/Windows 7/Windows 7 Ente/Windows 7 Enterprise |
Packaging data
| Package depth | 240 mm |
| Package height | 82 mm |
| Package weight | 250 g |
| Package width | 350 mm |
