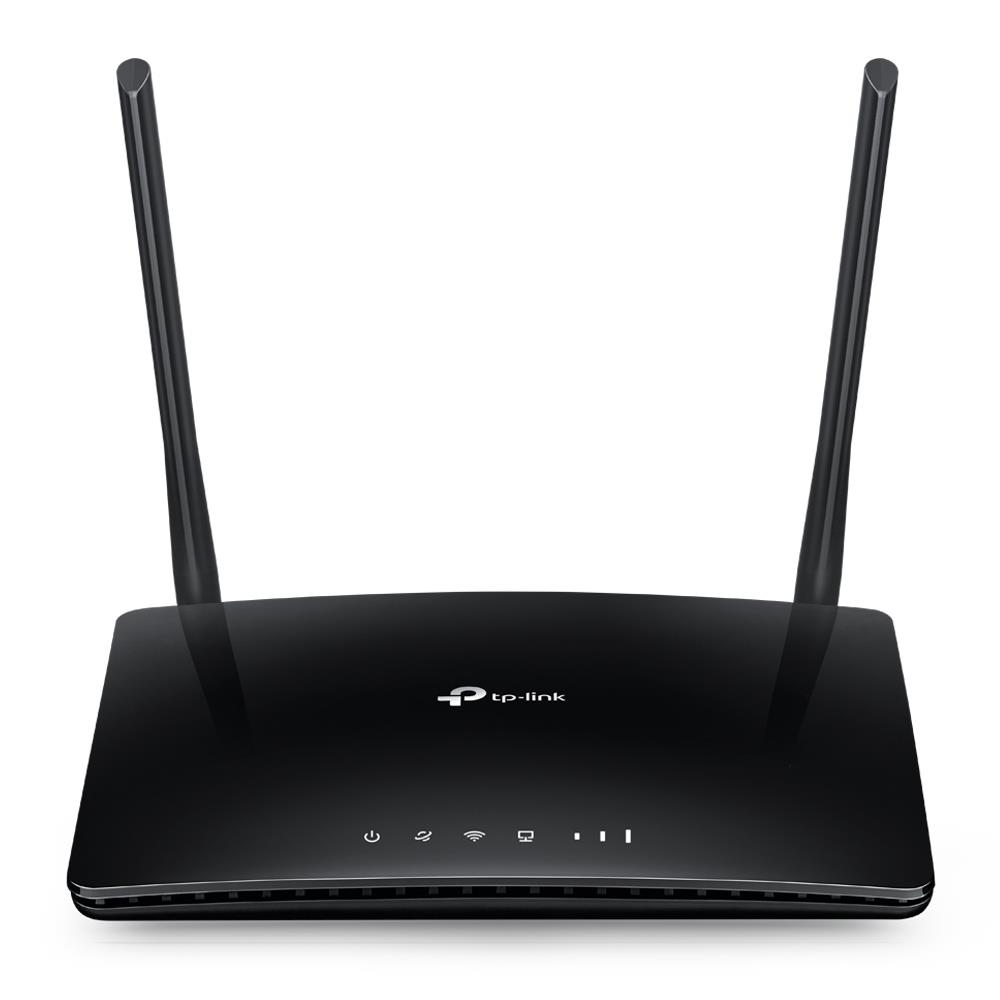

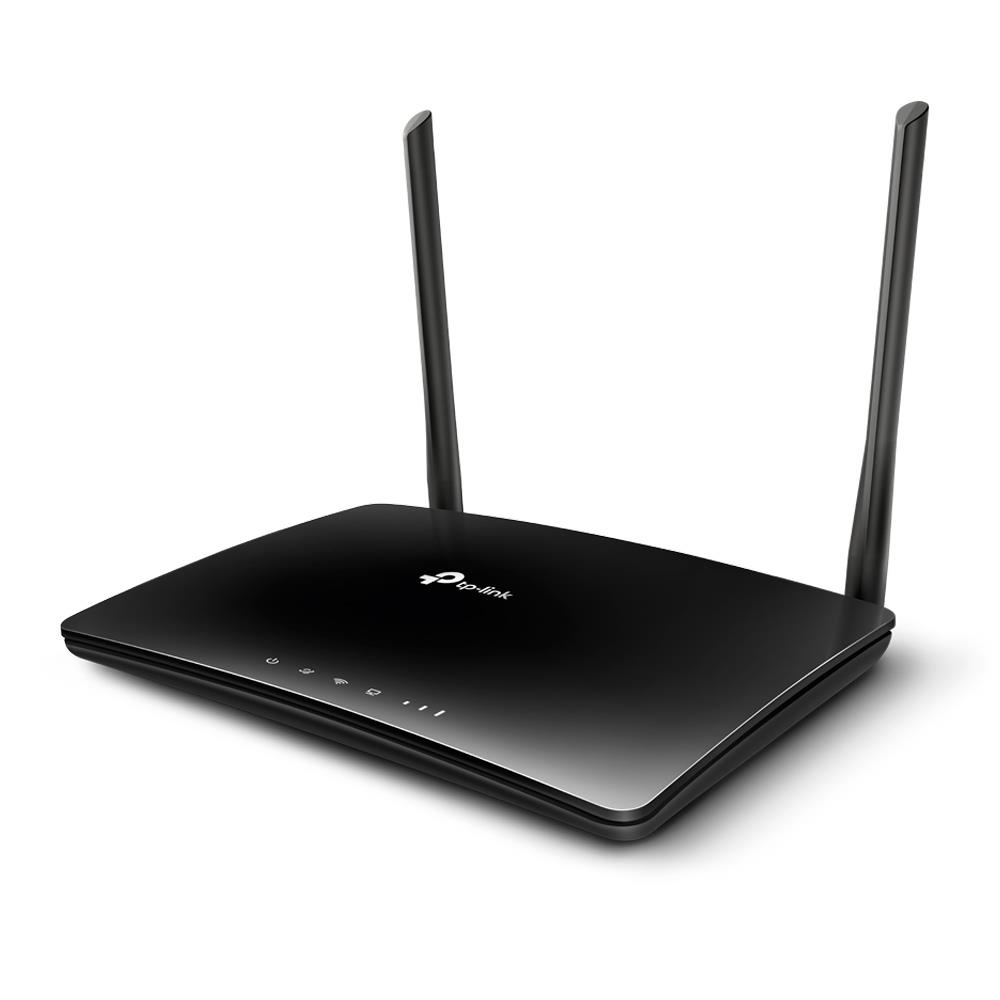

AC750 Wireless Dual Band 4G LTE Router
Dual Band Wi-Fi Where You Need It
Superfast 4G LTE Speed & Stream-Ready AC Wi-Fi
The Archer MR200 uses 4G LTE technology to achieve speeds of up to 150Mbps download and 50Mbps upload. It also shares a simultaneous dual band Wi-Fi network with maximum speeds of 300Mbps on 2.4GHz and 433Mbps on 5GHz for gaming, streaming, file-sharing and more.
Design for Maximum Network Coverage
Advanced high gain antennas make efficient and stable connections to every device. Power Amplifier and Low Noise Amplifier boost sending and receiving capabilities, creating a wide-coverage Wi-Fi network for your home.
Plug and Play
Simply insert your 3G/4G SIM card into the built-in slot, turn on the MR200 and start surfing.
More Devices, More Stability
Connect up to 64 wireless devices with ease, thanks to a powerful Qualcomm processor that boosts data transfer speeds while ensuring dependable network stability.
General
| Unit Calculated Weight | 0.76 kg |
| Unit Calculated Volume | 0.005565 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | TP-Link Archer MR200. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 733 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 3G standards: DC-HSPA+, HSPA, HSPA+, UMTS, 4G standard: LTE. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.305 |
| Unit Box Width | 0.225 |
| Model name | Archer MR200 |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (max) | 733 Mbit/s |
| WLAN data transfer rate (second band) | 433 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| WAN connection type | RJ-45 |
Network
| Cabling technology | 10/100Base-T(X) |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Port forwarding | Yes |
| Receiver sensitivity | 5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80: -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -73dBm 11n HT20: -73dBm 11n HT40: -67dBm |
| VPN Passthrough | Yes |
| VPN support | PPTP VPN, IPSec VPN, OpenVPN |
| VPN tunnels quantity | 10 |
Mobile network
| 3G | Yes |
| 3G bands supported | 2100/900 MHz |
| 3G standards | DC-HSPA+/HSPA/HSPA+/UMTS |
| 4G | Yes |
| 4G bands supported | 1800/1900/2100/2300/2500/2600/800/900 MHz |
| 4G standard | LTE |
| Mobile network generation | 4G |

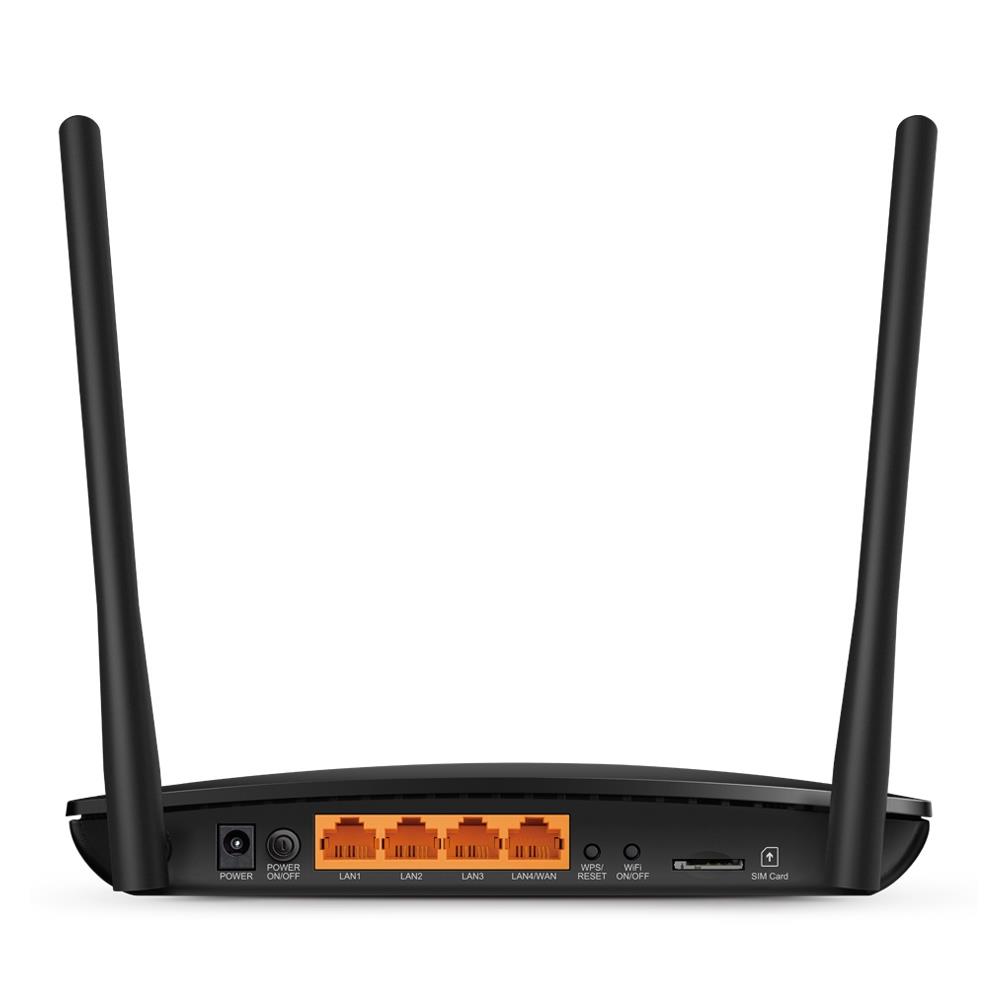

Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Memory card slot(s) | No |
| USB port | No |
Management features
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Web-based management | Yes |
Security
| DMZ support | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| Firewall | Yes |
| Guest access | Yes |
| IP address filtering | Yes |
| MAC address filtering | Yes |
| Security algorithms | 128-bit WEP/64-bit WEP/WPA/WPA2/WPA2-PSK/WPA-PSK |
| Stateful Packet Inspection (SPI) | Yes |
| URL filtering | Yes |
Protocols
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | IPv4, IPv6 |
| Universal Plug and Play (UPnP) | Yes |
Design
| LED indicators | LAN,Power,WAN,WLAN |
| On/off switch | Yes |
| Product colour | Black |
| Product type | Tabletop router |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
| Quick start guide | Yes |
Certificates
| Certification | CE, RoHS |
Antenna
| Antenna design | External |
| Antennas quantity | 2 |
| Transmit power | 0 dBmW |
Features
| Built-in processor | Yes |
| Plug and Play | Yes |
| Processor model | Qualcomm Atheros |
Power
| Output current | 1 A |
| Output voltage | 12 V |
| Power source type | DC |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
System requirements
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10/Windows 2000/Windows 7/Windows 8/Windows 8.1/Windows 98SE/Windows NT/Windows Vista/Windows XP |
Weight & dimensions
| Depth | 145 mm |
| Height | 34 mm |
| Width | 202 mm |
