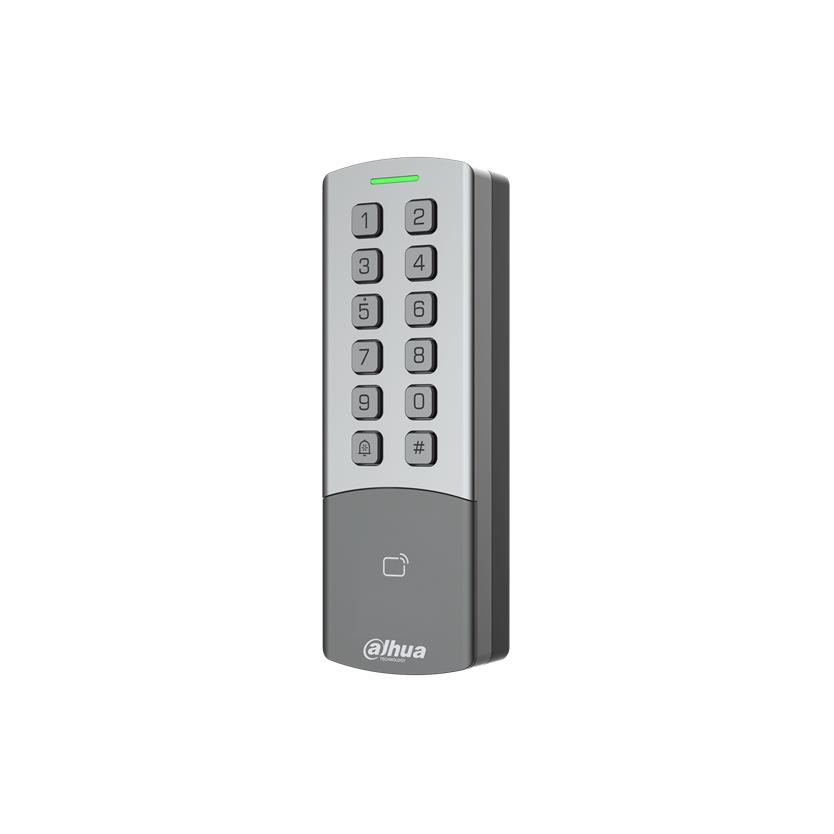

Dahua Card Swiping,Password Access Standalone
> The front part of the case is made of zinc alloy and the back part is made of plastic.
> Supports 10,000 users, 10,000 passwords, 10,000 cards (125 KHz, EM-Marine RFID, 13.56 MHz Mifare), and 100,000 records.
> Mechanical keypad with backlighting.
> Supports RS-485 communication and Wiegand communication.
> Buzzer and indicator light.
> Supports doorbell.
> Offers multiple types of alarms such as duress, tamper, intrusion, unlock timeout, and excessive use of illegal card.
> Cards can be issued to multiple types of users such as normal, VIP, patrol, guest, blocklist, other, and custom users.
> Supplies power to 1 lock (12 V, 500 mA or lower) or 1 card reader (12 V, 200 mA or lower).
> Convenient to configure through its webpage that is accessible to both computers and mobile devices.
> PoE power supply.
> Supports security extension modules for access control, preventing doors from being forcefully opened.
> Online update.
> Supports TCP/IP connection, auto registration, P2P registration and DHCP.
> IP65 and IK08 rated.
> Supports surface mount.
> Compatible with multiple platforms such as SmartPSS lite, DSS PRO and DMSS.
General
| Power supply requirements | 12 VDC, 1.5 A Standard PoE |
| Unit Box Height | 0.098 |
| Unit Box Length | 0.219 |
| Units per Shipping Box | 1 |
| Unit Box Width | 0.111 |
| Unit Calculated Volume | 0.002382 cubm |
| Product Net Weight | 0.6 kg |
| Unit Calculated Weight | 0.69 kg |
