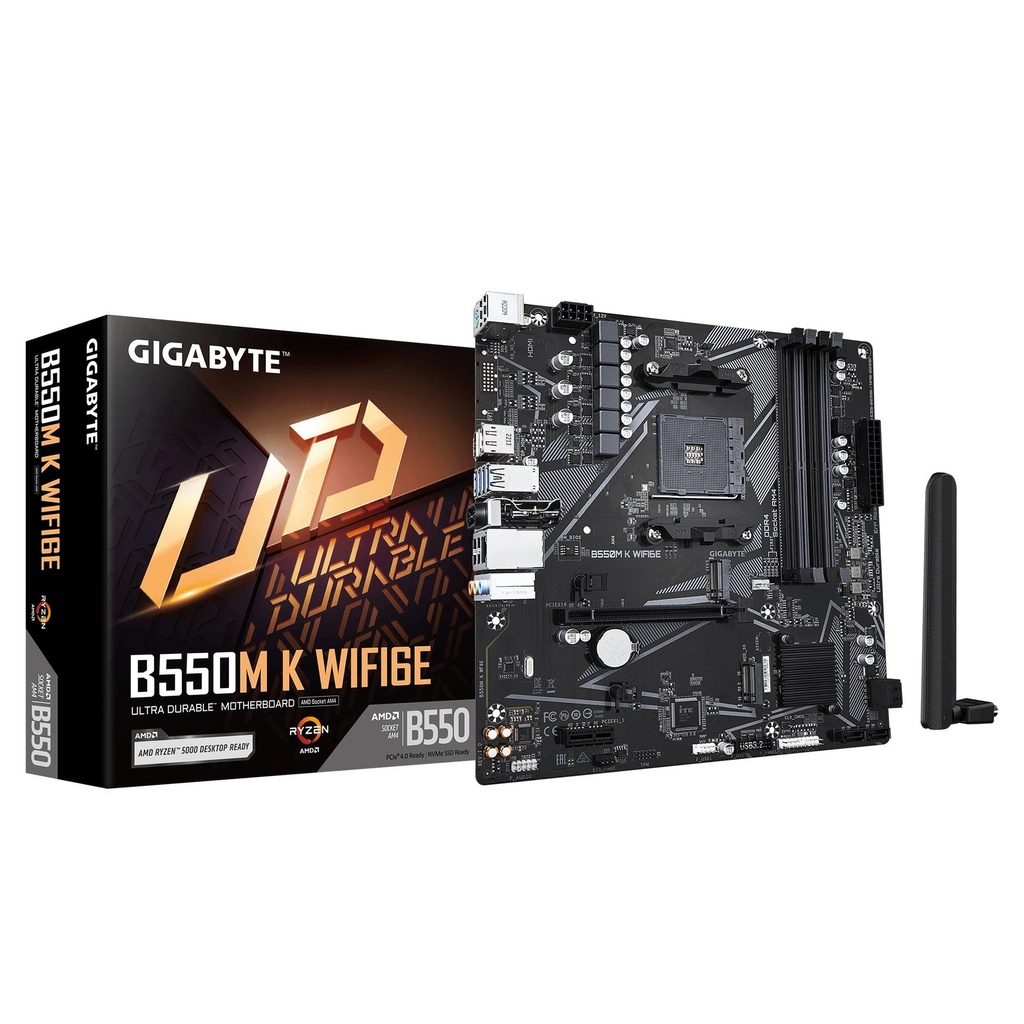

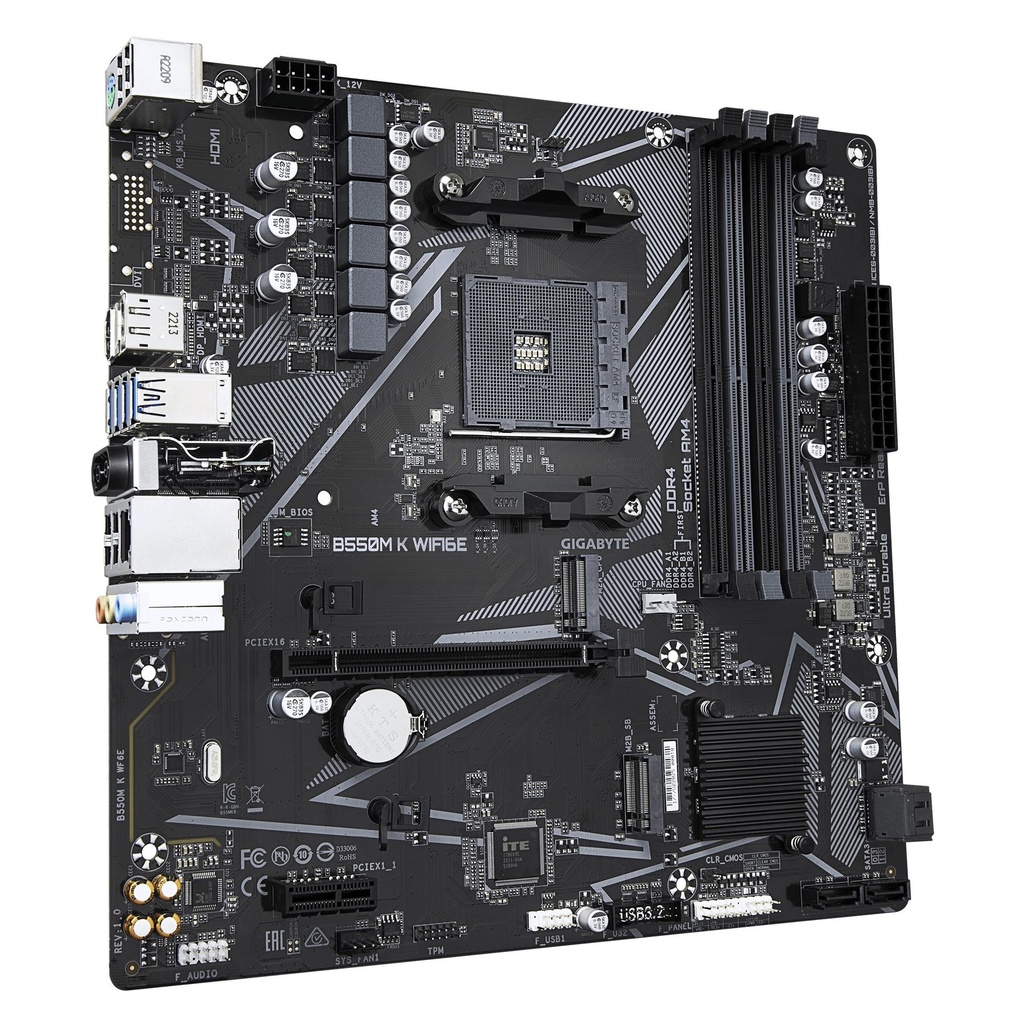

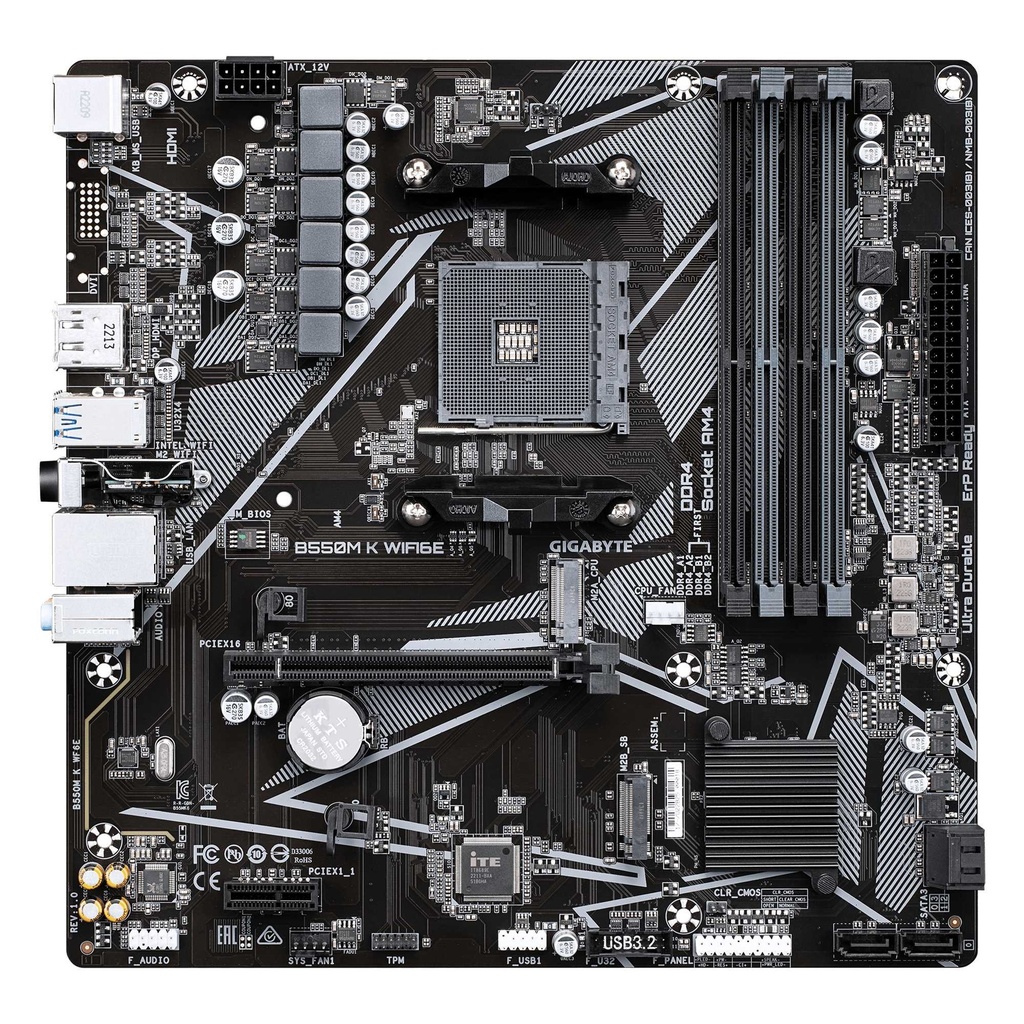

GIGABYTE B550M K WIFI6E
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Fast Networks: GbE LAN & Wi-Fi 6E 802.11ax
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- Rear DisplayPort and HDMI for Multi-display Support
- Anti-Sulfur Resistors Design
General
| Summary | GIGABYTE B550M K WIFI6E Motherboard - AMD Ryzen 5000 CPUs, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, WIFI 6E, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, Fast Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6E (802.11ax) |
| Unit Box Height | 0.072 |
| Unit Box Length | 0.268 |
| Unit Box Width | 0.275 |
| Name | MB AMD B550 SAM4 MATX/B550M K WF6E GIGABYTE |
| Model | GIGABYTE B550M K WIFI6E |
Features
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Cooling type | Passive |
| Motherboard chipset family | AMD |
| Power source type | ATX |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| PC health monitoring | Fan/Temperature/Voltage |
| Product colour | Dark brown |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | AMD B550 |
Processor
| Supported processor sockets | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series |
| Processor socket | Socket AM4 |
| Processor manufacturer | AMD |
Memory
| Maximum internal memory per slot | 32 GB |
| Unbuffered memory | Yes |
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 4733 MHz |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dodeca-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
Storage controllers
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Number of HDDs supported | 2 |
| Number of storage drives supported | 6 |
| Supported storage drive interfaces | M.2,SATA |
| Supported storage drive types | HDD & SSD |
Graphics
| DirectX version | 12.0 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Maximum resolution | 5120 x 2880 pixels |
| Parallel processing technology support | Not supported |
Internal I/O
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 1 |
| Number of CPU fan connectors | 1 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 1 |

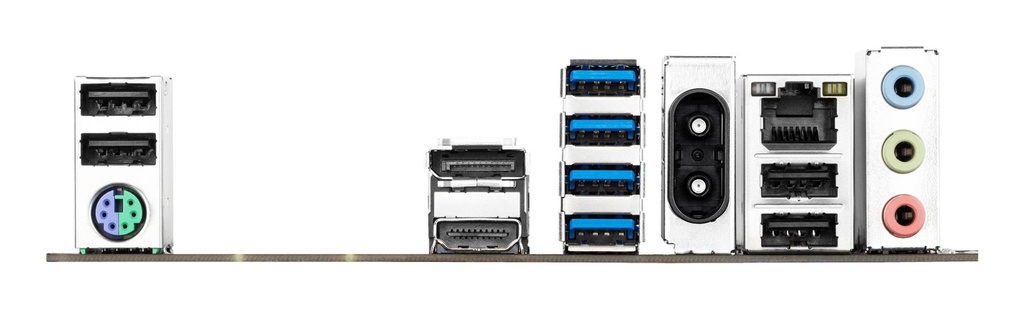

Rear panel I/O ports
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Line-in | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 4 |
Network
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| WLAN controller model | MediaTek MT7902 |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Yes |
Expansion slots
| 2nd M.2 highest PCI Express generation | 3.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
BIOS
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
Logistics data
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
Battery
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery capacity | 220 mAh |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
Packaging data
| Package weight | 1016 g |
| Package height | 68 mm |
| Package depth | 268 mm |
| Package width | 270 mm |
Weight & dimensions
| Height | 35 mm |
| Depth | 244 mm |
| Width | 244 mm |
Packaging content
| Bundled software | Norton® Internet Security (OEM version) |
| Antenna included | Yes |
| Batteries included | Yes |
| Screws included | Yes |
Other features
| Weight | 940 g |
Technical details
| Warranty period | 3 year(s) |
