Unleashed performance and compatibility
Dark Rock 5 is the compact embodiment of performance and high compatibility. With effortless installation and a silent fan, it is designed for passionate gamers of all kinds.
- 6 advanced high-performance heat pipes
- Silent Wings 4 120mm PWM fan for perfect air pressure and virtually inaudible operation

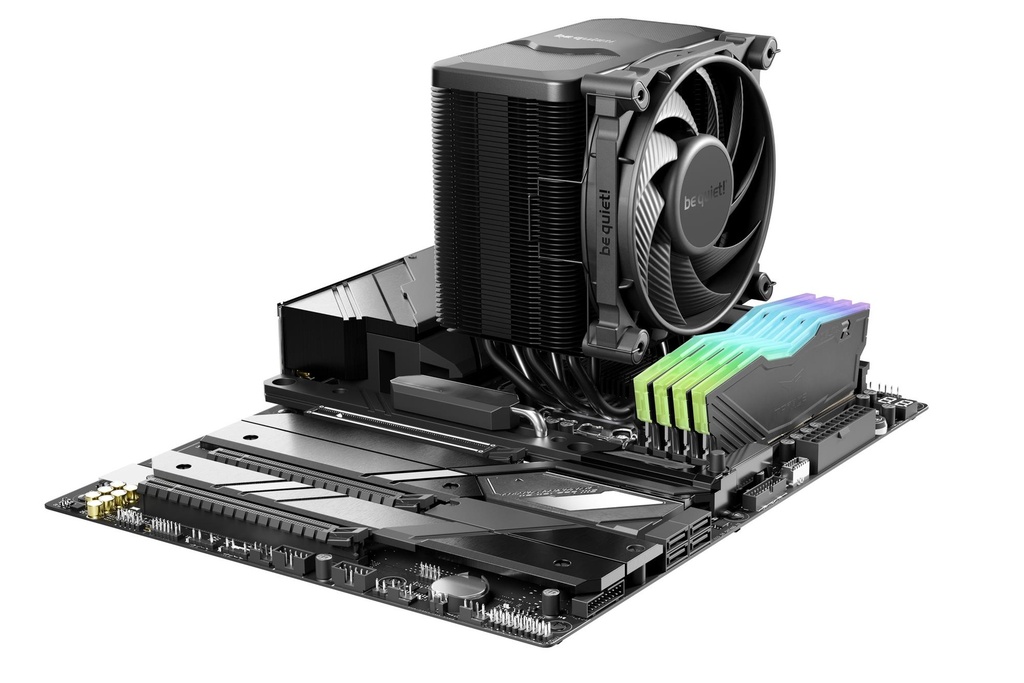

- High RAM and VRM cooler compatibility thanks to an asymmetrical design and cut-outs on the heat sink
- Achieves only 29.8dB(A) at maximum fan speed
- Special black coating with ceramic particles enables perfect heat transfer and elegant look
- A second fan can optionally be installed at the exhaust for even higher air pressure
General
| Unit Calculated Weight | 1.55 kg |
| Unit Calculated Volume | 0.007884 cubm |
| Units per Shipping Box | 12 |
| Units per Pallet | 0 |
| Summary | be quiet! DARK ROCK 5. Type: Air cooler, Fan diameter: 12 cm, Rotational speed (max): 2100 RPM, Airflow: 93.5 m³/h, Maximum air pressure: 2.73 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Width: 136 mm, Depth: 101 mm, Height: 161 mm. Product colour: Black |
| CnCode | 84145925 |
| Unit Box Height | 0.23 |
| Unit Box Length | 0.15 |
| Unit Box Width | 0.2 |
| Model name | BK035 |
| Model | DARK ROCK 5 |
Performance
| Airflow | 93.5 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan diameter | 120 mm |
| Fan's mean time to failure (MTTF) | 300000 h |
| Maximum air pressure | 2.73 mmH2O |
| Maximum airflow | 55 cfm |
| Noise level (high speed) | 29.8 dB |
| Noise level (low speed) | 11.9 dB |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 1 pc(s) |
| Rotational speed (max) | 2100 RPM |
| Suitable location | Processor |
| Supported processor sockets | LGA 1150 (Socket H3)/LGA 1151 (Socket H4)/LGA 1155 (Socket H2)/LGA 1200 (Socket H5)/LGA 1700/LGA 1851/Socket AM4/Socket AM5 |
| Type | Air cooler |
Design
| Base plate material | Copper |
| Fan connector | 4-pin |
| Fins material | Aluminium |
| Number of fans | 1 fan(s) |
| Number of heat pipes | 6 |
| Product colour | Black |
Power
| Fan current | 0.1 A |
| Fan power consumption | 2.4 W |
| Maximum current | 0.2 A |
| Rated voltage | 12 V |
| Thermal Design Power (TDP) | 210 W |

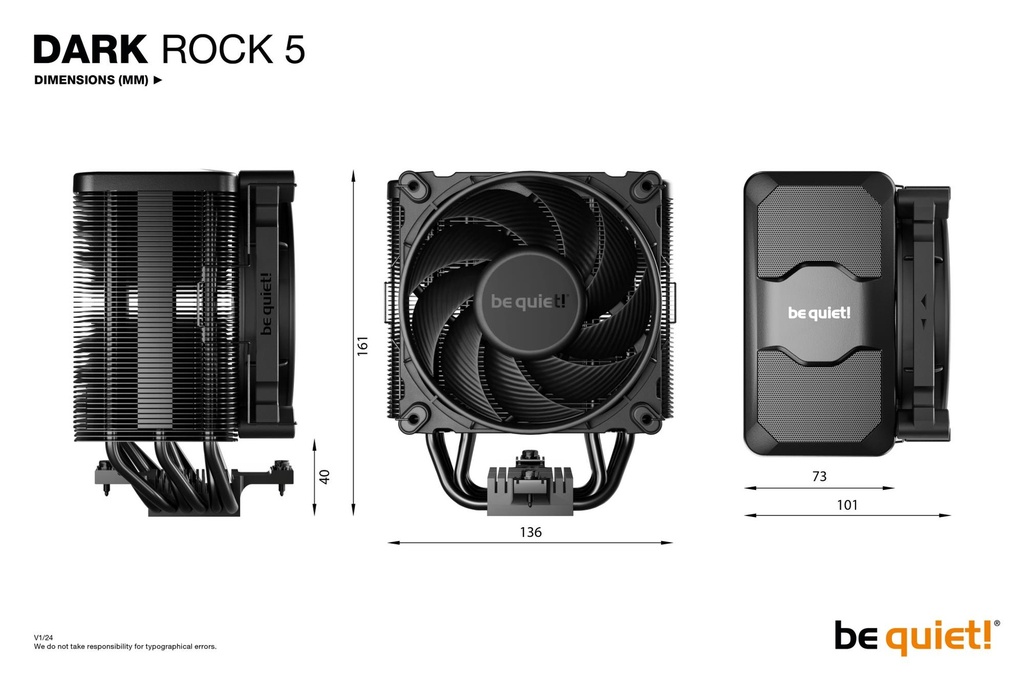

Weight & dimensions
| Cable length | 0.22 m |
| Depth | 101 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heat pipes diameter | 6 mm |
| Height | 161 mm |
| Package depth | 198 mm |
| Package height | 224 mm |
| Package weight | 1500 g |
| Package width | 146 mm |
| Radiator depth | 76 mm |
| Radiator height | 161 mm |
| Radiator width | 136 mm |
| Weight | 1030 g |
| Width | 136 mm |
Technical details
| Compliance certificates | CE/RoHS/TÜV mark/UKCA/UL/WEEE |
| Warranty period | 3 year(s) |

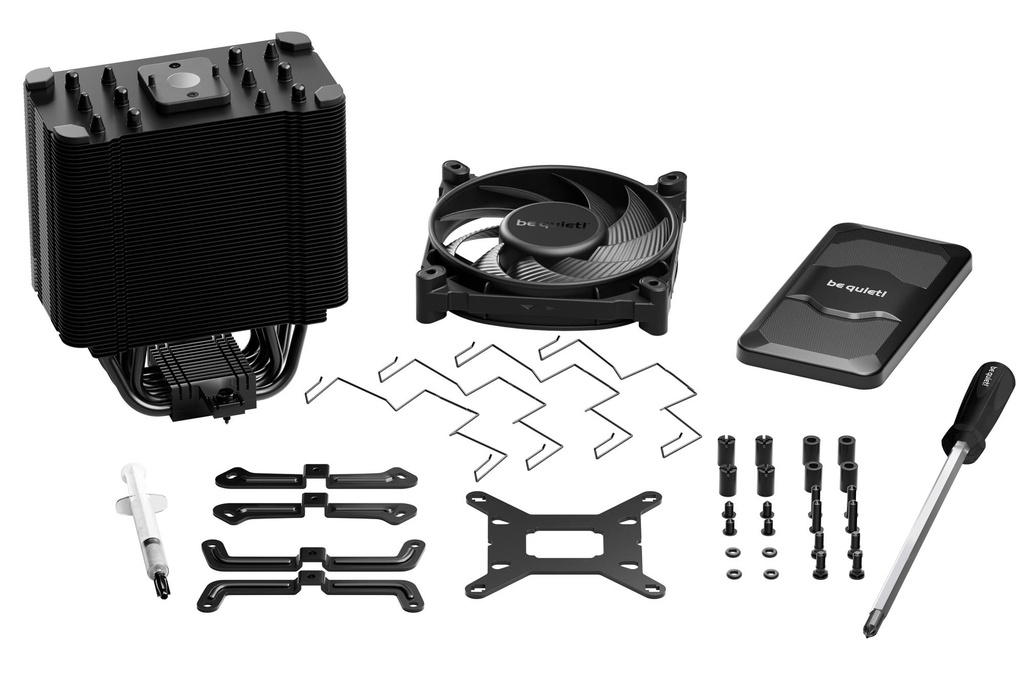

Packaging content
| CPU bracket(s) | Yes |
| Installation instruction | Yes |
| Mounting kit | Yes |
| Number of nuts | 4 |
| Number of screws | 8 |
| Screws included | Yes |
Other features
| Thermal grease | Yes |
Logistics data
| Products per shipping (inner) case | 12 pc(s) |
| Shipping (inner) case gross weight | 18600 g |
| Shipping (inner) case height | 483 mm |
| Shipping (inner) case length | 610 mm |
| Shipping (inner) case width | 310 mm |
