CPU COOLER S_MULTI/PURE LOOP 3LX BW030EU BE QUIET
General
| Unit Calculated Weight | 1.95 kg |
| Unit Calculated Volume | 0.01355 cubm |
| Units per Shipping Box | 8 |
| Units per Pallet | 0 |
| Summary | be quiet! PURE LOOP 3 LX. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Airflow: 105.1 m³/h, Maximum air pressure: 2.51 mmH2O. Height: 52 mm. Product colour: Black |
| CnCode | 84145925 |
| Unit Box Height | 0.24 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.32 |
| Model name | Pure Loop 3 LX 240mm |
| Model | BW030EU |
Performance
| Airflow | 105.1 m³/h |
| Compatible processor series | AMD Ryzen 9000 Series/Intel® Core™ i9 |
| Fan diameter | 120 mm |
| Fan speed (max) | 2100 RPM |
| Fan's mean time to failure (MTTF) | 60000 h |
| Maximum air pressure | 2.51 mmH2O |
| Maximum airflow | 61.8 cfm |
| Noise level (high speed) | 35 dB |
| Noise level (low speed) | 15.5 dB |
| Pulse-width modulation (PWM) support | Yes |
| Pump connector | 4-pin |
| Pump motor speed | 5500 RPM |
| Pump motor speed (max) | 5500 RPM |
| Pump motor speed (min) | 3000 RPM |
| Quantity per pack | 1 pc(s) |
| Suitable location | Processor |
| Supported processor sockets | LGA 1150 (Socket H3)/LGA 1151 (Socket H4)/LGA 1155 (Socket H2)/LGA 1200 (Socket H5)/LGA 1700/LGA 1851/Socket AM4/Socket AM5 |
| Type | All-in-one liquid cooler |
Design
| Base plate material | Copper |
| Daisy chain | Yes |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fan blades | 9 |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Radiator material | Aluminum |
Power
| Fan current | 0.17 A |
| Fan power consumption | 5.4 W |
| Fan voltage | 12 V |
Weight & dimensions
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Height | 52 mm |
| Package depth | 321 mm |
| Package height | 140 mm |
| Package weight | 1750 g |
| Package width | 240 mm |
| Radiator depth | 277 mm |
| Radiator height | 27 mm |
| Radiator width | 120 mm |
| Tube length | 400 mm |
| Waterblock depth | 68.5 mm |
| Waterblock height | 48.7 mm |
| Waterblock width | 93.4 mm |
| Weight | 1050 g |
Technical details
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS/UKCA |
| Doesn't contain | Cadmium/Lead/Mercury |
| Sustainability certificates | Triman |
| Warranty period | 3 year(s) |
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |

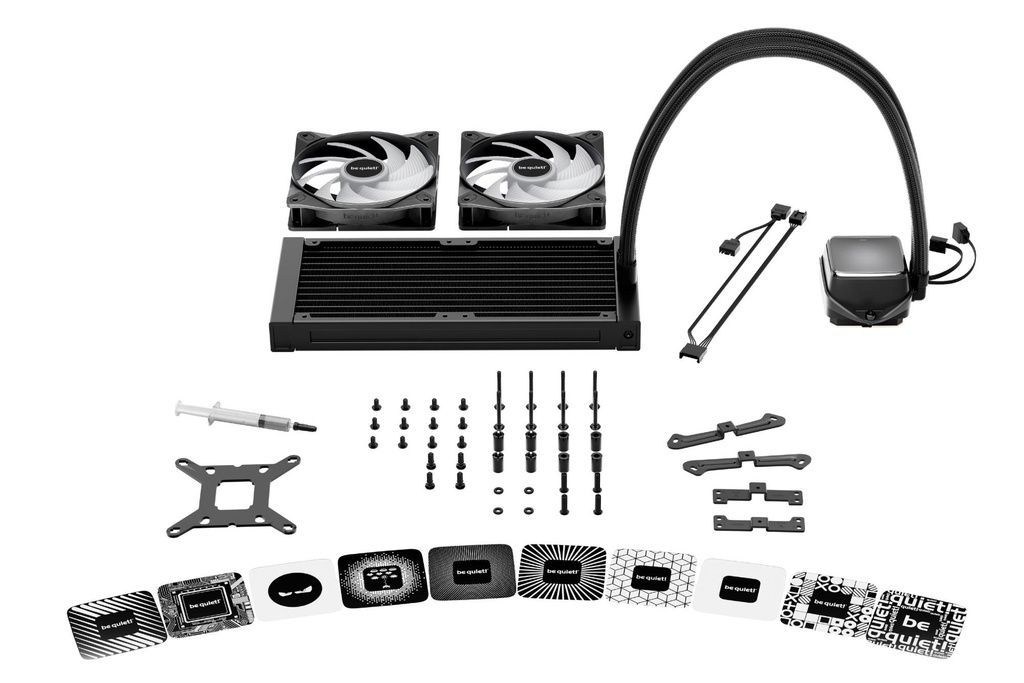

Packaging content
| Manual | Yes |
| Mounting kit | Yes |
| Package type | Box |
Other features
| Thermal grease | Yes |
