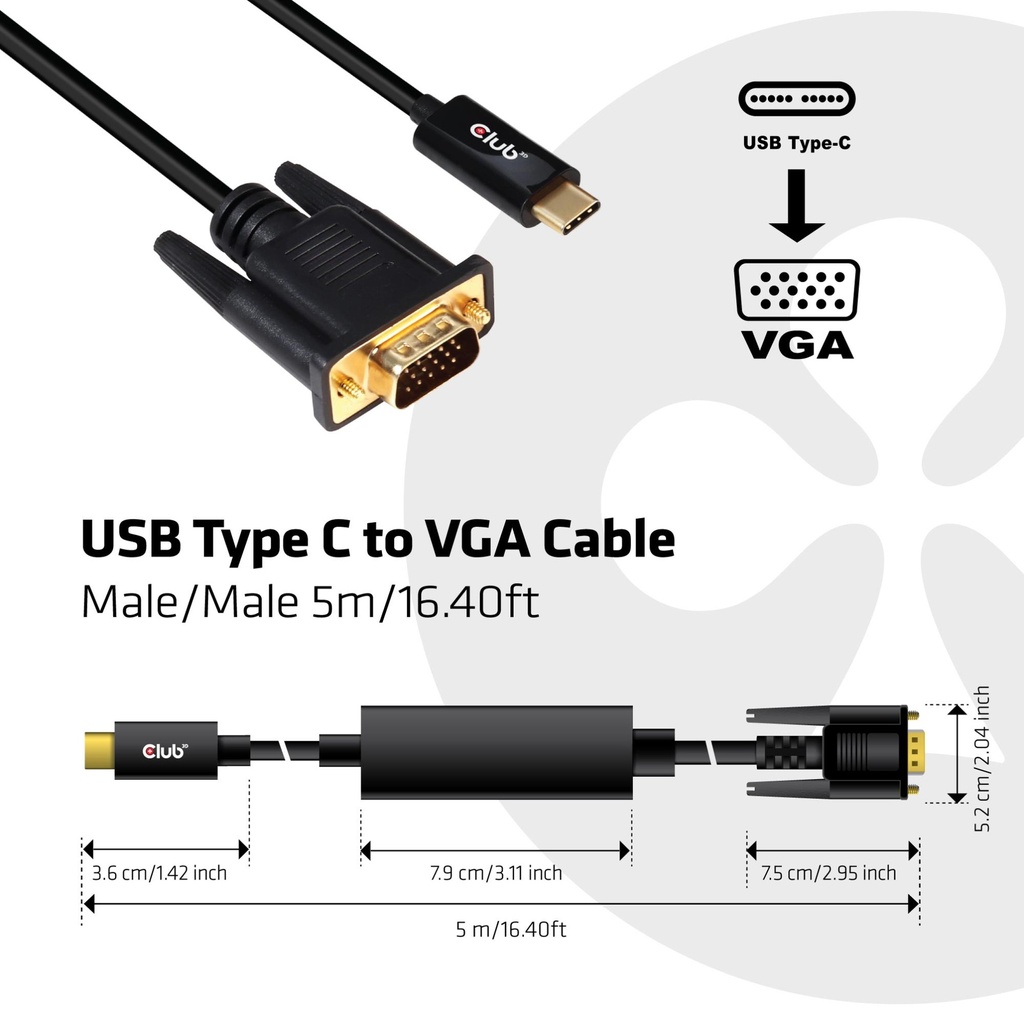

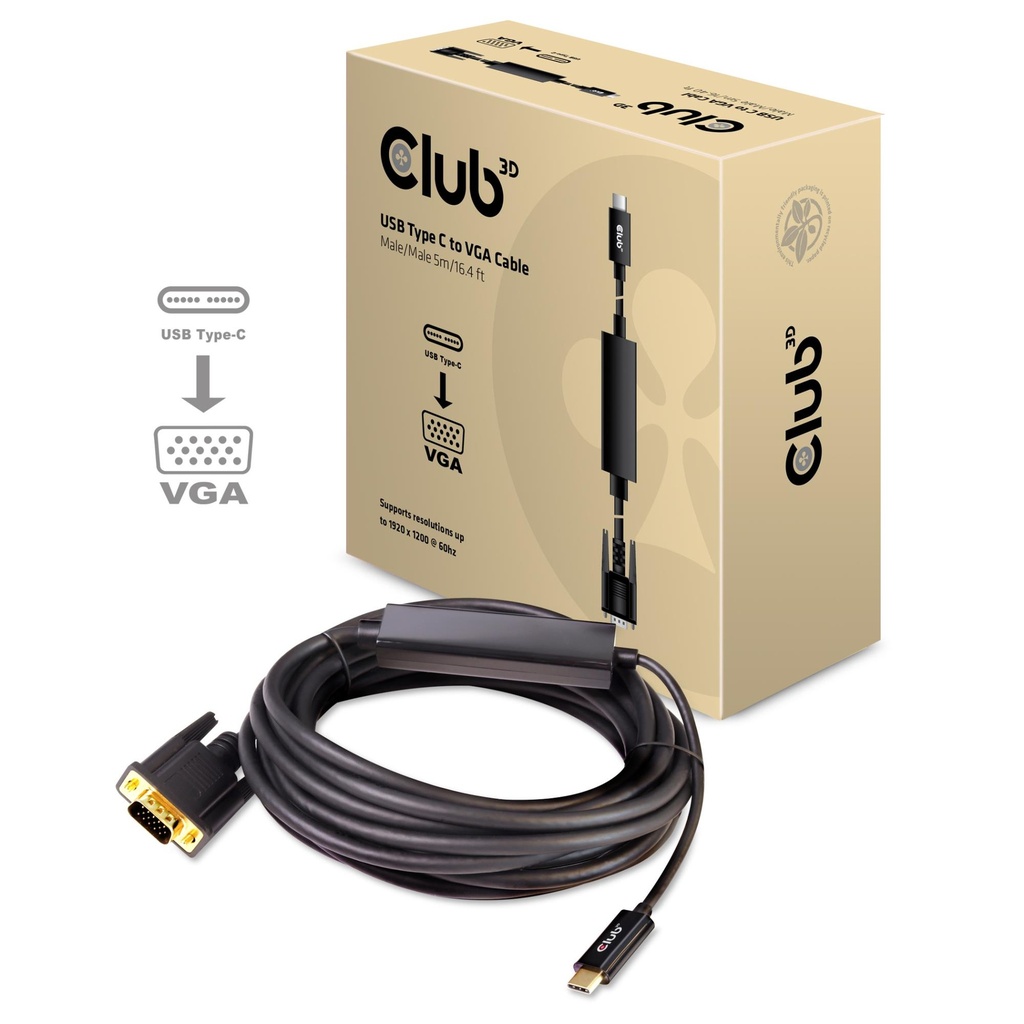

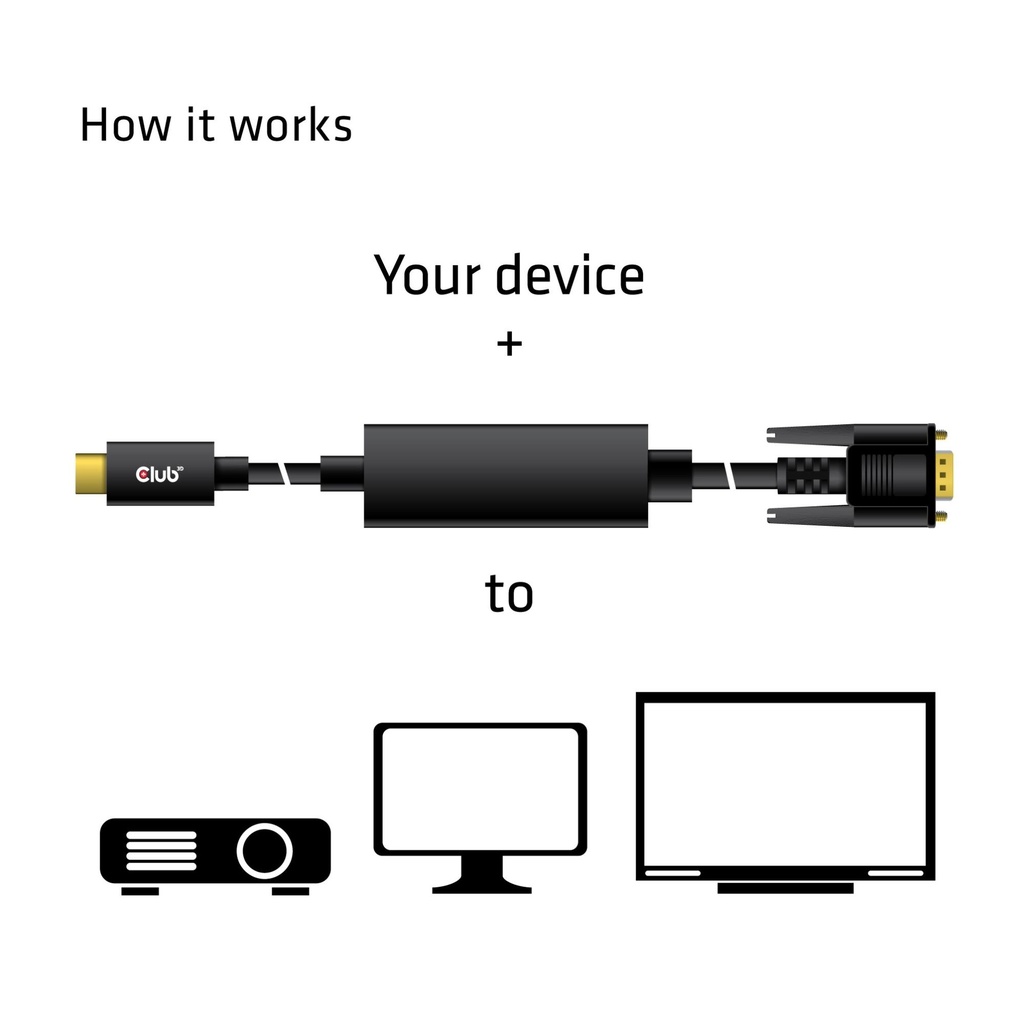

CAC-1512 - The Club 3D CAC-1512 enables the connection of your USB C Supported Computer to a VGA Supported monitor or projector. This is an all in One Solution Cable and Adapter with the reversible USB C connector. Its necessary for the computer to support DisplayPort Alt mode from the USB C connector.
It allows Widescreen Ultra Extended Graphics Array (WUXGA) at a 16x10 aspect ration with a display resolution of 1920x1200 pixels which makes it a great solution for home, office or other work environments.
This USB C to VGA cable works with USB C Devices such as Macbook, Macbook Pro, Chromebook, Dell XPS, Asus Tablet, and Razer.
- Supports DP1.1 Specifications
- Supports MainLink 1Lane HBR (High Bit Rate)at 2.7Gbit/s per lane and 2 lanes at RBR (Reduced Bit Rate) 1.62Gbit/s per lane
- This cable is USB powered and consumes approximately 200mW of power for video streaming in WUXGA
- Supports Analog RGB Current source outputs
- Supports 3.3V VSYNC and HSYNC outputs
- Pixel Clock up to 240Mhz
- Triple 8 Bit Digital to Analog Converter (DAC)
- Supports 6, 8 Bits per color
- Supports RGB formats
General
| Unit Calculated Weight | 0.32 kg |
| Unit Calculated Volume | 0.001339 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | CLUB3D USB Type C to VGA Active Cable M/M 5m/16.40ft. Cable length: 5 m, Connector 1: USB Type-C, Connector 2: VGA (D-Sub). Certification: ROHS, FCC, and CE EM. Plastic packaging weight: 5 g, Paper/cardboard packaging weight: 62 g. Weight: 245 g, Width: 350 mm, Depth: 5000 mm. Package width: 145 mm, Package depth: 145 mm, Package height: 60 mm |
| Unit Box Height | 0.175 |
| Unit Box Length | 0.17 |
| Unit Box Width | 0.045 |
| Model name | CAC-1512 |
Features
| Cable length | 5 m |
| Colour depth | 8 bit |
| Connector 1 | USB Type-C |
| Connector 1 gender | Male |
| Connector 2 | VGA (D-Sub) |
| Connector 2 gender | Male |
| Converter type | Active video converter |
| Country of origin | China |
| Data transfer rate | 2.7 Gbit/s |
| Plug and Play | Yes |
| Product colour | Black |
Certificates
| Certification | ROHS, FCC, and CE EM |
Packaging composition
| Paper/cardboard packaging weight | 62 g |
| Plastic packaging weight | 5 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Weight & dimensions
| Depth | 5000 mm |
| Height | 140 mm |
| Weight | 245 g |
| Width | 350 mm |
Packaging data
| Package depth | 145 mm |
| Package height | 60 mm |
| Package type | Box |
| Package weight | 309 g |
| Package width | 145 mm |
Packaging content
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
Logistics data
| Harmonized System (HS) code | 8544 4290 |
