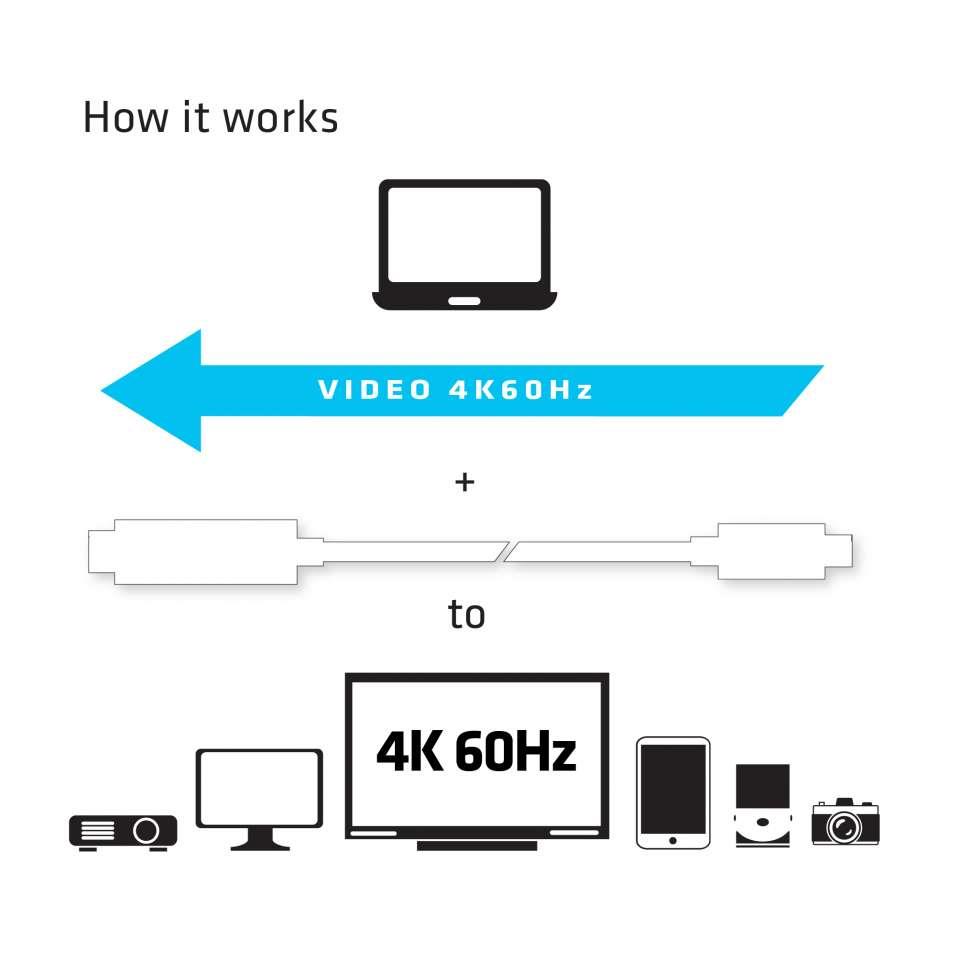

CAC-1514 - The Club 3D is an Active HDMI™ signal converter cable. The USB C to HDMI™ 2.0 UHD Cable is the easiest solution for connecting your USB 3.1 Type C source device featuring DisplayPort™ Alternate Mode to an HDMI™ 2.0 enabled UHD Monitor, Television or Projector. The HDMI™ adapter is powered by the USB C port, the adapter requires no external power.
Supports up to 4K UHD Resolution at 60Hz.
The USB C to HDMI™ 2.0 UHD Cable supports (U)HD resolutions of up to 4K @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video. Use the adapter to play games, view video or browse the internet from your USB 3.1 Type-C enabled device on a (Ultra) high-resolution monitor or TV. Supporting up to 8 channels of audio, the adapter provides high-definition digital audio and video.
Compatibility
The USB C to HDMI™ 2.0 UHD Cable supports all USB 3.1 Type-C devices with DisplayPort™ ALT mode.
Please refer to your device's user manual to confirm the specification and functionality of the USB- C port.
General
| Unit Calculated Weight | 0.12 kg |
| Unit Calculated Volume | 0.0009461 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | CLUB3D USB C to HDMI™ 2.0 UHD Cable Active 1.8 M./5.9 Ft.. Cable length: 1.8 m, Connector 1: USB C, Connector 2: HDMI Type A (Standard). Compliance certificates: RoHS, Certification: CE, FCC, ROHS, WEEE, REACH. Plastic packaging weight: 8 g, Paper/cardboard packaging weight: 27 g. Weight: 65 g, Width: 22 mm, Depth: 1800 mm. Package width: 145 mm, Package depth: 45 mm, Package height: 145 mm |
| Unit Box Height | 0.145 |
| Unit Box Length | 0.145 |
| Unit Box Width | 0.045 |

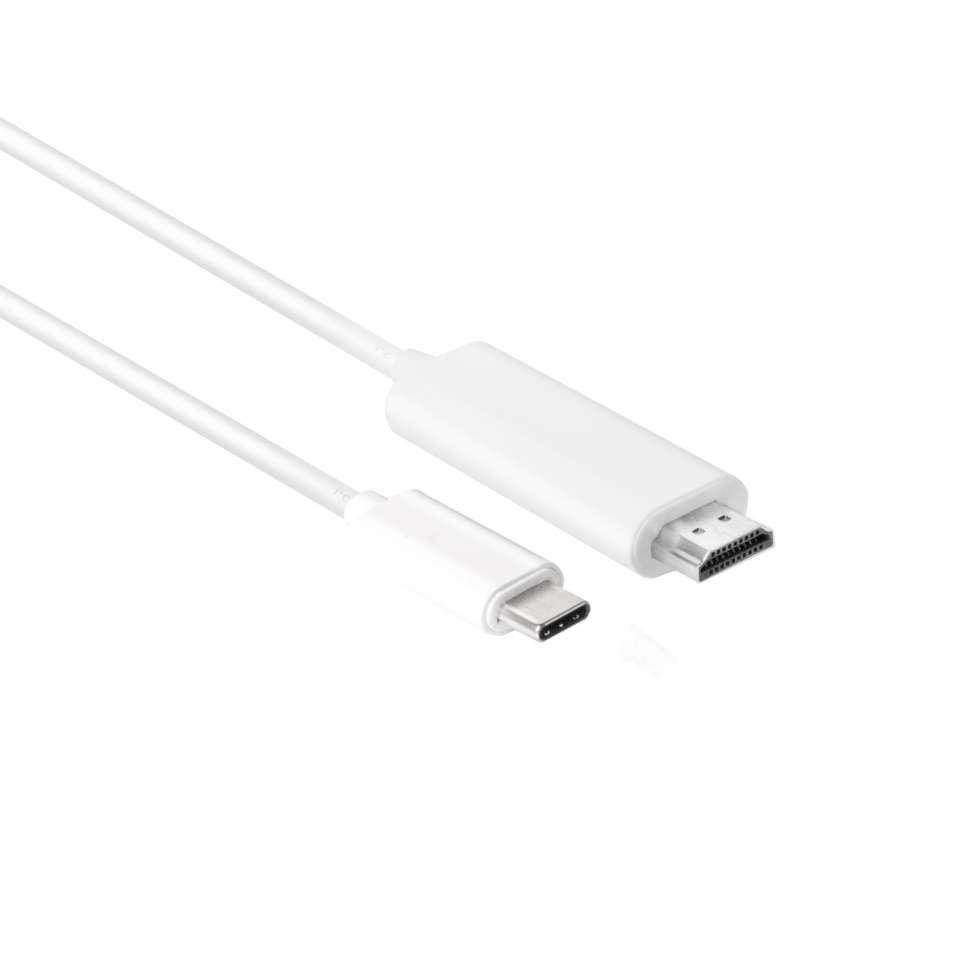

| Model name | USB C to HDMI™ 2.0 UHD Cable Active 1.8 M./5.9 Ft. |
Features
| Cable length | 1.8 m |
| Connector 1 | USB C |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | HDMI Type A (Standard) |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Country of origin | China |
| Data transfer rate | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| HDMI version | 2.0 |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Product colour | White |
| Supported graphics resolutions | 1920 x 1080 (HD 1080)/3840 x 2160 |
| Supported video modes | 1080p/2160p |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Certificates
| Certification | CE, FCC, ROHS, WEEE, REACH |
| Compliance certificates | RoHS |
Packaging composition

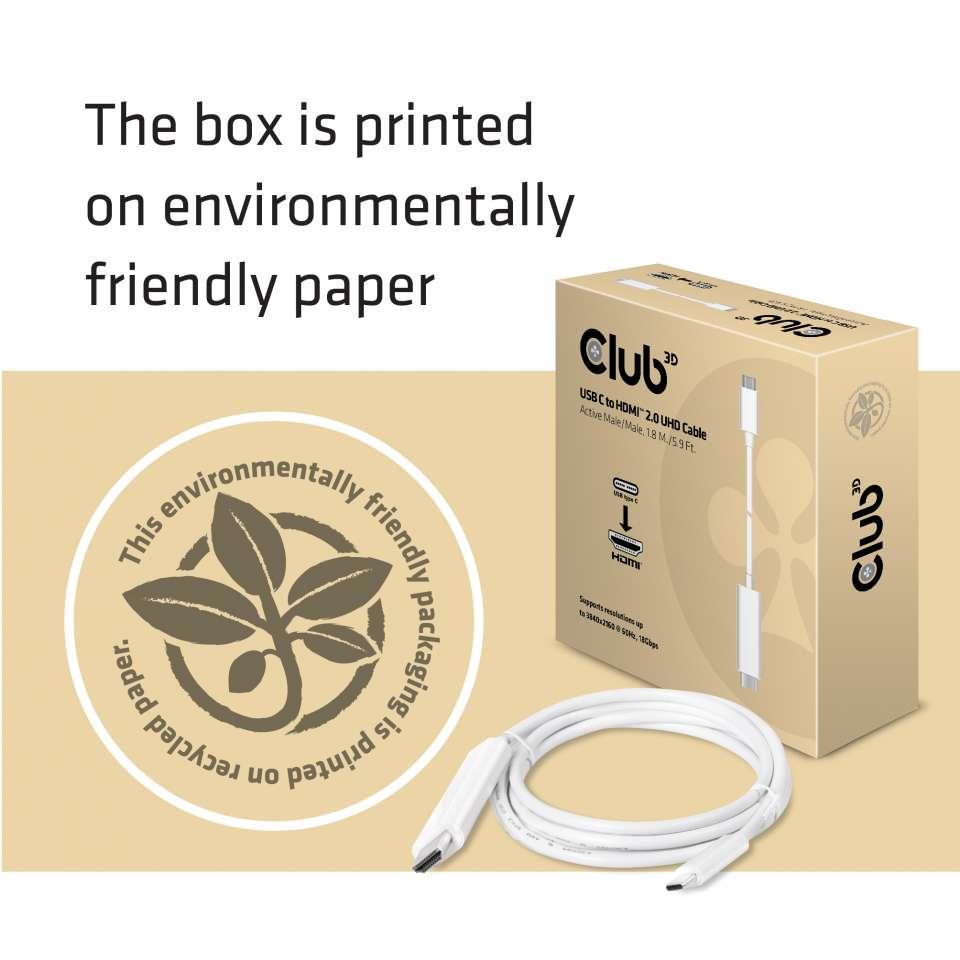

| Paper/cardboard packaging weight | 27 g |
| Plastic packaging weight | 8 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Weight & dimensions

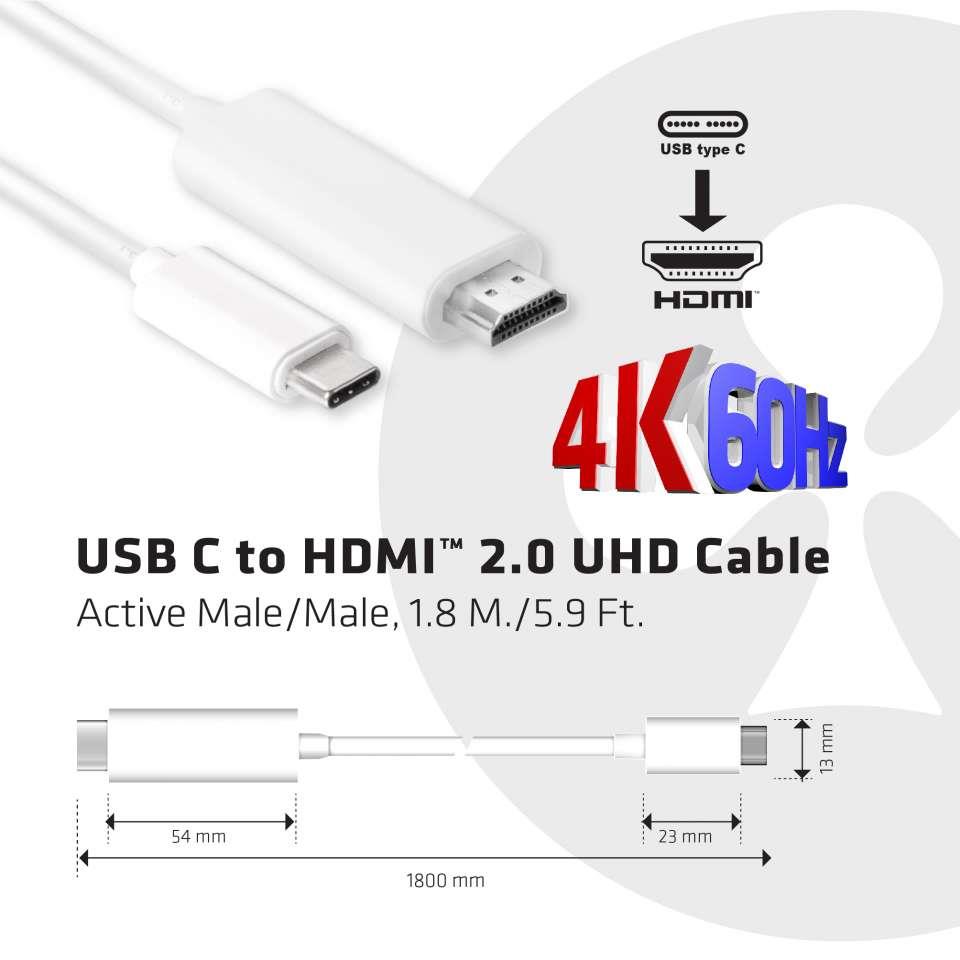

| Depth | 1800 mm |
| Height | 10 mm |
| Weight | 65 g |
| Width | 22 mm |
Packaging data
| Package depth | 45 mm |
| Package height | 145 mm |

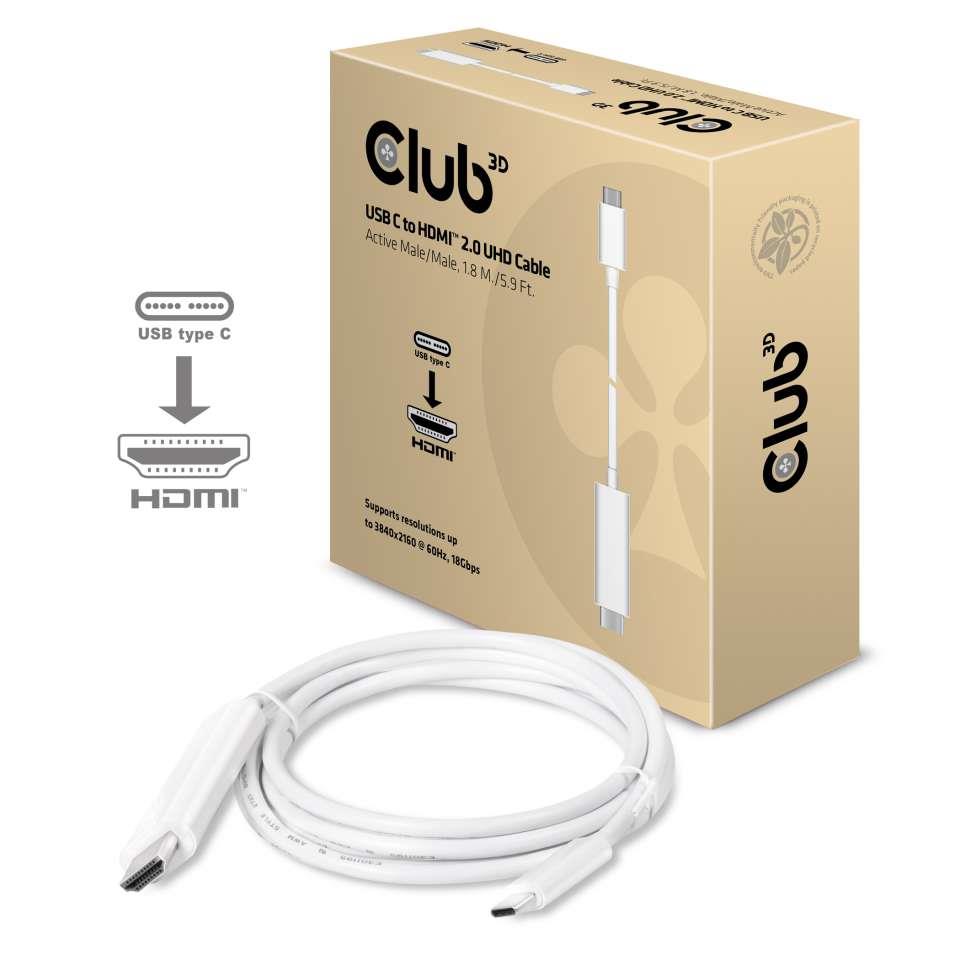

| Package type | Box |
| Package width | 145 mm |
Logistics data
| Harmonized System (HS) code | 8544 4290 |
Other features
| Cable colour | White |
