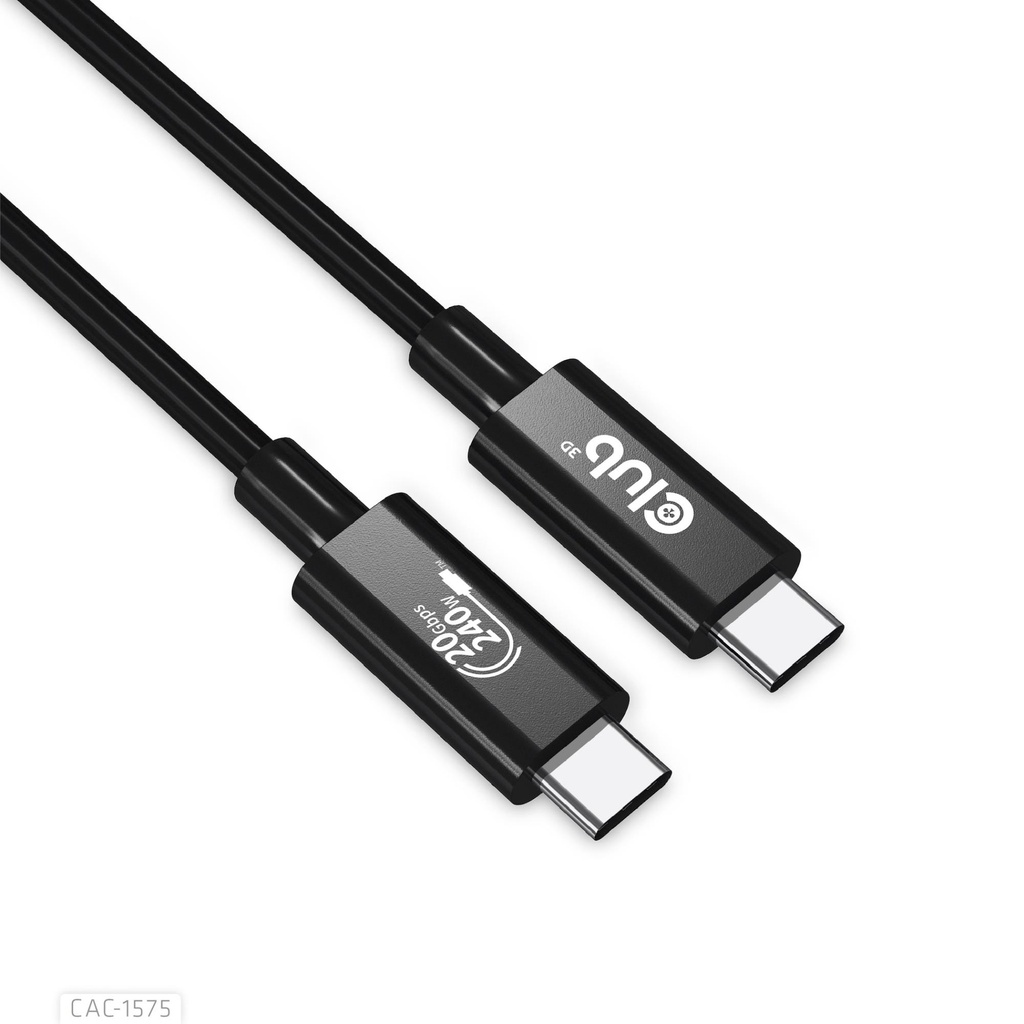

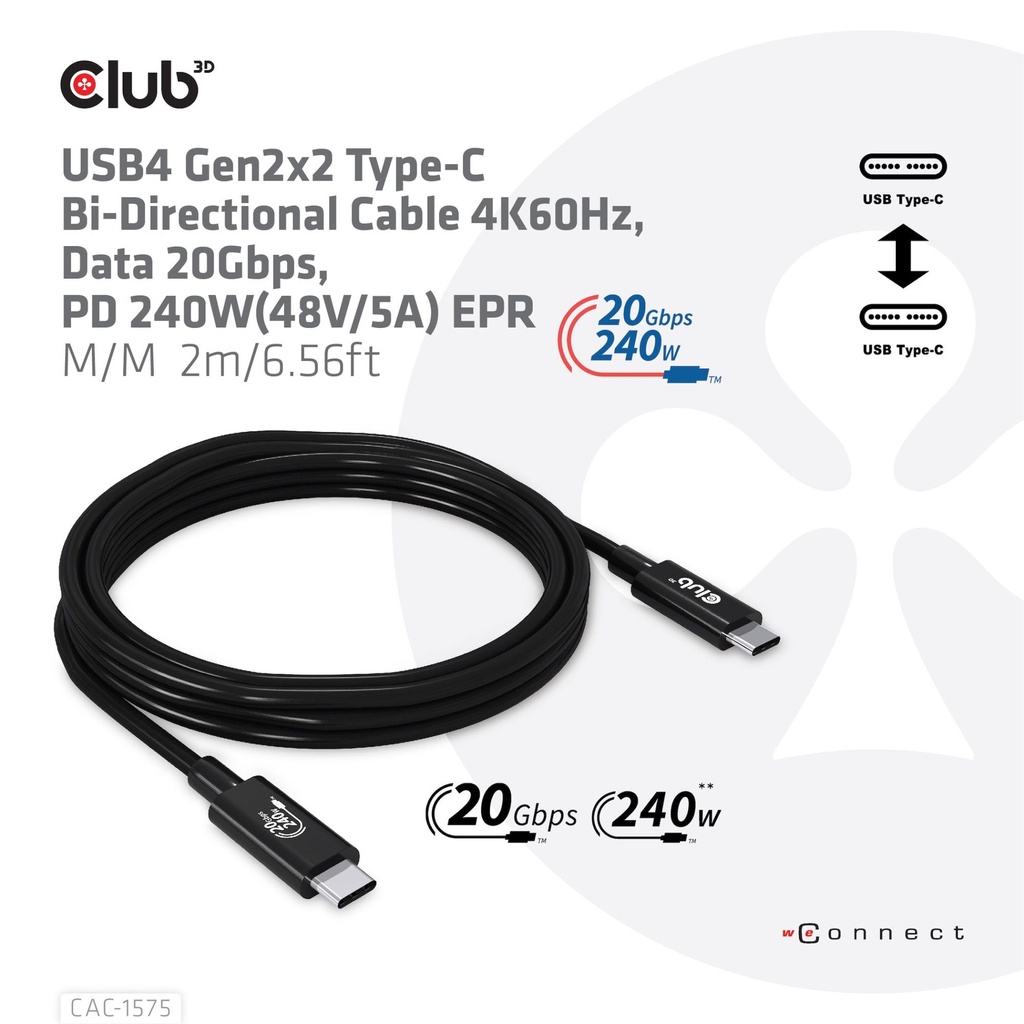

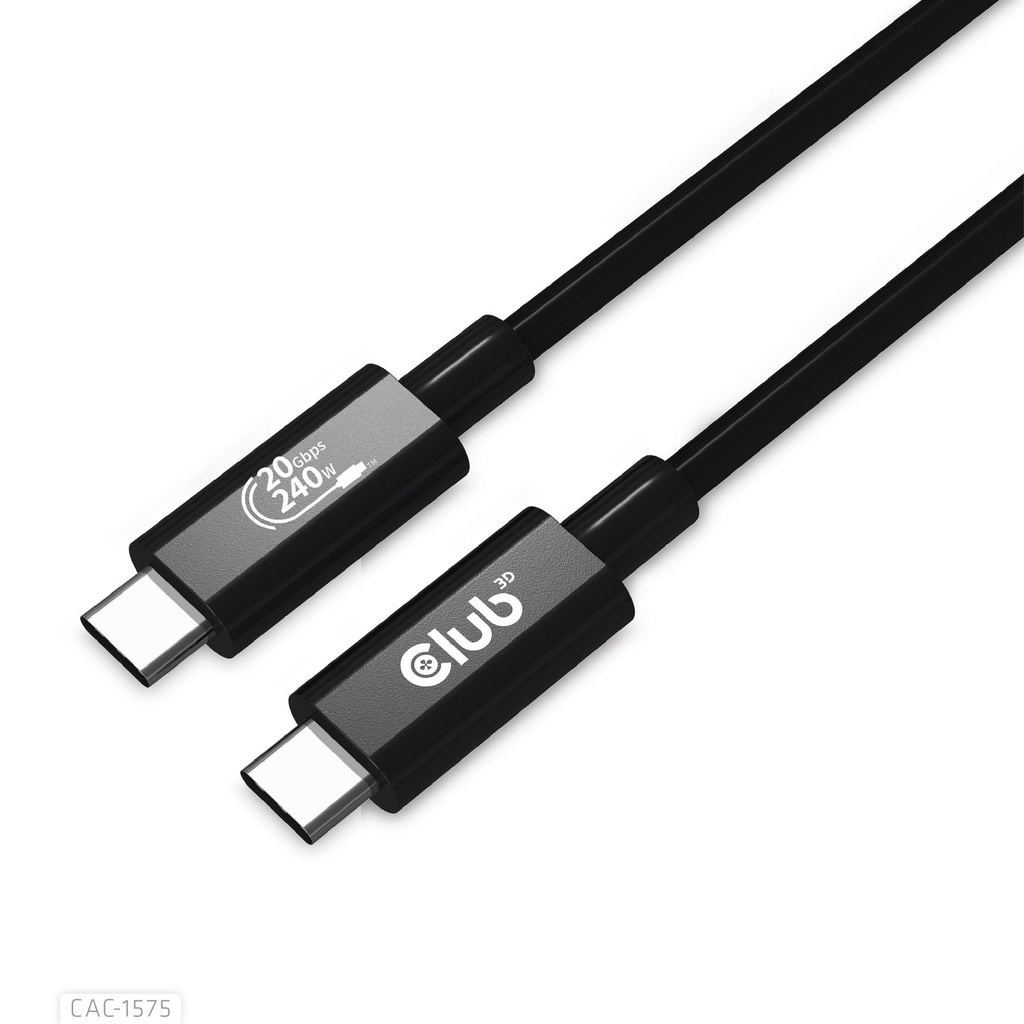

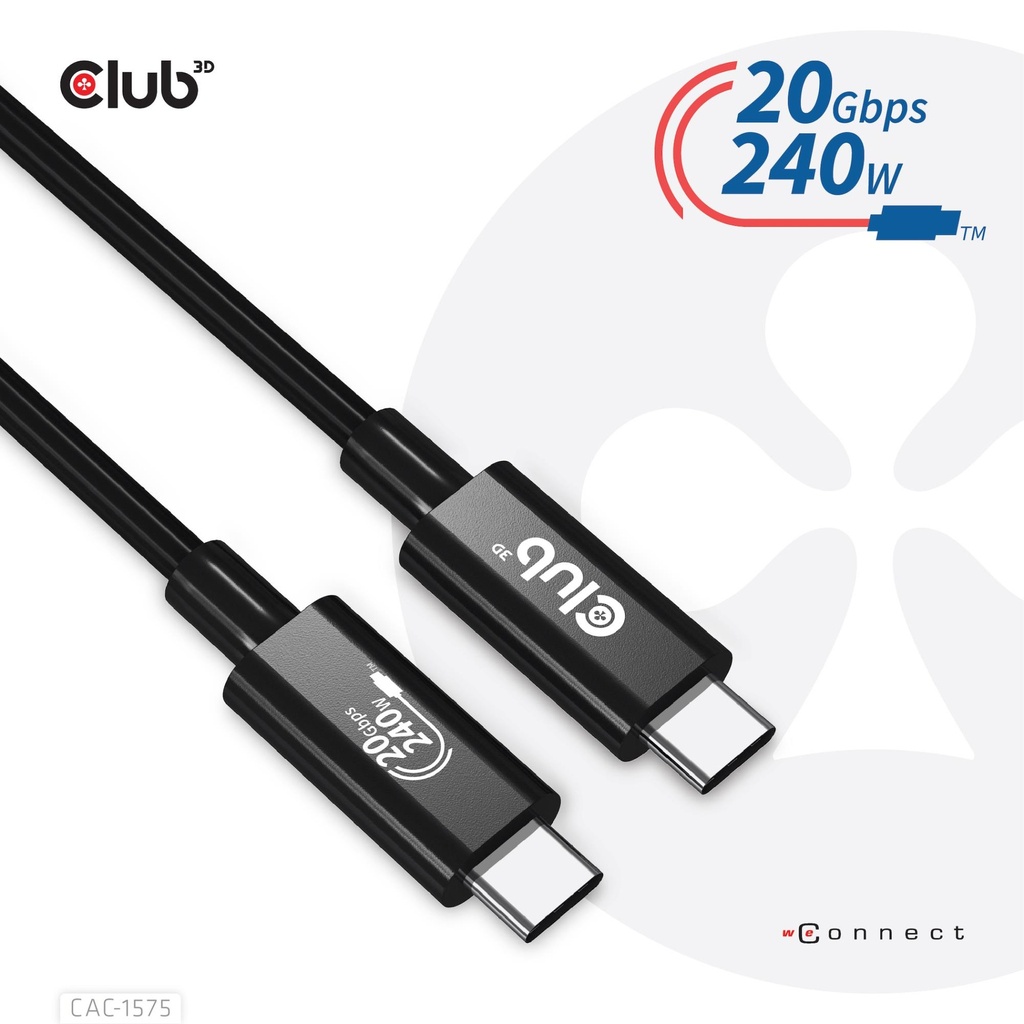

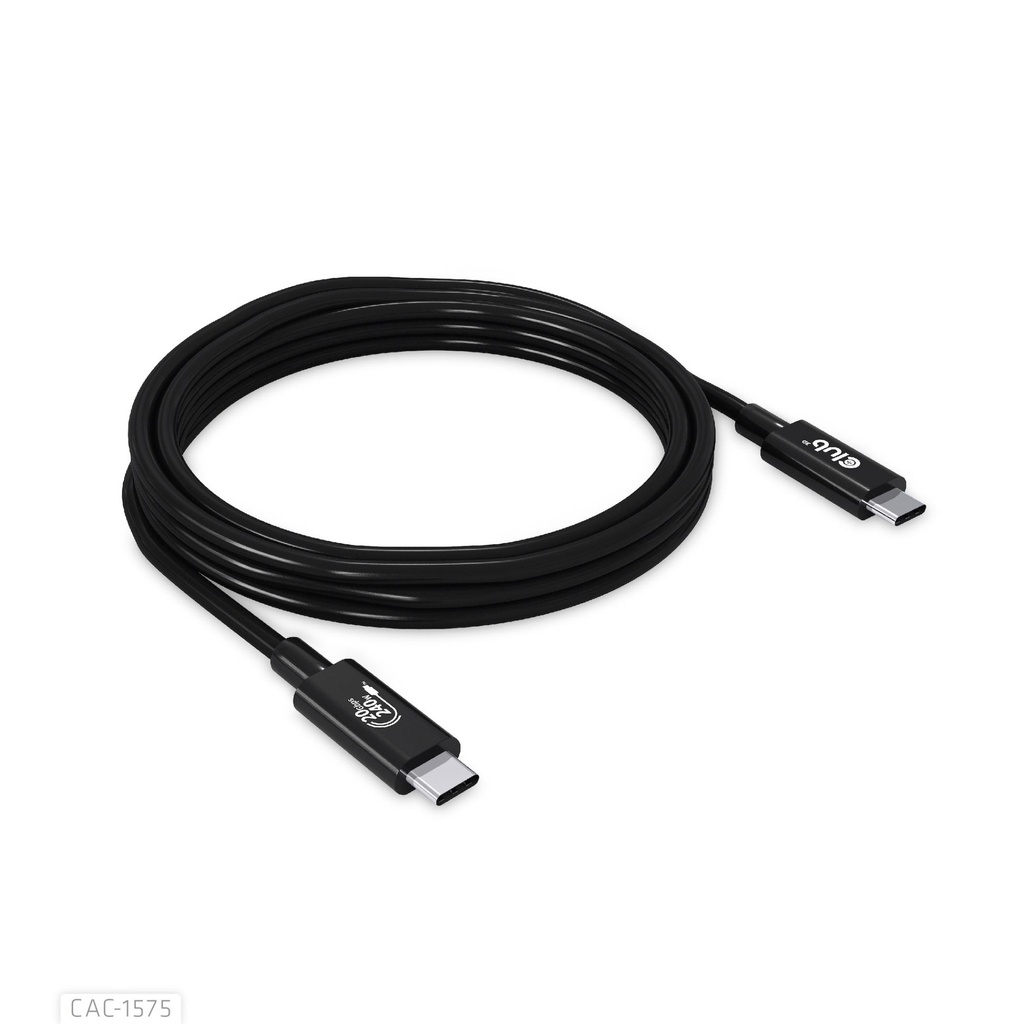

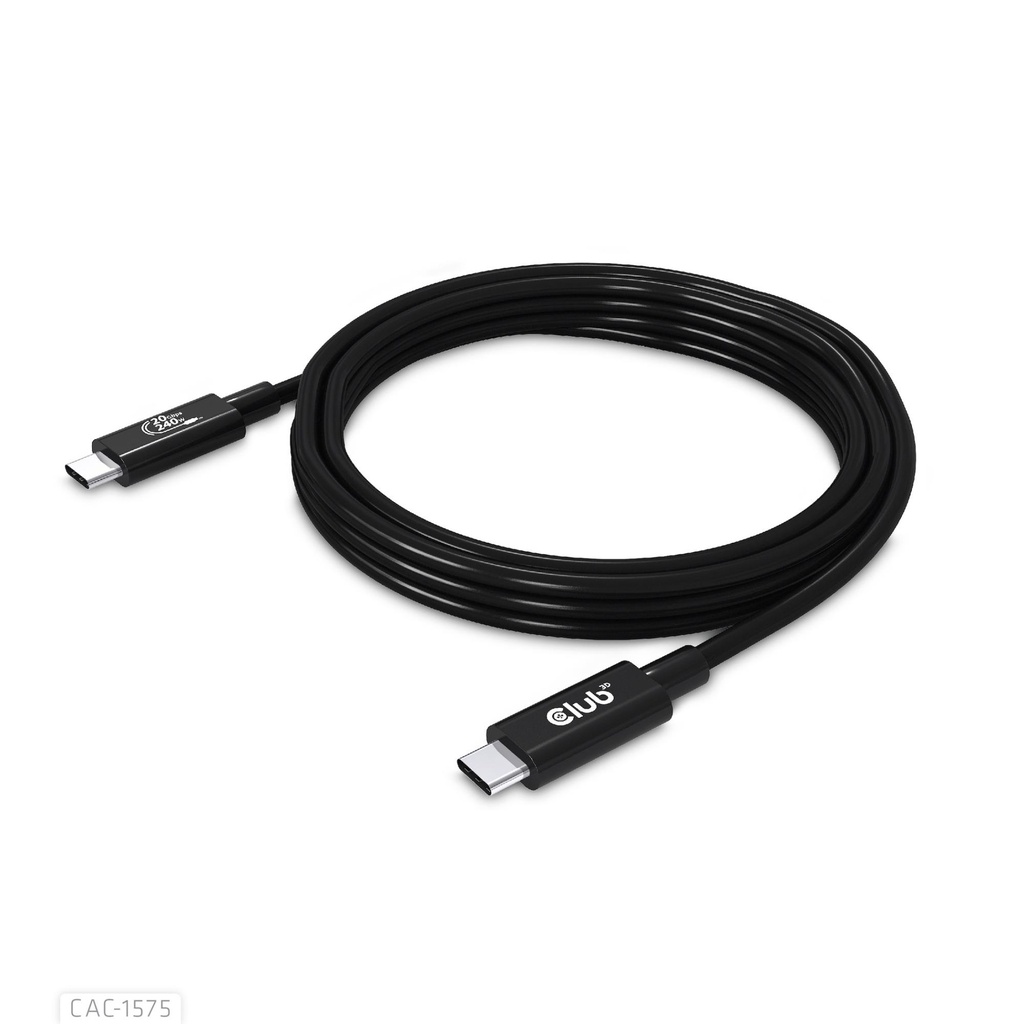

The Club 3D CAC-1575 USB4 Gen2x2 Type-C Bi-Directional USB-IF Certified Cable, Video up to 4K60Hz, Data 20Gbps, PD 240W(48V/5A) EPR, Extended Power Range M/M 2m/6.56ft connects your Notebook, Tablet or Phone with USB4 Type-C output to your favorite existing Peripherals, Accessories and Chargers. It enables Video,Data and Power over a single cable and both ways. This cable supports USB4 Gen2x2 data up to 20Gbps, Video up to 4K60Hz and up to 240Watt(48V/5A) EPR (Extended Power Range) output for Downstream charging or powering your Notebook, Tablet or Smartphone and is USB-IF Certified.
General
| Unit Calculated Weight | 0.15 kg |
| Unit Calculated Volume | 0.0009461 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | CLUB3D USB4 Gen2x2 Type-C Bi-Directional Cable 4K60Hz, Data 20Gbps, PD 240W(48V/5A) EPR M/M 2m. Cable length: 2 m. Connector 1: USB C, Connector 2: USB C, USB version: USB4 Gen 2x2, Maximum data transfer rate: 20 Gbit/s, Product colour: Black |
| Unit Box Height | 0.145 |
| Unit Box Length | 0.145 |
| Unit Box Width | 0.045 |
| Model name | USB4 Gen2x2 Type-C Bi-Directional Cable 4K60Hz, Data 20Gbps, PD 240W(48V/5A) EPR M/M 2m |
| Model | CAC-1575 |
Weight & dimensions
| Cable length | 2 m |

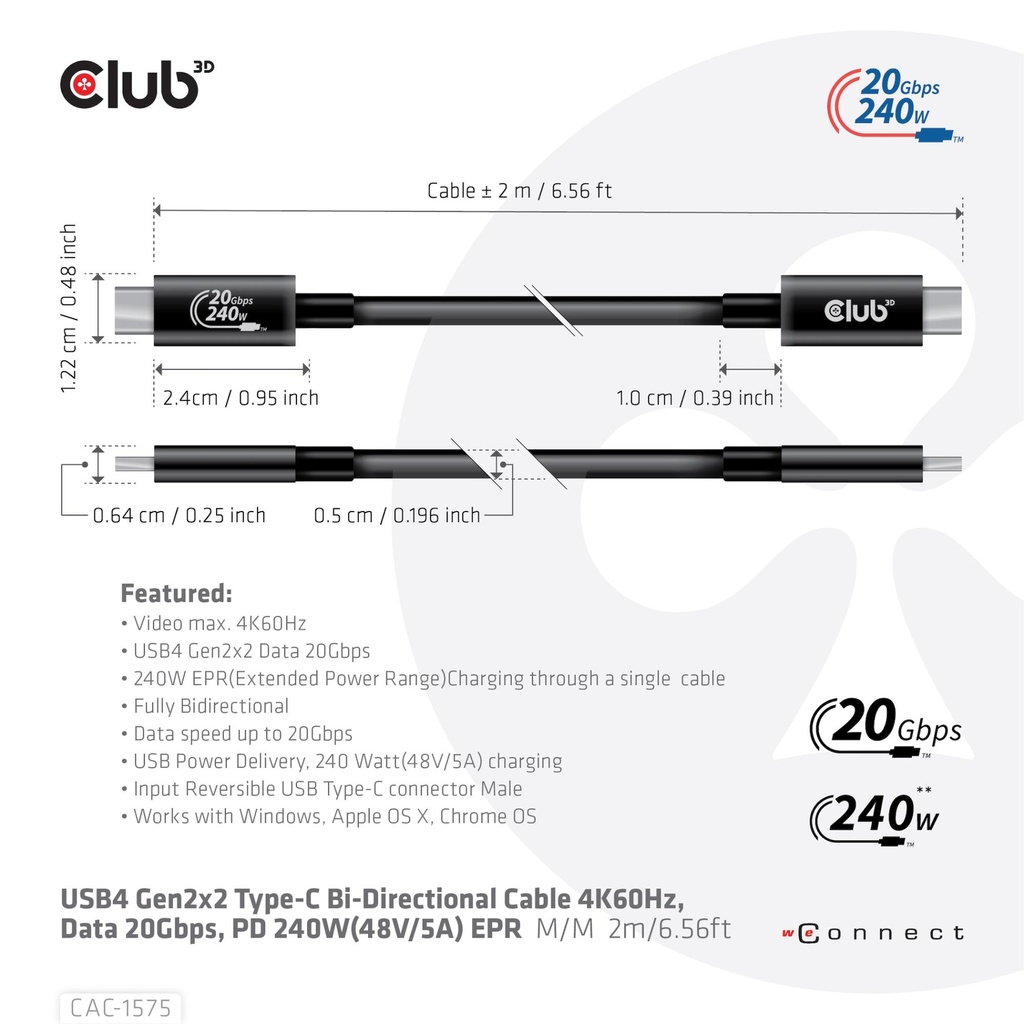

| Connector 1 dimensions (WxDxH) | 12 x 36.2 x 6.3 mm |
| Connector 2 dimensions (WxDxH) | 12 x 36.2 x 6.3 mm |
| Weight | 105 g |
Features
| Cable type | Round cable |
| Connector 1 | USB C |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | USB C |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Maximum data transfer rate | 20 Gbit/s |
| Maximum data transfer rate | 20000 Mbit/s |
| Plug and Play | Yes |
| Product colour | Black |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 240 W |
| USB version | USB4 Gen 2x2 |
Power
| Output current (max) | 5 A |
| Output voltage | 48 V |
Packaging data
| Package depth | 45 mm |
| Package height | 145 mm |

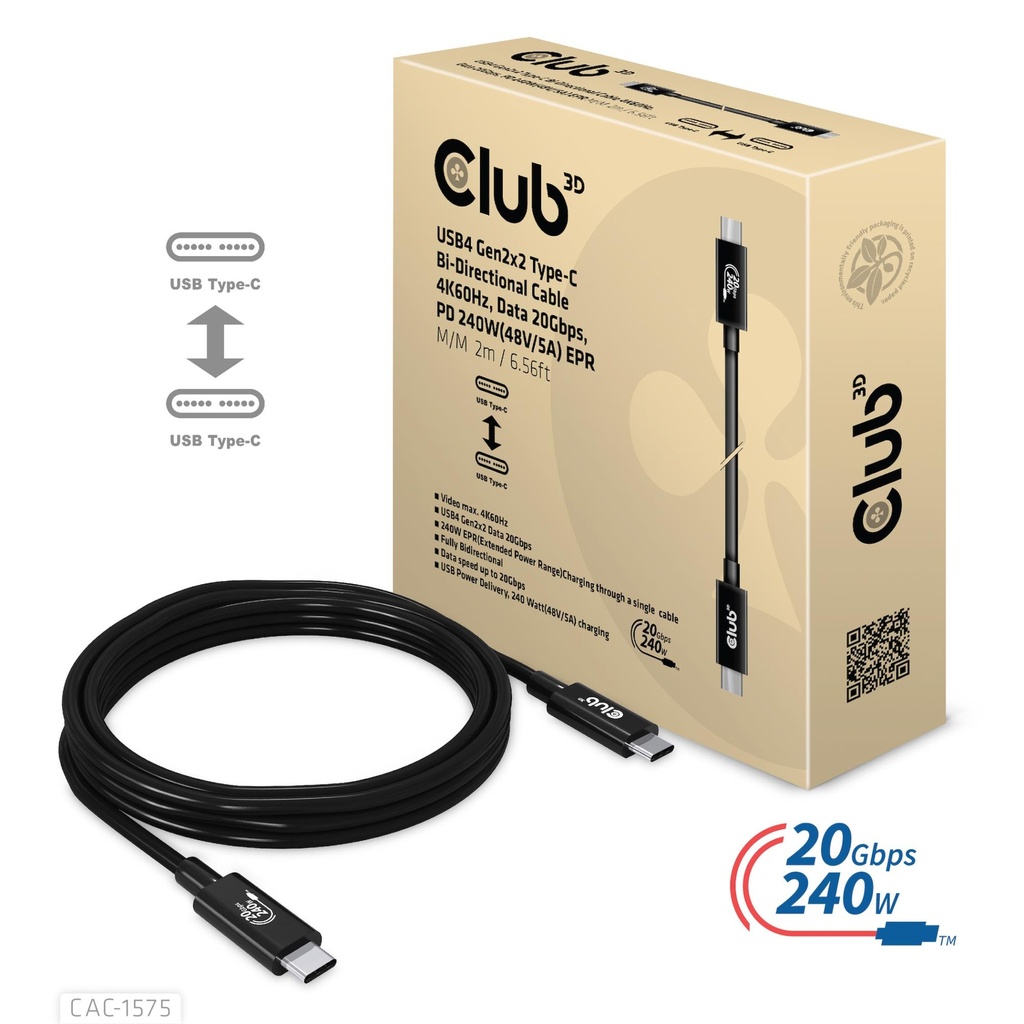

| Package type | Box |
| Package weight | 150 g |
| Package width | 145 mm |
Packaging content
| Quantity per pack | 1 pc(s) |
Packaging composition
| Paper/cardboard packaging weight | 45 g |
| Plastic packaging weight | 5 g |
| Total paper/cardboard packaging weight | 225 g |
| Total plastic packaging weight | 25 g |
Logistics data
| Harmonized System (HS) code | 8544 4290 |
