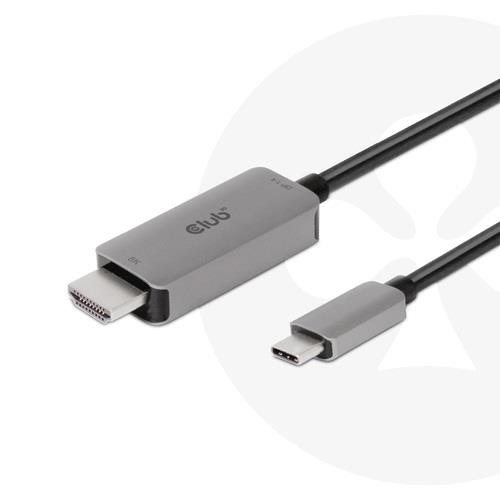

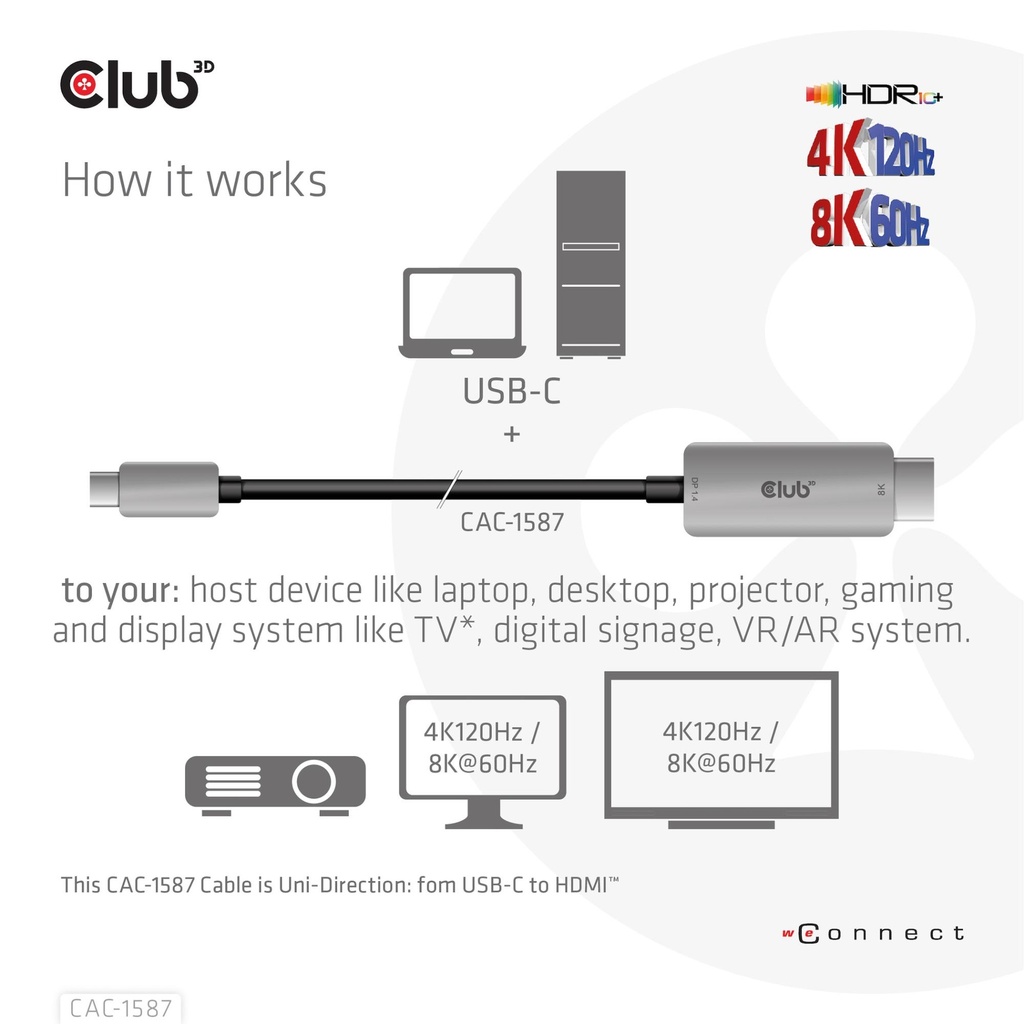

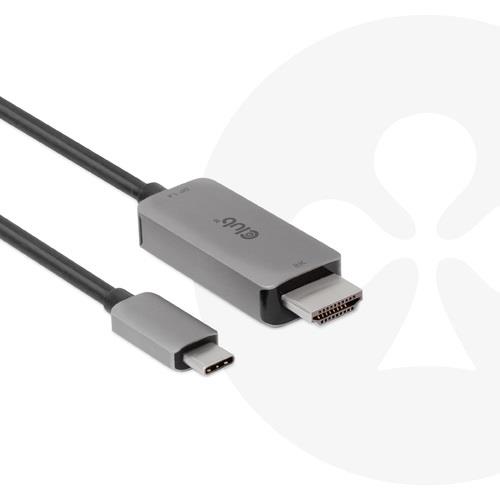

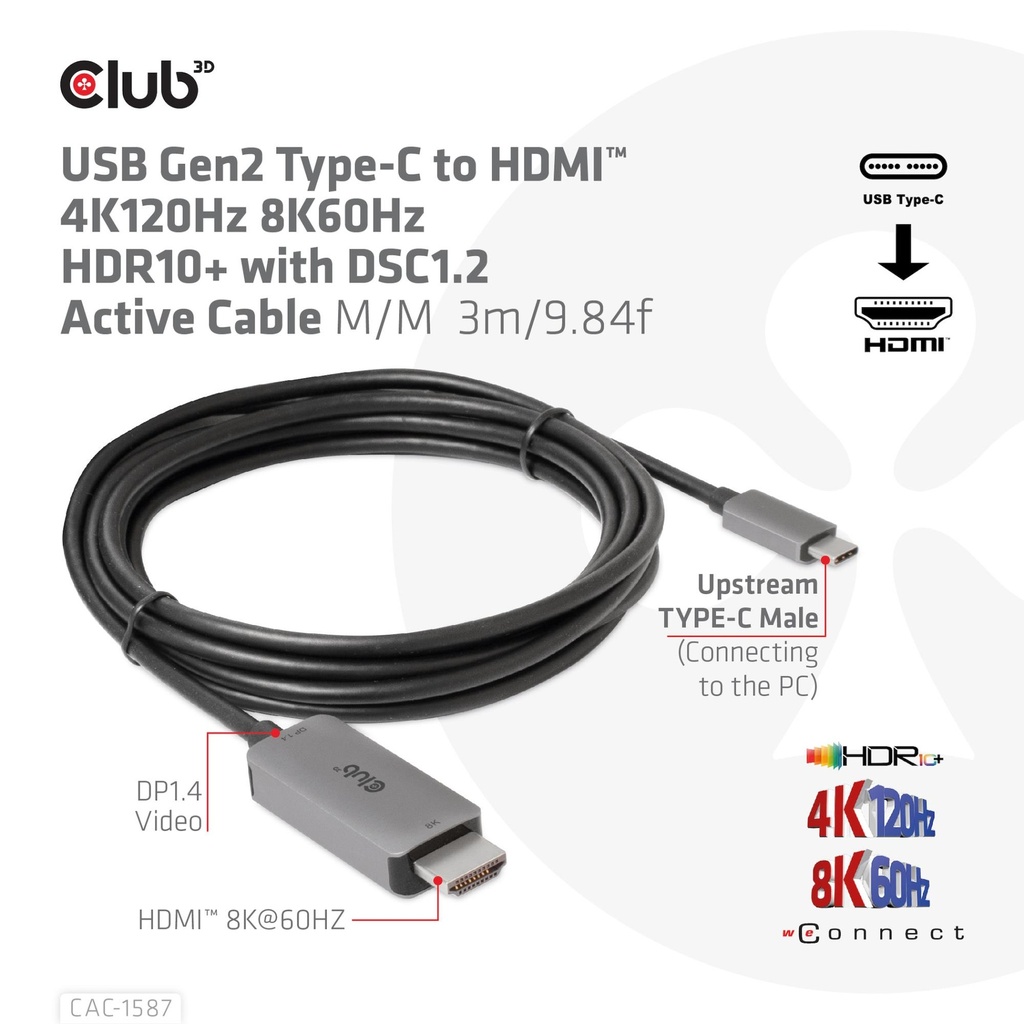

The Club 3D CAC-1587 USB Gen2 Type-C to HDMI™ 4K120Hz 8K60Hz HDR10+ with DSC1.2 Active Cable M/M 3m/9.84ft., is the perfect solution to connect to any HDMI™ 8K60Hz* or 4K120Hz ready display. In case you have a DisplayPort™ Alt Mode 1.4 ready PC with a USB Gen2 Type-C connection or any other device that lacks the new HDMI™ 8K60Hz or 4K120Hz specification, the Club3D CAC-1587 will be the simple way to upgrade your device and connect to your new TV*. With its DP1.4 Alt Mode DSC video compression technology, this Cable is able to convert DP1.4 Alt Mode video signals to HDMI™ , supporting video display resolutions up to 8K (7680 x 4320)@60Hz ** and creating life like colors and movements with HDR10+ giving users the ultimate visual experience. The Cable is powered thru the USB Gen2 Type-C connection.

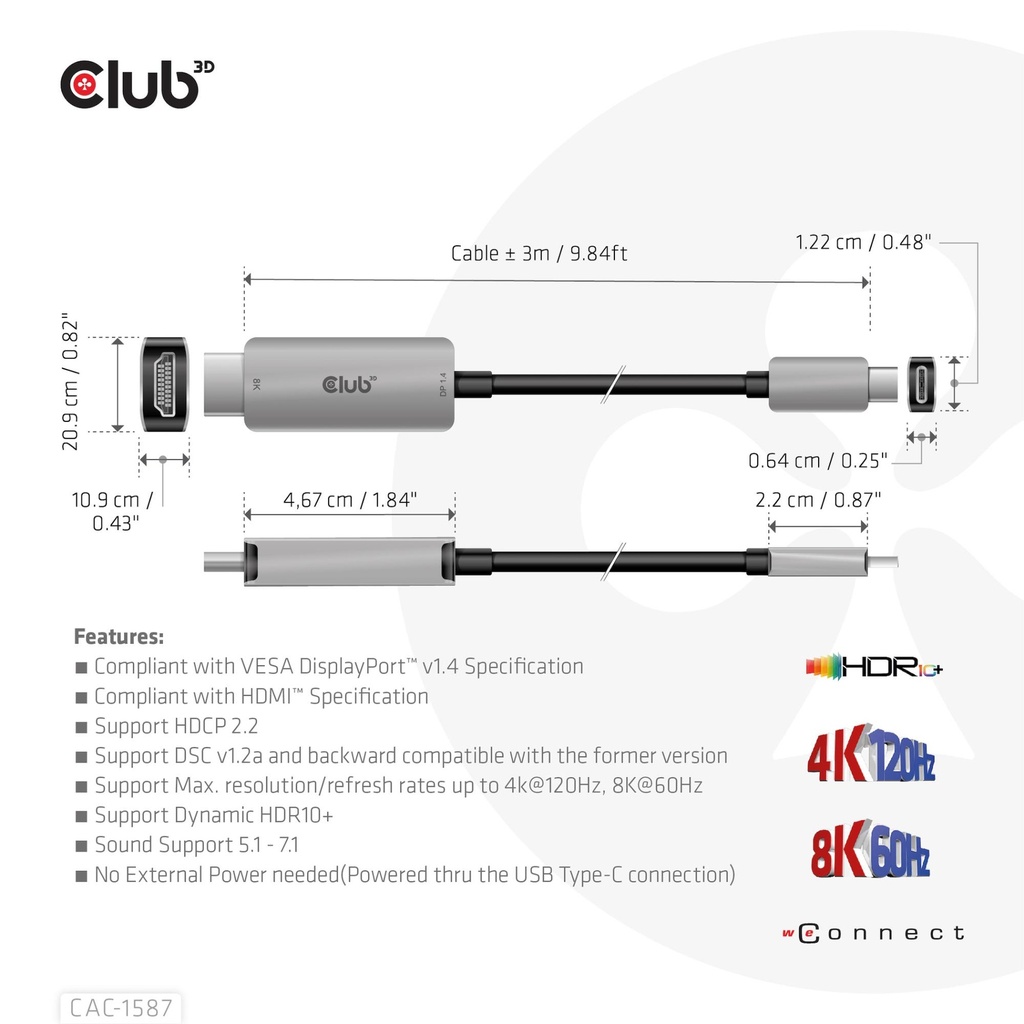

- Compliant with VESA DisplayPort v1.4 Specification
- Compliant with HDMI™ Specification
- Support HDCP 2.2
- Support DSC v1.2a and backward compatible with the former version
- Support Max. resolution/refresh rates up to 4k@120Hz, 8K@60Hz
- Support Dynamic HDR10+
- Sound Support 5.1 - 7.1
- No External Power needed(Powered thru the USB Type-C connection)
General
| Unit Calculated Weight | 0.14 kg |
| Unit Calculated Volume | 0.0009461 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |

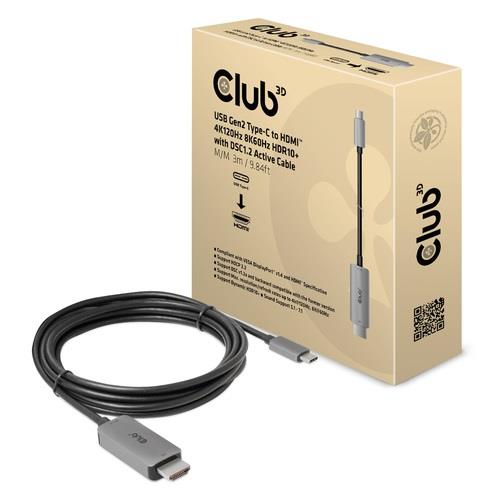

| Summary | CLUB3D USB Gen2 Type-C to HDMI 4K120Hz 8K60Hz HDR10 with DSC1.2 Active Cable M/M 3m / 9.84ft. Cable length: 3 m, Connector 1: USB Gen2 Type-C, Connector 2: HDMI Type A (Standard). Compliance certificates: CE, Federal Communications Commission (FCC), RoHS. Plastic packaging weight: 5 g, Paper/cardboard packaging weight: 45 g. Weight: 89 g. Package width: 145 mm, Package depth: 145 mm, Package height: 45 mm |
| Unit Box Height | 0.145 |
| Unit Box Length | 0.145 |
| Unit Box Width | 0.045 |
| Model name | USB Gen2 Type-C to HDMI 4K120Hz 8K60Hz HDR10 with DSC1.2 Active Cable M/M 3m / 9.84ft |
Features

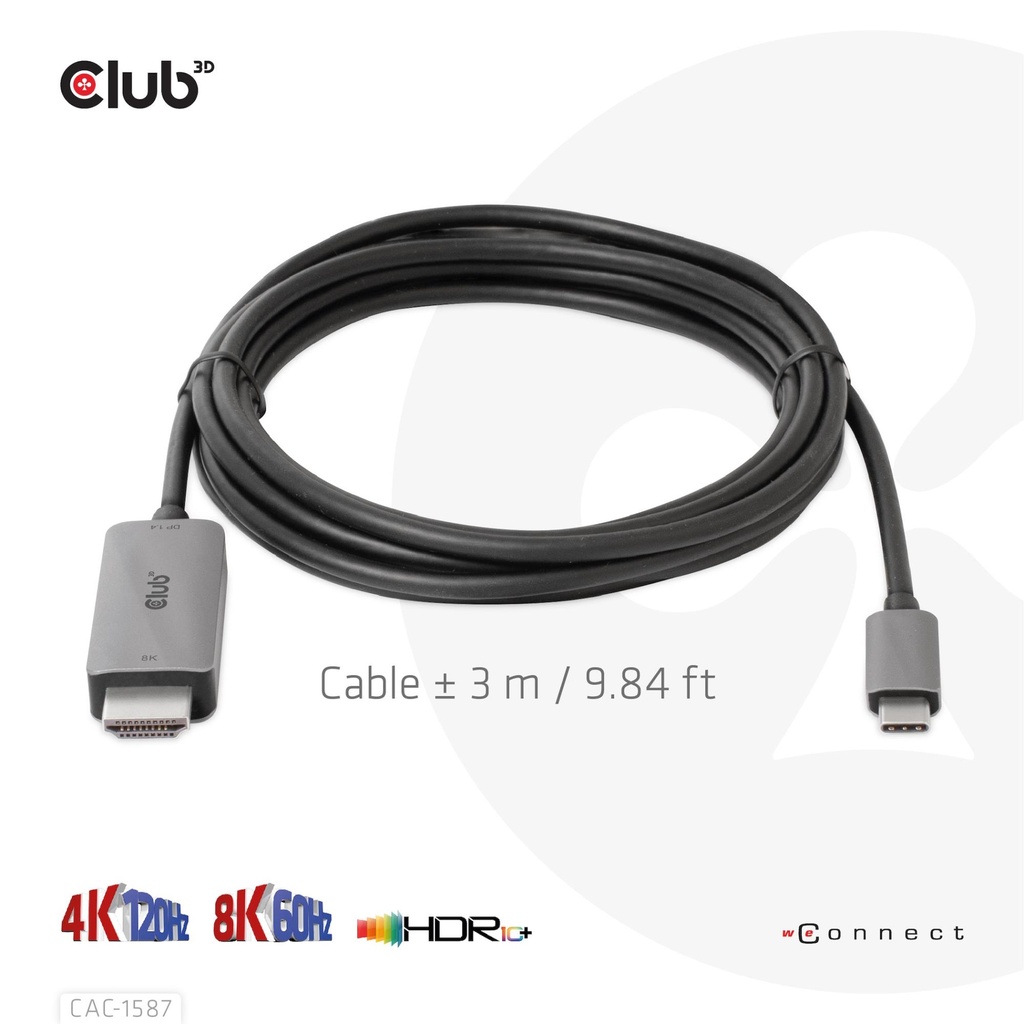

| Cable length | 3 m |
| Connector 1 | USB Gen2 Type-C |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | HDMI Type A (Standard) |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| DisplayPort version | 1.4 |
| HDCP | Yes |
| Maximum refresh rate | 120 Hz |
| Plug and Play | Yes |
| Product colour | Black |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
Packaging composition
| Paper/cardboard packaging weight | 45 g |
| Plastic packaging weight | 5 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Weight & dimensions
| Weight | 89 g |
Packaging data
| Package depth | 145 mm |
| Package height | 45 mm |
| Package type | Box |
| Package weight | 139 g |
| Package width | 145 mm |
Packaging content
| Quantity per pack | 1 pc(s) |
Logistics data
| Harmonized System (HS) code | 8544 4290 |
