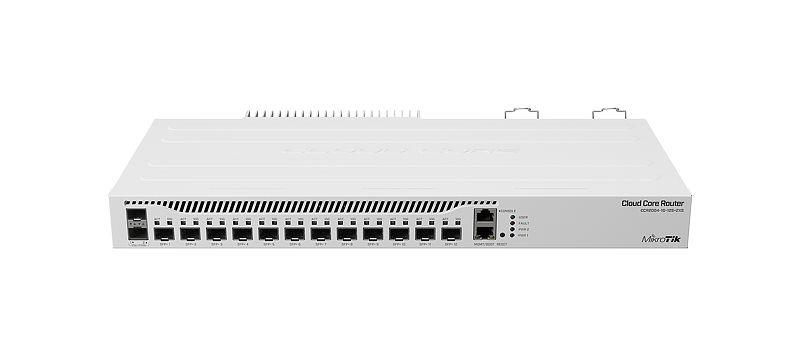

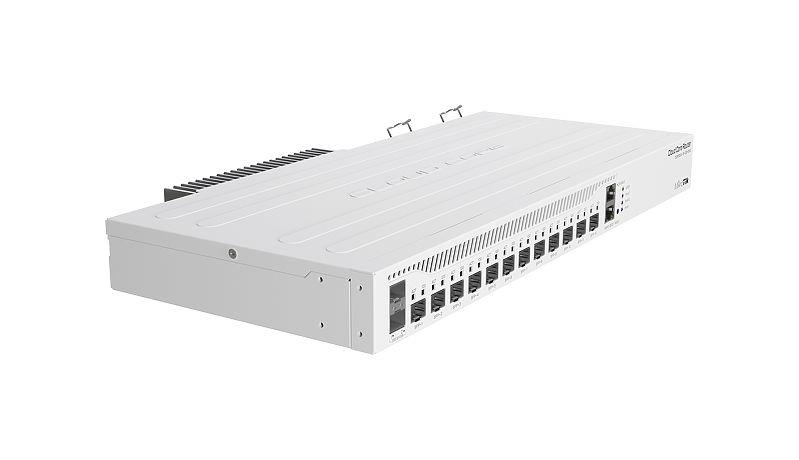

The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.
CCR2004-1G-12S+2XS is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.

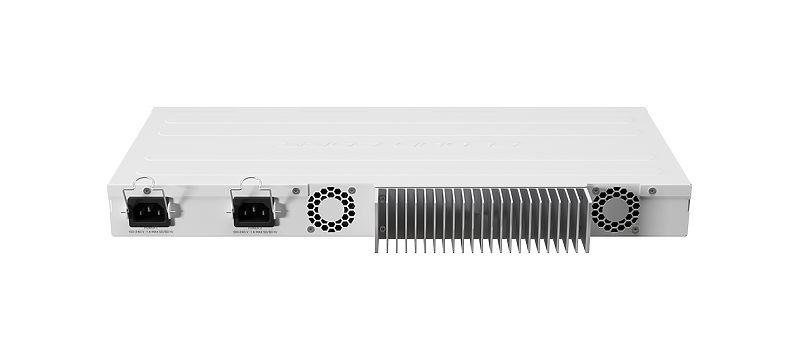

Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations! Size of RAM in RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC
General
| Unit Calculated Weight | 2.79 kg |
| Unit Calculated Volume | 0.01541 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Summary | Mikrotik CCR2004-1G-12S+2XS. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Compliance certificates: RoHS. Cables included: AC. Internal memory: 128 MB, Operating system installed: RouterOS, Certification: CE/RED, EAC. Product colour: White |
| CnCode | 85176200 |
| Unit Box Height | 0.3 |
| Unit Box Length | 0.48 |
| Unit Box Width | 0.06 |
| Product model code | CCR2004-1G-12S+2XS |
WAN connection
| Ethernet WAN | Yes |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Throughput | 3.4 Gbit/s |
Mobile network
| Mobile network generation | Not supported |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Installed SFP+ modules quantity | 12 |
| Serial ports quantity | 1 |
Packaging content

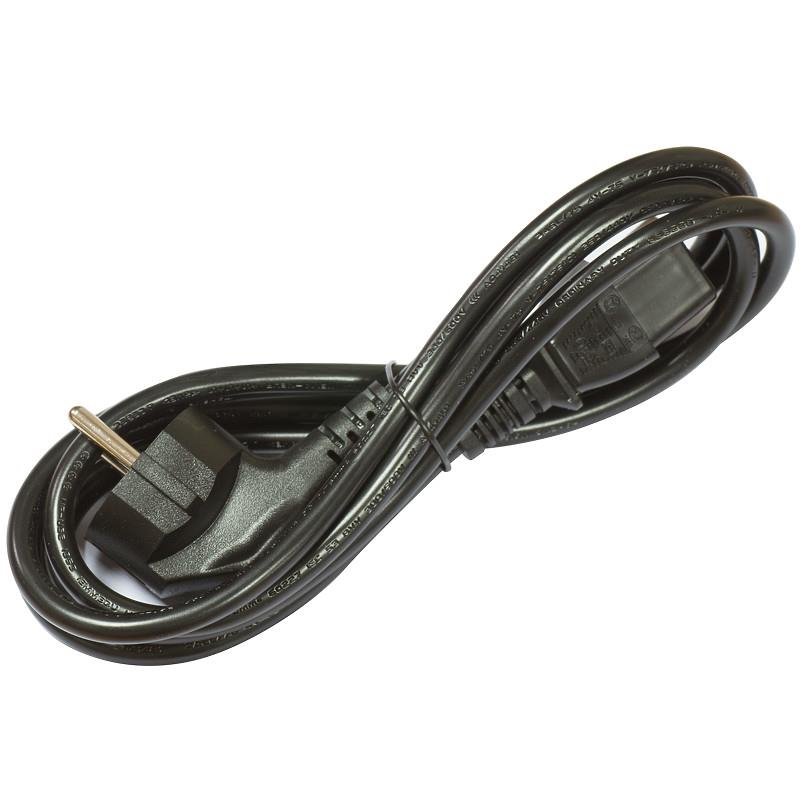

| Cables included | AC |
Certificates
| Compliance certificates | RoHS |
Features
| Built-in processor | Yes |
| Certification | CE/RED, EAC |
| Internal memory | 128 MB |
| Operating system installed | RouterOS |
| Temperature monitoring | Yes |
| Voltage monitoring | Yes |
Design
| Product colour | White |

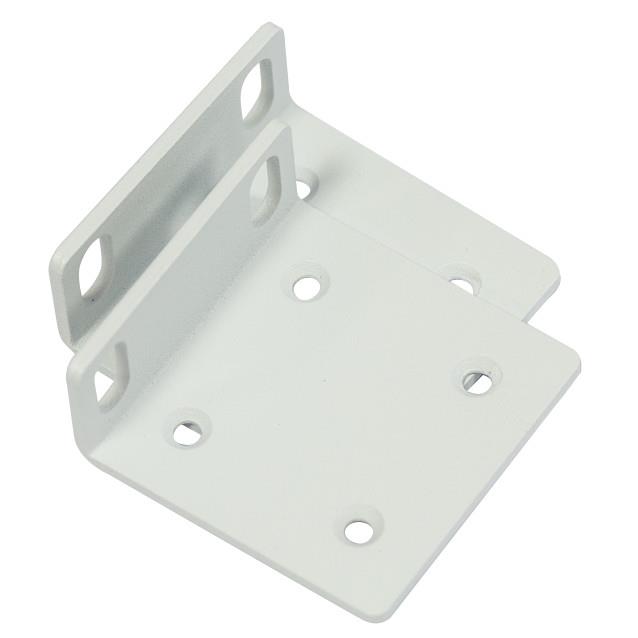

| Rack mounting | Yes |
Power
| AC input voltage | 100 - 240 V |
| Power source type | AC |
Operational conditions
| Operating temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Depth | 224 mm |
| Height | 44 mm |
| Width | 443 mm |
