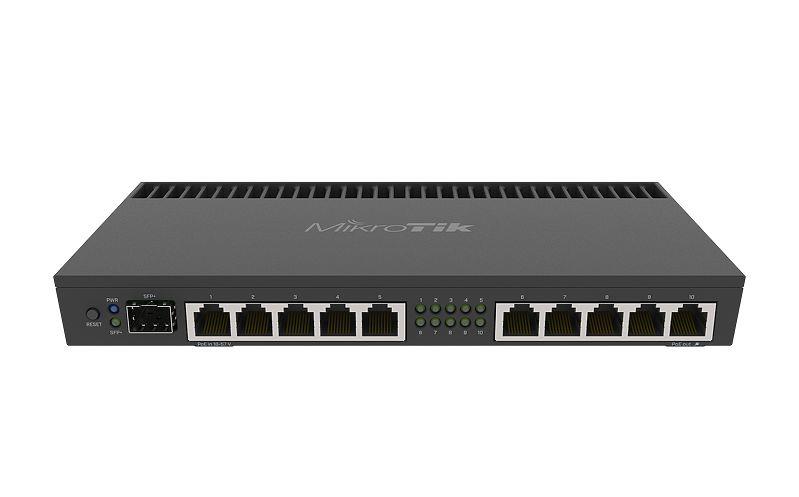

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!
The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

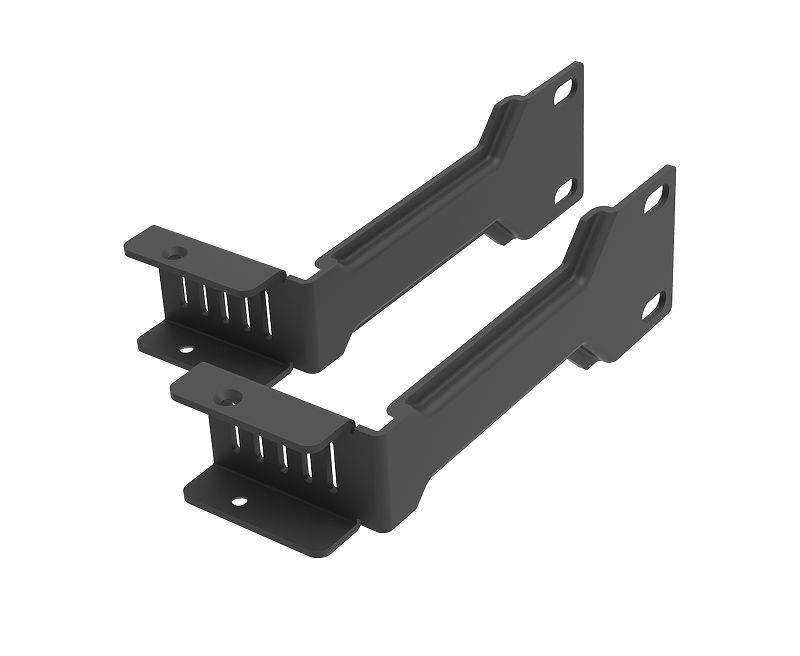

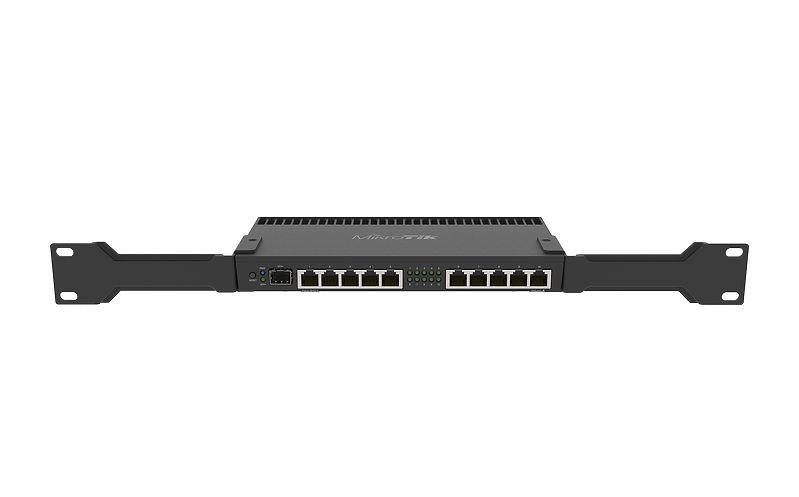

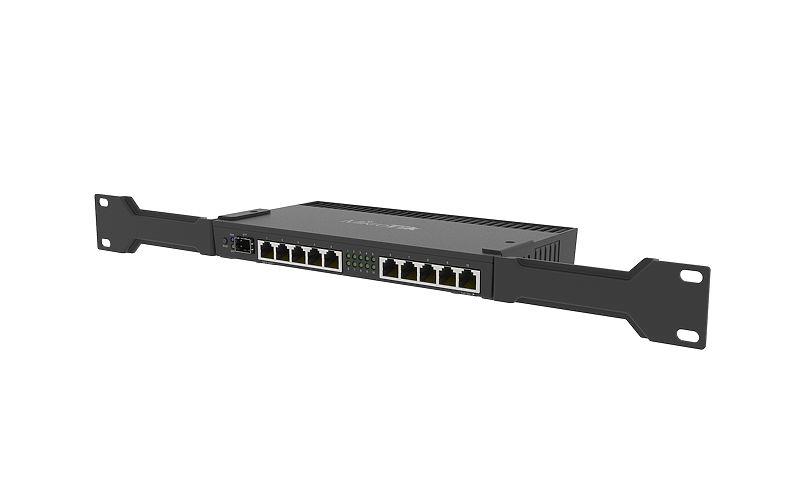

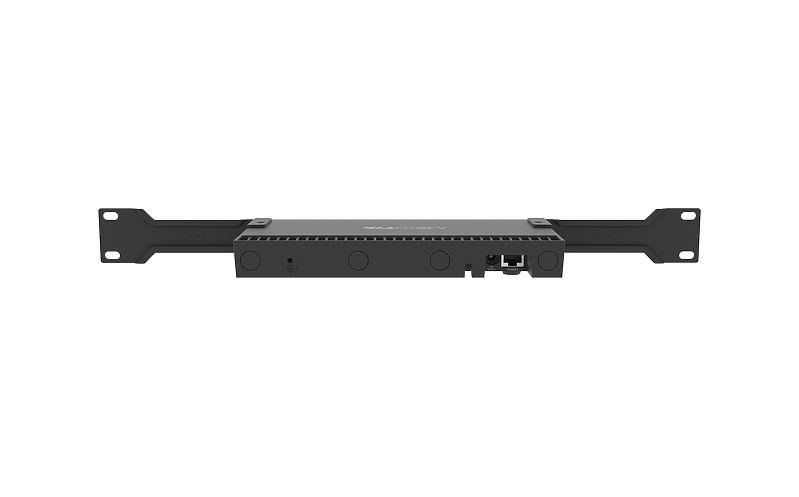

RB4011iGS+RM (Ethernet model) includes two rackmount ears that will securely fasten the unit in a standard 1U rack space.
General
| Unit Calculated Weight | 1.02 kg |
| Unit Calculated Volume | 0.003014 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 80 |
| Summary | Mikrotik RB4011IGS+RM. Networking standards: IEEE 802.3at, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Security algorithms: 128-bit AES, 256-bit AES, SHA-1, SHA-256. Processor model: Annapurna Labs Alpine AL21400, Processor frequency: 1400 MHz, Storage media: Flash. Product colour: Black, Rack capacity: 1U. Power consumption (typical): 33 W, Power source type: DC, PoE, Output voltage: 57 V |
| Unit Box Height | 0.05 |
| Unit Box Length | 0.341 |
| Unit Box Width | 0.145 |
WAN connection
| 3G/4G USB modem compatibility | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Networking standards | IEEE 802.3at |
Management features
| Reset button | Yes |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 10 |
| Installed SFP+ modules quantity | 1 |
| Power over Ethernet (PoE) ports quantity | 2 |
| Serial ports quantity | 1 |
Security
| Security algorithms | 128-bit AES/256-bit AES/SHA-1/SHA-256 |
Packaging content

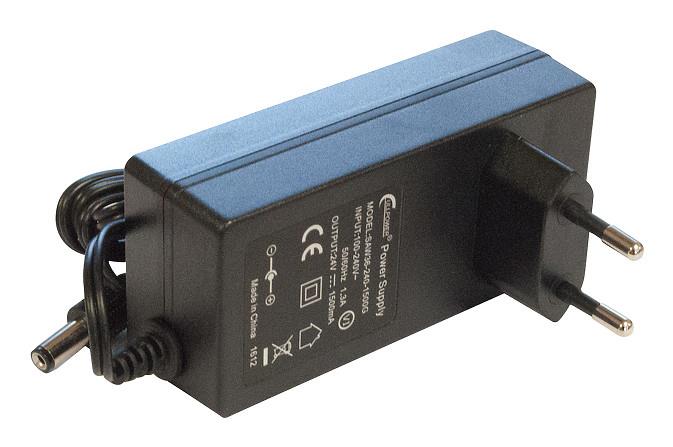

| AC adapter included | Yes |
Features
| Built-in processor | Yes |
| Internal memory | 1024 MB |
| Internal storage capacity | 0.5 GB |
| License level | 5 |
| Operating system installed | RouterOS |
| Processor cores | 4 |
| Processor frequency | 1400 MHz |
| Processor model | Annapurna Labs Alpine AL21400 |
| Storage media | Flash |
| Temperature monitoring | Yes |
| Voltage monitoring | Yes |
Design
| LED indicators | Yes |
| Product colour | Black |
| Rack capacity | 1U |
| Rack mounting | Yes |
Power
| Output current | 0.6 A |
| Output voltage | 57 V |
| Power consumption (typical) | 33 W |
| Power over Ethernet (PoE) | Yes |
| Power source type | DC,PoE |
Operational conditions
| Operating temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 120 mm |
| Height | 30 mm |
| Width | 228 mm |
Logistics data
| Harmonized System (HS) code | 85176990 |
Other features
| Input voltage | 12 - 57 V |
