- Features managed mode
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab，IEEE802.3z, IEEE802.3az and IEEE802.3ad standards
- Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE and IEEE802.3bt standards
- Supports network topology visualization
- Supports mobile management by app
- Supports one-stop maintenance
- With its full metal design and dust-proof enclosure, it can be used in a wide range of temperatures
- Supports desktop mount and DIN rail mount
General

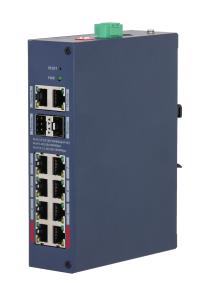

| Summary | Dahua Technology CHS4212-8GT-110. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. DC input voltage: 48 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE). Form factor: Desktop |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.315 |
| Unit Box Width | 0.25 |
| Model name | CHS4212-8GT-110 |
Management features
| Cloud-managed | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 10 |
| Power connector | DC-in jack |
| SFP module slots quantity | 2 |
Network
| 10G support | No |
| Networking standards | IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt |
Data transmission
| Forwarding rate | 17.856 Mpps |
| Jumbo frames | 12288 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Packet buffer memory | 8.4 MB |
| Switching capacity | 24 Gbit/s |
Design
| DIN rail mounting | Yes |
| Form factor | Desktop |
| Housing material | Iron |
| LED indicators | Yes |
| Product colour | Blue |
| Rack mounting | No |
| Reset button | Yes |
Performance
| Mean time between failures (MTBF) | 810020 h |
Power
| DC input voltage | 48 - 57 V |
| Input current | 2.5 - 2.1 A |
| Power consumption (max) | 117.2 W |
| Power source | DC |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 110 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -30 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Depth | 171.8 mm |
| Height | 42 mm |
| Weight | 660 g |
| Width | 139.4 mm |
Packaging content
| Cables included | AC |
Packaging data
| Package depth | 314.5 mm |
| Package height | 130.5 mm |
| Package weight | 1600 g |
| Package width | 253.5 mm |
Certificates
| Compliance certificates | CE |
