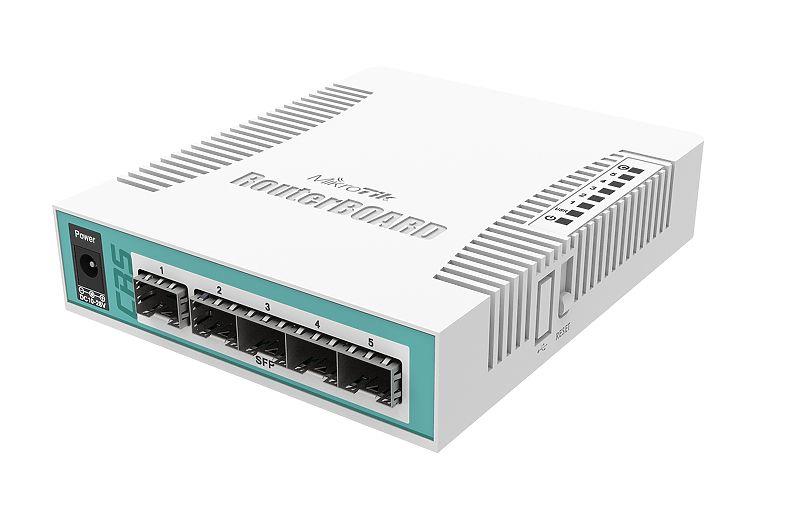

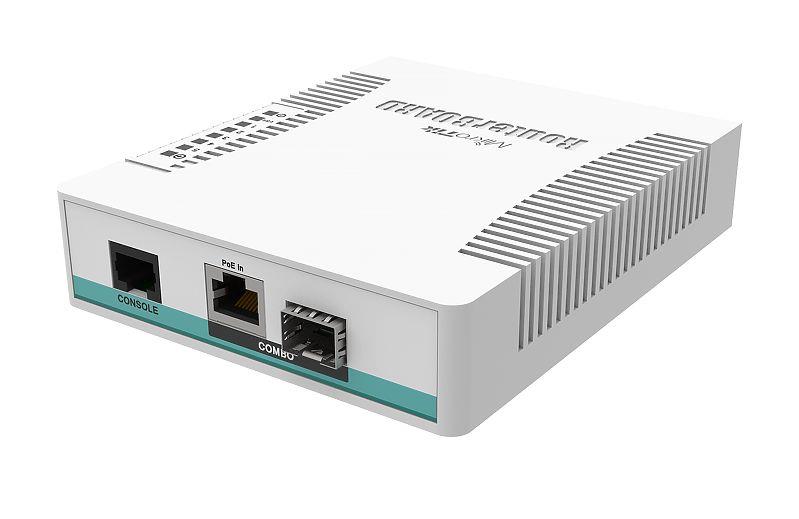

The Cloud Router Switch 106-1C-5S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo port and five 1.25Gbps SFP cages. The package includes a power supply. Powered by a 400MHz CPU and 128MB RAM, it runs RouterOS with a L5 license and supports 11- 30V power.
General
| Unit Calculated Weight | 0.39 kg |
| Unit Calculated Volume | 0.002032 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Summary | Mikrotik CRS106-1C-5S. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5, Console port: RJ-45. DC input voltage: 30 V. Power connector: DC-in jack. Power over Ethernet (PoE) |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.145 |
| Unit Box Width | 0.2 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| SFP module slots quantity | 5 |
Design
| Product colour | White |
| Stackable | No |
Performance
| Built-in processor | Yes |
| Compatible operating systems | RouterOS |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Processor frequency | 400 MHz |
Power
| DC input voltage | 30 V |
| Power consumption (max) | 11 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Operating temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Depth | 137 mm |
| Height | 29 mm |
| Width | 114 mm |
Packaging content
| Cables included | USB |
Packaging data
| AC adapter included | Yes |
Logistics data
| Harmonized System (HS) code | 85176990 |
