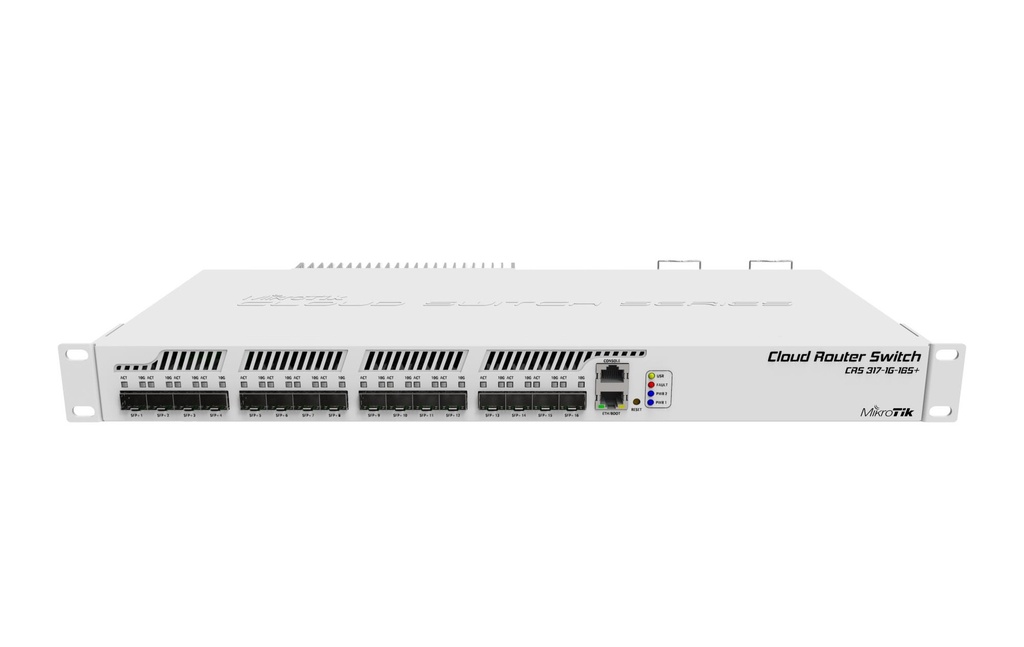

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.
CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

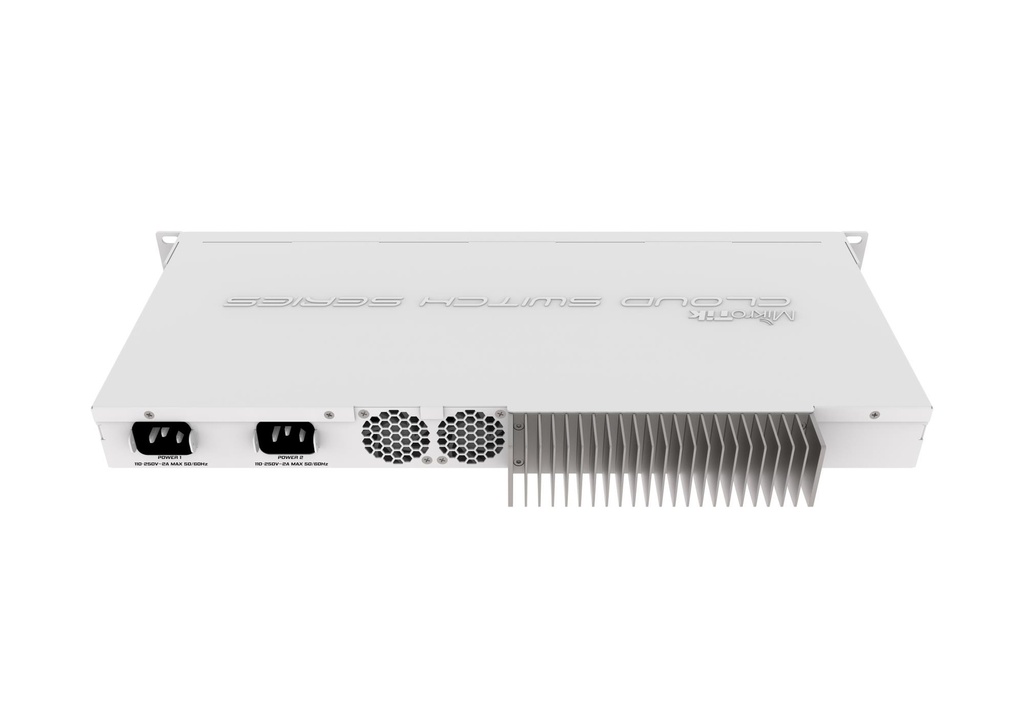

The unit has dual redundant power supplies and passive cooling case, so it’s completely silent - for hot environments two redundant fans will automatically keep the system cool if needed.
General
| Unit Calculated Weight | 2.43 kg |
| Unit Calculated Volume | 0.008496 cubm |
| Units per Shipping Box | 1 |
| Summary | Mikrotik CRS317-1G-16S+RM. Switch type: Managed, Switch layer: L3. Console port: RJ-45. Networking standards: IEEE 802.1Q. Power connector: DC-in jack. Rack mounting, Form factor: 1U |
| CnCode | 85176200 |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.48 |
| Unit Box Width | 0.29 |
Management features
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type | No |
| Console port | RJ-45 |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Power connector | DC-in jack |
| SFP+ module slots quantity | 16 |
Network
| 10G support | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1Q |
| Number of VLANs | 4000 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Security
| Security algorithms | SNMPv2/SNMPv3 |
Design
| Form factor | 1U |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Product colour | Grey |
| Rack mounting | Yes |
| Reset button | Yes |
Performance
| Built-in processor | Yes |
| Flash memory | 1000 MB |
| Internal memory | 16 MB |
| Memory type | Flash |
| Processor frequency | 800 MHz |
Power
| AC input voltage | 110 - 240 V |
| Number of power supply units | 2 |
| Power consumption (max) | 42 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Operational conditions
| Operating temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Depth | 224 mm |
| Height | 44 mm |
| Width | 443 mm |
Packaging content

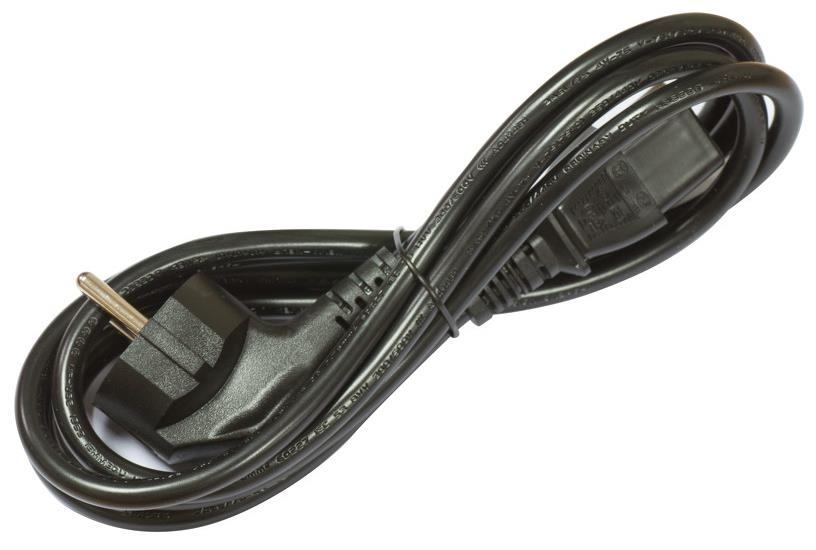

| Cables included | AC |
| User guide | Yes |
Packaging data

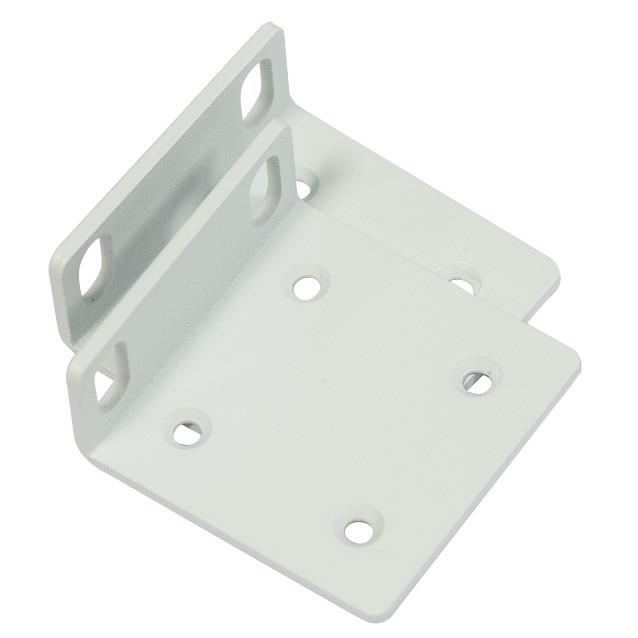

| Mounting brackets included | Yes |
Logistics data
| Harmonized System (HS) code | 85176990 |
