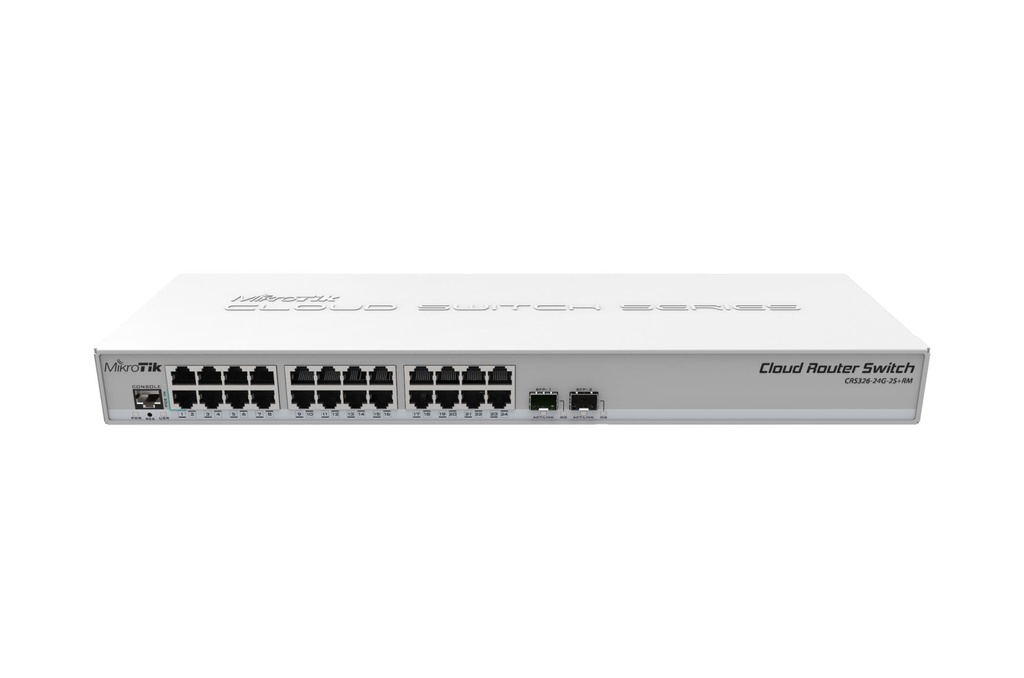

SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!
It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.
It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
General
| Unit Calculated Weight | 1.7 kg |
| Unit Calculated Volume | 0.0088 cubm |
| Units per Shipping Box | 10 |
| Summary | Mikrotik CRS326-24G-2S+RM. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Networking standards: IEEE 802.1Q |
| Unit Box Height | 0.19 |
| Unit Box Length | 0.07 |
| Unit Box Width | 0.56 |
Management features
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| SFP+ module slots quantity | 2 |
Network
| 10G support | Yes |
| Broadcast storm control | Yes |
| Networking standards | IEEE 802.1Q |
| Number of VLANs | 4000 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Security
| Access Control List (ACL) | Yes |
| Security algorithms | SNMP |
Design
| Product colour | Grey |
Performance
| Built-in processor | Yes |
| Compatible operating systems | RouterOS, SwitchOS |
| Flash memory | 16 MB |
| Internal memory | 512 MB |
| Processor frequency | 800 MHz |
Power
| Power consumption (max) | 24 W |
| Power supply included | Yes |
Operational conditions
| Operating temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Depth | 144 mm |
| Height | 44 mm |
| Width | 440 mm |
Packaging content

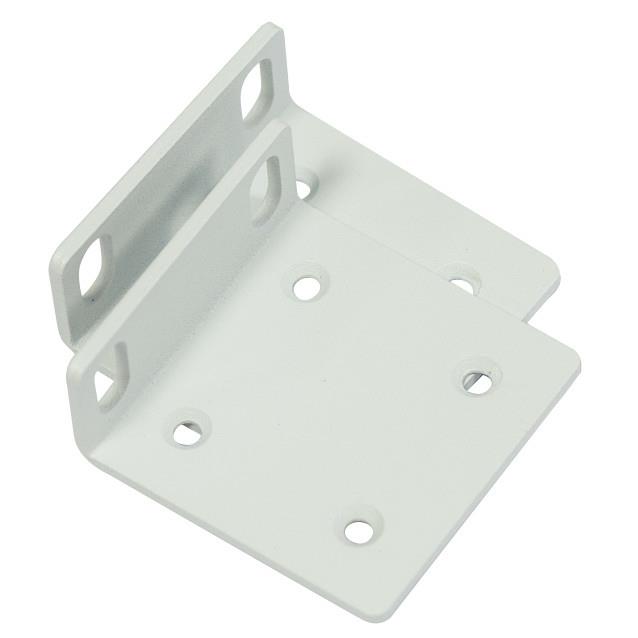

| Rack mount kit | Yes |
Packaging data

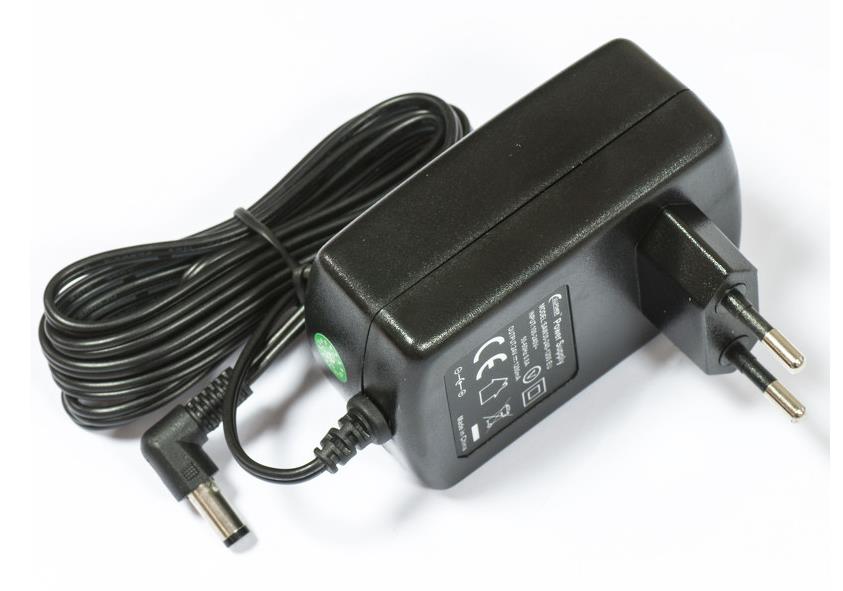

| AC adapter included | Yes |
Logistics data
| Harmonized System (HS) code | 85176990 |
