If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

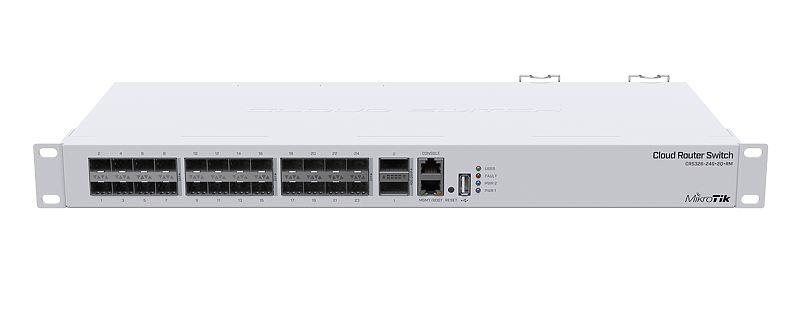

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

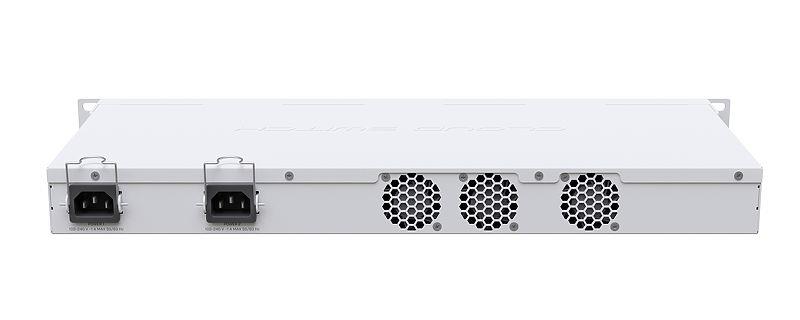

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!
You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS
General
| Unit Calculated Weight | 2.75 kg |
| Unit Calculated Volume | 0.003773 cubm |
| Units per Shipping Box | 10 |
| Summary | Mikrotik CRS326-24S+2Q+RM. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 1, Console port: RJ-45. Switching capacity: 640 Gbit/s. Power connector: AC-in jack. Rack mounting, Form factor: 1U |
| Unit Box Height | 0.065 |
| Unit Box Length | 0.49 |
| Unit Box Width | 0.275 |
Management features
| Switch layer | L3 |
| Switch type | Managed |
Ports & interfaces
| Console port | RJ-45 |
| Power connector | AC-in jack |
| QSFP+ module slots quantity | 2 |
| SFP+ module slots quantity | 24 |
| USB 2.0 ports quantity | 1 |
Network
| 10G support | Yes |
Data transmission
| Forwarding rate | 252 Mpps |
| Switching capacity | 640 Gbit/s |
| Throughput | 320 Mpps |
Design
| Form factor | 1U |
| LED indicators | Yes |
| Product colour | White |
| Rack mounting | Yes |
| Reset button | Yes |
Performance
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 64 MB |
| Memory type | RAM |
| Processor frequency | 650 MHz |
Power
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 69 W |
| Redundant power supply (RPS) support | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Operational conditions
| Operating temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Depth | 183 mm |
| Height | 44 mm |
| Width | 443 mm |
Packaging content
| Cables included | AC |
| Rack mount kit | Yes |
Logistics data
| Harmonized System (HS) code | 85176990 |
