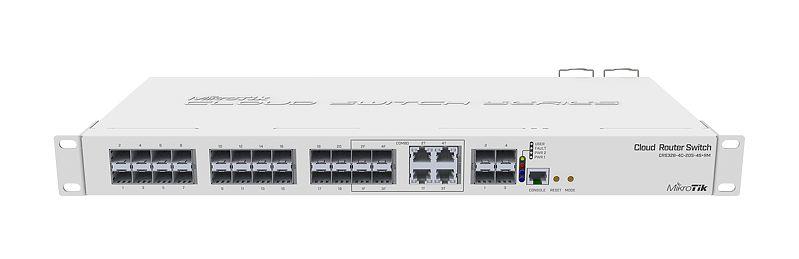

The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.

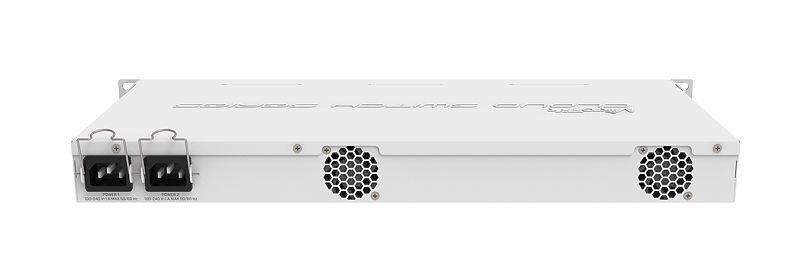

The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.
General
| Unit Calculated Weight | 2.53 kg |
| Unit Calculated Volume | 0.01132 cubm |
| Units per Shipping Box | 6 |
| Units per Pallet | 0 |
| Summary | Mikrotik CRS328-4C-20S-4S+RM. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3ad. Rack mounting, Form factor: 1U |
| CnCode | 85176200 |
| Unit Box Height | 0.31 |
| Unit Box Length | 0.495 |
| Unit Box Width | 0.06 |
| Model name | CRS328-4C-20S-4S+RM |
Management features
| Switch layer | L2/L3 |
| Switch type | Managed |
Ports & interfaces
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
| SFP module slots quantity | 20 |
| SFP+ module slots quantity | 4 |
Network
| 10G support | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1Q/IEEE 802.3ad |
| Port mirroring | Yes |
| VLAN support | Yes |
Data transmission
| Forwarding rate | 95.2 Mpps |
| Jumbo frames | 10218 |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
Security
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
Design
| Form factor | 1U |
| LED indicators | Yes |
| Product colour | White |
| Rack mounting | Yes |
Performance
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 512 MB |
| Processor frequency | 800 MHz |
Power
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power consumption (max) | 43 W |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Operational conditions
| Operating temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Depth | 44 mm |
| Height | 200 mm |
| Width | 443 mm |
Packaging content
| Cables included | AC |
| Rack mount kit | Yes |
