Best price and best performance on the market – this 48 port switch will rock any setup, including 40 Gbps devices!

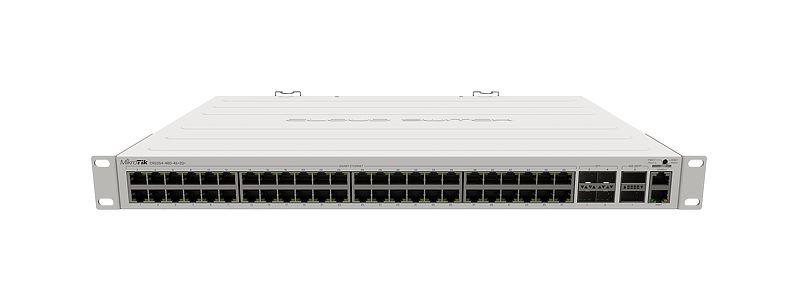

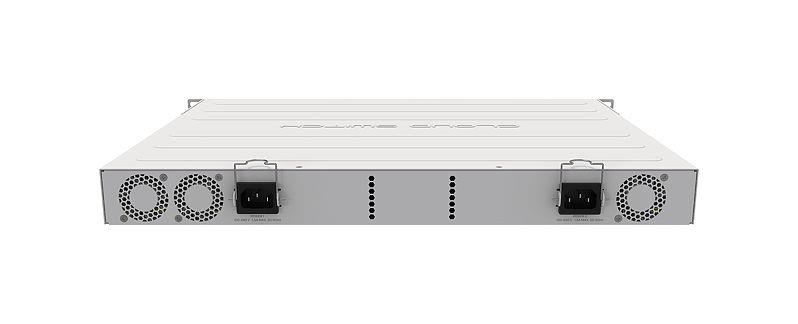

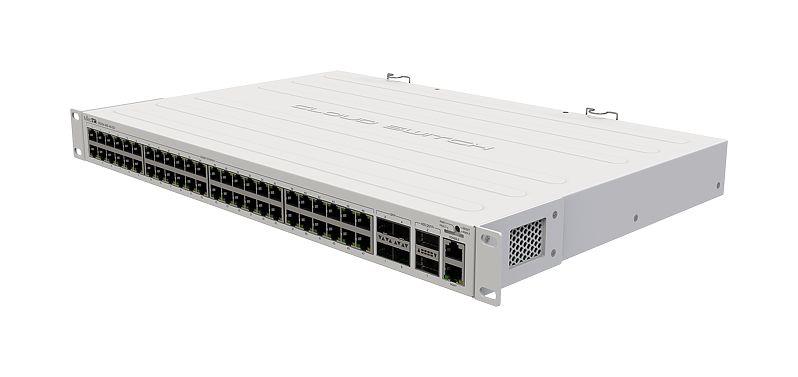

If you are looking for a single switch that will put your network setup ahead of the curve without costing a fortune, look no further. The new CRS354-48G-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in demanding and busy environments. With this product we aim to set a new price-performance bar – get more features while spending way less!
This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
General
| Unit Calculated Weight | 5.47 kg |
| Unit Calculated Volume | 0.0234 cubm |
| Units per Shipping Box | 3 |
| Units per Pallet | 12 |
| Summary | Mikrotik CRS354-48G-4S+2Q+RM. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. Full duplex. Switching capacity: 336 Gbit/s. Power connector: AC-in jack. Rack mounting |
| Unit Box Height | 0.37 |
| Unit Box Length | 0.58 |
| Unit Box Width | 0.09 |
| Model | MIKROTIK CRS354-48G-4S+2Q+RM |
Management features
| Switch layer | L2 |
| Switch type | Managed |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Power connector | AC-in jack |
| QSFP+ module slots quantity | 2 |
| SFP+ module slots quantity | 4 |
Network
| 10G support | Yes |
| Full duplex | Yes |
Data transmission
| Forwarding rate | 235 Mpps |
| Switching capacity | 336 Gbit/s |
Design
| International Protection (IP) code | IPX0 |
| Product colour | Grey |
| Rack mounting | Yes |
Performance
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 64 MB |
| Processor frequency | 650 MHz |
Power
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 60 W |
Operational conditions
| Operating temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Depth | 297 mm |
| Height | 44 mm |
| Width | 443 mm |
Packaging content
| Cables included | AC |
| Rack mount kit | Yes |
Certificates
| Certification | CE/RED, EAC, RoHS |
Logistics data
| Harmonized System (HS) code | 85176990 |
