MIKROTIK CRS418-8P-8G-2S+RM Type L3 PoE ports 8 CRS4188P8G-2S+5AXQ2AXQ-RM

Kainos tik partneriams Prisijungti B2B

MIKROTIK
Garantija: 12 mėn.
Pristatymas į terminalą: DPD
  • Gamintojas
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Gamintojas: MIKROTIK

The Wi-Fi version of CRS418... with our strongest 4x4 MIMO Wi-Fi 6! L3 HW offloading, quad-core 2.2 GHz ARM CPU, 16x Gigabit Ethernet ports + a Gigabit management port with a direct CPU line, 2x 10G SFP+ ports, PoE-out.

Why settle for just a simple switch when you can have PoE-out, high-speed fiber uplinks, USB storage compatibility, advanced network control/monitoring, and enough processing power even for some routing or L3 HW offloading… in a single 1U device and for the best price on the market?

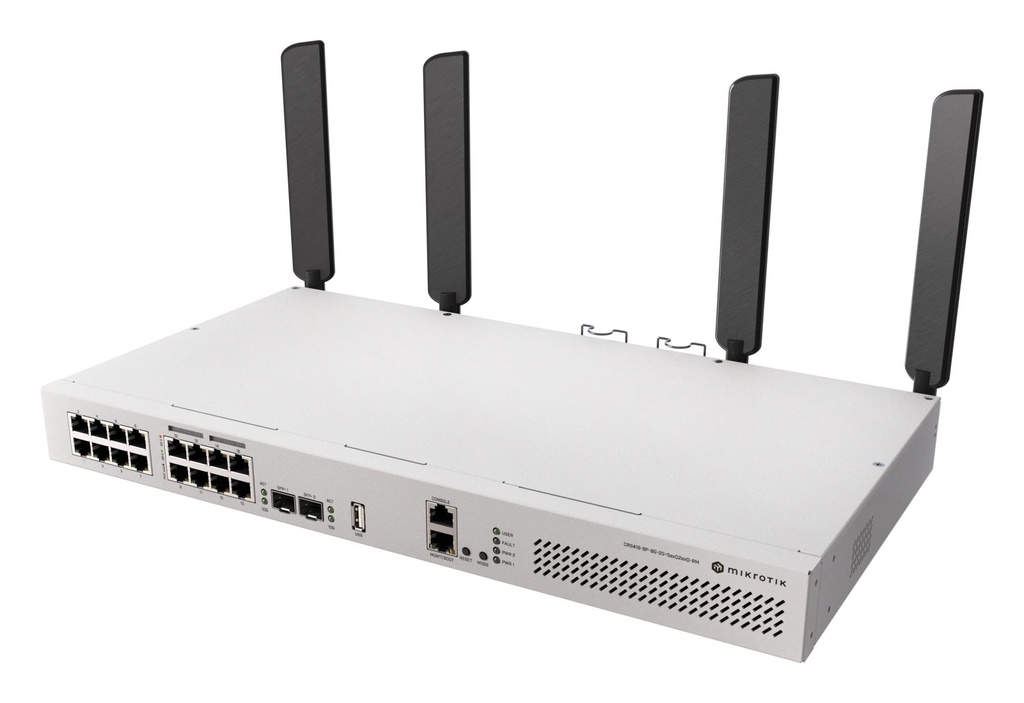

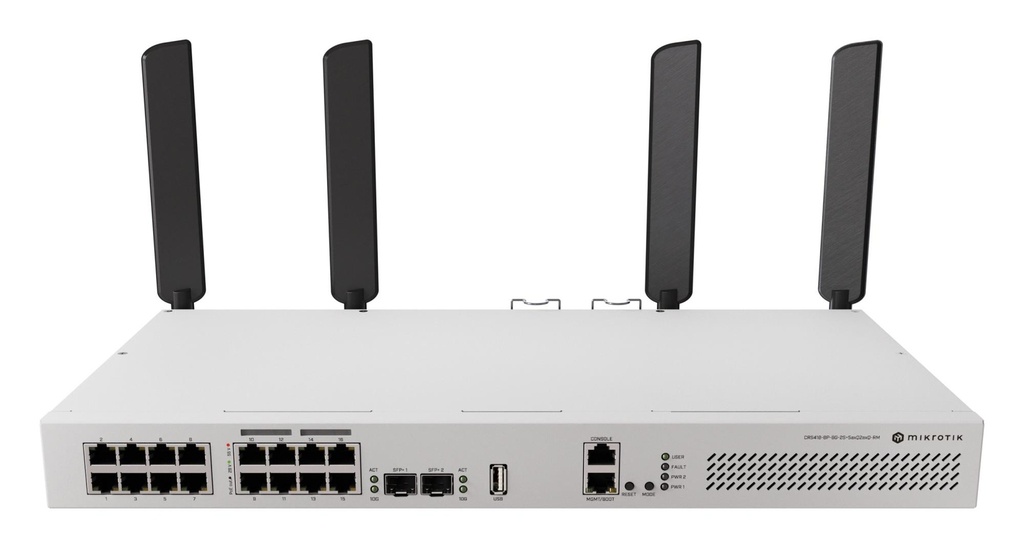

The CRS418-8P-8G-2S+RM combines 16 Gigabit Ethernet ports (eight of them with PoE-out!), two 10G SFP+ cages, USB 3 connectivity, and a powerful quad-core 2.2 GHz CPU in a clean, durable rackmount enclosure. Also, there’s a Gigabit management port with a direct CPU line.

This is a serious upgrade for anyone looking to replace a jungle of devices with one smart multitasker – built for real routing workloads, high-bandwidth uplinks, and clean cable management. Whether you’re powering up access points and CCTV cameras, running a fast NAS with a bunch of modern workstations, or managing the routing in your mid-sized office, CRS418 handles it all with ease – and on a budget!

Wi-Fi where it matters

2CRS418-8P-8G-2S+5axQ2axQ-RM The all-in-one switch/routing champion also delivers 4×4 MIMO dual-band Wi-Fi 6 – for fast, reliable connectivity wherever you need it. The perfect solution to simplify basement server room setups or medium-sized offices on a tight budget – now you don’t need to carry a separate access point!

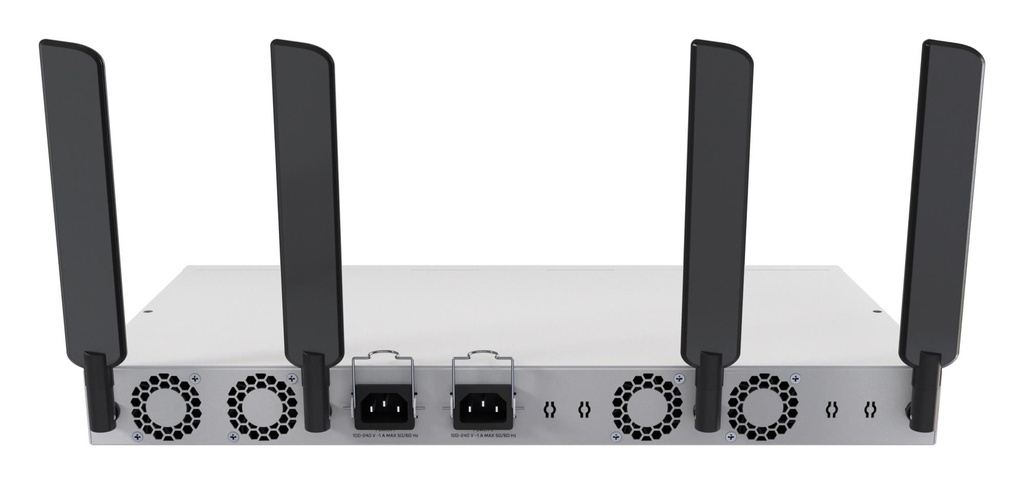

We know rackmounts are not famous for great wireless coverage. That’s why the CRS418 Wi-Fi edition includes dedicated holes in the back for pigtails, so you can place antennas outside the case if needed.

General
Unit Calculated Weight3.9 kg
Unit Calculated Volume0.03186 cubm
Units per Shipping Box2
Units per Pallet0
SummaryMikrotik CRS418-8P-8G-2S+5axQ2axQ-RM. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 17, Console port: RJ-45. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Unit Box Height0.12
Unit Box Length0.59
Unit Box Width0.39
Model nameCRS418-8P-8G-2S+RM
ModelCRS418-8P-8G-2S+RM
Management features
Switch layerL2/L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity17
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45
SFP+ module slots quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB Type-A ports quantity1
Network
10G supportYes
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.3af/IEEE 802.3at
Design
Form factor1U
International Protection (IP) codeIP20
Rack mountingYes
Reset buttonYes
Performance
Built-in processorYes
Flash memory128 MB
Internal memory1000 MB
Mean time between failures (MTBF)200000 h
Operating system installedRouterOS
Processor frequency2208 MHz
Processor manufacturerARM
Processor model98DX226S
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Power consumption (max)227 W
Power consumption (typical)43 W
Power sourceAC/PoE
Power supply includedYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Operational conditions
Operating temperature (T-T)-20 - 70 °C
Weight & dimensions
Depth250 mm
Height44 mm
Width443 mm
Certificates
Compliance certificatesCE/EAC/RoHS
