Why settle for just a simple switch when you can have PoE-out, high-speed fiber uplinks, USB storage compatibility, advanced network control/monitoring, and enough processing power even for some routing or L3 HW offloading… in a single 1U device and for the best price on the market?

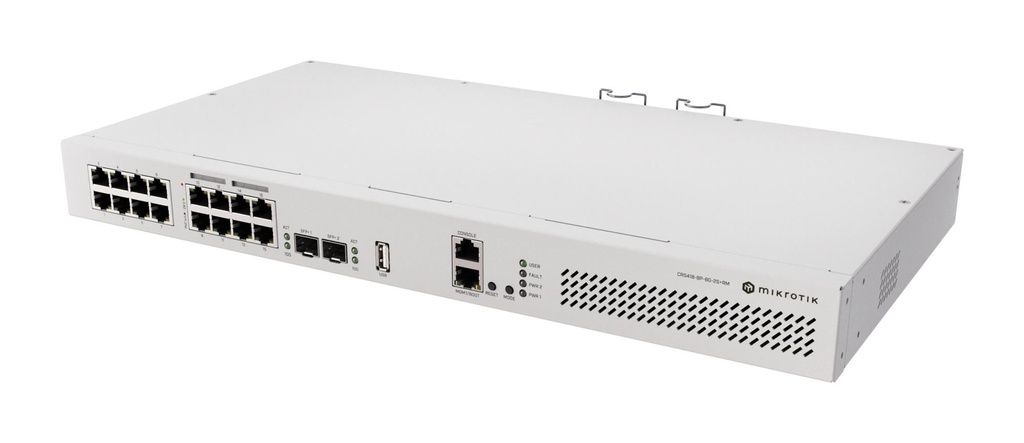

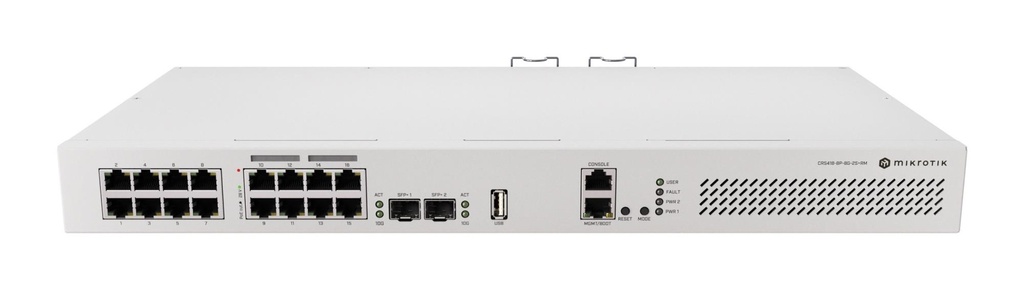

The CRS418-8P-8G-2S+RM combines 16 Gigabit Ethernet ports (eight of them with PoE-out!), two 10G SFP+ cages, USB 3 connectivity, and a powerful quad-core 2.2 GHz CPU in a clean, durable rackmount enclosure. Also, there’s a Gigabit management port with a direct CPU line.
This is a serious upgrade for anyone looking to replace a jungle of devices with one smart multitasker – built for real routing workloads, high-bandwidth uplinks, and clean cable management. Whether you’re powering up access points and CCTV cameras, running a fast NAS with a bunch of modern workstations, or managing the routing in your mid-sized office, CRS418 handles it all with ease – and on a budget!
CRS418-8P-8G-2S+RM is more than a switch. It’s a real multi-tasking champion that keeps your network lean and your server room clean.
General
| Unit Calculated Weight | 2.95 kg |
| Unit Calculated Volume | 0.01303 cubm |
| Units per Shipping Box | 3 |
| Units per Pallet | 0 |
| Summary | Mikrotik CRS418-8P-8G-2S+RM Cloud Router/Sw. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RJ-45. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.495 |
| Unit Box Width | 0.325 |
| Model name | CRS418-8P-8G-2S+RM |
| Model | CRS418-8P-8G-2S+RM |
Management features
| Switch layer | L2/L3 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| SFP+ module slots quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB Type-A ports quantity | 1 |
Network
| 10G support | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
Design
| Form factor | 1U |
| International Protection (IP) code | IP20 |
| Rack mounting | Yes |
| Reset button | Yes |
Performance
| Built-in processor | Yes |
| Flash memory | 128 MB |
| Internal memory | 1000 MB |
| Mean time between failures (MTBF) | 200000 h |
| Operating system installed | RouterOS |
| Processor frequency | 2208 MHz |
| Processor manufacturer | ARM |
| Processor model | 98DX226S |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 215 W |
| Power consumption (typical) | 28 W |
| Power source | AC/PoE |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Operating temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Depth | 230 mm |
| Height | 44 mm |
| Width | 443 mm |
Certificates
| Compliance certificates | CE/EAC/RoHS |
