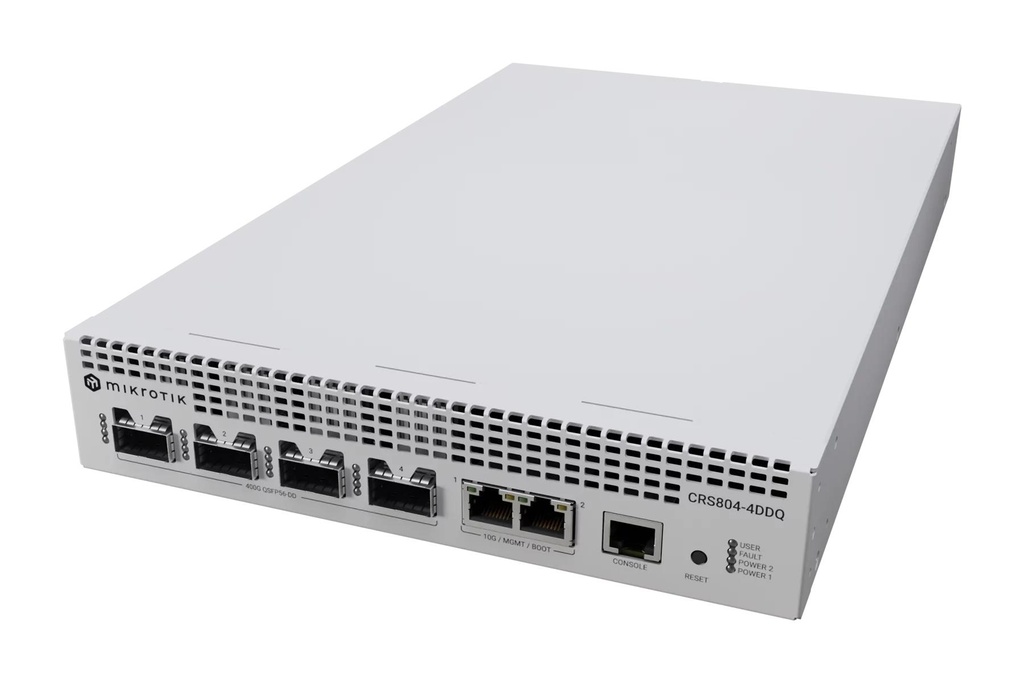

A compact 1U 400G switch built for AI clusters, storage fabrics, and high-speed aggregation, featuring four 400G QSFP56-DD ports, dual 10 Gigabit Ethernet, and RouterOS v7. With hot-swap power supplies, robust cooling, and low power consumption, it delivers ultra-high bandwidth, wire-speed performance, and future-proof scalability at an accessible price point.
General
| Unit Calculated Weight | 4.02 kg |
| Unit Calculated Volume | 0.009646 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Mikrotik CRS804-4DDQ-HRM. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 2, Console port: RJ-45 |
| CnCode | 85176200 |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.26 |
| Model name | CRS804 DDQ |
| Model | CRS804-4DDQ-HRM |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Console port | RJ-45 |
| QSFP56 ports quantity | 4 |
Network
| 10G support | Yes |
Design
| International Protection (IP) code | IP20 |
| Product colour | Grey |
Performance
| Built-in processor | Yes |
| Flash memory | 512 MB |
| Internal memory | 4000 MB |
| Mean time between failures (MTBF) | 200000 h |
| Operating system installed | RouterOS |
| Processor frequency | 2000 MHz |
| Processor manufacturer | ARM |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 123 W |
| Power source | AC |
Operational conditions
| Operating temperature (T-T) | -10 - 60 °C |
Certificates
| Certification | CE, EAC, ROHS |
