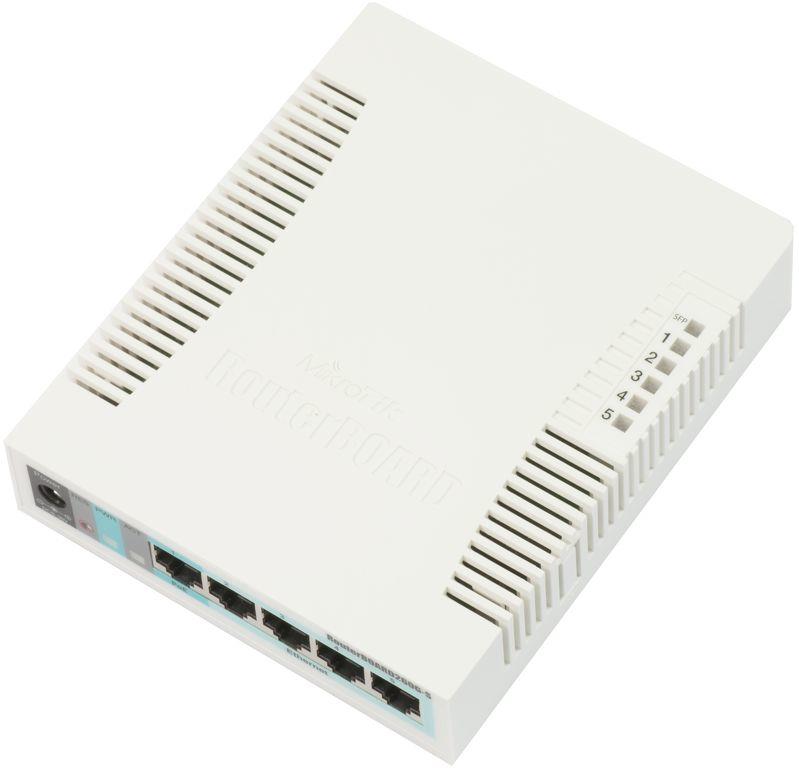

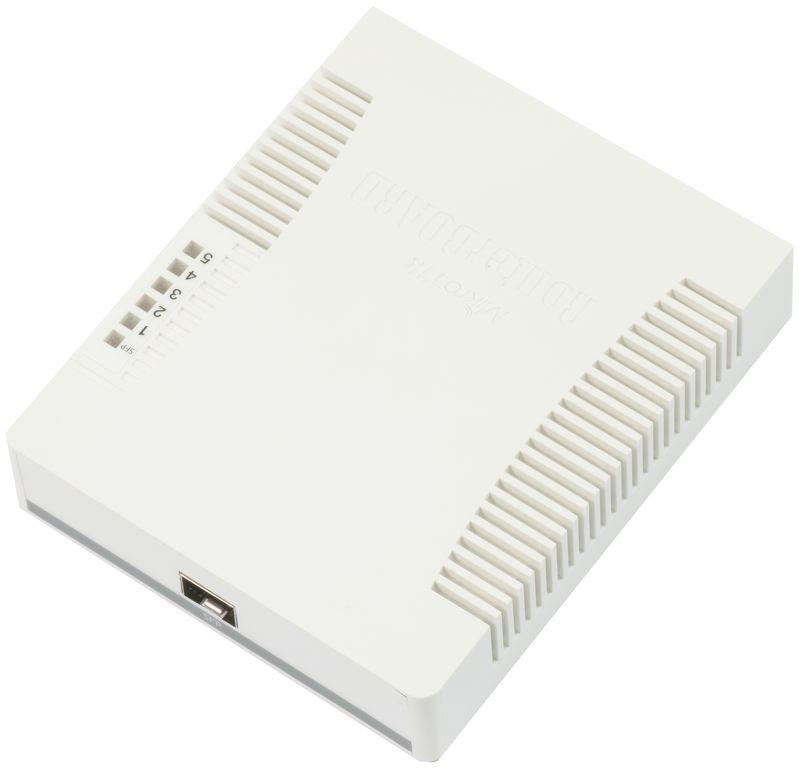

The RB260GS is a small SOHO switch. It has five Gigabit Ethernet ports and one SFP cage powered by an Atheros Switch Chip.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
It is powered by an operating system designed specifically for MikroTik Switch products - SwOS.
SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: Allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.
General
| Unit Calculated Weight | 0.4 kg |
| Unit Calculated Volume | 0.002157 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Summary | Mikrotik RB260GS. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5, Power connector: DC-in jack. Power over Ethernet (PoE) |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.2 |
| Unit Box Width | 0.145 |
| Model name | CSS106-5G-1S |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| SFP module slots quantity | 1 |
Network
| 10G support | No |
Design
| LED indicators | Yes |
| Product colour | White |
| Rack mounting | No |
Power
| Input voltage | 6 - 31 V |
| Power consumption (typical) | 6 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 1 |
Operational conditions
| Operating temperature (T-T) | -25 - 65 °C |
Weight & dimensions
| Depth | 139 mm |
| Height | 28 mm |
| Weight | 212 g |
| Width | 113 mm |
Logistics data
| Harmonized System (HS) code | 85176990 |
