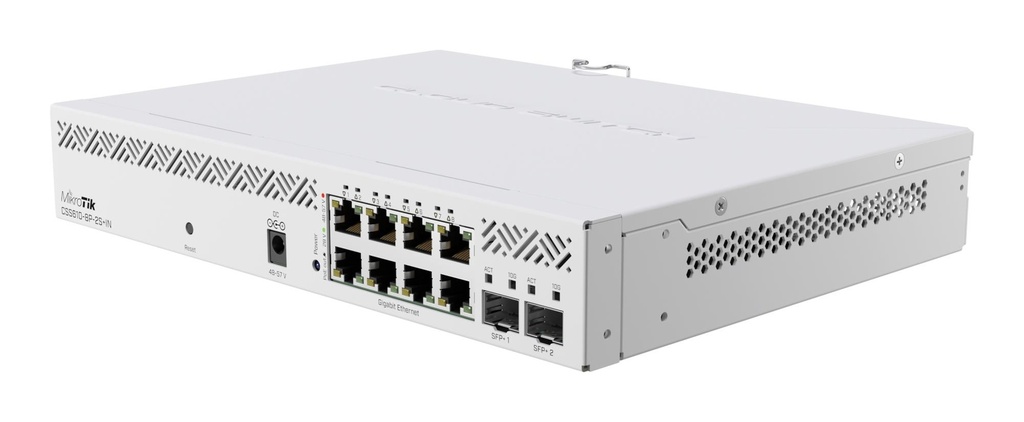

CSS610-8P-2S+IN is one of the most well-rounded switches on the market. It is a perfect fit for the most diverse setups: from home networks and small offices to hotels, call centers and so on. The unique combination of size, features, and price offers unbelievable scalability potential.

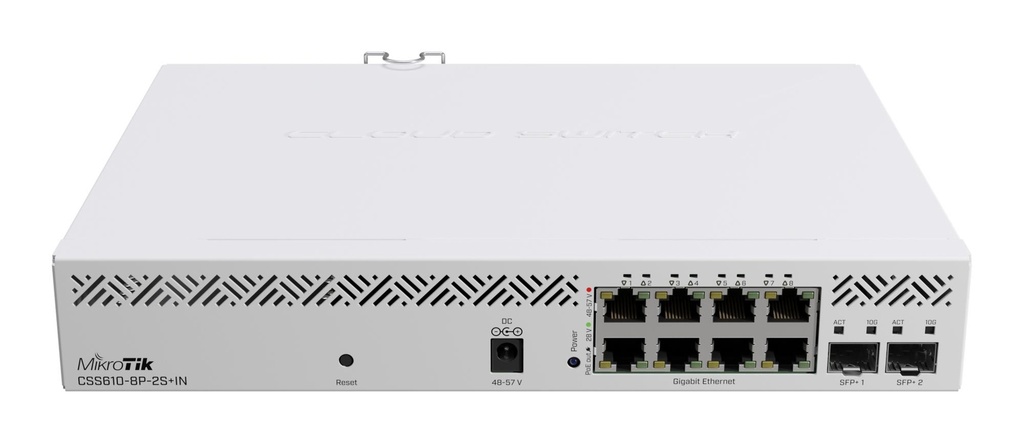

There are two SFP+ ports for 10 Gigabit fiber connectivity and eight Gigabit Ethernet ports with 802.3af/at PoE-out.
This switch is all about nice and easy setups. The compact form-factor means easier shipping and handling, while the lightweight SwOS means easier configuration. You can even configure this switch from your web browser! It gives you all the core functionality of a managed switch, and even more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitations, and even adjust some MAC and IP header fields.
But the real blessing is the combination of SFP+ and PoE-out Ethernet ports. With this setup, you can do all kinds of things on a tight budget. CSS610 has an impressive total PoE-out budget of 140 W, so you can use even in the most intense scenarios – like hotels, conference halls, or call centers! Use the PoE-out ports to connect the IP-phones while the SFP+ ports connect your primary server to the ISP. Or power a bunch of network cameras and instantly upload the footage to the cloud. And manage a cluster of wireless access points at the same time. Also, scalability is no longer a problem. With our pricing, you can afford a switch on every floor!
Like every toolbox needs screwdrivers and pliers, every network can use a solid PoE switch.
General
| Unit Calculated Weight | 2.2 kg |
| Unit Calculated Volume | 0.00741 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Summary | Mikrotik CSS610-8P-2S+IN. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP+ modules quantity: 2. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 48 - 57 V. Power over Ethernet (PoE). Rack mounting |
| Unit Box Height | 0.25 |
| Unit Box Length | 0.38 |
| Unit Box Width | 0.065 |
| Model | CSS610-8P-2S+IN |
Management features
| Switch type | Managed |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 2 |
Network
| 10G support | Yes |
| Broadcast storm control | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| VLAN support | Yes |
Data transmission
| Switching capacity | 56 Gbit/s |
Security
| MAC address filtering | Yes |
Design
| International Protection (IP) code | IP20 |
| LED indicators | Yes |
| Product colour | White |
| Rack mounting | Yes |
| Reset button | Yes |
Performance
| Fanless | Yes |
| Flash memory | 0.064 MB |
| Mean time between failures (MTBF) | 200000 h |
| Operating system installed | SwitchOS Lite |
| Processor model | Marvell 88E6193X |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 48 - 57 V |
| Input current | 2.2 A |
| Power consumption (max) | 162 W |
| Power source | AC/DC |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Total Power over Ethernet (PoE) budget | 140 W |
Operational conditions
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 216 mm |
| Height | 50 mm |
| Width | 272 mm |
Packaging content
| Cables included | AC |
| Rack mount kit | Yes |
Sustainability
| Sustainability compliance | Yes |
Certificates
| Certification | EAC |
| Compliance certificates | CE/RoHS |
