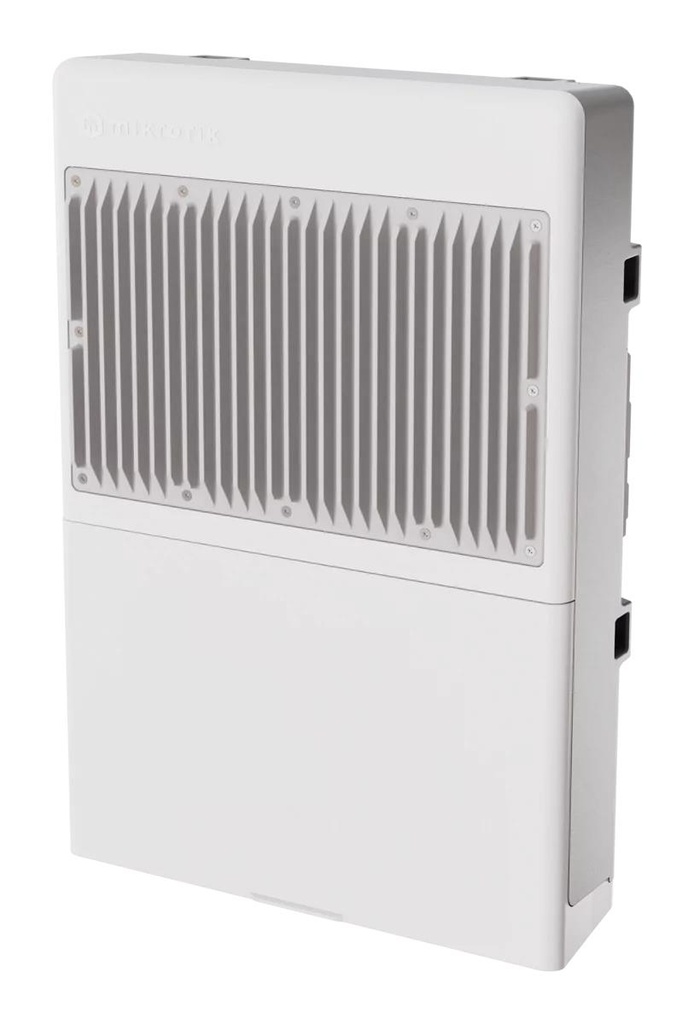

Mikrotik netPower Lite 8P (CSS610-8P-2S+OUT)
With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.
The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.
- 8× Gigabit Ethernet
- 802.3af/at PoE-Out
- 2× 10G SFP+ uplinks
- 24–57 V DC input
- Built-in smart battery charger
- 120 W total PoE-Out
- Integrated UPS switchover
- Temperature sensor included
General
| Unit Calculated Weight | 3.08 kg |
| Unit Calculated Volume | 0.01269 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Summary | Mikrotik netPower Lite 8P. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 24 - 57 V. Power connector: Terminal block (2-pin). Power over Ethernet (PoE) |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.4 |
| Unit Box Width | 0.245 |
| Model name | Mikrotik netPower Lite 8P (CSS610-8P-2S+OUT) |
| Model | CSS610-8P-2S+OUT |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | Terminal block (2-pin) |
| SFP+ module slots quantity | 2 |
Network
| 10G support | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
Design
| International Protection (IP) code | IP54 |
| LED indicators | Yes |
| Product colour | White |
| Temperature sensor | Yes |
Performance
| Flash memory | 0.064 MB |
| Mean time between failures (MTBF) | 200000 h |
| Memory type | Flash |
| Operating system installed | SwOS |
Power
| DC input voltage | 24 - 57 V |
| Power consumption (max) | 208 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Operating temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 212 mm |
| Height | 71 mm |
| Width | 304 mm |
Certificates
| Compliance certificates | CE/EAC/RoHS |
