The Club 3D CSV-1558 USB-C® to Dual HDMI™ 4K60Hz + PD 100 Watt Charging under DP1.4 Alt mode, allowing to extend the USB-C® port of the host to 2x HDMI™ displays with ultra high definition max 4K60Hz for each display simultaneously. Supporting MST function, dual displays can be showed with different video contents simultaneously. Besides, it supports PD Charging with max 100 Watt. It can work on all DP™ Alt mode supported USB-C® or Thunderbolt™ devices (including Phones with an USB-C® connetion and DP™ Alt modesupport).
General
| Unit Calculated Weight | 0.08 kg |
| Unit Calculated Volume | 0.0005565 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | CLUB3D USB-C® Hub to Dual HDMI™ 4K60Hz M/F+PD3.0 100 Watt. Video port type: USB Type-C, Video out: 2x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, HD type: 4K Ultra HD. Width: 50 mm, Depth: 55 mm, Height: 9 mm. Package width: 60 mm, Package depth: 240 mm, Package height: 35 mm. Harmonized System (HS) code: 8473 3020 |
| Unit Box Height | 0.265 |
| Unit Box Length | 0.06 |
| Unit Box Width | 0.035 |
| Model name | USB-C® Hub to Dual HDMI™ 4K60Hz M/F+PD3.0 100 Watt |
| Model | CSV-1558 |
Ports & interfaces
| HDMI version | 1.4 |
| Video out | 2x HDMI |
| Video port type | USB Type-C |
| Video ports quantity | 2 |
Features
| Cable length | 0.15 m |
| Data transfer rate | 32.4 Gbit/s |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| High Dynamic Range (HDR) supported | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Product colour | Black |
Power
| USB powered | Yes |
Weight & dimensions

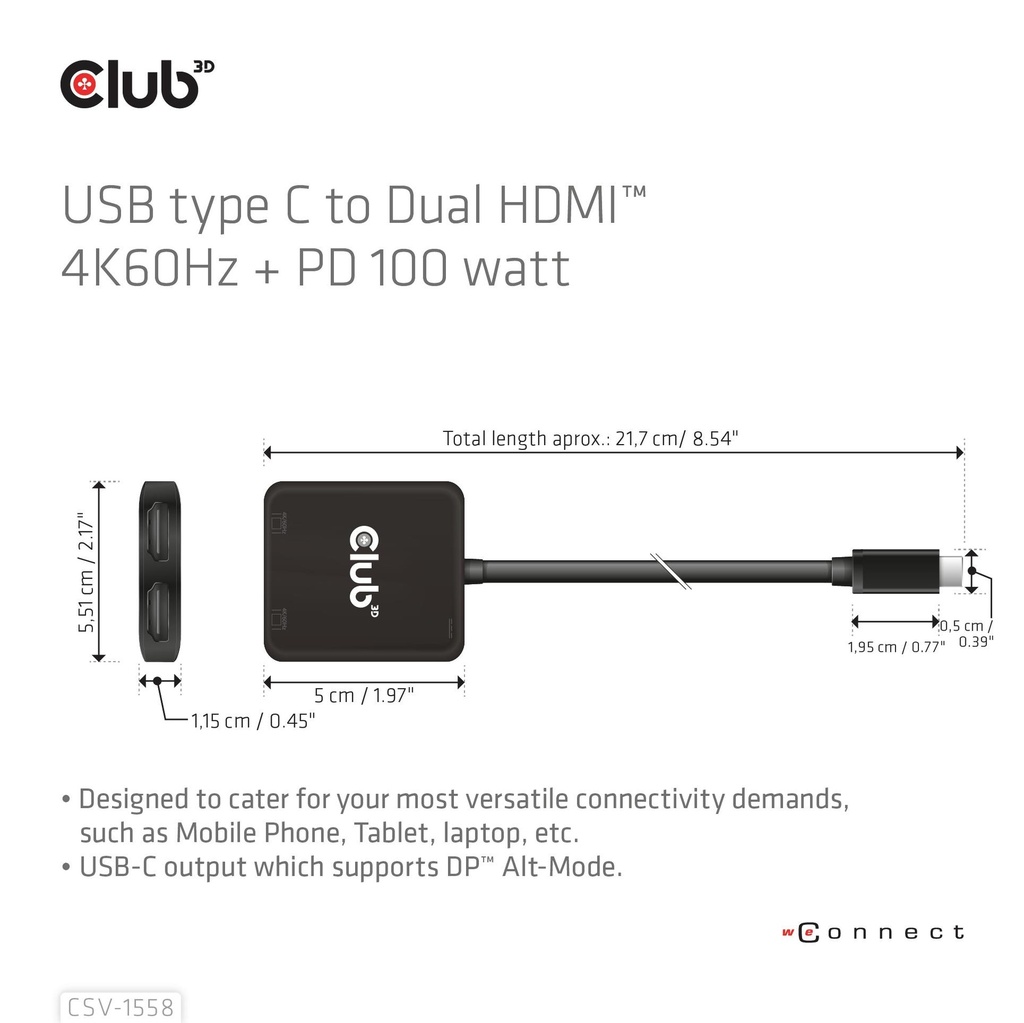

| Depth | 55 mm |
| Height | 9 mm |
| Weight | 45 g |
| Width | 50 mm |
Packaging data
| Package depth | 240 mm |
| Package height | 35 mm |
| Package type | Box |
| Package weight | 74 g |
| Package width | 60 mm |
| Paper/cardboard packaging weight | 28 g |
| Plastic packaging weight | 1 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Logistics data
| Harmonized System (HS) code | 8473 3020 |
