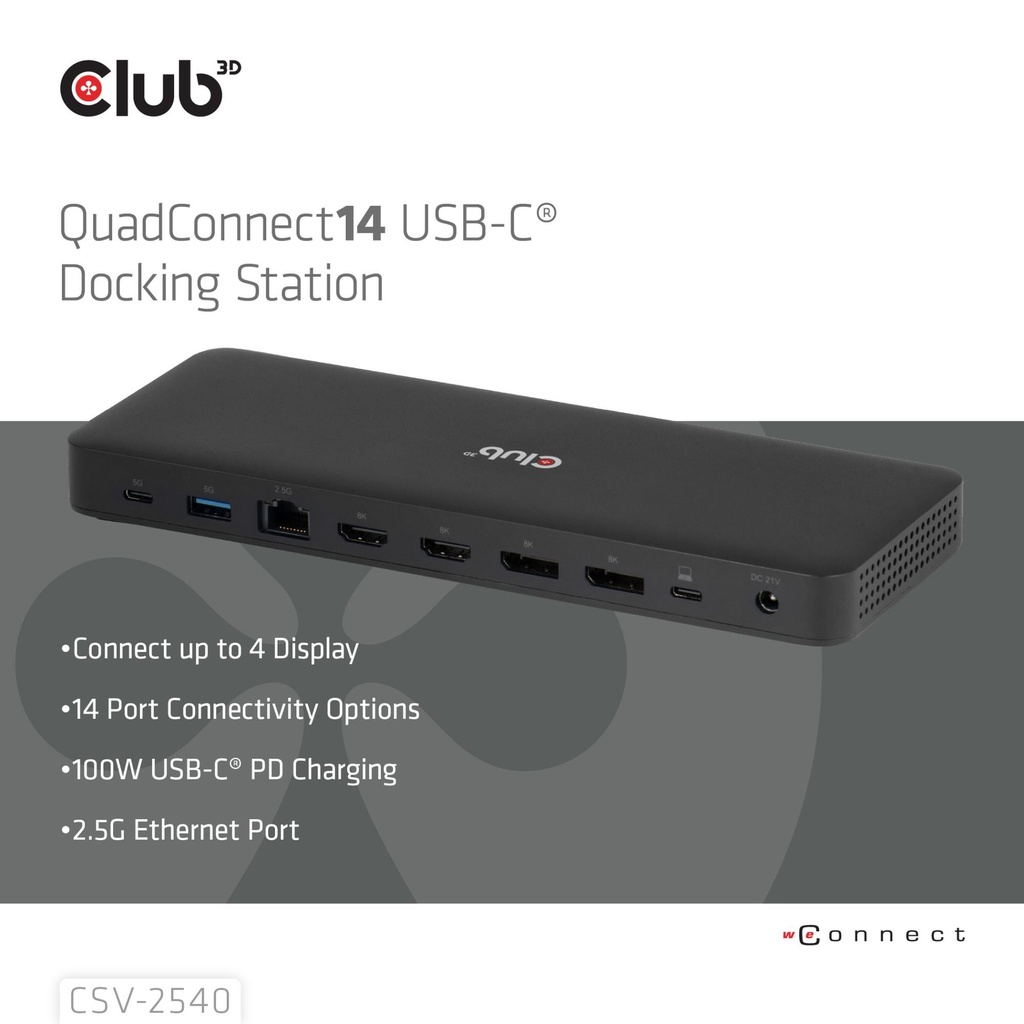

- First native 4x 4K60Hz dock on the market!
- DisplayPort™ 2.1 Alt mode. Support RBR/HBR/HBR2/HBR3/UHBR10,UHBR13.5,UHBR20 data rates.
- Support max. 7680x4320/30Hz video output. Pixel format RGB,YCbCr4:4:4/4:2:2/4:2:0. HDR10+ and HDCP V1.4/V2.3.
- The USB-C® port close to the power switch supports max PD 30W(5V@3A,9V@3A,15@2A,[email protected]) charging for USB-C® mobile phone and other devices.
- USB-A 5Gbps has 900mA.The rest of the USB ports supports 1.5A downstream charging.
- DisplayPort™ supports DP++ which enables to use a DP™ to HDMI™ adapters.
- Power Switch & Power indicator LED.
- Making full use of external 150W power, offering max 100W for connected PC/Laptop as well as max 30W downstream charging for connected USB-C® mobile devices.
- Ultra-fast 2.5G speed supported, offering an even more seamless and responsive internet experience.
- Widely Compatibility: compatible with all Thunderbolt™ and full-featured USB-C® laptops.
General
| Unit Calculated Weight | 1.1 kg |
| Unit Calculated Volume | 0.003276 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |

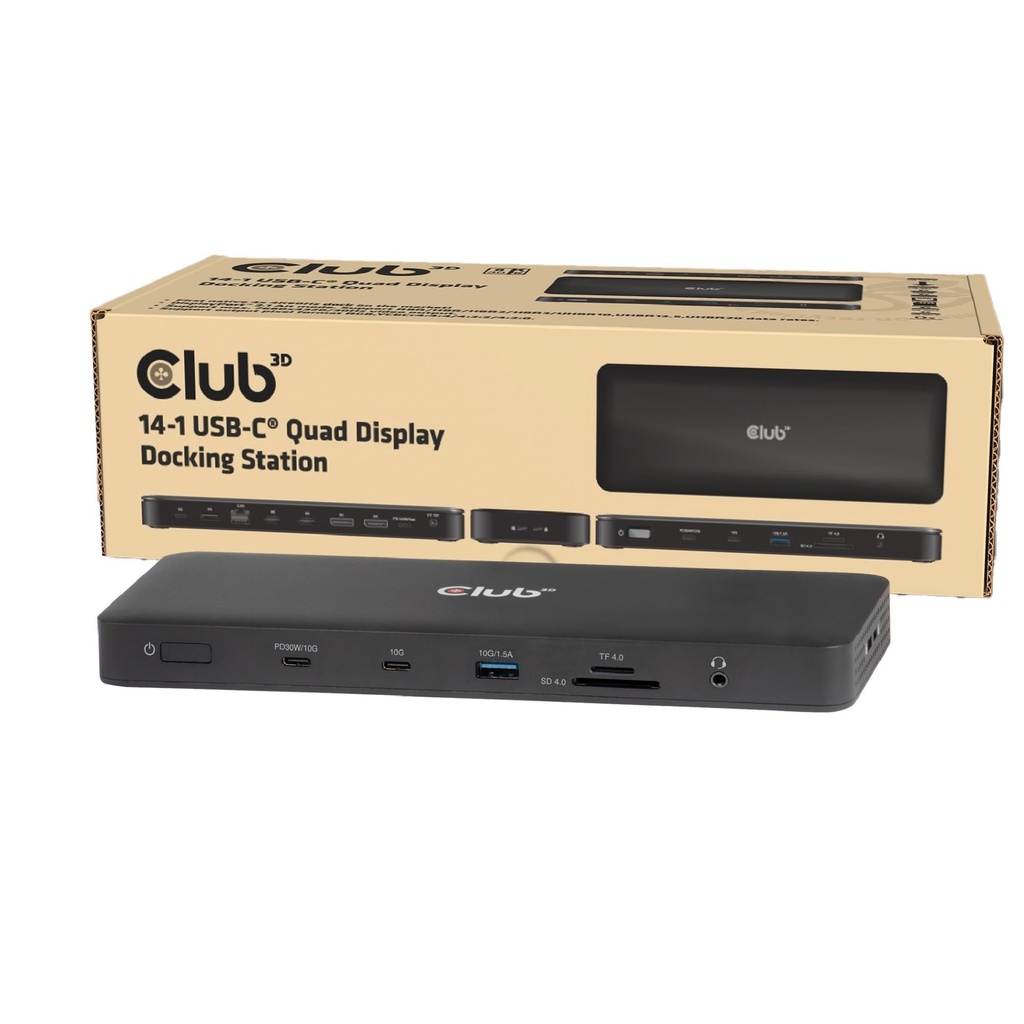

| Summary | CLUB3D 14-1 USB-C® Quad Display Docking Station. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), SD, HD type: 8K Ultra HD. Power source type: USB, Power connector: USB Type-C, USB cable length: 1 m. Windows operating systems supported: Windows 10, Windows 11 |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.28 |
| Unit Box Width | 0.09 |
| Model | CSV-2540 |

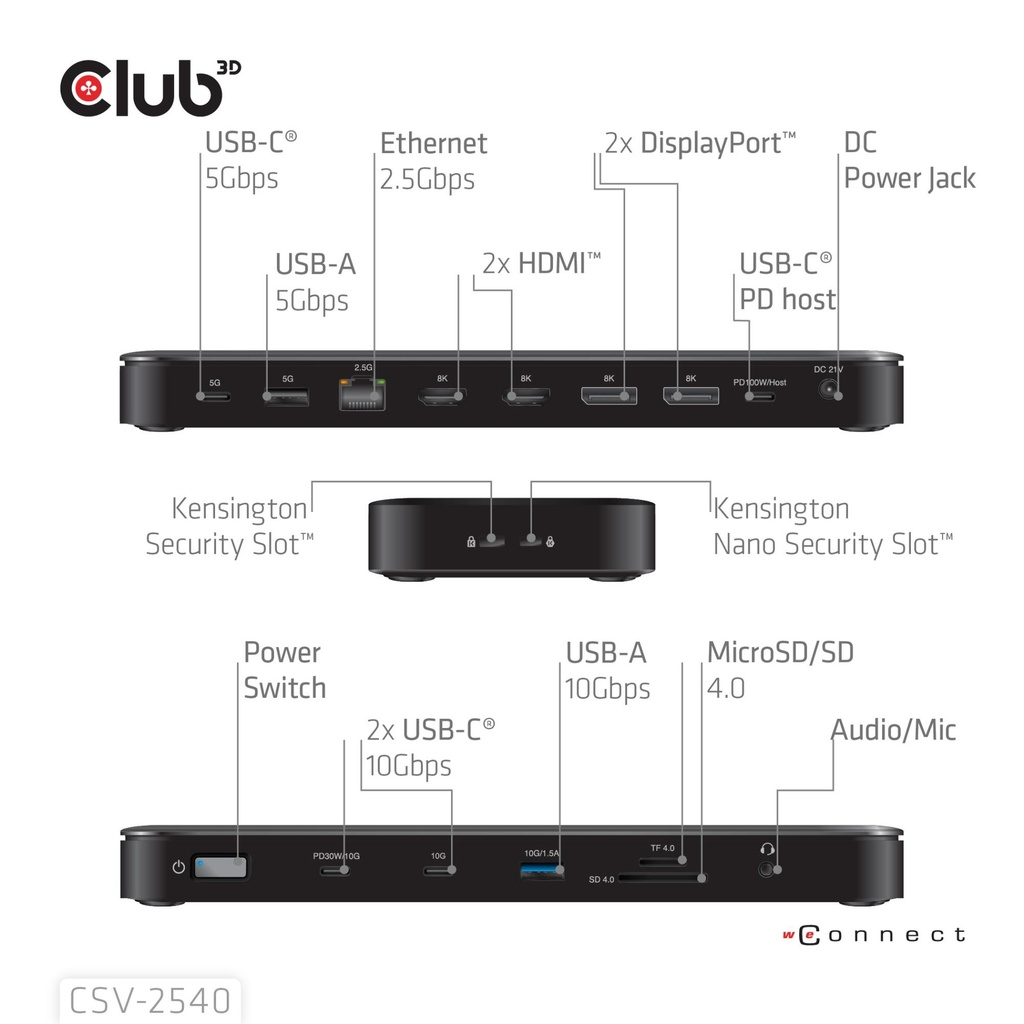

Ports & interfaces
| Connectivity technology | Docking |
| DisplayPorts quantity | 2 |
| HDCP | Yes |
| HDCP version | 1.4/2.3 |
| HDMI ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Number of USB ports with PowerShare support | 1 |
| USB 3.0 | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000/2500 Mbit/s |
Performance
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/SD |
| HD type | 8K Ultra HD |
| High Dynamic Range (HDR) supported | Yes |
| LED indicators | Yes |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
Power
| Power connector | USB Type-C |
| Power source type | USB |
| USB cable length | 1 m |
Software
| Windows operating systems supported | Windows 10/Windows 11 |
Weight & dimensions
| Weight | 361 g |
Packaging data
| Package depth | 125 mm |
| Package height | 770 mm |
| Package weight | 1160 g |
| Package width | 275 mm |
| Quantity per pack | 1 pc(s) |
Packaging composition
| Paper/cardboard packaging weight | 147 g |
| Plastic packaging weight | 4 g |
| Total paper/cardboard packaging weight | 735 g |
| Total plastic packaging weight | 20 g |
Logistics data
| Harmonized System (HS) code | 8473 3020 |
