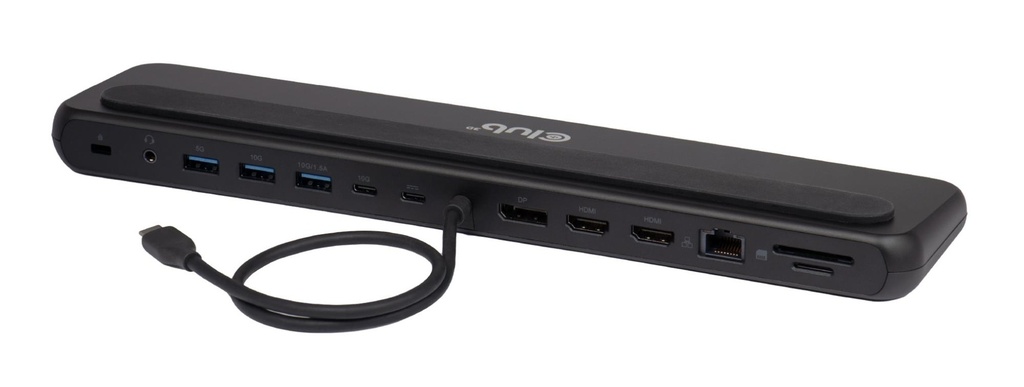

The CSV-2541 is a USB Type-C® 10Gbps 12-in-1 Triple Displays Docking Station with 2x HDMI™, 1x DisplayPort™, 1x USB Type-C® data port, 3x USB Type-A, RJ45, Card reader ,3.5mm audio port and USB Type-C® charging port, providing an ideal solution for extending the USB Type-C® or Thunderbolt host, especially for those host with a single USB Type-C® port. With bottom bracket design, it can be a stable stand for your laptops.
- • Ergonomic design: Place your laptop on the docking station, plug in USB-C® and enjoy better connectivity, thermal and cable management for your setup.
- • 1 GBASE-T GIGABIT ETHERNET: Features a 1Gbps network controller that delivers speeds of 10/100/1000 Mbps; For laptops / devices without an Ethernet.
- • 12 PORTS from one USB Type-C®: Expand the connectivity of a USB Type-C® computer by adding Four USB Ports (3x USB Type-A, 1x Type-C®) a Power Delivery 3.0 USB Type-C® Port Max. 100Watt upstream.
- • 2 dedicated Card reader slots MicroSD/SD supports SD3.0(UHS-I) with max 104Mbps, card slots work simultaneously.
General
| Unit Calculated Weight | 0.91 kg |
| Unit Calculated Volume | 0.003212 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | CLUB3D CSV-2541. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), SD, HD type: 8K Ultra HD. Power source type: USB, Power connector: USB Type-C. Windows operating systems supported: Windows 10, Windows 11 |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.365 |
| Unit Box Width | 0.08 |
| Model | CSV-2541 |
Ports & interfaces
| Connectivity technology | Docking |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDCP version | 1.4/2.3 |
| HDMI ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.0 | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
Performance
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/SD |
| HD type | 8K Ultra HD |
| High Dynamic Range (HDR) supported | Yes |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
Power
| Power connector | USB Type-C |
| Power source type | USB |
Software
| Windows operating systems supported | Windows 10/Windows 11 |
Weight & dimensions
| Weight | 438 g |
Packaging data
| Package depth | 106 mm |
| Package height | 75 mm |
| Package weight | 950 g |
| Package width | 368 mm |
| Quantity per pack | 1 pc(s) |
Packaging composition
| Paper/cardboard packaging weight | 239 g |
| Plastic packaging weight | 6 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Logistics data
| Harmonized System (HS) code | 8473 3020 |
