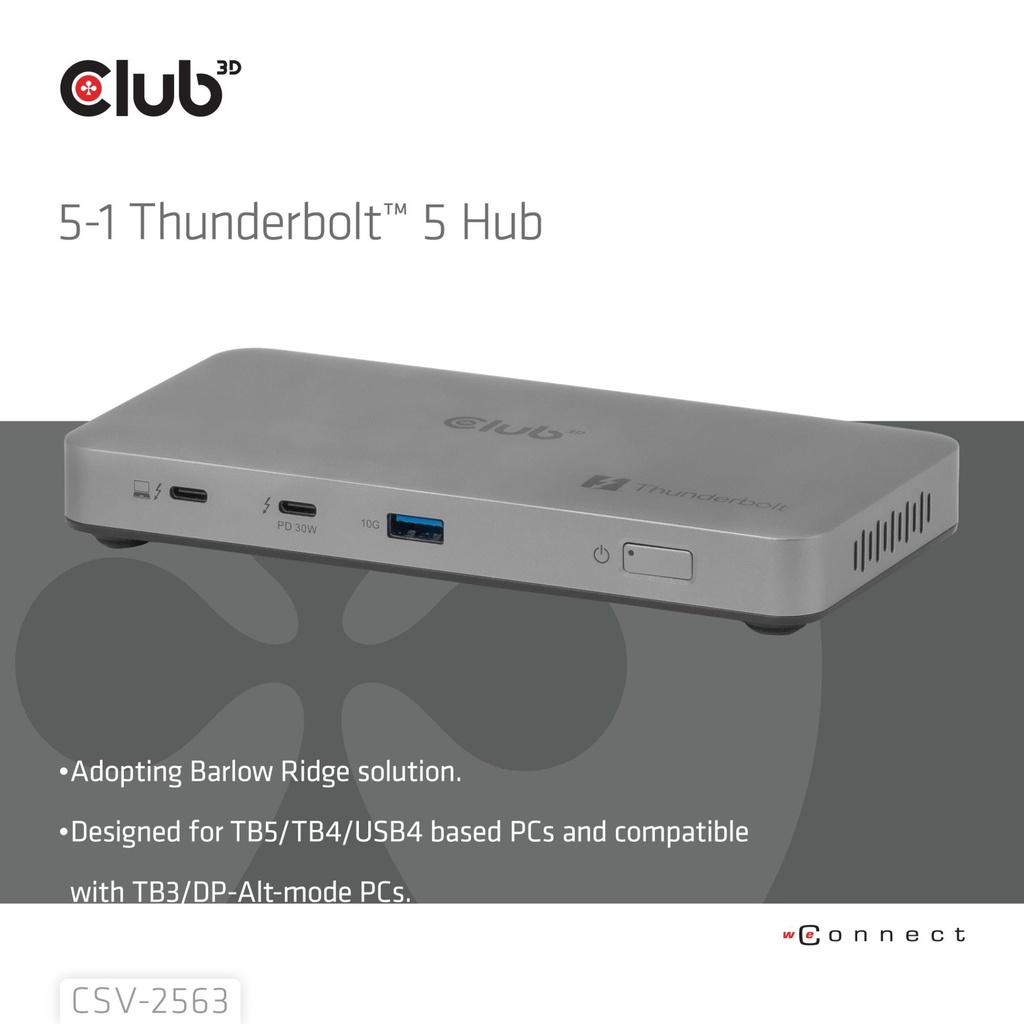

The Club 3D CSV-2563 is a Certified Thunderbolt™ 5 portable Hub which provides the most advanced, efficient, and versatile I/O solution available with up to 80Gbps or 120Gbps for data and video.
- • CERTIFIED THUNDERBOLT™ 5 HUB – Our first TB5 device, fully certified for guaranteed compatibility and peak performance.
- • POWER YOUR WHOLE SETUP – Delivers 100W to your laptop + 30W to phones/tablets via two front-facing USB-C® ports (no extra chargers needed).
- • THUNDERBOLT™ SHARE INCLUDED – Comes with a Thunderbolt™ Share license to connect two computers directly for seamless file transfer and display control.
General
| Unit Calculated Weight | 1.18 kg |
| Unit Calculated Volume | 0.00231 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | CLUB3D CSV-2563 5-1 Thunderbolt™ 5 Hub Triple video 5K60Hz Thunderbolt™ Share Certifi ed 180W. Host interface: Thunderbolt 5, USB Power Delivery up to: 100 W. Product colour: Silver, Maximum refresh rate: 60 Hz, Hub interfaces: Thunderbolt 5, USB 3.2 Gen 2 (3.1 Gen 2) Type-A. Power supply: 180 W, Power supply type: DC. Width: 170 mm, Depth: 85 mm, Height: 22 mm. Quantity per pack: 1 pc(s), Package width: 220 mm, Package depth: 150 mm |
| Unit Box Height | 0.15 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.07 |
| Model | CSV-2563 |
Ports & interfaces

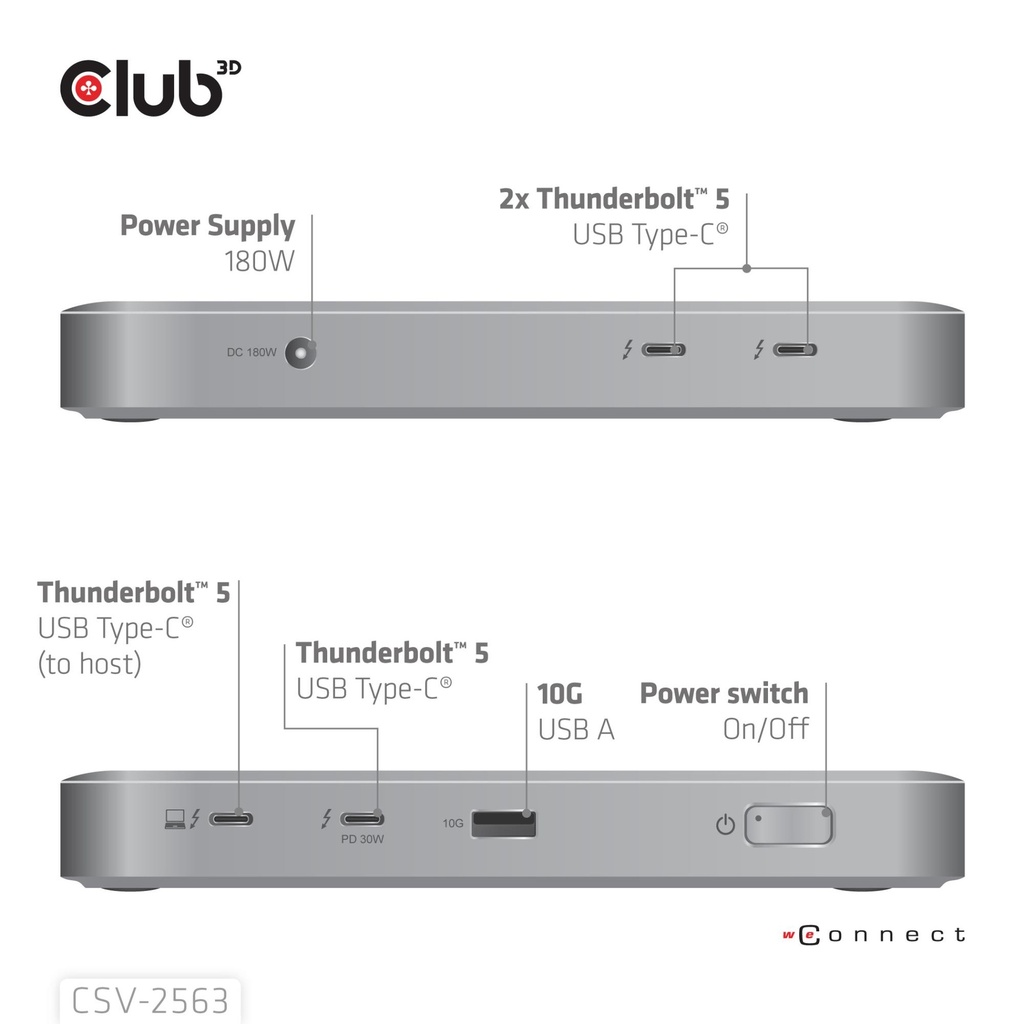

| DC-in jack | Yes |
| Host interface | Thunderbolt 5 |
| USB 3.0 | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
Performance
| Card reader integrated | No |
| Hub interfaces | Thunderbolt 5/USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| Maximum refresh rate | 60 Hz |
| Plug and Play | Yes |
| Product colour | Silver |
Power
| Power supply | 180 W |
| Power supply type | DC |

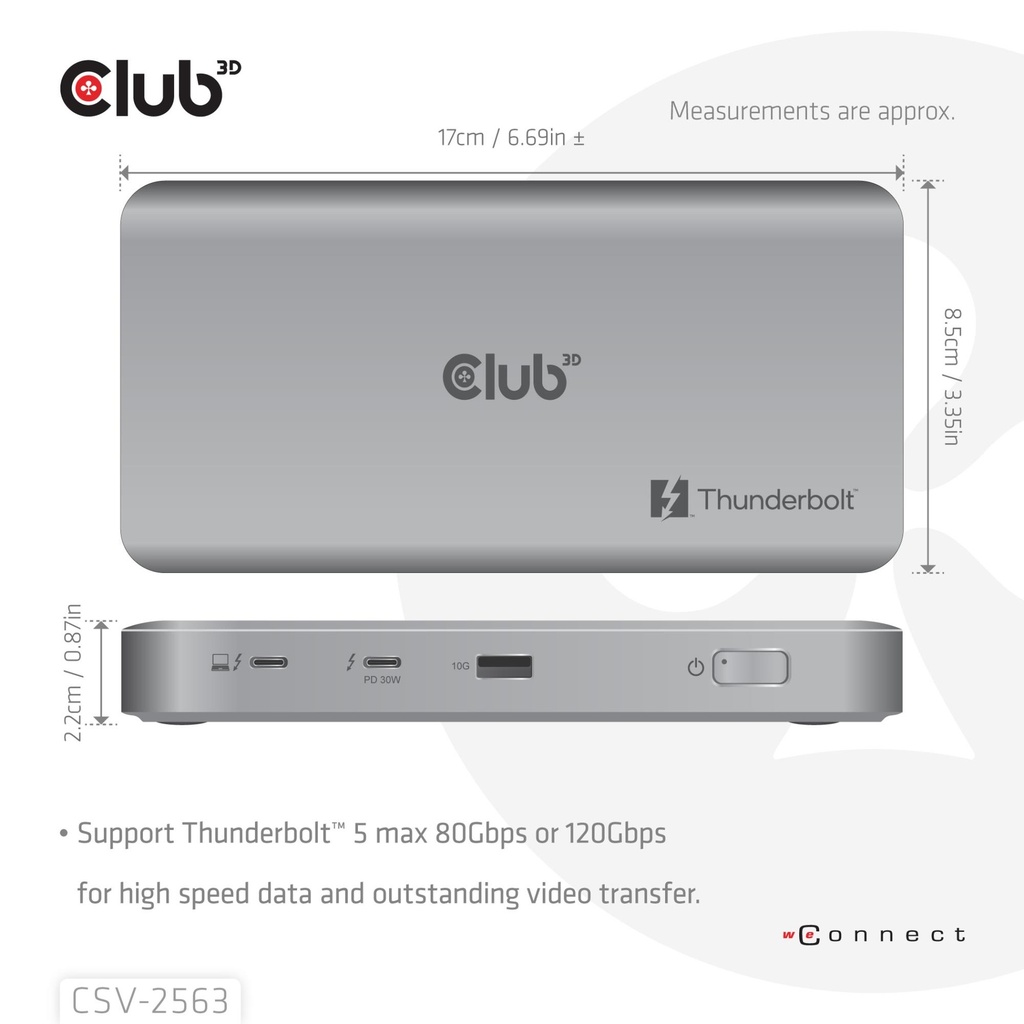

Weight & dimensions
| Depth | 85 mm |
| Height | 22 mm |
| Weight | 153 g |
| Width | 170 mm |
Packaging data
| Package depth | 150 mm |
| Package height | 70 mm |
| Package weight | 911 g |
| Package width | 220 mm |
| Quantity per pack | 1 pc(s) |
Packaging content

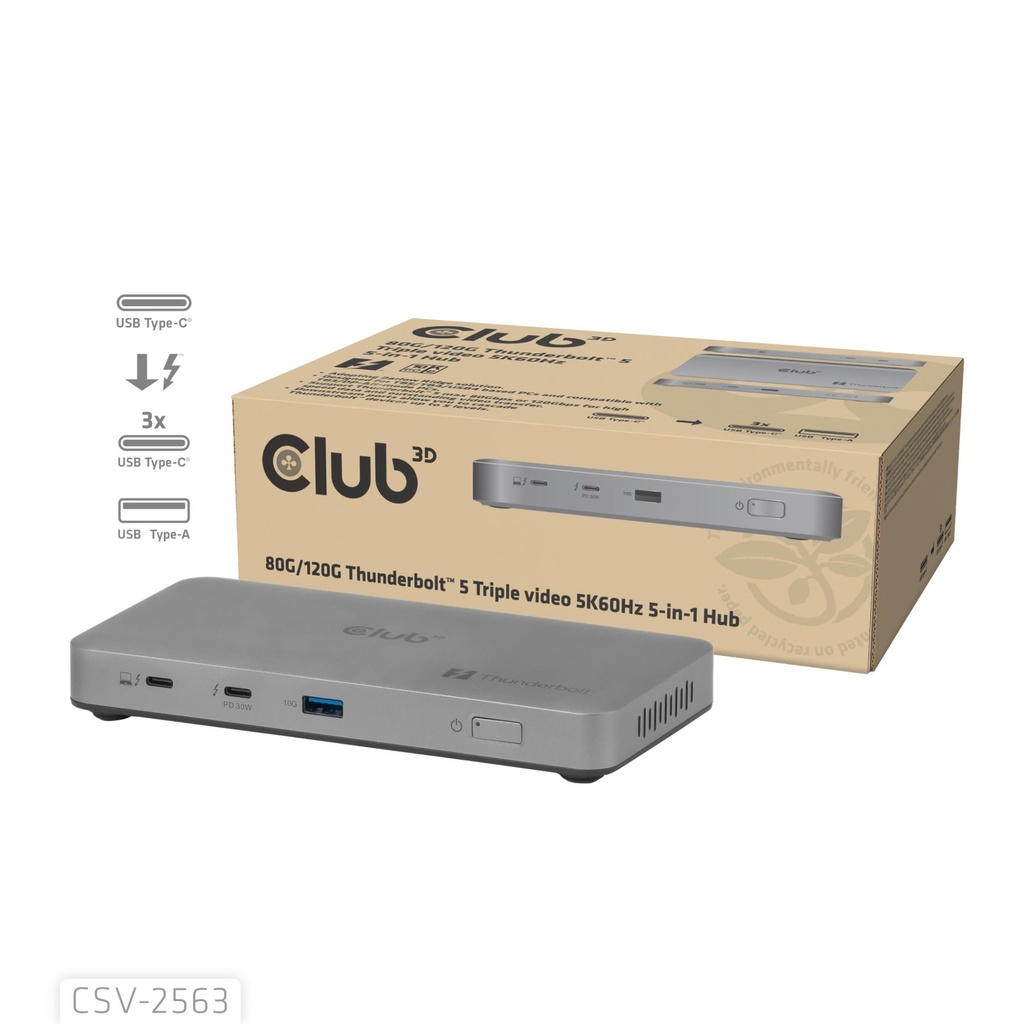

| Cables included | Thunderbolt |
Packaging composition
| Paper/cardboard packaging weight | 126 g |
| Plastic packaging weight | 3 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Technical details
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
Logistics data
| Harmonized System (HS) code | 8473 3020 |
