SenseVision USB 3.0 Dual Display Docking Station
The USB 3.0 dual display docking station is designed for extra connectivity demands. With the docking station, you can extend the connection of a computer to more USB peripherals, Ethernet network, the speaker and the microphone through one single USB cable.
With the built-in USB 3.0 ports, the docking station enables you to enjoy the super speed data transmission between USB peripherals. Aside from USB 3.0, this product is compliant with USB 1.1/2.0 specification. You will be able to keep and use your USB 1.1/2.0 devices as usual.
In addition, the docking station is equipped with video output. With the DVI and HDMI ports, you can mirror your primary screen, or extend the Window desktop allowing visibility of more applications at the same time. Enhanced expansion capability plus the stylish appearance, this docking station with video is the most versatile accessory that also complements your home or office space.
*Incorporates HDMI® technology.
- Supports Dual Display at Full HD

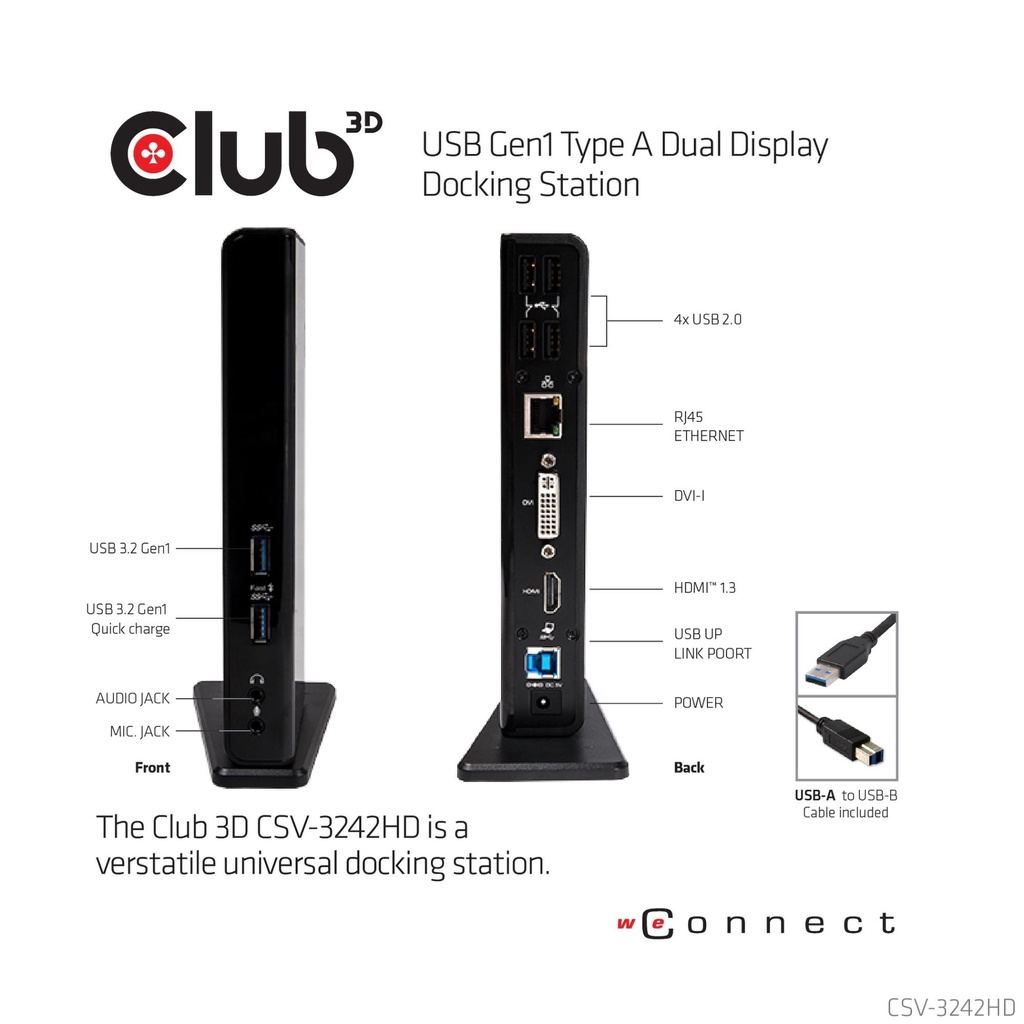

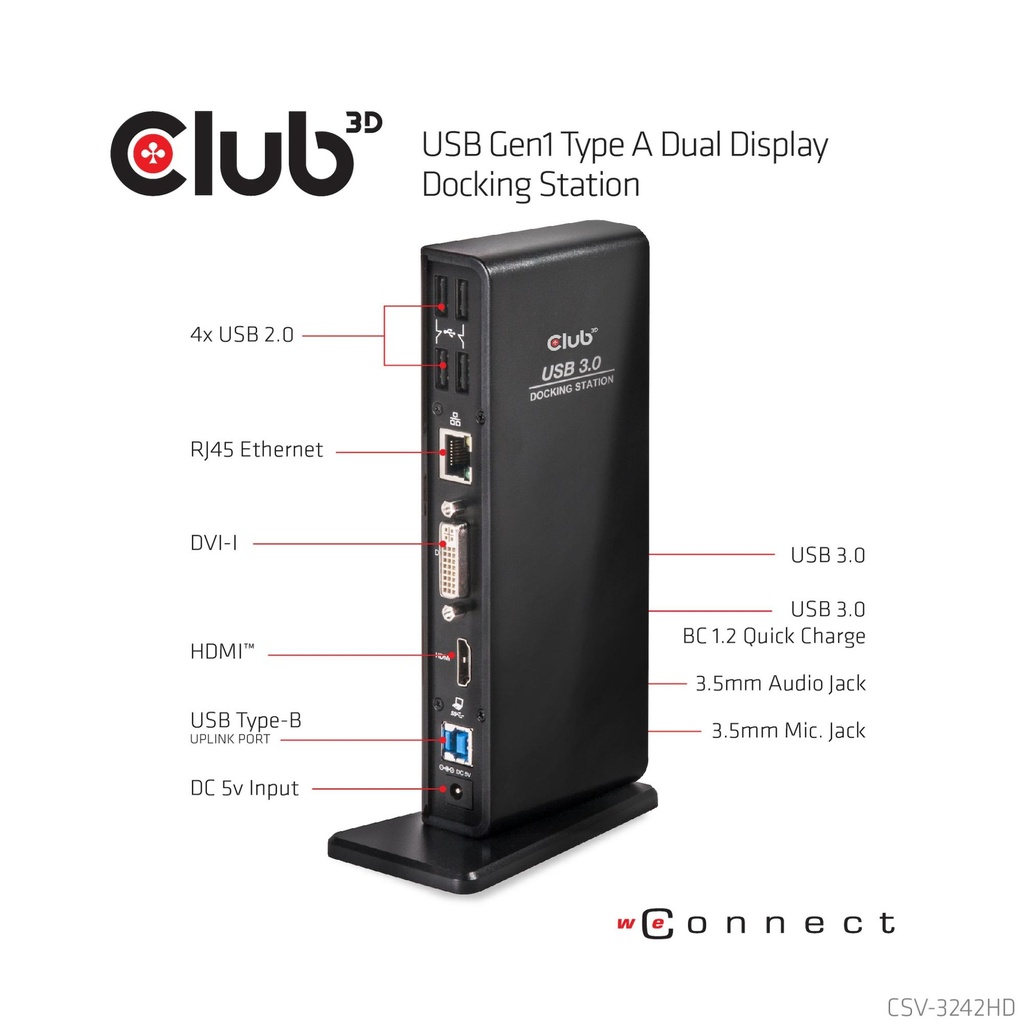

- 6 x USB, RJ45, Audio, Mic, DVI, HDMI
- Fast Battery Charge 1.2 for Smart Phone
General
| Unit Calculated Weight | 0.7 kg |
| Unit Calculated Volume | 0.002887 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | CLUB3D USB Gen1 Type A Dual Display ( HDMI and DVI) DisplayLink™ Docking Station. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, HDMI version: 1.4a. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, LED indicators: Activity, Operation, Compatibility: Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer. Power source type: AC. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10... |
| Unit Box Height | 0.125 |
| Unit Box Length | 0.21 |
| Unit Box Width | 0.11 |
| Model | CSV-3242HD |
Ports & interfaces
| Connectivity technology | Wired |
| DC-in jack | Yes |
| DVI-I ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Line-out | Yes |
| Microphone in | Yes |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB connector type | USB Type-B |
Network
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
Performance
| Card reader integrated | No |
| Certification | CE, RoHS, FCC |
| Charging function | Yes |
| Compatibility | Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer |
| LED indicators | Activity/Operation |
| Plug and Play | Yes |
| Product colour | Black |
| Reset button | No |
Power
| Power source type | AC |
Software
| Windows operating systems supported | Windo/Windows 10/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 Pro/Windows 10 Pro x64/Windows 2000/Windows 8.1/Windows 8.1 Enterprise/Windows 8.1 Enterprise x64 |
Weight & dimensions
| Depth | 33 mm |
| Height | 183 mm |
| Weight | 220 g |
| Width | 77 mm |
Packaging content
| AC adapter included | Yes |
| Cables included | USB |
| Quick start guide | Yes |
Packaging composition
| Paper/cardboard packaging weight | 317 g |
| Plastic packaging weight | 50 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Technical details
| Compliance certificates | RoHS |
Logistics data
| Harmonized System (HS) code | 8473 3020 |
Other features
| Number of microphone inputs | 1 |
