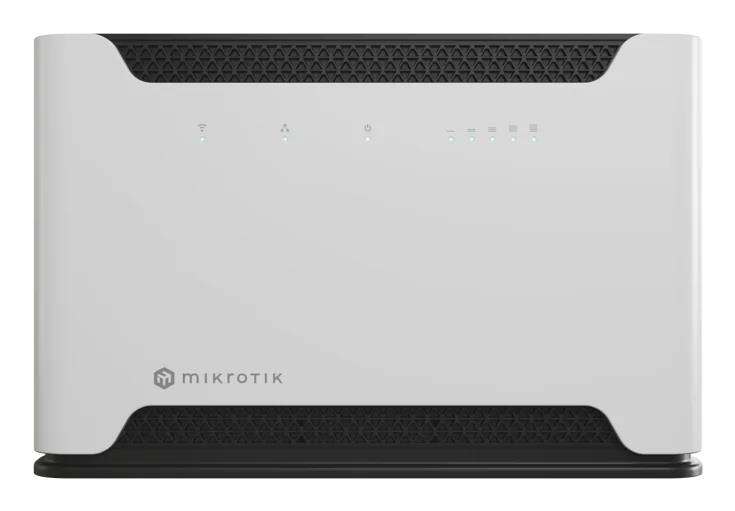

Mikrotik Chateau LTE7 (5HACD2HNDTC&R11E-LTE7)
Our most versatile home router, featuring the new CAT7 modem and a speedy quad-core CPU for all your household network security and management tasks. Dual-band, dual-chain Wi-Fi, 5x Gigabit ports, and full RouterOS v7 features – all at a significantly lower price than the previous LTE6 version.Perfect for secure VPN work, home offices, or small business networks that care about both function and aesthetics.
- ARM
- LTE Cat7
- Dual-band
- Quad-core CPU
- ROS v7
General
| Unit Calculated Weight | 0.945 kg |
| Unit Calculated Volume | 0.003672 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Summary | Mikrotik Chateau LTE7. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1167 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet. Mobile network generation: 4G, 4G standard: LTE-TDD & LTE-FDD, 4G bands supported: 700,800,850,900,1800,2100,2300,2500,2600 MHz. Product colour: Black, White. Certification: CE, EAC, ROHS |
| CnCode | 85176200 |
| Unit Box Height | 0.056 |
| Unit Box Length | 0.33 |
| Unit Box Width | 0.16 |
| Model name | Mikrotik Chateau LTE7 (5HACD2HNDTC&R11E-LTE7) |
| Model | D53G-5HacD2HnD-TC&R11e-LTE7 |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (max) | 1167 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | Yes |
| Ethernet WAN | Yes |
| SIM card slot | Yes |
Network
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
Mobile network
| 3G bands supported | 1800/2100/850/900 MHz |
| 4G bands supported | 1800/2100/2300/2500/2600/700/800/850/900 MHz |
| 4G standard | LTE-TDD & LTE-FDD |
| Mobile network generation | 4G |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB charging port | Yes |
| USB port | Yes |
Design
| Product colour | Black/White |
Certificates
| Certification | CE, EAC, ROHS |
Antenna
| Antenna design | Internal |
Features
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 256 MB |
| Mean time between failures (MTBF) | 200000 h |
| Processor cores | 4 |
| Processor frequency | 896 MHz |
Power
| Output voltage | 18 - 28 V |
| Power consumption (typical) | 20 W |
| Power source type | DC |
Operational conditions
| Operating temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 44 mm |
| Height | 156 mm |
| Width | 240 mm |
