Superior Mesh WiFi, Everywhere.

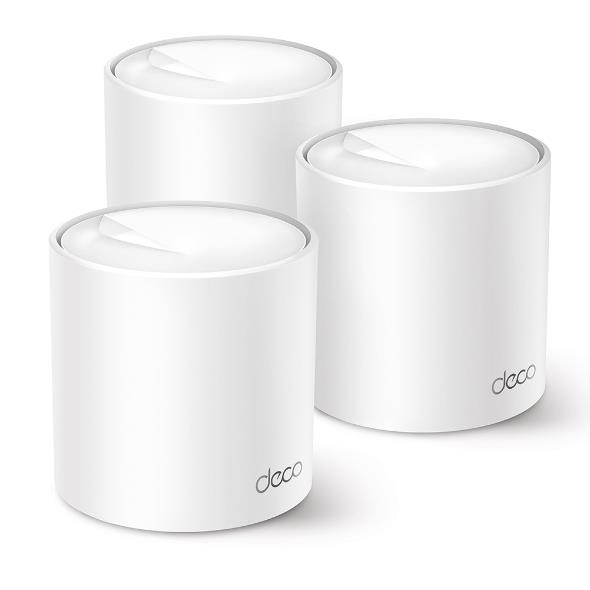

AX3000 Whole Home Mesh WiFi 6 System
- Superb Wired and Wireless Connectivity
Enjoy smooth 4K streaming, online gaming, and video calls throughout your home. Get super-fast WiFi 6 with speeds of up to 3.0 Gbps and 3 x Gigabit Ethernet ports providing wired warp speeds.
- Superior WiFi Performance
Deco X50 features higher WiFi speeds, larger device capacity, and nearly no lag with broader HE160 channel bandwidth.
- AX3000 Dual Band WiFi - Super-fast WiFi 6 with speeds up to 3.0 Gbps

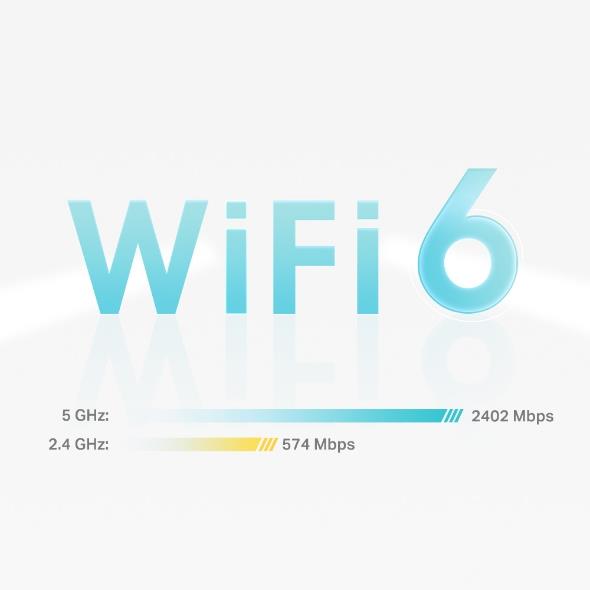

- 4 Streams, Less Lag - 2×2/HE160 2402 Mbps + 2×2 574 Mbps
- Gigabit Wired Speed - 3× Gigabit ports provide sufficient connectivity

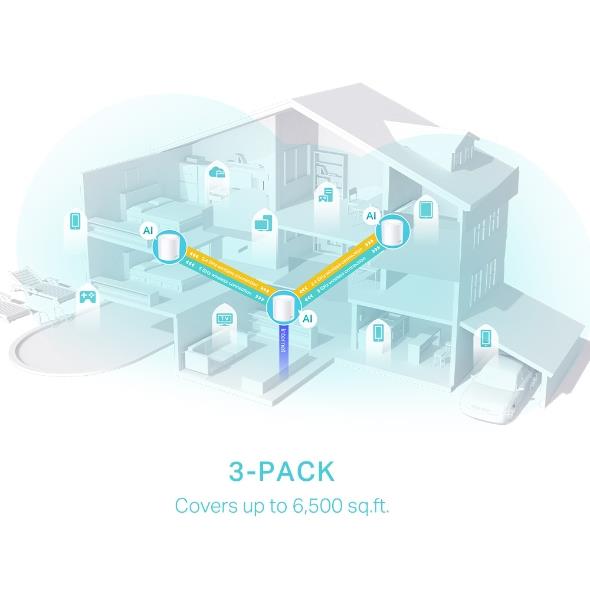

- Boosted Seamless Coverage - Seamless mesh WiFi coverage up to 6,500 ft2 (3-pack)
- TP-Link HomeShield - Provides comprehensive network protection, robust parental controls, and real-time IoT protection
General
| Unit Calculated Weight | 2.66 kg |
| Unit Calculated Volume | 0.01561 cubm |
| Units per Shipping Box | 4 |
| Units per Pallet | 0 |
| Summary | TP-Link AX3000 Whole Home Mesh WiFi 6 System, 3-Pack. Product colour: White, Antenna type: Internal, Transmit power: CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz). Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Processor frequency: 1 GHz, Firewall security: SPI, Parental control features: Custom profiles, Time controls, Weekly/monthly reports. AC adapter output voltage: 12 V, AC adapter output current: 1.5 A. Compliance certificates: CE, RoHS |
| Unit Box Height | 0.125 |
| Unit Box Length | 0.37 |
| Unit Box Width | 0.28 |
| Model | Deco X50 |
Design
| Antenna type | Internal |
| Antennas quantity | 2 |
| Product colour | White |
| Reset button | Yes |
| Transmit power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) dBmW |
Wireless LAN features
| Dynamic DNS (DDNS) | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Security algorithms | WPA2-PSK/WPA3-PSK/WPA-PSK |
| Tagged VLAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
Features
| BeamForming | Yes |
| Built-in processor | Yes |
| DHCP client | Yes |
| Firewall security | SPI |
| Firmware upgradeable via | Network |
| MU-MIMO technology | Yes |
| Parental control | Yes |
| Parental control features | Custom profiles,Time controls,Weekly/monthly reports |
| Port forwarding | Yes |
| Processor cores | 2 |
| Processor frequency | 1 GHz |
| Quality of Service (QoS) support | Yes |
| Universal Plug and Play (UPnP) | Yes |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
Power
| AC adapter output current | 1.5 A |
| AC adapter output voltage | 12 V |
Certificates
| Compliance certificates | CE/RoHS |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 110 mm |
| Height | 114 mm |
| Width | 110 mm |
Packaging content
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Number of products included | 3 pc(s) |
| Number of units included | 3 pc(s) |
Packaging data
| Package depth | 276.5 mm |
| Package height | 125 mm |
| Package weight | 2180 g |
| Package width | 369 mm |
Logistics data
| Harmonized System (HS) code | 85171800 |
