- Comes with a wide voltage input range of 170–280 VAC, and easily adapts to fluctuations and various grid environments
- Operates quietly for a serene environment
- Offers digital voltage stabilization and automatically adjusts the voltage
- Fast charging in just 4 hours
- Rapid switching of 4-8 milliseconds
- Protects against overload, short circuit, overcharging, and over-discharge
General
| Unit Calculated Weight | 11.5 kg |
| Unit Calculated Volume | 0.02897 cubm |
| Units per Shipping Box | 2 |
| Units per Pallet | 0 |

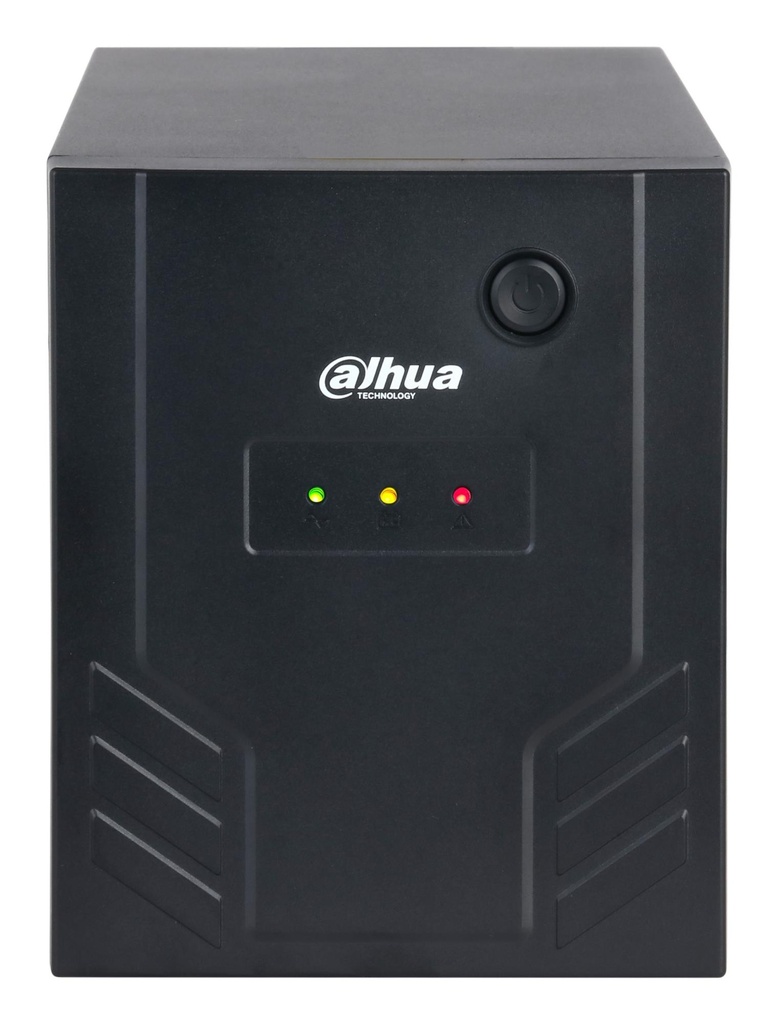

| Summary | Dahua Technology PFM3350-1500. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 900 W. AC outlets quantity: 4 AC outlet(s). Battery technology: Lead-Acid, Battery capacity: 7 Ah, Battery voltage: 13.7 V. Product colour: Black, Housing material: Metal, Plastic, Cable length: 1.2 m. Compliance certificates: CE |
| Unit Box Height | 0.255 |
| Unit Box Length | 0.47 |
| Unit Box Width | 0.2 |
Features
| Audible alarm modes | Alarm when on battery,Battery replacement,Fault,Low battery alarm,Overload alarm |
| Audible alarm(s) | Yes |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 280 V |
| Input operation voltage (min) | 170 V |
| Maximum current | 7.2 A |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 230 V |
| Output power | 900 W |
| Output power capacity | 1.5 kVA |
| Power factor | 0.6 |
| Power protection features | Overcharge/Overdischarge/Overload |
| Response time | 4 ms |
| UPS topology | Line-Interactive |
| Waveform | Sine/Pure sine |
Ports & interfaces

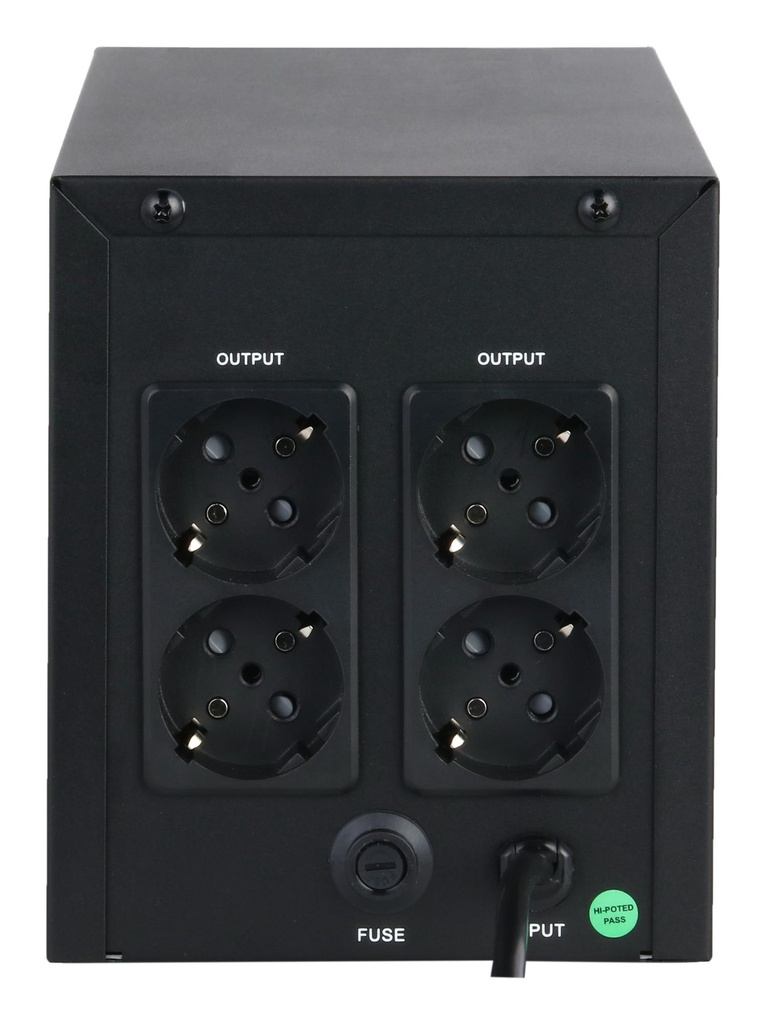

| AC outlets quantity | 4 AC outlet(s) |
Battery
| Battery capacity | 7 Ah |
| Battery recharge time | 4 h |
| Battery technology | Lead-Acid |
| Battery voltage | 13.7 V |
| Charging current | 1 A |
| Number of batteries included | 2 pc(s) |
Design
| Built-in fan | Yes |
| Cable length | 1.2 m |
| Control type | Buttons |
| Housing material | Metal,Plastic |
| LED indicators | Fault/Power |
| Product colour | Black |
Operational conditions
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 90 % |
| Storage temperature (T-T) | -15 - 55 °C |
Certificates
| Compliance certificates | CE |
Packaging content
| Manual | Yes |
Weight & dimensions
| Depth | 374.5 mm |
| Height | 166.5 mm |
| Weight | 11400 g |
| Width | 138.4 mm |
Packaging data
| Package depth | 470 mm |
| Package height | 255 mm |
| Package weight | 11800 g |
| Package width | 195 mm |
